N5900B
N5900B

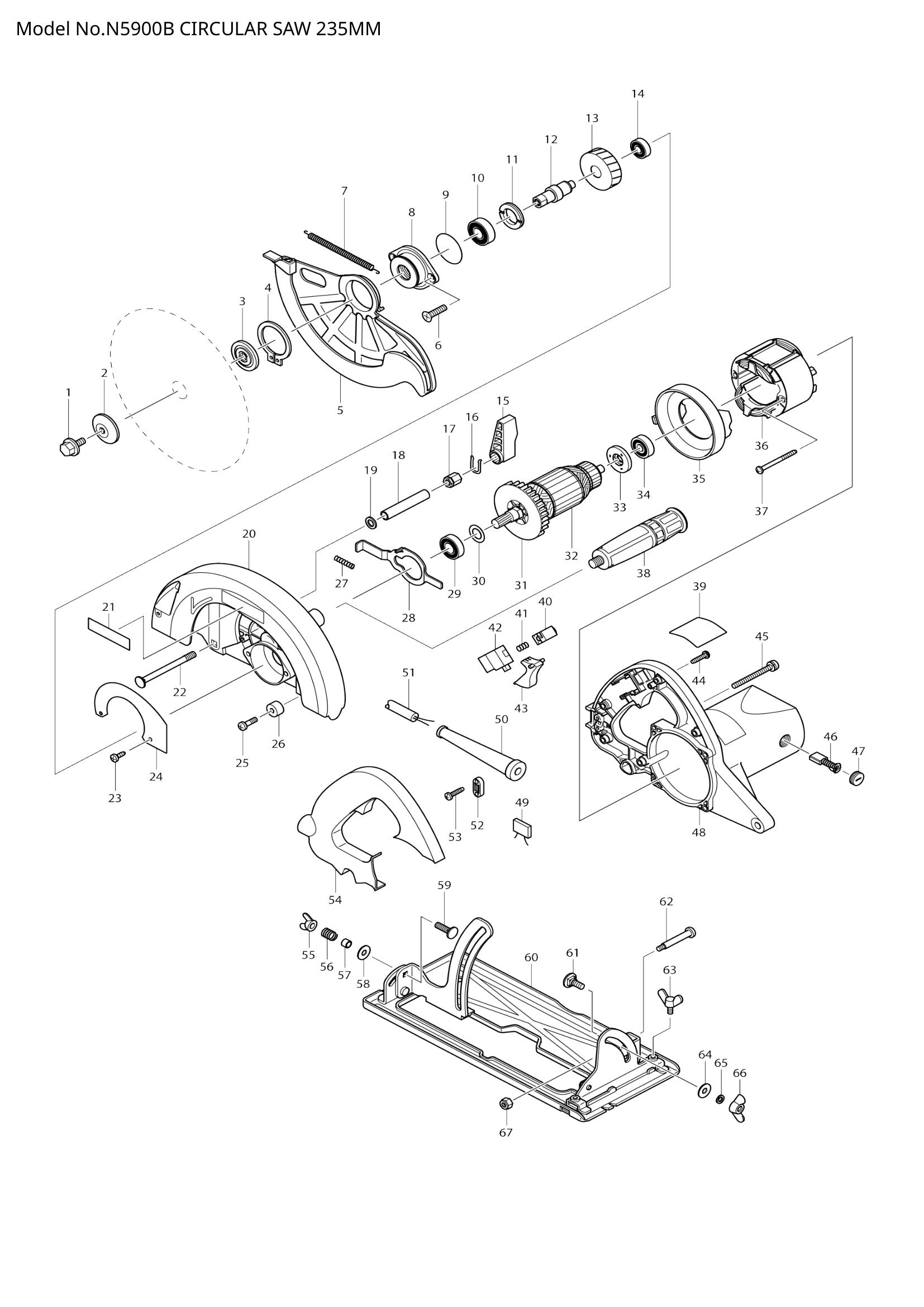

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 251644-1 | HEX. FLANGE HEAD BOLT M8X20 | 1 | €1.11 | 1-4 weeks to ship | |
| 002 | 224301-4 | OUTER FLANGE 42 | 1 | €2.78 | 1-4 weeks to ship | |
| 004 | 961202-2 | RETAINING RING S-45 | 1 | €0.83 | 1-4 weeks to ship | |
| 006 | 265031-8 | + COUNTERSUNK HEAD SCREW | 2 | €0.56 | 1-4 weeks to ship | |
| 009 | 213560-5 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 285809-3 | BEARING RETAINER 23-36 | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | 323955-5 | SPINDLE | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 226523-2 | HELICAL GEAR 39 | 1 | €8.35 | 1-4 weeks to ship | |
| 015 | 272230-5 | LEVER 54 | 1 | €0.83 | 1-4 weeks to ship | |
| 016 | 231955-0 | RING SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 252134-7 | HEX. NUT M8 | 1 | €1.67 | 1-4 weeks to ship | |
| 018 | 331568-8 | PIPE 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 266237-1 | CAP SQUARE NECK BOLT M8X90 | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 027 | 233264-3 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 344844-1 | SHAFT LOCK | 1 | €0.83 | 1-4 weeks to ship | |
| 030 | 267164-5 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 035 | 417114-2 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 596208-7 | FIELD ASS'Y 220V | 1 | €30.61 | 1-4 weeks to ship | |
| 039 | NAME PLATE N5900B | 1 | Not available in store | |||
| 040 | 417117-6 | LOCK-OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 041 | 233284-7 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 651984-1 | SWITCH TG71B-2 | 1 | €11.13 | 1-4 weeks to ship | |
| 043 | 417115-0 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 911273-9 | PAN HEAD SCREW M5X50 | 4 | €0.56 | 1-4 weeks to ship | |
| 911273-9 | PAN HEAD SCREW M5X50 | 4 | €0.56 | 1-4 weeks to ship | ||
| 049 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 054 | 417118-4 | HANDLE COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 055 | 934301-3 | WING NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 934301-3 | WING NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 056 | 231139-0 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | 257669-3 | SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 253047-5 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 251919-8 | CAP SQUARE NECK BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 168389-3 | BASE | 1 | €19.48 | 1-4 weeks to ship | |
| 061 | 266330-1 | FLAT HEAD SQ. NECK BOLT M6X1 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 251221-9 | + PAN HEAD SCREW M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 924306-1 | WING BOLT M6X10 | 1 | €1.11 | 1-4 weeks to ship | |
| 064 | 253047-5 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 934301-3 | WING NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 934301-3 | WING NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 067 | 252014-7 | HEX. LOCK NUT M6-10 | 1 | €0.56 | 1-4 weeks to ship | |
