MT953
MT953

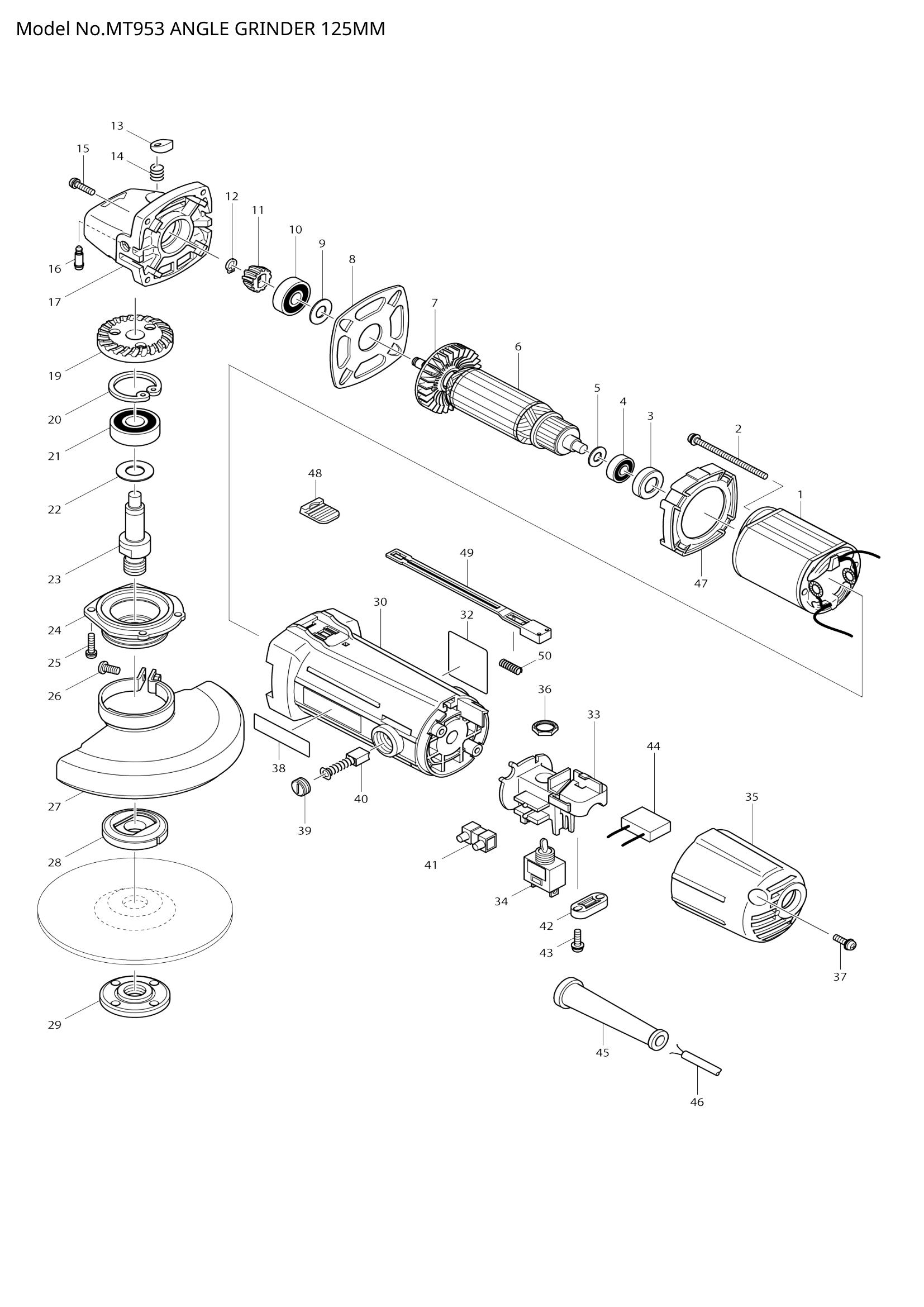

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 593523-0 | FIELD ASS'Y 220-240V | 1 | €15.45 | 1-4 weeks to ship | |
| 002 | 266325-4 | TAPPING SCREW 4X70 | 2 | €0.56 | 1-4 weeks to ship | |
| 003 | 421808-3 | RUBBER RING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | FAN 50 | 1 | Not available in store | |||
| 008 | 285704-7 | BEARING RETAINER 69 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 267256-0 | FLAT WASHER 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 010 | 210067-2 | BALL BEARING 6000ZZ | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 227451-4 | SPIRAL BEVEL GEAR 11 | 1 | €5.57 | 1-4 weeks to ship | |
| 012 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 417771-6 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 233376-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 266324-6 | TAPPING SCREW 4X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 017 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 019 | 227452-2 | SPIRAL BEVEL GEAR 36 | 1 | €5.57 | 1-4 weeks to ship | |
| 020 | 962151-6 | RETAINING RING R-32 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 022 | 267238-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 324372-2 | SPINDLE | 1 | €5.57 | 1-4 weeks to ship | |
| 025 | 265100-5 | PAN HEAD SCREW M4X16 | 4 | €0.83 | 1-4 weeks to ship | |
| 032 | NAME PLATE MT953 | 1 | Not available in store | |||
| 033 | 418397-7 | SUPPORT | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | 651424-9 | SWITCH STL106AT | 1 | €2.78 | 1-4 weeks to ship | |
| 035 | REAR COVER | 1 | Not available in store | |||
| 036 | 652112-1 | HEX. NUT | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 038 | MAKTEC LOGO LABEL | 1 | Not available in store | |||
| 039 | 643987-9 | BRUSH HOLDER CAP 5-8 | 2 | €0.56 | 1-4 weeks to ship | |
| 042 | 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687123-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 044 | 645190-8 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 682569-2 | CORD GUARD 8-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 666053-5 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | €4.17 | 1-4 weeks to ship | |
| 047 | 418015-7 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 418016-5 | SWITCH KNOB | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 418017-3 | SWITCH LEVER | 1 | €2.09 | 1-4 weeks to ship | |
| 050 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
