6797FD
6797FD

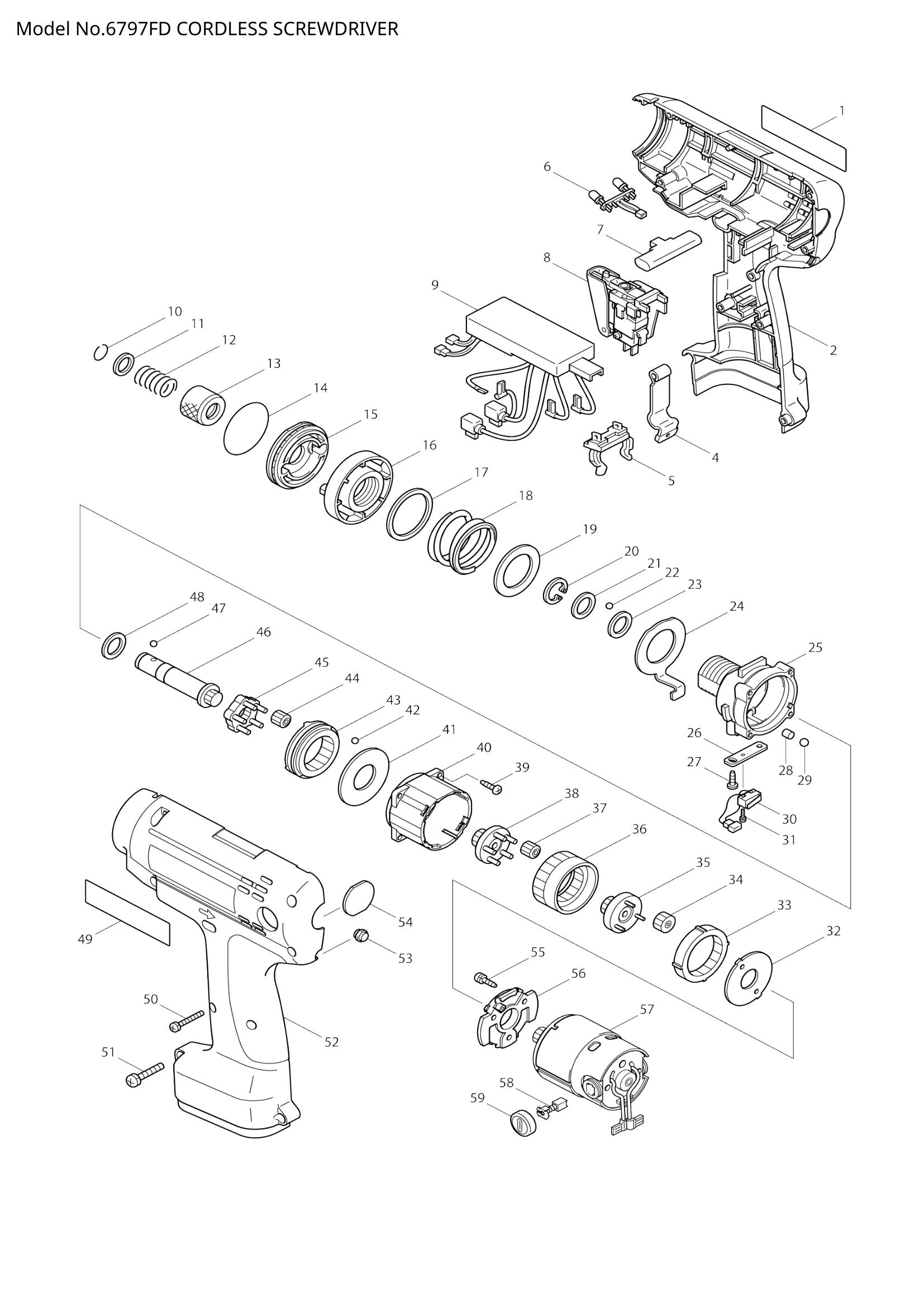

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 6797FDGZ NAME PLATE | 1 | Not available in store | |||
| 852966-8 | NAME PLATE 6797FD | 1 | €2.09 | 1-4 weeks to ship | ||
| 002 | 183321-6 | HOUSING SET | 1 | €55.66 | 1-4 weeks to ship | |
| 004 | SET PLATE | 1 | Not available in store | |||
| 005 | 643918-8 | BATTERY HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 643918-8 | BATTERY HOLDER | 1 | €4.17 | 1-4 weeks to ship | ||
| 006 | LED CIRCUIT COMPLETE | 1 | Not available in store | |||
| 007 | 417511-2 | F/R CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 651999-8 | SWITCH C3Z-5 | 1 | €41.75 | 1-4 weeks to ship | |
| 009 | CONTROLLER | 1 | Not available in store | |||
| 631437-6 | CONTROLLER | 1 | €125.24 | 1-4 weeks to ship | ||
| 010 | 231965-7 | RING SPRING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 267143-3 | FLAT WASHER 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 162218-2 | SLEEVE | 1 | €11.13 | 1-4 weeks to ship | |
| 014 | 213510-0 | O RING 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 417510-4 | FRONT COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 016 | 417619-2 | SPRING HOLDER | 1 | €8.35 | 1-4 weeks to ship | |
| 017 | 253356-2 | THIN WASHER 30 | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | 233312-8 | COMPRESSION SPRING 30 | 1 | €8.35 | 1-4 weeks to ship | |
| 019 | 253355-4 | THIN WASHER 24 | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | 961072-9 | RETAINING RING S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 216019-1 | STEEL BALL 3 | 16 | €0.56 | 1-4 weeks to ship | |
| 023 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 344969-1 | TORQUE-UP PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 025 | 152835-6 | GEAR CASE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 026 | 344968-3 | HOLDER PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 268068-4 | PIN 5 | 3 | €0.56 | 1-4 weeks to ship | |
| 029 | 216018-3 | STEEL BALL 5.0 | 3 | €0.56 | 1-4 weeks to ship | |
| 032 | 267738-2 | LOCK WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 226352-3 | INTERNAL GEAR 49 | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | 226351-5 | SPUR GEAR 17 | 3 | €0.56 | 1-4 weeks to ship | |
| 035 | 152833-0 | SPUR GEAR 15 COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 036 | 227015-4 | INTERNAL GEAR 35 | 1 | €5.57 | 1-4 weeks to ship | |
| 037 | 226311-7 | SPUR GEAR 10 | 5 | €0.56 | 1-4 weeks to ship | |
| 038 | 152834-8 | SPUR GEAR 15 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 039 | 265893-4 | TAPPING SCREW 3X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 040 | 416588-4 | GEAR CASE A | 1 | €1.39 | 1-4 weeks to ship | |
| 041 | 267225-1 | FLAT WASHER 18 | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 216019-1 | STEEL BALL 3 | 38 | €0.56 | 1-4 weeks to ship | |
| 043 | 227014-6 | INTERNAL GEAR 35 | 1 | €25.05 | 1-4 weeks to ship | |
| 044 | 226311-7 | SPUR GEAR 10 | 5 | €0.56 | 1-4 weeks to ship | |
| 045 | 152526-9 | CARRIER COMPLETE | 1 | €1.67 | 1-4 weeks to ship | |
| 046 | 324136-4 | SPINDLE M | 1 | €36.18 | 1-4 weeks to ship | |
| 047 | 216019-1 | STEEL BALL 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 048 | 253052-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 819064-1 | MAKITA MARK | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 183321-6 | HOUSING SET | 1 | €55.66 | 1-4 weeks to ship | |
| 053 | 416764-0 | LENS | 1 | €5.57 | 1-4 weeks to ship | |
| 055 | 911006-2 | PAN HEAD SCREW M3X8 | 3 | €0.56 | 1-4 weeks to ship | |
| 056 | 416587-6 | MOTOR BRACKET | 1 | €0.83 | 1-4 weeks to ship | |
| 059 | 643933-2 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
