M9400
M9400

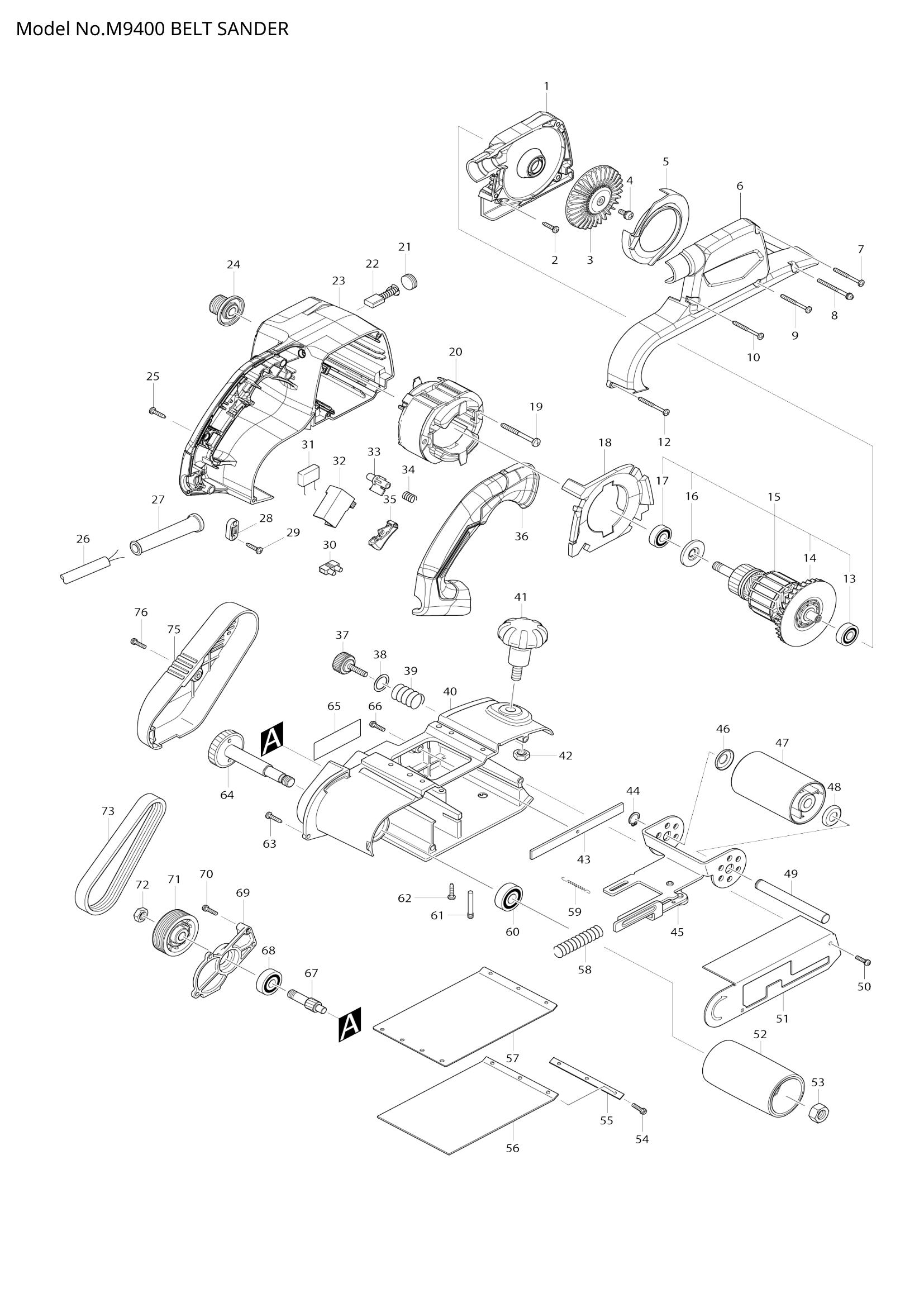

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 318921-5 | DUST COLLECTOR BRACKET | 1 | €11.13 | 1-4 weeks to ship | |
| 002 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 003 | 241662-7 | FAN 80 | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | +PAN HEAD SCREW M5X12 | 1 | Not available in store | |||
| 005 | SEPARATE | 1 | Not available in store | |||
| 006 | DUST COLLECTOR COVER | 1 | Not available in store | |||
| 007 | 266560-4 | TAPPING SCREW 4X40 | 1 | €0.14 | 1-4 weeks to ship | |
| 008 | +PAN HEAD SCREW M4X45 | 1 | Not available in store | |||
| 009 | 266560-4 | TAPPING SCREW 4X40 | 1 | €0.14 | 1-4 weeks to ship | |
| 010 | 266560-4 | TAPPING SCREW 4X40 | 1 | €0.14 | 1-4 weeks to ship | |
| 012 | 266560-4 | TAPPING SCREW 4X40 | 1 | €0.14 | 1-4 weeks to ship | |
| 013 | 211480-7 | BALL BEARING 6000ZZ | 1 | €1.25 | 1-4 weeks to ship | |
| 014 | 240013-1 | FAN 84 | 1 | €4.87 | 1-4 weeks to ship | |
| 015 | 510292-8 | ARMATURE ASS'Y 240V | 1 | €46.89 | 1-4 weeks to ship | |
| 016 | 681649-1 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 017 | 211480-7 | BALL BEARING 6000ZZ | 1 | €1.25 | 1-4 weeks to ship | |
| 018 | 453968-3 | BAFFLE PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 019 | 266397-9 | TAPPING SCREW BIND 5X50 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 596298-0 | FIELD ASS'Y 220-240V | 1 | €27.55 | 1-4 weeks to ship | |
| 024 | 222168-4 | V-PULLEY 6-23 | 1 | €3.48 | 1-4 weeks to ship | |
| 025 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 028 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 030 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 031 | 645240-9 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 650545-4 | SWITCH TGA115CT-2 | 1 | €2.09 | 1-4 weeks to ship | |
| 650545-4 | SWITCH TGA115CT-2 | 1 | €2.09 | 1-4 weeks to ship | ||
| 033 | 418871-5 | LOCK ON BUTTON | 1 | €2.09 | 1-4 weeks to ship | |
| 034 | 233423-9 | COMPRESSION SPRING 9 | 1 | €0.28 | 1-4 weeks to ship | |
| 035 | 418873-1 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 037 | 265763-7 | THUMB SCREW M6X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 267356-6 | FLAT WASHER 16 | 1 | €0.28 | 1-4 weeks to ship | |
| 039 | 231225-7 | COMPRESSION SPRING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | FRAME COMPLETE | 1 | Not available in store | |||
| 041 | 271325-1 | KNOB 55 | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 252172-9 | HEX. NUT M10 | 1 | €0.28 | 1-4 weeks to ship | |
| 043 | 345726-0 | EDGE SLIDER | 1 | €2.09 | 1-4 weeks to ship | |
| 044 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 163477-1 | TENSION ROLLER ARM | 1 | €11.51 | 1-4 weeks to ship | |
| 046 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 142719-6 | TENSION ROLLER COMPLETE | 1 | €12.94 | 1-4 weeks to ship | |
| 048 | 253922-5 | CUP WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 323829-0 | TENSION ROLLER SHAFT | 1 | €8.35 | 1-4 weeks to ship | |
| 050 | 265112-8 | +PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 051 | 344622-9 | SAFETY COVER | 1 | €4.45 | 1-4 weeks to ship | |
| 052 | 162248-3 | DRIVING ROLLER | 1 | €11.13 | 1-4 weeks to ship | |
| 053 | 252087-0 | HEX. NUT M12-19 | 1 | €1.11 | 1-4 weeks to ship | |
| 054 | 265112-8 | +PAN HEAD SCREW M4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 055 | 344623-7 | STRAP WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 056 | 424057-1 | CARBON PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 057 | 424058-9 | RUBBER PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 058 | 233235-0 | COMPRESSION SPRING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 059 | 231819-8 | TENSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 211477-6 | BALL BEARING 6201ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 061 | 321980-0 | SUPPORT PIN | 1 | €4.45 | 1-4 weeks to ship | |
| 062 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 063 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 158072-0 | HELICAL GEAR 42 COMPLETE | 1 | €9.74 | 1-4 weeks to ship | |
| 065 | M9400 NAME PLATE | 1 | Not available in store | |||
| 066 | 265112-8 | +PAN HEAD SCREW M4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 226634-3 | HELICAL GEAR 10 | 1 | €7.10 | 1-4 weeks to ship | |
| 068 | 211476-8 | BALL BEARING 6200ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 069 | 318074-0 | GEAR COVER | 1 | €6.96 | 1-4 weeks to ship | |
| 070 | 265112-8 | +PAN HEAD SCREW M4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 071 | 222169-2 | V-PULLEY 6-52.9 | 1 | €3.48 | 1-4 weeks to ship | |
| 072 | 252172-9 | HEX. NUT M10 | 1 | €0.28 | 1-4 weeks to ship | |
| 073 | 225091-2 | POLY V-BELT 6-355 | 1 | €2.92 | 1-4 weeks to ship | |
| 075 | 419581-7 | BELT COVER | 1 | €2.09 | 1-4 weeks to ship | |
| 076 | 265112-8 | +PAN HEAD SCREW M4X18 | 1 | €0.56 | 1-4 weeks to ship | |
