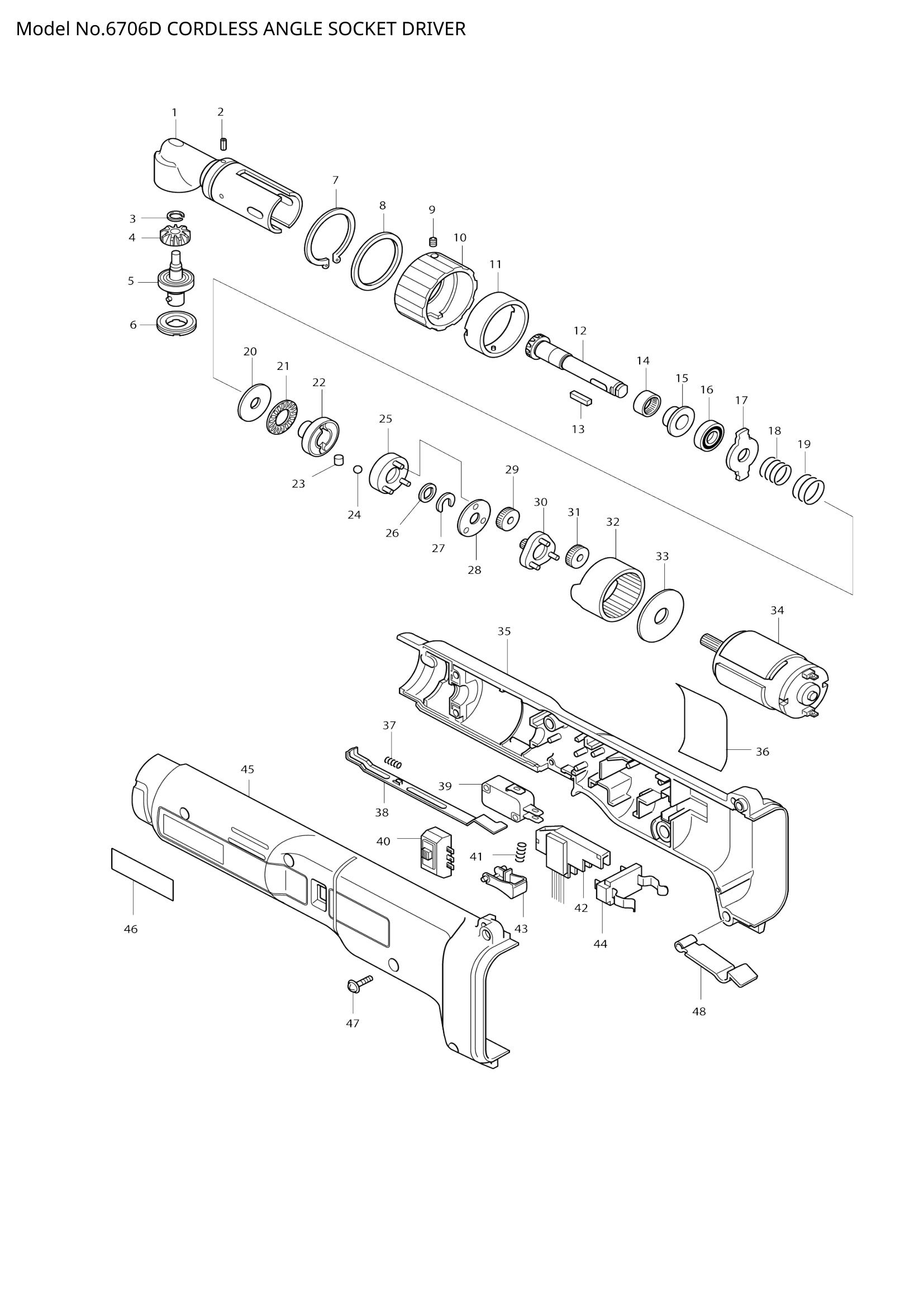

6706D
6706D
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | HEAD COMPLETE | 1 | Not available in store | |||
| 002 | 258002-2 | SPRING PIN 3-6 | 2 | €0.56 | 1-4 weeks to ship | |
| 003 | 961023-2 | RETAINING RING S-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 221391-8 | ZEROL BEVEL GEAR 14 | 1 | €22.26 | 1-4 weeks to ship | |
| 005 | 152400-1 | SPINDLE COMPLETE | 1 | €41.75 | 1-4 weeks to ship | |
| 006 | BEARING RETAINER 13-23 | 1 | Not available in store | |||
| 007 | RETAINING RING S-34 | 1 | Not available in store | |||
| 008 | FLAT WASHER 34 | 1 | Not available in store | |||
| 009 | 266025-6 | T.S.SET SCREW(CUP POINT)M4X6 | 2 | €2.78 | 1-4 weeks to ship | |
| 010 | 415444-5 | CHANGE RING | 1 | €5.57 | 1-4 weeks to ship | |
| 011 | LOCK SLEEVE COMPLETE | 1 | Not available in store | |||
| 012 | 221390-0 | ZEROL BEVEL GEAR 13 | 1 | €52.88 | 1-4 weeks to ship | |
| 013 | 254235-7 | KEY 4 | 1 | €2.09 | 1-4 weeks to ship | |
| 014 | 212104-8 | NEEDLE BEARING 1212 | 1 | €5.57 | 1-4 weeks to ship | |
| 015 | SPACER | 1 | Not available in store | |||
| 016 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 017 | 343897-7 | SLIDE PLATE | 1 | €5.98 | 1-4 weeks to ship | |
| 018 | 233026-9 | COMPRESSION SPRING 15 | 1 | €4.45 | 1-4 weeks to ship | |
| 019 | 233027-7 | COMPRESSION SPRING 20 | 1 | €4.45 | 1-4 weeks to ship | |
| 020 | FLAT WASHER 12 | 1 | Not available in store | |||
| 021 | 216402-2 | THRUST NEEDLE GAUGE 1224 | 1 | €4.17 | 1-4 weeks to ship | |
| 022 | 322493-4 | RETAINER | 1 | €19.48 | 1-4 weeks to ship | |
| 023 | 256217-5 | PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 024 | 216013-3 | STEEL BALL 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 152399-0 | HOLDER COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 026 | 253998-2 | LOCK WASHER 10 | 1 | €1.25 | 1-4 weeks to ship | |
| 027 | 343945-2 | (U) PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 028 | PLATE | 1 | Not available in store | |||
| 029 | 226204-8 | SPUR GEAR 28 | 3 | €1.67 | 1-4 weeks to ship | |
| 030 | 153196-7 | SPUR GEAR 11 COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 031 | 226204-8 | SPUR GEAR 28 | 3 | €1.67 | 1-4 weeks to ship | |
| 032 | 226205-6 | INTERNAL GEAR 67 | 1 | €16.70 | 1-4 weeks to ship | |
| 033 | 267067-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 183057-7 | HOUSING SET | 1 | €41.75 | 1-4 weeks to ship | |
| 036 | Name plate 6706D | 1 | Not available in store | |||
| 037 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 343898-5 | LEVER | 1 | €12.25 | 1-4 weeks to ship | |
| 039 | 651942-7 | SWITCH V15-1A6-IN | 1 | €5.57 | 1-4 weeks to ship | |
| 040 | 651889-5 | SWITCH C3BC-BC | 1 | €16.70 | 1-4 weeks to ship | |
| 041 | 233024-3 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 631283-7 | Control circuit | 1 | €64.01 | 1-4 weeks to ship | |
| 043 | 414752-1 | SWITCH LEVER | 1 | €2.92 | 1-4 weeks to ship | |
| 044 | 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | ||
| 045 | 183057-7 | HOUSING SET | 1 | €41.75 | 1-4 weeks to ship | |
| 046 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 911143-2 | PAN HEAD SCREW M4X22 | 6 | €0.56 | 1-4 weeks to ship | |
| 048 | SET PLATE | 1 | Not available in store | |||
