M9001
M9001

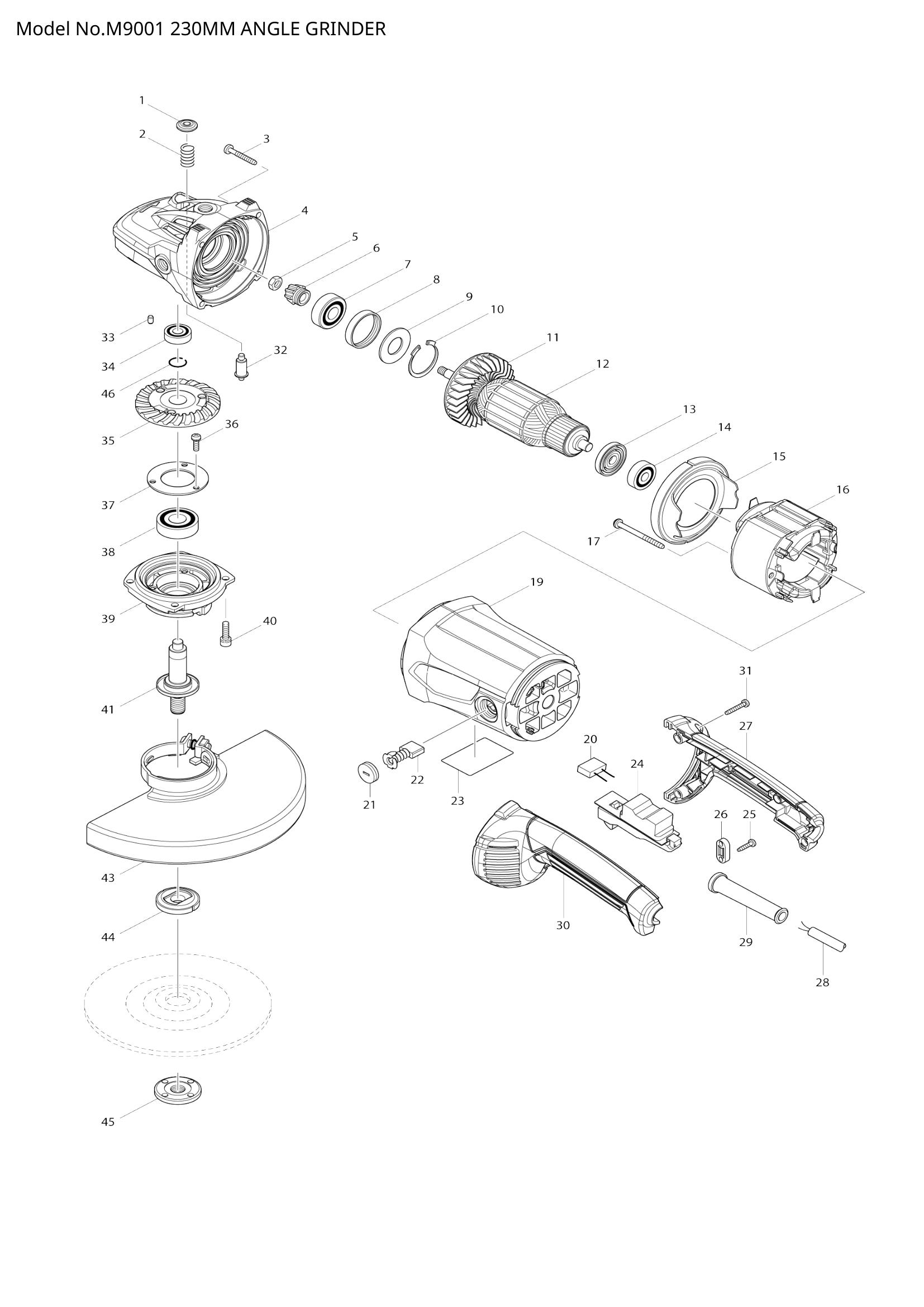

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 419133-4 | PIN CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 233292-8 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 266373-3 | TAPPING SCREW 5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 004 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 005 | 252194-9 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 227490-4 | SPIRAL BEVEL GEAR 12 | 1 | €5.57 | 1-4 weeks to ship | |
| 007 | BALL BEARING 6301DDW | 1 | Not available in store | |||
| 008 | 262085-6 | RUBBER RING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 267299-2 | FLAT WASHER 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 962211-4 | RETAINING RING R-42 | 1 | €1.67 | 1-4 weeks to ship | |
| 011 | 240081-4 | FAN 80 | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 516948-1 | ARMATURE ASS'Y 220-240V | 1 | €44.53 | 1-4 weeks to ship | |
| 013 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 210070-3 | BALL BEARING 6200ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 015 | 419135-0 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 016 | 596279-4 | FIELD ASS'Y 240V | 1 | €33.40 | 1-4 weeks to ship | |
| 017 | 266352-1 | TAPPING SCREW 5X65 | 2 | €0.83 | 1-4 weeks to ship | |
| 019 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 020 | 645240-9 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 023 | M9001 NAME PLATE | 1 | Not available in store | |||
| 024 | 651183-5 | SWITCH HY44B | 1 | €11.13 | 1-4 weeks to ship | |
| 025 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 188895-2 | HANDLE SET | 1 | €8.35 | 1-4 weeks to ship | |
| 030 | 188895-2 | HANDLE SET | 1 | €8.35 | 1-4 weeks to ship | |
| 031 | 266374-1 | TAPPING SCREW 4X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 032 | 256491-5 | SHOULDER PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 227491-2 | SPIRAL BEVEL GEAR 53 A | 1 | €13.92 | 1-4 weeks to ship | |
| 036 | 265120-9 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 037 | 285724-1 | BEARING RETAINER 50 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 318617-8 | BEARING BOX | 1 | €5.57 | 1-4 weeks to ship | |
| 040 | 265541-5 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.56 | 1-4 weeks to ship | |
| 041 | 158209-9 | SPINDLE COMPLETE | 1 | €6.26 | 1-4 weeks to ship | |
| 045 | 224543-0 | LOCK NUT 14-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 046 | 233946-7 | RING SPRING 15 | 1 | €0.56 | 1-4 weeks to ship | |
