M8100
M8100

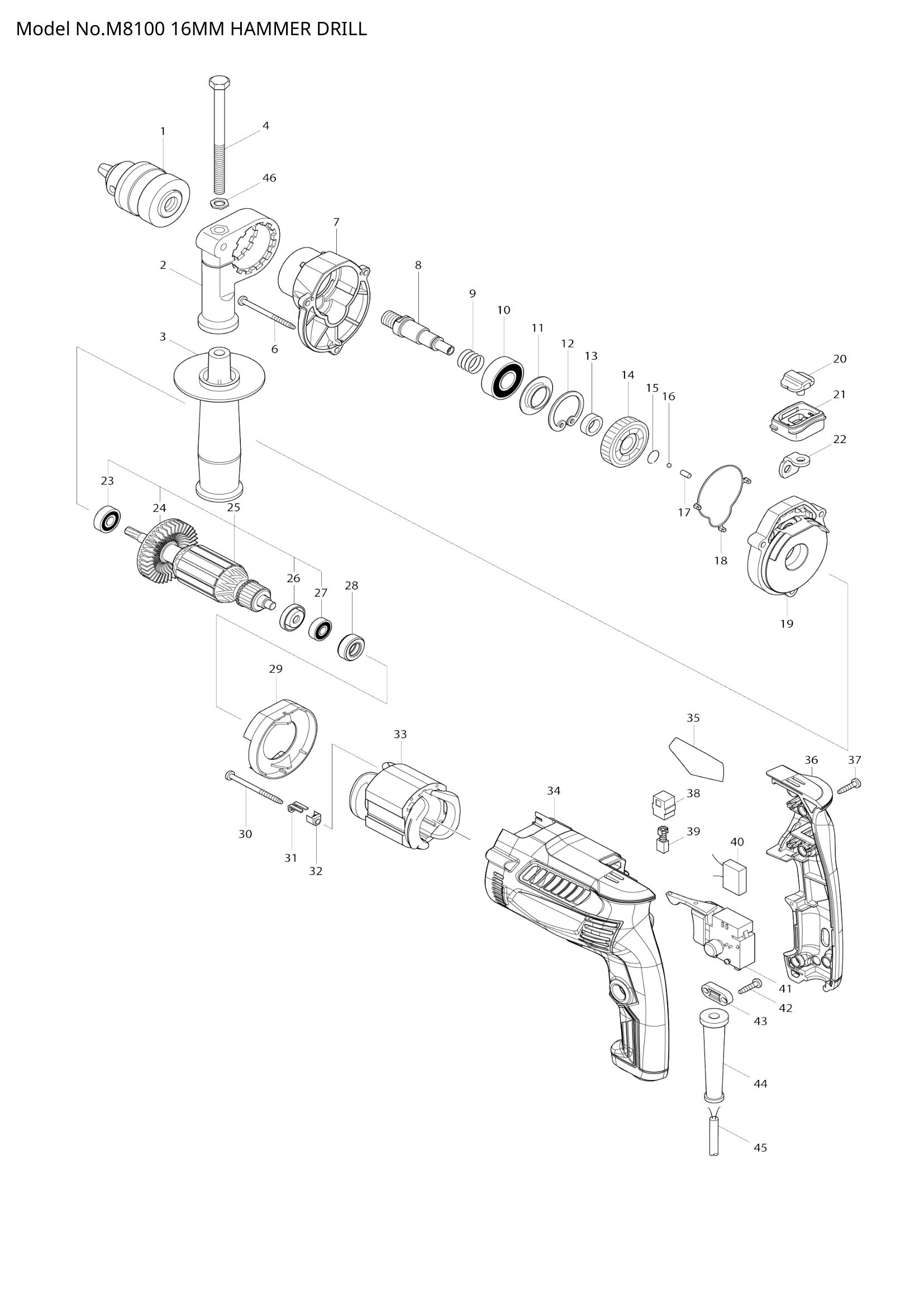

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 417822-5 | GRIP BASE | 1 | €1.11 | 1-4 weeks to ship | |
| 003 | 153503-4 | GRIP 36 COMPLETE | 1 | €1.11 | 1-4 weeks to ship | |
| 004 | 265495-6 | HEX. BOLT M8X110 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 266361-0 | TAPPING SCREW 4X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 007 | 451907-7 | GEAR HOUSING | 1 | €1.67 | 1-4 weeks to ship | |
| 009 | 233330-6 | COMPRESSION SPRING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 257246-1 | RING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 962153-2 | RETAINING RING R-35 | 1 | €0.83 | 1-4 weeks to ship | |
| 013 | 257173-2 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 014 | 226589-2 | HELICAL GEAR 37 | 1 | €4.17 | 1-4 weeks to ship | |
| 015 | 233938-6 | RING SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 256251-5 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 424112-9 | SEAL RING | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 417819-4 | CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 345944-0 | CHANGE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 024 | 241869-5 | FAN 55 | 1 | €2.78 | 1-4 weeks to ship | |
| 025 | 510164-7 | ARMATURE ASSEMBLY 240V | 1 | €22.26 | 1-4 weeks to ship | |
| 026 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 210062-2 | BALL BEARING 607ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 028 | 421808-3 | RUBBER RING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 450620-4 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | |
| 035 | M8100 NAME PLATE | 1 | Not available in store | |||
| 037 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 038 | 643566-3 | BRUSH HOLDER 5X8 | 2 | €0.28 | 1-4 weeks to ship | |
| 040 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 041 | 650586-0 | SWITCH DGQ-1104H | 1 | €13.92 | 1-4 weeks to ship | |
| 042 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 043 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 345280-4 | HEX. WASHER | 1 | €0.56 | 1-4 weeks to ship | |
