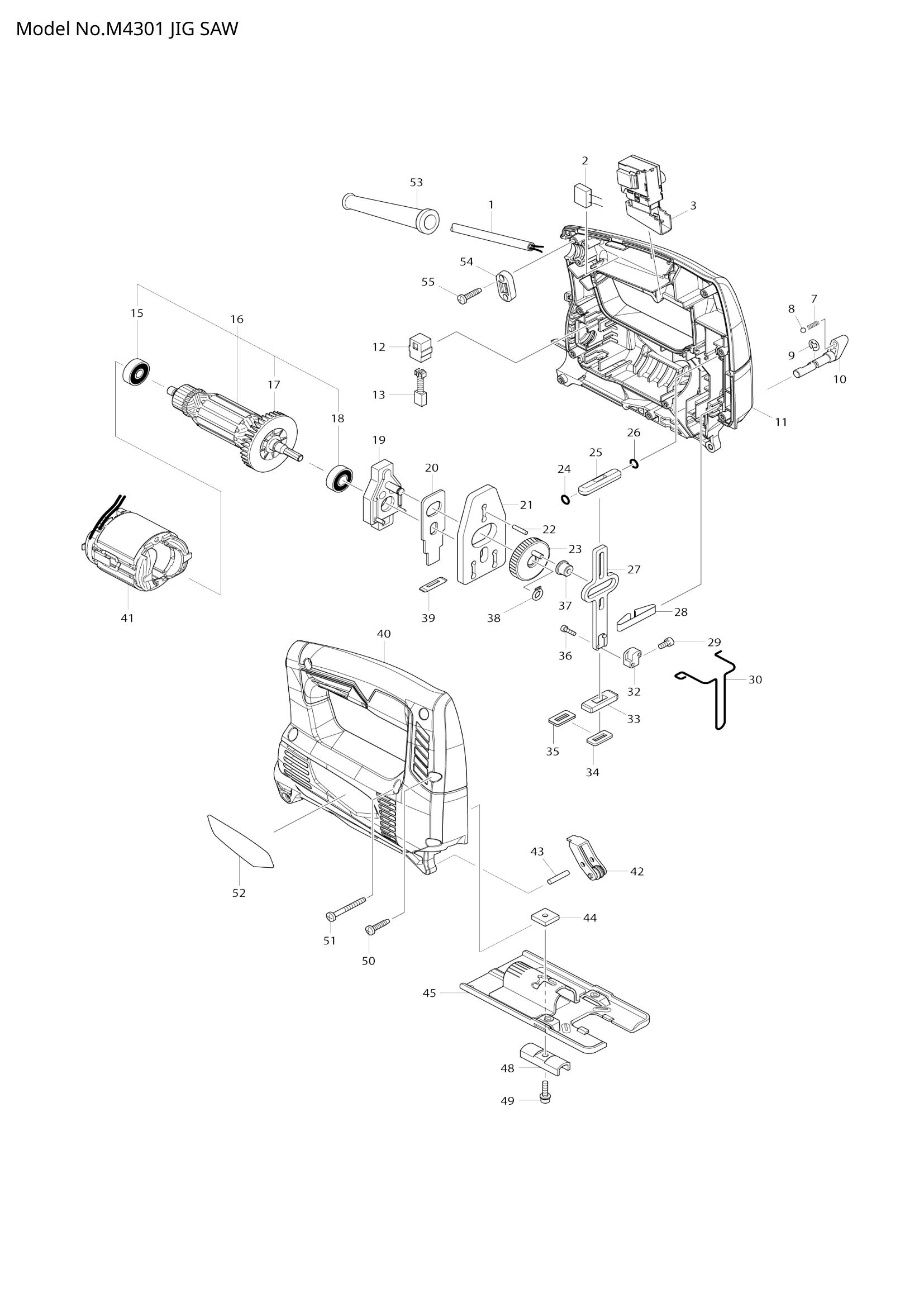

M4301
M4301
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 645239-4 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 650633-7 | SWITCH DGQ-1104H-03 | 1 | €13.92 | 1-4 weeks to ship | |
| 007 | 233151-6 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 272267-2 | LEVER 19 | 1 | €1.39 | 1-4 weeks to ship | |
| 011 | 183E28-4 | HOUSING SET | 1 | €23.24 | 1-4 weeks to ship | |
| 012 | 643552-4 | BRUSH HOLDER 5-8 | 2 | €0.56 | 1-4 weeks to ship | |
| 013 | 191627-8 | CARBON BRUSH CB-64 | 1 | €2.78 | 1-4 weeks to ship | |
| 015 | 210030-5 | BALL BEARING 627ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 017 | 241881-5 | FAN 52 | 1 | €1.11 | 1-4 weeks to ship | |
| 019 | 152600-3 | BEARING CASE COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 020 | 344683-9 | PUSH PLATE | 1 | €1.39 | 1-4 weeks to ship | |
| 021 | 344614-8 | BALANCE PLATE | 1 | €5.57 | 1-4 weeks to ship | |
| 022 | 256254-9 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 153260-4 | GEAR COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 024 | 213038-8 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 313082-6 | SLIDER GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 026 | 213038-8 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 344613-0 | SLIDER | 1 | €2.78 | 1-4 weeks to ship | |
| 028 | 232183-0 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 323748-0 | SAFETY WIRE | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 313140-8 | BLADE CLAMP | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 313086-8 | SLIDER SUPPORT | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 423307-1 | POLYURETHANE SPONGE SEAL | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 344686-3 | SEAL PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 036 | 266177-3 | HEX. SOCKET HEAD BOLT M3X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 037 | 257683-9 | COLLAR SLEEVE | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 416703-0 | DUST SEAL | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 183E28-4 | HOUSING SET | 1 | €23.24 | 1-4 weeks to ship | |
| 041 | 633733-8 | FIELD 220-240V | 1 | €13.92 | 1-4 weeks to ship | |
| 042 | 158392-2 | RETAINER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 256117-9 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 343540-8 | HOLDER | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 163397-9 | BASE | 1 | €5.57 | 1-4 weeks to ship | |
| 049 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 265995-6 | TAPPING SCREW 4X18 | 9 | €0.56 | 1-4 weeks to ship | |
| 051 | 266351-3 | TAPPING SCREW 4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | M4301 NAME PLATE | 1 | Not available in store | |||
| 054 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
