M3601
M3601

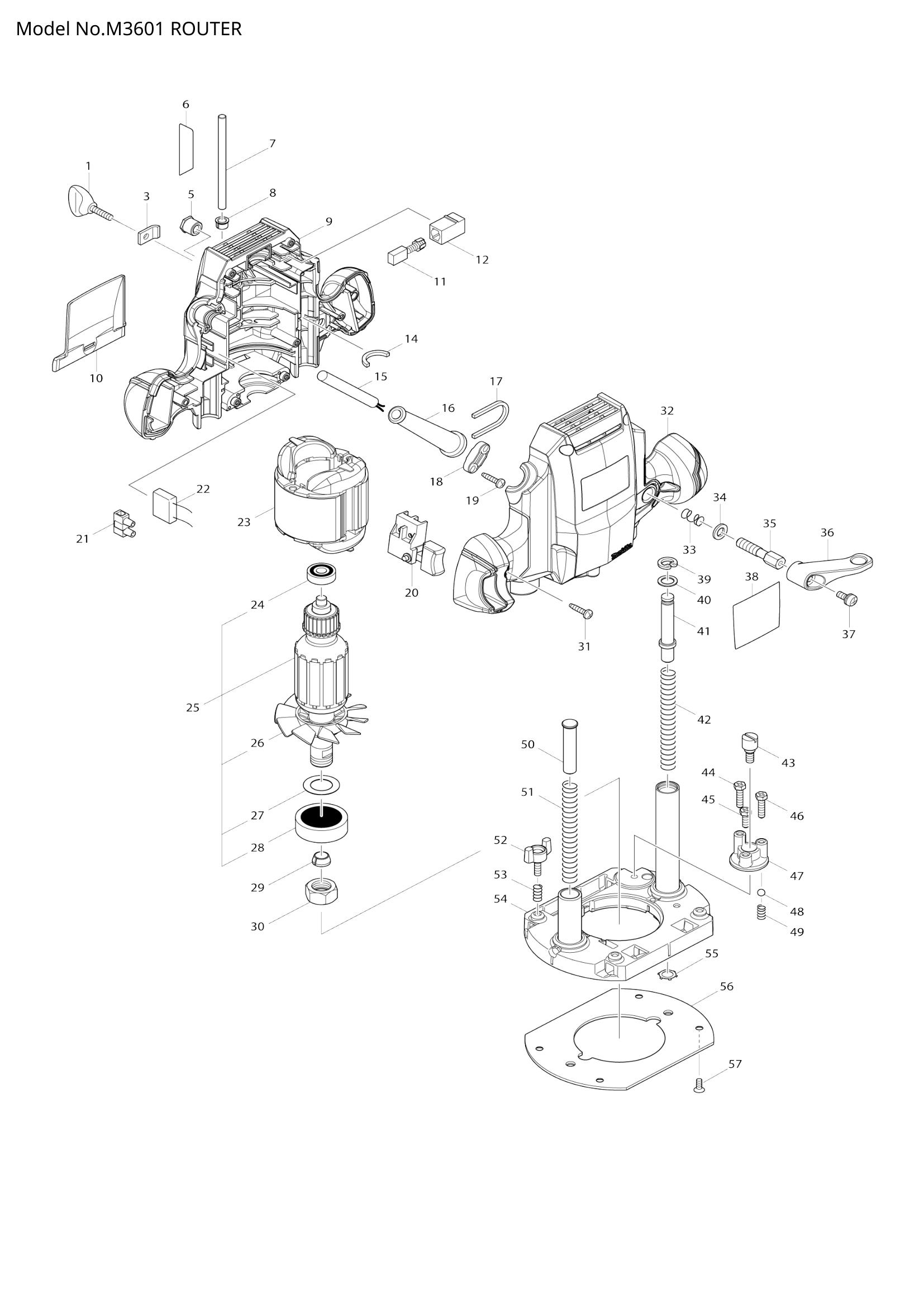

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 251878-6 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 003 | 346007-5 | PRESSURE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 252094-3 | HEX. NUT M8 | 1 | €2.78 | 1-4 weeks to ship | |
| 006 | 893386-7 | SCALE LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 893386-7 | SCALE LABEL | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 321948-6 | STOPPER POLE | 1 | €1.39 | 1-4 weeks to ship | |
| 008 | 451035-8 | DEPTH POINTER | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 450820-6 | CHIP DEFLECTOR | 1 | €0.70 | 1-4 weeks to ship | |
| 012 | 643601-7 | BRUSH HOLDER 6-10 | 2 | €1.11 | 1-4 weeks to ship | |
| 014 | 443073-4 | FELT | 1 | €0.83 | 1-4 weeks to ship | |
| 016 | 682516-3 | CORD GUARD 9.3-85 | 1 | €0.56 | 1-4 weeks to ship | |
| 682516-3 | CORD GUARD 9.3-85 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 443074-2 | FELT | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 650218-9 | SWITCH FA1-6/1W-1 | 1 | €2.78 | 1-4 weeks to ship | |
| 650218-9 | SWITCH FA1-6/1W-1 | 1 | €2.78 | 1-4 weeks to ship | ||
| 021 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 022 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 024 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 025 | 510205-9 | ARMATURE ASS'Y 240V | 1 | €33.40 | 1-4 weeks to ship | |
| 026 | 240123-4 | FAN 72 | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | 267114-0 | FLAT WASHER 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | COLLET CONE 6MM | 1 | Not available in store | |||
| 030 | 763615-1 | COLLET NUT | 1 | €4.17 | 1-4 weeks to ship | |
| 031 | 266326-2 | TAPPING SCREW 4X18 | 7 | €0.56 | 1-4 weeks to ship | |
| 033 | 233110-0 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 941202-8 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 266920-0 | SET BOLT M8 | 1 | €1.53 | 1-4 weeks to ship | |
| 036 | 450821-4 | LEVER 47 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 911213-7 | PAN HEAD SCREW M5X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | M3601 NAME PLATE | 1 | Not available in store | |||
| 039 | 962065-9 | RETAINING RING R-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 267047-9 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 451524-3 | PIN 10 | 1 | €0.28 | 1-4 weeks to ship | |
| 451524-3 | PIN 10 | 1 | €0.28 | 1-4 weeks to ship | ||
| 042 | 231416-0 | COMPRESSION SPRING 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 043 | 251447-3 | - FLAT HEAD SCREW M6 | 1 | €1.39 | 1-4 weeks to ship | |
| 044 | 265587-1 | +HEX. BOLT M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 265586-3 | +HEX. BOLT M5X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 265587-1 | +HEX. BOLT M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 135264-8 | STOPPER ASS'Y | 1 | €4.17 | 1-4 weeks to ship | |
| 048 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | 231419-4 | COMPRESSION SPRING 5 | 1 | €1.11 | 1-4 weeks to ship | |
| 050 | 256651-9 | PIN 10 | 1 | €5.57 | 1-4 weeks to ship | |
| 051 | 231417-8 | COMPRESSION SPRING 10 | 1 | €1.25 | 1-4 weeks to ship | |
| 052 | 265761-1 | THUMB SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 053 | 231240-1 | COMPRESSION SPRING 7 | 2 | €0.56 | 1-4 weeks to ship | |
| 054 | 158808-7 | BASE COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 055 | 259019-8 | SELF LOCK 15 | 2 | €0.56 | 1-4 weeks to ship | |
| 056 | 452913-5 | BASE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 057 | 912112-6 | COUNTERSUNK HEAD SCREW M4 | 4 | €0.56 | 1-4 weeks to ship | |
