M2402
M2402

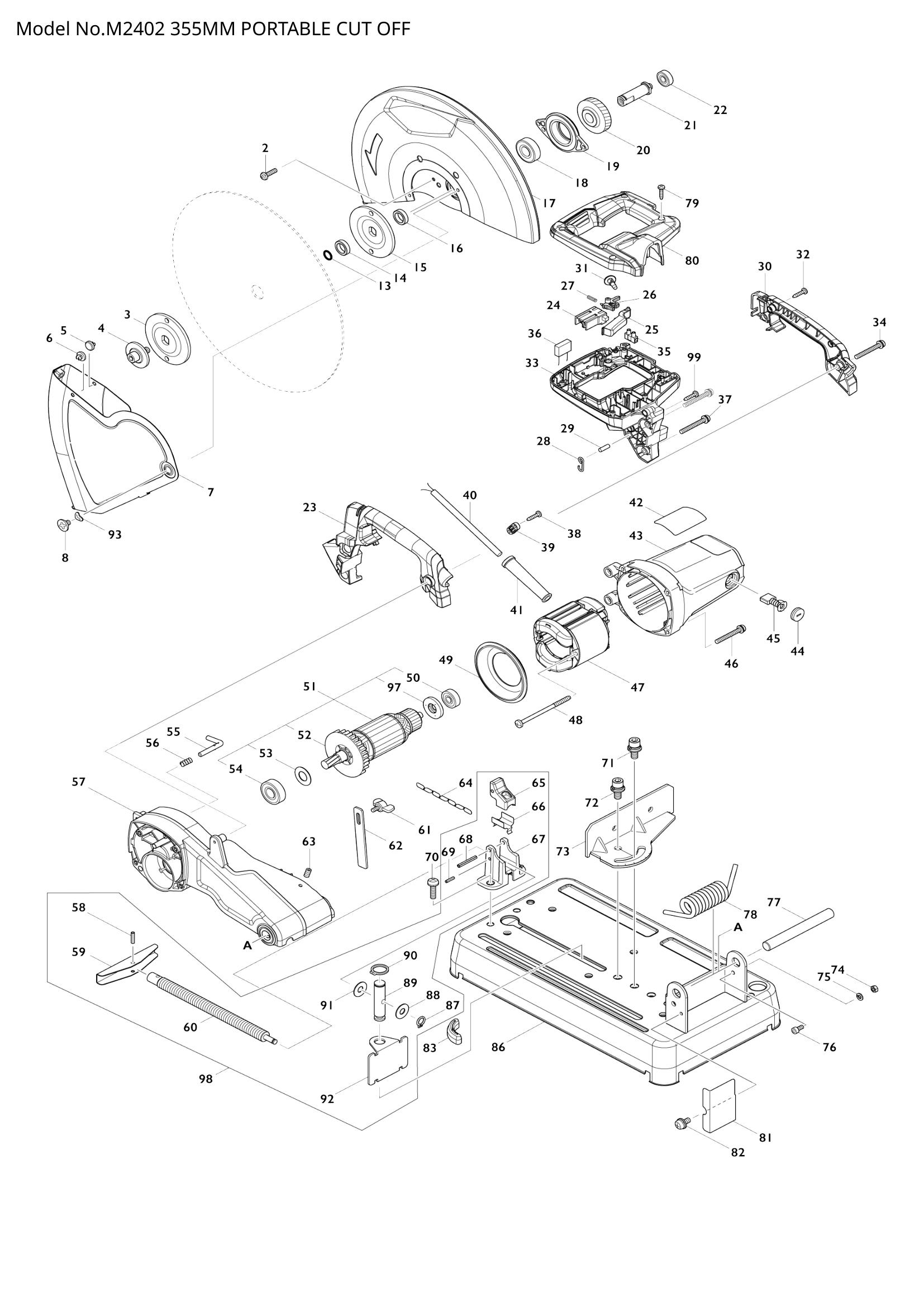

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 265122-5 | PAN HEAD SCREW M5X20 | 4 | €0.14 | 1-4 weeks to ship | |
| 003 | 224456-5 | FLANGE 90 | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | HEX SOCKET HEAD BOLT M10X2 | 1 | Not available in store | |||
| 005 | 416771-3 | PLUG | 1 | €2.09 | 1-4 weeks to ship | |
| 006 | 416771-3 | PLUG | 1 | €2.09 | 1-4 weeks to ship | |
| 007 | SAFETY GUIDE | 1 | Not available in store | |||
| 008 | 265121-7 | + FLAT HEAD SCREW M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 213180-5 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 257255-0 | RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 224456-5 | FLANGE 90 | 1 | €4.17 | 1-4 weeks to ship | |
| 016 | 257255-0 | RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | SAFETY COVER | 1 | Not available in store | |||
| 018 | BALL BEARING 6203ZZ | 1 | Not available in store | |||
| 019 | 316527-3 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | HELICAL GEAR 43 | 1 | Not available in store | |||
| 022 | BALL BEARING 6000ZZ | 1 | Not available in store | |||
| 023 | GRIP SET | 1 | Not available in store | |||
| 024 | SWITCH | 1 | Not available in store | |||
| 025 | 418140-4 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 418139-9 | SWITCH LOCK | 1 | €0.28 | 1-4 weeks to ship | |
| 027 | 231397-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 281216-8 | HANGER | 1 | €0.14 | 1-4 weeks to ship | |
| 029 | 268101-2 | PIN 6 | 1 | €0.14 | 1-4 weeks to ship | |
| 030 | GRIP SET | 1 | Not available in store | |||
| 031 | 451037-4 | SWITCH BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | HANDLE COMPLETE | 1 | Not available in store | |||
| 034 | 265104-7 | PAN HEAD SCREW M5X40 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 036 | CAPACITOR | 1 | Not available in store | |||
| 037 | 265104-7 | PAN HEAD SCREW M5X40 | 2 | €0.56 | 1-4 weeks to ship | |
| 038 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 039 | STRAIN RELIEF | 1 | Not available in store | |||
| 040 | 695107-1 | POWER SUPPLY CORD 1.5-2-2.5 | 1 | €11.83 | 1-4 weeks to ship | |
| 042 | M2402 NAME PLATE | 1 | Not available in store | |||
| 043 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 044 | HOLDER CAP | 2 | Not available in store | |||
| 046 | 265104-7 | PAN HEAD SCREW M5X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 048 | 266328-8 | TAPPING SCREW 5X80 | 2 | €0.28 | 1-4 weeks to ship | |
| 049 | 418143-8 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 050 | 210070-3 | BALL BEARING 6200ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 051 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| 053 | 267274-8 | FLAT WASHER 15 | 1 | €0.14 | 1-4 weeks to ship | |
| 054 | BALL BEARING 6202ZZ | 1 | Not available in store | |||
| 055 | 322665-1 | STOPPER | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 233372-0 | COMPRESSION SPRING 7 | 1 | €0.14 | 1-4 weeks to ship | |
| 057 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 058 | 951163-4 | SPRING PIN 5-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | HANDLE 120 | 1 | Not available in store | |||
| 060 | VISE SCREW | 1 | Not available in store | |||
| 063 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X | 2 | €0.56 | 1-4 weeks to ship | |
| 064 | 282015-1 | CHAIN | 1 | €1.39 | 1-4 weeks to ship | |
| 065 | 313114-9 | VISE NUT | 1 | €4.17 | 1-4 weeks to ship | |
| 066 | PLATE | 1 | Not available in store | |||
| 067 | SCREW GUIDE | 1 | Not available in store | |||
| 068 | 951175-7 | SPRING PIN 5-36 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 951110-5 | SPRING PIN 4-16 | 1 | €0.14 | 1-4 weeks to ship | |
| 951110-5 | SPRING PIN 4-16 | 1 | €0.14 | 1-4 weeks to ship | ||
| 070 | 265125-9 | PAN HEAD SCREW M8X30 | 2 | €0.42 | 1-4 weeks to ship | |
| 071 | H. S. HEAD BOLT M10X25 WITH | 1 | Not available in store | |||
| 072 | H. S. HEAD BOLT M10X25 WITH | 1 | Not available in store | |||
| 073 | 347276-1 | GUIDE PLATE | 1 | €9.74 | 1-4 weeks to ship | |
| 074 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 253428-3 | SPRING WASHER 6 | 1 | €0.07 | 1-4 weeks to ship | |
| 076 | 922312-0 | HEX. SOCKET HEAD BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | ROD 16 | 1 | Not available in store | |||
| 078 | TORSION SPRING 20 | 1 | Not available in store | |||
| 079 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 080 | HANDLE COVER | 1 | Not available in store | |||
| 081 | SPARK GUARD | 1 | Not available in store | |||
| 082 | 265144-5 | PAN HEAD SCREW M6X12 | 1 | €0.14 | 1-4 weeks to ship | |
| 083 | 421834-2 | CUSHION | 3 | €0.42 | 1-4 weeks to ship | |
| 086 | BASE | 1 | Not available in store | |||
| 087 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 267257-8 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 089 | 256545-8 | PIN 16 | 1 | €2.78 | 1-4 weeks to ship | |
| 090 | 961056-7 | RETAINING RING S-16 | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | 267257-8 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 092 | 347277-9 | VISE PLATE | 1 | €4.87 | 1-4 weeks to ship | |
| 093 | 253903-9 | WAVE WASHER 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 097 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 098 | VISE ASS'Y | 1 | Not available in store | |||
| 099 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
