6703D
6703D

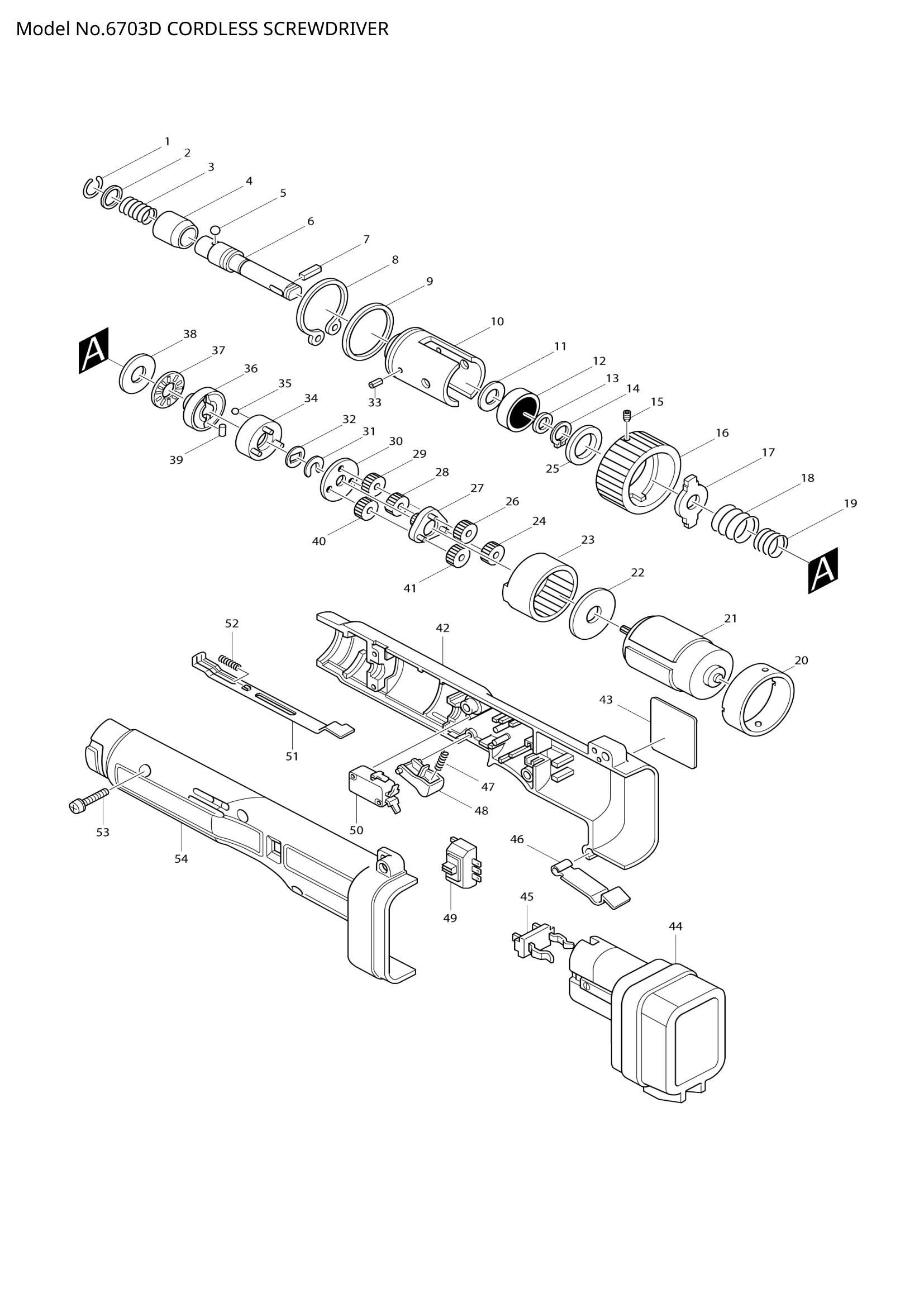

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 231951-8 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 267085-1 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 233005-7 | COMPRESSION SPRING 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 216001-0 | STEEL BALL 3.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 006 | 322681-3 | Spindle | 1 | €63.87 | 1-4 weeks to ship | |
| 007 | 254235-7 | KEY 4 | 1 | €2.09 | 1-4 weeks to ship | |
| 008 | RETAINING RING S-34 | 1 | Not available in store | |||
| 009 | FLAT WASHER 34 | 1 | Not available in store | |||
| 011 | 253171-4 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 267047-9 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 266025-6 | T.S.SET SCREW(CUP POINT)M4X6 | 2 | €2.78 | 1-4 weeks to ship | |
| 016 | 415444-5 | CHANGE RING | 1 | €5.57 | 1-4 weeks to ship | |
| 017 | 343897-7 | SLIDE PLATE | 1 | €5.98 | 1-4 weeks to ship | |
| 018 | 233094-2 | Compression spring 18 | 1 | €5.01 | 1-4 weeks to ship | |
| 019 | 233093-4 | Compression spring 13 | 1 | €5.01 | 1-4 weeks to ship | |
| 020 | LOCK SLEEVE COMPLETE | 1 | Not available in store | |||
| 022 | 267067-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 226205-6 | INTERNAL GEAR 67 | 1 | €16.70 | 1-4 weeks to ship | |
| 024 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 025 | RING 18 | 1 | Not available in store | |||
| 026 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 027 | 153196-7 | SPUR GEAR 11 COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 028 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 029 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 030 | PLATE | 1 | Not available in store | |||
| 031 | 343945-2 | (U) PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 032 | 253998-2 | LOCK WASHER 10 | 1 | €1.25 | 1-4 weeks to ship | |
| 033 | 258002-2 | SPRING PIN 3-6 | 2 | €0.56 | 1-4 weeks to ship | |
| 034 | 152399-0 | HOLDER COMPLETE | 1 | €19.48 | 1-4 weeks to ship | |
| 035 | 216013-3 | STEEL BALL 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 036 | 322493-4 | RETAINER | 1 | €19.48 | 1-4 weeks to ship | |
| 037 | 216402-2 | THRUST NEEDLE GAUGE 1224 | 1 | €4.17 | 1-4 weeks to ship | |
| 038 | FLAT WASHER 12 | 1 | Not available in store | |||
| 039 | 256217-5 | PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 040 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 041 | 226204-8 | SPUR GEAR 28 | 1 | €1.67 | 1-4 weeks to ship | |
| 043 | 857482-5 | Name plate 6703D | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | BATTERY 9100 SET | 1 | Not available in store | |||
| 045 | 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | ||
| 047 | 233024-3 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 414752-1 | SWITCH LEVER | 1 | €2.92 | 1-4 weeks to ship | |
| 049 | 651872-2 | SWITCH C3BC-B01 | 1 | €25.05 | 1-4 weeks to ship | |
| 050 | 651900-3 | SWITCH V-15-1A6 | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | 343898-5 | LEVER | 1 | €12.25 | 1-4 weeks to ship | |
| 052 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 911143-2 | PAN HEAD SCREW M4X22 | 6 | €0.56 | 1-4 weeks to ship | |
| 055 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
