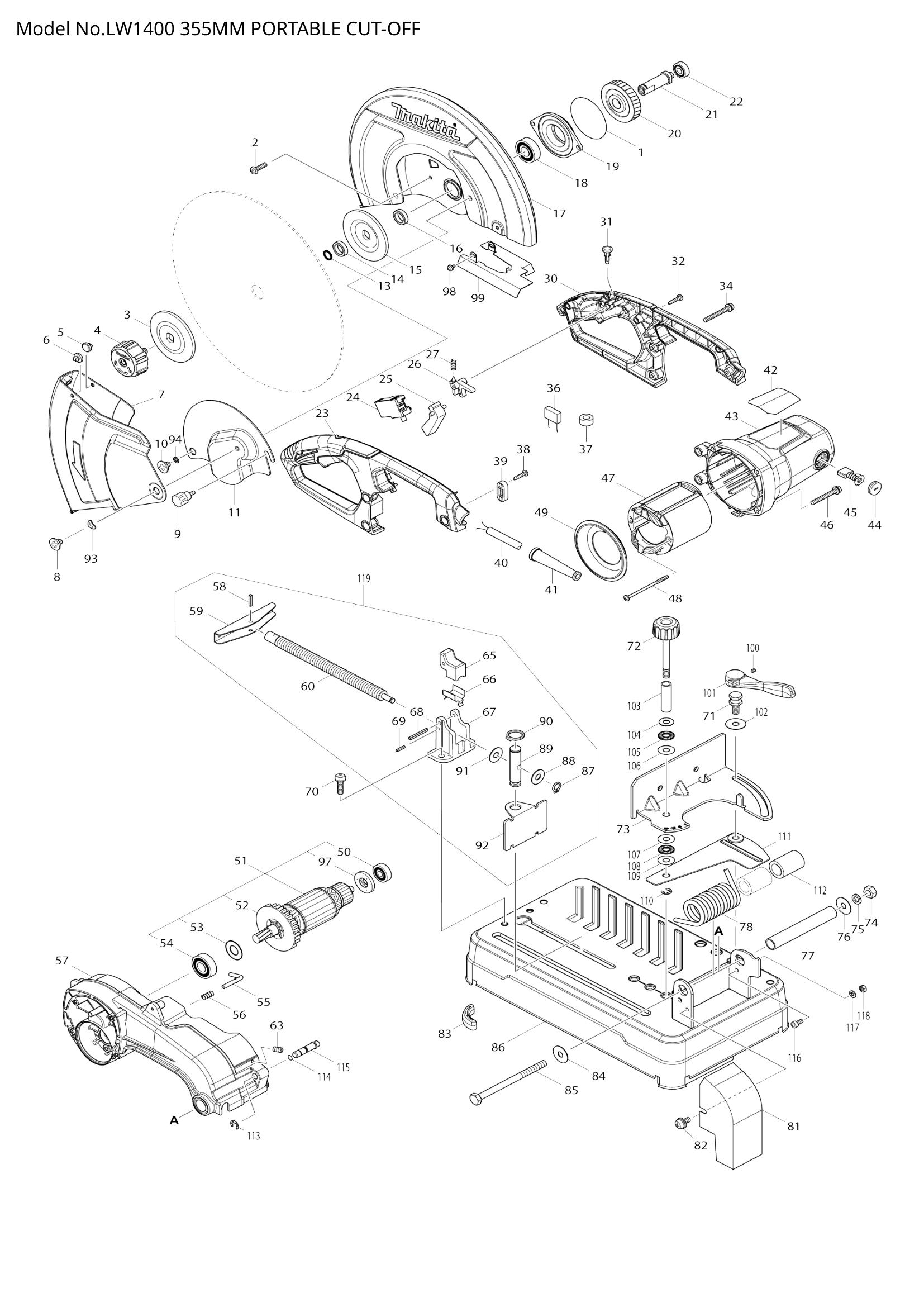

LW1400
LW1400
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 213858-0 | O-RING 65 | 1 | €0.42 | 1-4 weeks to ship | |
| 002 | 265122-5 | PAN HEAD SCREW M5X20 | 4 | €0.14 | 1-4 weeks to ship | |
| 003 | 224456-5 | FLANGE 90 | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | 123478-1 | TOOLLESSBOLT ASSEMBLY | 1 | €17.95 | 1-4 weeks to ship | |
| 005 | 418142-0 | PLUG | 1 | €0.28 | 1-4 weeks to ship | |
| 006 | 418142-0 | PLUG | 1 | €0.28 | 1-4 weeks to ship | |
| 007 | 161401-8 | SAFETY GUIDE | 1 | €23.24 | 1-4 weeks to ship | |
| 008 | 265121-7 | + FLAT HEAD SCREW M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 251488-9 | THUMB SCREW M6X12 | 1 | €0.67 | 1-4 weeks to ship | |
| 010 | 265121-7 | + FLAT HEAD SCREW M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 213180-5 | O RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 257255-0 | RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 224456-5 | FLANGE 90 | 1 | €4.17 | 1-4 weeks to ship | |
| 016 | 257255-0 | RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 161400-0 | SAFETY COVER | 1 | €34.51 | 1-4 weeks to ship | |
| 018 | 211282-1 | BALL BEARING 6203ZZ | 1 | €2.37 | 1-4 weeks to ship | |
| 020 | 227811-0 | HELICAL GEAR 50 | 1 | €11.97 | 1-4 weeks to ship | |
| 021 | 324321-9 | SPINDLE | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 183C14-3 | HANDLE SET | 1 | €13.78 | 1-4 weeks to ship | |
| 024 | 650716-3 | SWITCH TGC31B | 1 | €7.65 | 1-4 weeks to ship | |
| 650716-3 | SWITCH TGC31B | 1 | €7.65 | 1-4 weeks to ship | ||
| 025 | 418140-4 | SWITCH LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 418139-9 | SWITCH LOCK | 1 | €0.28 | 1-4 weeks to ship | |
| 027 | 231397-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 183C14-3 | HANDLE SET | 1 | €13.78 | 1-4 weeks to ship | |
| 032 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 034 | 265104-7 | PAN HEAD SCREW M5X40 | 3 | €0.56 | 1-4 weeks to ship | |
| 036 | 645190-8 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 688163-8 | LINE FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 038 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 039 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 665872-6 | POWER SUPPLY CORD 1.0-2-3.0 | 1 | €11.13 | 1-4 weeks to ship | |
| 041 | 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | |
| 042 | LW1400 NAME PLATE | 1 | Not available in store | |||
| 043 | 143463-8 | MOTOR HOUSING COMPLETE | 1 | €20.73 | 1-4 weeks to ship | |
| 044 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 046 | 265104-7 | PAN HEAD SCREW M5X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 047 | 593908-0 | FIELD ASS'Y 220V | 1 | €37.71 | 1-4 weeks to ship | |
| 593908-0 | FIELD ASS'Y 220V | 1 | €37.71 | 1-4 weeks to ship | ||
| 048 | 265A13-6 | TAPPING SCREW 5X85 | 2 | €0.28 | 1-4 weeks to ship | |
| 049 | 418143-8 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 050 | 210070-3 | BALL BEARING 6200ZZ | 1 | €1.39 | 1-4 weeks to ship | |
| 051 | 513463-6 | ARMATURE ASS'Y 220-240V | 1 | €68.04 | 1-4 weeks to ship | |
| 513463-6 | ARMATURE ASS'Y 220-240V | 1 | €68.04 | 1-4 weeks to ship | ||
| 052 | 240164-0 | FAN 80 | 1 | €9.18 | 1-4 weeks to ship | |
| 053 | 267714-6 | WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 211240-7 | BALL BEARING 6202ZZ | 1 | €2.78 | 1-4 weeks to ship | |
| 055 | 324322-7 | STOPPER | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 233372-0 | COMPRESSION SPRING 7 | 1 | €0.14 | 1-4 weeks to ship | |
| 058 | 951163-4 | SPRING PIN 5-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 272027-2 | HANDLE 120 | 1 | €1.11 | 1-4 weeks to ship | |
| 063 | 266321-2 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | 313114-9 | VISE NUT | 1 | €4.17 | 1-4 weeks to ship | |
| 066 | 345311-9 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 317662-0 | SCREW GUIDE | 1 | €2.92 | 1-4 weeks to ship | |
| 068 | 951175-7 | SPRING PIN 5-36 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 951110-5 | SPRING PIN 4-16 | 1 | €0.14 | 1-4 weeks to ship | |
| 951110-5 | SPRING PIN 4-16 | 1 | €0.14 | 1-4 weeks to ship | ||
| 070 | 265125-9 | PAN HEAD SCREW M8X30 | 2 | €0.42 | 1-4 weeks to ship | |
| 071 | 266996-7 | COLLAR BOLT M10X20 | 1 | €2.64 | 1-4 weeks to ship | |
| 072 | 271331-6 | KNOB 40 | 1 | €2.92 | 1-4 weeks to ship | |
| 075 | 942251-8 | SPRING WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 253197-6 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 331648-0 | PIPE 20-128 | 1 | €2.78 | 1-4 weeks to ship | |
| 078 | 233633-8 | TORSION SPRING 33 | 1 | €5.71 | 1-4 weeks to ship | |
| 081 | 161399-9 | SPARK GUARD | 1 | €5.29 | 1-4 weeks to ship | |
| 082 | 265144-5 | PAN HEAD SCREW M6X12 | 1 | €0.14 | 1-4 weeks to ship | |
| 083 | 421834-2 | CUSHION | 3 | €0.42 | 1-4 weeks to ship | |
| 084 | 253197-6 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 265509-1 | HEX.BOLT M10X140 | 1 | €1.39 | 1-4 weeks to ship | |
| 086 | 161432-7 | BASE | 1 | €64.29 | 1-4 weeks to ship | |
| 087 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 267257-8 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 089 | 256545-8 | PIN 16 | 1 | €2.78 | 1-4 weeks to ship | |
| 090 | 961056-7 | RETAINING RING S-16 | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | 267257-8 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 093 | 253903-9 | WAVE WASHER 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 094 | 941152-7 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 097 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 098 | 911103-4 | PAN HEAD SCREW M4X6 | 2 | €0.83 | 1-4 weeks to ship | |
| 100 | 266264-8 | H.S.SET SCREW(FLAT POINT)M5X | 1 | €0.56 | 1-4 weeks to ship | |
| 101 | 272286-8 | LEVER 125 | 1 | €8.49 | 1-4 weeks to ship | |
| 102 | 253197-6 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 103 | 257389-9 | SLEEVE 11 | 1 | €1.11 | 1-4 weeks to ship | |
| 104 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 105 | 216413-7 | THRUST NEEDLE CAGE 1024 | 1 | €2.78 | 1-4 weeks to ship | |
| 106 | 253353-8 | THIN WASHER 10 | 1 | €0.42 | 1-4 weeks to ship | |
| 107 | 253353-8 | THIN WASHER 10 | 1 | €0.42 | 1-4 weeks to ship | |
| 108 | 216413-7 | THRUST NEEDLE CAGE 1024 | 1 | €2.78 | 1-4 weeks to ship | |
| 109 | 253353-8 | THIN WASHER 10 | 1 | €0.42 | 1-4 weeks to ship | |
| 110 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 111 | 161402-6 | GUIDE BASE | 1 | €3.90 | 1-4 weeks to ship | |
| 113 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 114 | 213011-8 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 115 | 326624-7 | STOPPER PIN | 1 | €1.81 | 1-4 weeks to ship | |
| 118 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 119 | 135708-8 | VISE ASS'Y | 1 | €26.86 | 1-4 weeks to ship | |
