LS1440
LS1440

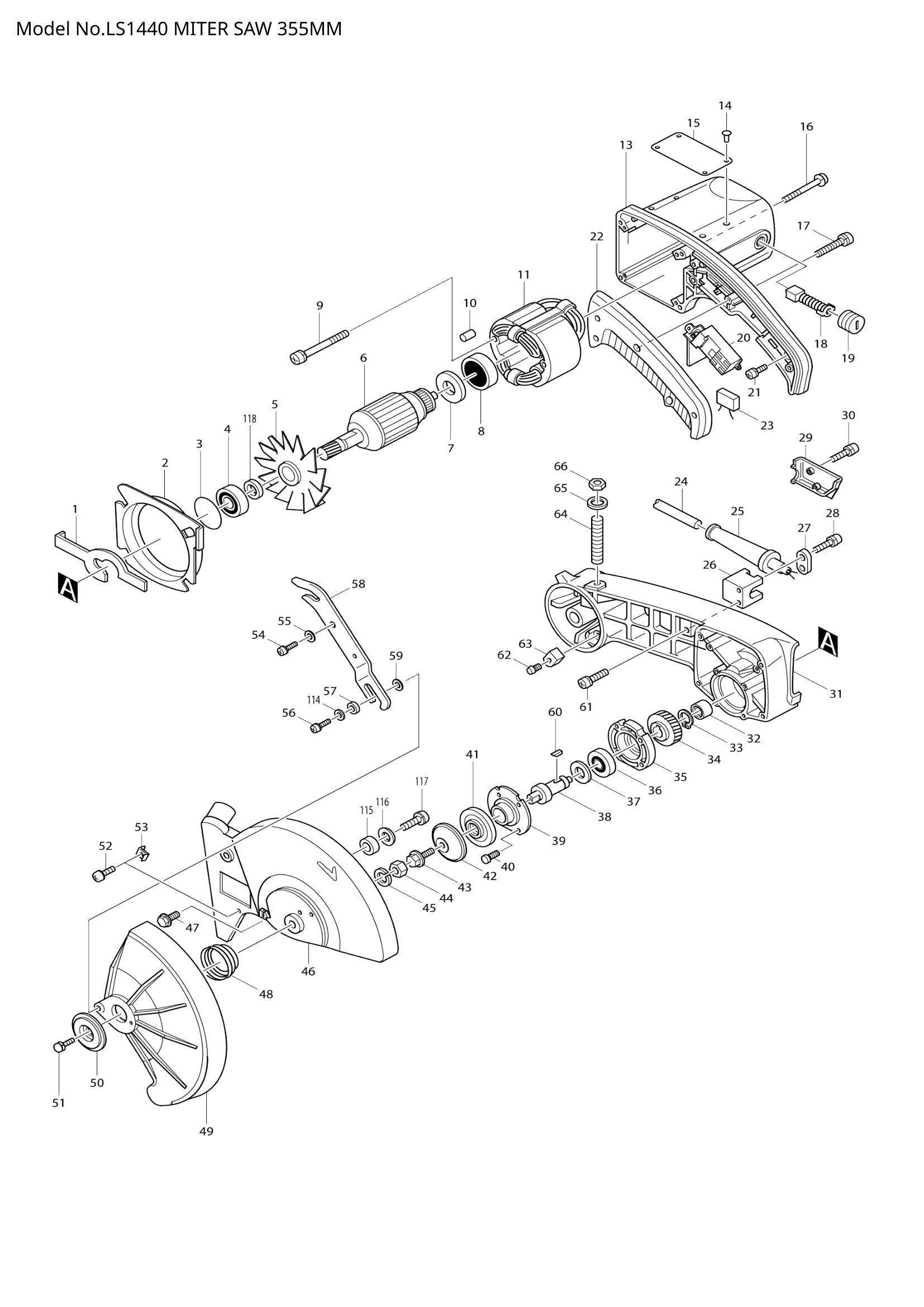

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 163100-8 | SHAFT LOCK | 1 | €4.45 | 1-4 weeks to ship | |
| 163100-8 | SHAFT LOCK | 1 | €4.45 | 1-4 weeks to ship | ||
| 002 | 411466-3 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 411466-3 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | ||
| 003 | 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | |
| 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 681623-9 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 681623-9 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | ||
| 008 | 211068-3 | BALL BEARING 6200LB | 1 | €8.07 | 1-4 weeks to ship | |
| 211068-3 | BALL BEARING 6200LB | 1 | €8.07 | 1-4 weeks to ship | ||
| 010 | 263013-4 | RUBBER PIN 4 | 1 | €2.09 | 1-4 weeks to ship | |
| 263013-4 | RUBBER PIN 4 | 1 | €2.09 | 1-4 weeks to ship | ||
| 016 | + PAN HEAD SCREW M5X80 | 4 | Not available in store | |||
| + PAN HEAD SCREW M5X80 | 4 | Not available in store | ||||
| 017 | 911158-9 | PAN HEAD SCREW M4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 911158-9 | PAN HEAD SCREW M4X30 | 4 | €0.56 | 1-4 weeks to ship | ||
| 021 | 911101-8 | PAN HEAD SCREW M4X6 | 1 | €0.56 | 1-4 weeks to ship | |
| 911101-8 | PAN HEAD SCREW M4X6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 022 | 410836-3 | HANDLE COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 410836-3 | HANDLE COVER | 1 | €11.13 | 1-4 weeks to ship | ||
| 028 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 029 | 411467-1 | CLAMP COVER | 1 | €2.92 | 1-4 weeks to ship | |
| 411467-1 | CLAMP COVER | 1 | €2.92 | 1-4 weeks to ship | ||
| 030 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 032 | 212113-7 | NEEDLE BEARING 1212 | 1 | €13.92 | 1-4 weeks to ship | |
| 212113-7 | NEEDLE BEARING 1212 | 1 | €13.92 | 1-4 weeks to ship | ||
| 033 | 961060-6 | RETAINING RING S-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 961060-6 | RETAINING RING S-20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | BEARING BOX | 1 | Not available in store | |||
| BEARING BOX | 1 | Not available in store | ||||
| 036 | 211306-3 | BALL BEARING 6204LLB | 1 | €13.92 | 1-4 weeks to ship | |
| 211306-3 | BALL BEARING 6204LLB | 1 | €13.92 | 1-4 weeks to ship | ||
| 037 | THIN WASHER 20 | 1 | Not available in store | |||
| THIN WASHER 20 | 1 | Not available in store | ||||
| 039 | 285649-9 | BEARING RETAINER 72 | 1 | €4.45 | 1-4 weeks to ship | |
| 285649-9 | BEARING RETAINER 72 | 1 | €4.45 | 1-4 weeks to ship | ||
| 040 | 912231-8 | COUNTERSUNK HEAD SCREW M5 | 4 | €0.83 | 1-4 weeks to ship | |
| 912231-8 | COUNTERSUNK HEAD SCREW M5 | 4 | €0.83 | 1-4 weeks to ship | ||
| 044 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 047 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 231939-8 | SPRING 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 231939-8 | SPRING 30 | 1 | €2.78 | 1-4 weeks to ship | ||
| 050 | 343358-7 | CENTER PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 343358-7 | CENTER PLATE | 1 | €4.17 | 1-4 weeks to ship | ||
| 051 | 923311-5 | CAP SQUARE NECK BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 923311-5 | CAP SQUARE NECK BOLT M6X12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 052 | 911206-4 | PAN HEAD SCREW M5X10 | 2 | €0.56 | 1-4 weeks to ship | |
| 911206-4 | PAN HEAD SCREW M5X10 | 2 | €0.56 | 1-4 weeks to ship | ||
| 053 | 343492-3 | BLADE STOPPER | 2 | €2.78 | 1-4 weeks to ship | |
| 343492-3 | BLADE STOPPER | 2 | €2.78 | 1-4 weeks to ship | ||
| 054 | 251333-8 | + PAN HEAD SCREW M8 | 1 | €2.37 | 1-4 weeks to ship | |
| 251333-8 | + PAN HEAD SCREW M8 | 1 | €2.37 | 1-4 weeks to ship | ||
| 055 | 253878-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253878-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 056 | 251339-6 | + PAN HD. SCREW M8 | 1 | €2.78 | 1-4 weeks to ship | |
| 251339-6 | + PAN HD. SCREW M8 | 1 | €2.78 | 1-4 weeks to ship | ||
| 057 | RING 10 | 1 | Not available in store | |||
| RING 10 | 1 | Not available in store | ||||
| 059 | 253731-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253731-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 060 | 254203-0 | KEY 4 | 1 | €0.83 | 1-4 weeks to ship | |
| 254203-0 | KEY 4 | 1 | €0.83 | 1-4 weeks to ship | ||
| 061 | 911121-2 | PAN HEAD SCREW M4X14 | 2 | €0.83 | 1-4 weeks to ship | |
| 911121-2 | PAN HEAD SCREW M4X14 | 2 | €0.83 | 1-4 weeks to ship | ||
| 063 | 411479-4 | CUSHION | 1 | €4.45 | 1-4 weeks to ship | |
| 411479-4 | CUSHION | 1 | €4.45 | 1-4 weeks to ship | ||
| 064 | 251959-6 | -SCREW (FLAT POINT)M10X80 | 1 | €4.45 | 1-4 weeks to ship | |
| 251959-6 | -SCREW (FLAT POINT)M10X80 | 1 | €4.45 | 1-4 weeks to ship | ||
| 065 | 941252-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 941252-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 066 | 931501-6 | HEX. NUT M10 | 1 | €2.09 | 1-4 weeks to ship | |
| 931501-6 | HEX. NUT M10 | 1 | €2.09 | 1-4 weeks to ship | ||
| 067 | 921551-9 | HEX. BOLT M10X30 | 4 | €2.78 | 1-4 weeks to ship | |
| 921551-9 | HEX. BOLT M10X30 | 4 | €2.78 | 1-4 weeks to ship | ||
| 069 | 163279-5 | SUPPORTER | 1 | €16.70 | 1-4 weeks to ship | |
| 163279-5 | SUPPORTER | 1 | €16.70 | 1-4 weeks to ship | ||
| 070 | 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | 322144-9 | SET SCREW M10 | 1 | €4.45 | 1-4 weeks to ship | |
| 322144-9 | SET SCREW M10 | 1 | €4.45 | 1-4 weeks to ship | ||
| 072 | 251698-8 | HEX. BOLT M16 | 1 | €8.77 | 1-4 weeks to ship | |
| 251698-8 | HEX. BOLT M16 | 1 | €8.77 | 1-4 weeks to ship | ||
| 073 | 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | |
| 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | ||
| 075 | 231533-6 | TORSION SPRING 33 | 1 | €4.17 | 1-4 weeks to ship | |
| 231533-6 | TORSION SPRING 33 | 1 | €4.17 | 1-4 weeks to ship | ||
| 076 | 341926-0 | HANDLE LATCH | 1 | €4.45 | 1-4 weeks to ship | |
| 341926-0 | HANDLE LATCH | 1 | €4.45 | 1-4 weeks to ship | ||
| 077 | 253948-7 | WAVE WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 253948-7 | WAVE WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 078 | 251298-4 | + PAN HEAD SCREW M8 | 1 | €2.78 | 1-4 weeks to ship | |
| 251298-4 | + PAN HEAD SCREW M8 | 1 | €2.78 | 1-4 weeks to ship | ||
| 079 | 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | |
| 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | ||
| 080 | 252044-8 | HEX. NUT M16-24 | 1 | €4.45 | 1-4 weeks to ship | |
| 252044-8 | HEX. NUT M16-24 | 1 | €4.45 | 1-4 weeks to ship | ||
| 083 | SET PLATE | 1 | Not available in store | |||
| SET PLATE | 1 | Not available in store | ||||
| 084 | 322027-3 | HOLDER | 1 | €18.79 | 1-4 weeks to ship | |
| 322027-3 | HOLDER | 1 | €18.79 | 1-4 weeks to ship | ||
| 085 | 251804-5 | SCREW M6X13 | 1 | €1.11 | 1-4 weeks to ship | |
| 251804-5 | SCREW M6X13 | 1 | €1.11 | 1-4 weeks to ship | ||
| 086 | PAN HEAD SCREW M6X14 | 1 | Not available in store | |||
| PAN HEAD SCREW M6X14 | 1 | Not available in store | ||||
| 087 | 253047-5 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253047-5 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 088 | VISE PLATE | 1 | Not available in store | |||
| VISE PLATE | 1 | Not available in store | ||||
| 089 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 090 | NUT HOLDER | 1 | Not available in store | |||
| NUT HOLDER | 1 | Not available in store | ||||
| 091 | 342967-9 | SET PLATE | 1 | €5.57 | 1-4 weeks to ship | |
| 342967-9 | SET PLATE | 1 | €5.57 | 1-4 weeks to ship | ||
| 092 | PROTECTER | 2 | Not available in store | |||
| PROTECTER | 2 | Not available in store | ||||
| 093 | RELEASE NUT R | 1 | Not available in store | |||
| RELEASE NUT R | 1 | Not available in store | ||||
| 094 | RELEASE NUT L | 1 | Not available in store | |||
| RELEASE NUT L | 1 | Not available in store | ||||
| 096 | KNOB 45 | 1 | Not available in store | |||
| KNOB 45 | 1 | Not available in store | ||||
| 097 | 911216-1 | PAN HEAD SCREW M5X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 911216-1 | PAN HEAD SCREW M5X14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 098 | 273436-8 | GRIP 37 | 1 | €5.57 | 1-4 weeks to ship | |
| 273436-8 | GRIP 37 | 1 | €5.57 | 1-4 weeks to ship | ||
| 099 | 911108-4 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 911108-4 | PAN HEAD SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 100 | INDICATION LABEL | 1 | Not available in store | |||
| INDICATION LABEL | 1 | Not available in store | ||||
| 101 | 342823-3 | PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 342823-3 | PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 102 | 321981-8 | LATCH PIN | 1 | €2.92 | 1-4 weeks to ship | |
| 321981-8 | LATCH PIN | 1 | €2.92 | 1-4 weeks to ship | ||
| 103 | 911256-9 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 911256-9 | PAN HEAD SCREW M5X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 104 | HEX. BOLT M8X35 | 2 | Not available in store | |||
| HEX. BOLT M8X35 | 2 | Not available in store | ||||
| 105 | 232093-1 | LEAF SPRING | 1 | €4.45 | 1-4 weeks to ship | |
| 232093-1 | LEAF SPRING | 1 | €4.45 | 1-4 weeks to ship | ||
| 106 | 343359-5 | LATCH SPRING | 1 | €12.52 | 1-4 weeks to ship | |
| 343359-5 | LATCH SPRING | 1 | €12.52 | 1-4 weeks to ship | ||
| 107 | 311795-3 | TURNING STAY | 1 | €48.42 | 1-4 weeks to ship | |
| 311795-3 | TURNING STAY | 1 | €48.42 | 1-4 weeks to ship | ||
| 110 | 322027-3 | HOLDER | 1 | €18.79 | 1-4 weeks to ship | |
| 322027-3 | HOLDER | 1 | €18.79 | 1-4 weeks to ship | ||
| 111 | 922562-7 | HEX. SOCKET HEAD BOLT M10X4 | 2 | €2.78 | 1-4 weeks to ship | |
| 922562-7 | HEX. SOCKET HEAD BOLT M10X4 | 2 | €2.78 | 1-4 weeks to ship | ||
| 112 | 942251-8 | SPRING WASHER 10 | 2 | €0.56 | 1-4 weeks to ship | |
| 942251-8 | SPRING WASHER 10 | 2 | €0.56 | 1-4 weeks to ship | ||
| 113 | 311796-1 | TURN BASE | 1 | €300.84 | 1-4 weeks to ship | |
| 311796-1 | TURN BASE | 1 | €300.84 | 1-4 weeks to ship | ||
| 114 | 253878-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253878-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 115 | RUBBER RING 12 | 1 | Not available in store | |||
| RUBBER RING 12 | 1 | Not available in store | ||||
| 116 | 253011-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 253011-6 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 117 | 911216-1 | PAN HEAD SCREW M5X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 911216-1 | PAN HEAD SCREW M5X14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 118 | 267710-4 | WASHER 15 | 1 | €2.92 | 1-4 weeks to ship | |
| 267710-4 | WASHER 15 | 1 | €2.92 | 1-4 weeks to ship | ||
| 400 | SOCKET WRENCH 13 | 1 | Not available in store | |||
| SOCKET WRENCH 13 | 1 | Not available in store | ||||
| 402 | DUST BAG ASS'Y | 1 | Not available in store | |||
| DUST BAG ASS'Y | 1 | Not available in store | ||||
| 403 | 410602-8 | FASTENER | 1 | €1.39 | 1-4 weeks to ship | |
| 410602-8 | FASTENER | 1 | €1.39 | 1-4 weeks to ship | ||
| 900 | 321140-4 | TUBE HOLDER | 1 | €2.78 | 1-4 weeks to ship | |
| 321140-4 | TUBE HOLDER | 1 | €2.78 | 1-4 weeks to ship | ||
| 901 | 911106-8 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 911106-8 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911106-8 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911106-8 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 908 | 164836-2 | LOCK LEVER | 1 | €23.93 | 1-4 weeks to ship | |
| 164836-2 | LOCK LEVER | 1 | €23.93 | 1-4 weeks to ship | ||
| 909 | 231297-2 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 231297-2 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 910 | 165129-0 | LOCK PLATE | 1 | €15.03 | 1-4 weeks to ship | |
| 165129-0 | LOCK PLATE | 1 | €15.03 | 1-4 weeks to ship | ||
| 911 | 251362-1 | + BINDING HEAD SCREW M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 251362-1 | + BINDING HEAD SCREW M6 | 1 | €2.78 | 1-4 weeks to ship | ||
| 912 | 646071-9 | CHOKE COIL | 1 | €7.10 | 1-4 weeks to ship | |
| 646071-9 | CHOKE COIL | 1 | €7.10 | 1-4 weeks to ship | ||
| 913 | PROTECTOR R | 1 | Not available in store | |||
| PROTECTOR R | 1 | Not available in store | ||||
| 914 | PROTECTOR L | 1 | Not available in store | |||
| PROTECTOR L | 1 | Not available in store | ||||
| 915 | GUARD | 1 | Not available in store | |||
| GUARD | 1 | Not available in store | ||||
| 916 | 345196-3 | SAFETY COVER | 1 | €1.67 | 1-4 weeks to ship | |
| 345196-3 | SAFETY COVER | 1 | €1.67 | 1-4 weeks to ship | ||
| 917 | 266192-7 | TAPPING SCREW 4X14 | 4 | €0.56 | 1-4 weeks to ship | |
| 266192-7 | TAPPING SCREW 4X14 | 4 | €0.56 | 1-4 weeks to ship | ||
| 918 | 266192-7 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 266192-7 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 919 | 911108-4 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 911108-4 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 920 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | |
| 266225-8 | H.S.SET SCREW(FLAT POINT)M6X | 1 | €0.56 | 1-4 weeks to ship | ||
| 921 | 251896-4 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 251896-4 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | ||
| 922 | 122540-9 | VISE ASS'Y | 1 | €27.83 | 1-4 weeks to ship | |
| 122540-9 | VISE ASS'Y | 1 | €27.83 | 1-4 weeks to ship | ||
