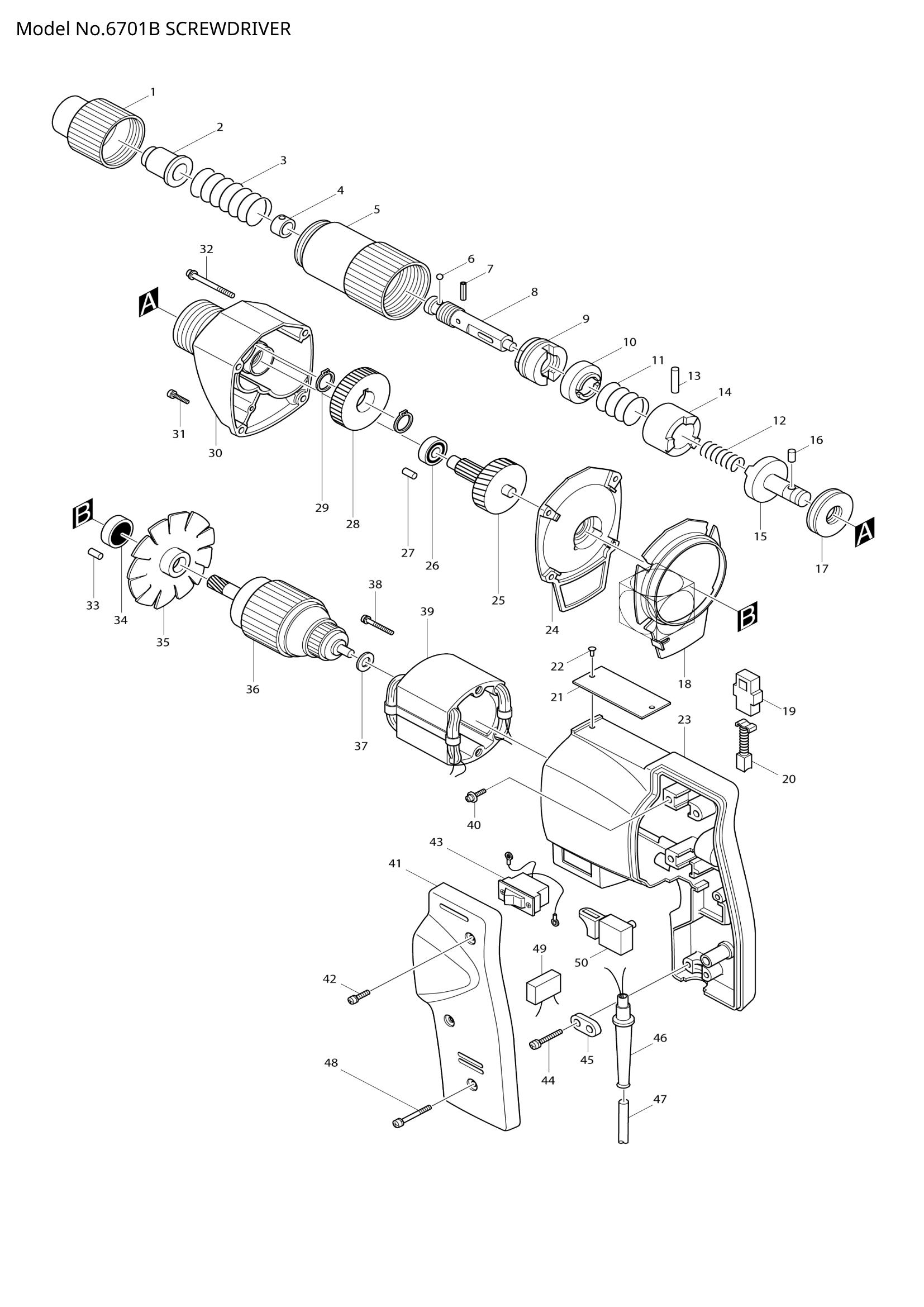

6701B
6701B
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 323075-5 | FRONT COVER | 1 | €18.09 | 1-4 weeks to ship | |
| 002 | 323074-7 | SCREW GUIDE 8.0 | 1 | €4.45 | 1-4 weeks to ship | |
| 003 | 231017-4 | COMPRESSION SPRING 15 | 1 | €2.09 | 1-4 weeks to ship | |
| 004 | 232050-9 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 323073-9 | CLUTCH COVER | 1 | €33.26 | 1-4 weeks to ship | |
| 006 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 951060-4 | SPRING PIN 3-14 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 133454-7 | SPINDLE | 1 | €33.26 | 1-4 weeks to ship | |
| 009 | 313003-8 | ADJUSTING NUT | 1 | €15.03 | 1-4 weeks to ship | |
| 010 | 313004-6 | THRUST COLLAR | 1 | €10.71 | 1-4 weeks to ship | |
| 011 | 231018-2 | COMPRESSION SPRING 17 | 1 | €2.09 | 1-4 weeks to ship | |
| 012 | 231271-0 | COMPRESSION SPRING 4 | 1 | €2.09 | 1-4 weeks to ship | |
| 013 | 256010-7 | PIN 5 | 1 | €2.09 | 1-4 weeks to ship | |
| 014 | 223001-3 | CLUTCH CAM | 1 | €19.76 | 1-4 weeks to ship | |
| 015 | 223002-1 | CLUTCH SHAFT | 1 | €28.66 | 1-4 weeks to ship | |
| 016 | PIN 4.5 | 1 | Not available in store | |||
| 017 | 212110-3 | THRUST NEEDLE BEARING 1224 | 1 | €13.92 | 1-4 weeks to ship | |
| 019 | 643551-6 | BRUSH HOLDER 5-8 | 2 | €1.11 | 1-4 weeks to ship | |
| 024 | 156077-4 | GEAR HOUSING COVER | 1 | €25.60 | 1-4 weeks to ship | |
| 025 | 226029-0 | GEAR COMPLETE 9-39 | 1 | €38.68 | 1-4 weeks to ship | |
| 026 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 221023-7 | SPUR GEAR 54 | 1 | €21.57 | 1-4 weeks to ship | |
| 029 | 961052-5 | RETAINING RING (EXT) S-12 | 2 | €0.56 | 1-4 weeks to ship | |
| 030 | 156060-1 | GEAR HOUSING | 1 | €44.25 | 1-4 weeks to ship | |
| 031 | 911146-6 | PAN HEAD SCREW M4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 032 | 911176-7 | PAN HEAD SCREW M4X50 | 2 | €2.09 | 1-4 weeks to ship | |
| 033 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 035 | FAN 58 | 1 | Not available in store | |||
| 037 | 261008-1 | FIBER WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 411196-6 | HANDLE COVER | 1 | €7.10 | 1-4 weeks to ship | |
| 042 | 911148-2 | PAN HEAD SCREW M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 682504-0 | CORD GUARD 10-85 | 1 | €1.67 | 1-4 weeks to ship | |
| 682504-0 | CORD GUARD 10-85 | 1 | €1.67 | 1-4 weeks to ship | ||
| 048 | 911158-9 | PAN HEAD SCREW M4X30 | 1 | €0.56 | 1-4 weeks to ship | |
| 401 | 784005-5 | SLOTTED BIT 6.35-45 | 1 | €4.45 | 1-4 weeks to ship | |
| 402 | 782005-9 | OFFSET WRENCH 17 | 1 | €4.45 | 1-4 weeks to ship | |
| 403 | HEX. WRENCH 6.35 | 1 | Not available in store | |||
