LM004G
LM004G

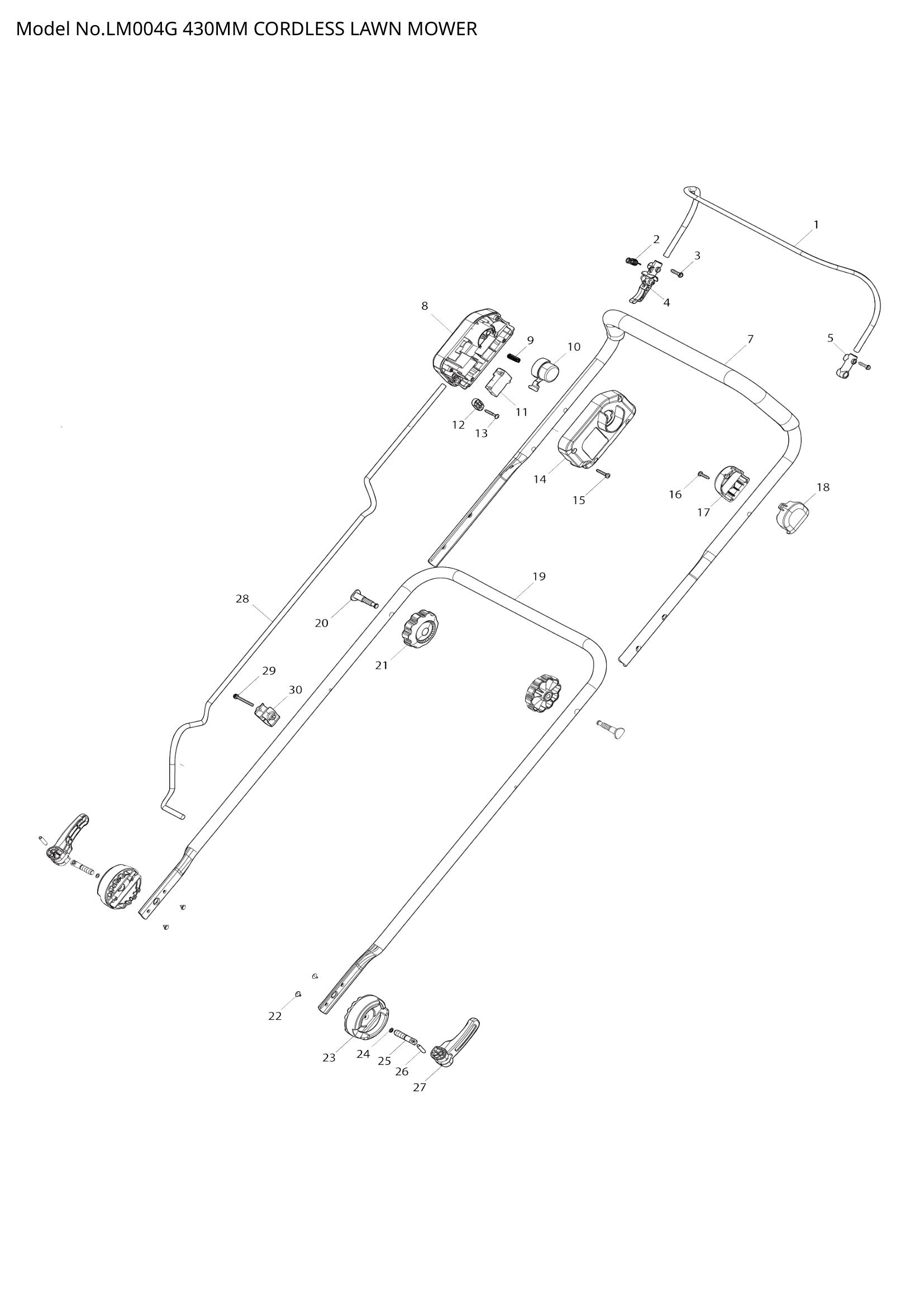

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | SWITCH LEVER | 1 | Not available in store | |||
| SWITCH LEVER | 1 | Not available in store | ||||
| SWITCH LEVER | 1 | Not available in store | ||||
| SWITCH LEVER | 1 | Not available in store | ||||
| 002 | TENSION SPRING 7 | 1 | Not available in store | |||
| TENSION SPRING 7 | 1 | Not available in store | ||||
| TENSION SPRING 7 | 1 | Not available in store | ||||
| TENSION SPRING 7 | 1 | Not available in store | ||||
| 003 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | |
| 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | €0.56 | 1-4 weeks to ship | ||
| 004 | 455075-8 | LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 455075-8 | LEVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 455075-8 | LEVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 455075-8 | LEVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 455075-8 | LEVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 455075-8 | LEVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 455075-8 | LEVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 455075-8 | LEVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 005 | 455078-2 | ARM | 1 | €0.70 | 1-4 weeks to ship | |
| 455078-2 | ARM | 1 | €0.70 | 1-4 weeks to ship | ||
| 455078-2 | ARM | 1 | €0.70 | 1-4 weeks to ship | ||
| 455078-2 | ARM | 1 | €0.70 | 1-4 weeks to ship | ||
| 455078-2 | ARM | 1 | €0.70 | 1-4 weeks to ship | ||
| 455078-2 | ARM | 1 | €0.70 | 1-4 weeks to ship | ||
| 455078-2 | ARM | 1 | €0.70 | 1-4 weeks to ship | ||
| 455078-2 | ARM | 1 | €0.70 | 1-4 weeks to ship | ||
| 007 | UPPER PIPE COMPLETE | 1 | Not available in store | |||
| UPPER PIPE COMPLETE | 1 | Not available in store | ||||
| UPPER PIPE COMPLETE | 1 | Not available in store | ||||
| UPPER PIPE COMPLETE | 1 | Not available in store | ||||
| 008 | SWITCH BOX SET | 1 | Not available in store | |||
| SWITCH BOX SET | 1 | Not available in store | ||||
| SWITCH BOX SET | 1 | Not available in store | ||||
| SWITCH BOX SET | 1 | Not available in store | ||||
| 009 | 233068-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 233068-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233068-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233068-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 010 | 455074-0 | SWITCH BUTTON | 1 | €0.97 | 1-4 weeks to ship | |
| 455074-0 | SWITCH BUTTON | 1 | €0.97 | 1-4 weeks to ship | ||
| 455074-0 | SWITCH BUTTON | 1 | €0.97 | 1-4 weeks to ship | ||
| 455074-0 | SWITCH BUTTON | 1 | €0.97 | 1-4 weeks to ship | ||
| 011 | SWITCH TG772BDS-1 | 1 | Not available in store | |||
| SWITCH TG772BDS-1 | 1 | Not available in store | ||||
| SWITCH TG772BDS-1 | 1 | Not available in store | ||||
| SWITCH TG772BDS-1 | 1 | Not available in store | ||||
| 012 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 265999-8 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 265999-8 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 265999-8 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 265999-8 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 014 | SWITCH BOX SET | 1 | Not available in store | |||
| SWITCH BOX SET | 1 | Not available in store | ||||
| SWITCH BOX SET | 1 | Not available in store | ||||
| SWITCH BOX SET | 1 | Not available in store | ||||
| 015 | 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 016 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 456352-1 | SWITCH LEVER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | |
| 456352-1 | SWITCH LEVER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | ||
| 456352-1 | SWITCH LEVER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | ||
| 456352-1 | SWITCH LEVER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | ||
| 456352-1 | SWITCH LEVER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | ||
| 456352-1 | SWITCH LEVER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | ||
| 456352-1 | SWITCH LEVER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | ||
| 456352-1 | SWITCH LEVER CASE COVER | 1 | €1.81 | 1-4 weeks to ship | ||
| 018 | 456351-3 | SWITCH LEVER CASE | 1 | €1.81 | 1-4 weeks to ship | |
| 456351-3 | SWITCH LEVER CASE | 1 | €1.81 | 1-4 weeks to ship | ||
| 456351-3 | SWITCH LEVER CASE | 1 | €1.81 | 1-4 weeks to ship | ||
| 456351-3 | SWITCH LEVER CASE | 1 | €1.81 | 1-4 weeks to ship | ||
| 456351-3 | SWITCH LEVER CASE | 1 | €1.81 | 1-4 weeks to ship | ||
| 456351-3 | SWITCH LEVER CASE | 1 | €1.81 | 1-4 weeks to ship | ||
| 456351-3 | SWITCH LEVER CASE | 1 | €1.81 | 1-4 weeks to ship | ||
| 456351-3 | SWITCH LEVER CASE | 1 | €1.81 | 1-4 weeks to ship | ||
| 019 | LOWER PIPE | 1 | Not available in store | |||
| LOWER PIPE | 1 | Not available in store | ||||
| LOWER PIPE | 1 | Not available in store | ||||
| LOWER PIPE | 1 | Not available in store | ||||
| 020 | FLAT HEAD BOLT M8X50 | 2 | Not available in store | |||
| FLAT HEAD BOLT M8X50 | 2 | Not available in store | ||||
| FLAT HEAD BOLT M8X50 | 2 | Not available in store | ||||
| FLAT HEAD BOLT M8X50 | 2 | Not available in store | ||||
| 021 | THUMB NUT M8 | 2 | Not available in store | |||
| THUMB NUT M8 | 2 | Not available in store | ||||
| THUMB NUT M8 | 2 | Not available in store | ||||
| THUMB NUT M8 | 2 | Not available in store | ||||
| 022 | TAPPING SCREW FLANGE 3X6 | 4 | Not available in store | |||
| TAPPING SCREW FLANGE 3X6 | 4 | Not available in store | ||||
| TAPPING SCREW FLANGE 3X6 | 4 | Not available in store | ||||
| TAPPING SCREW FLANGE 3X6 | 4 | Not available in store | ||||
| 023 | SUPPORT | 2 | Not available in store | |||
| SUPPORT | 2 | Not available in store | ||||
| SUPPORT | 2 | Not available in store | ||||
| SUPPORT | 2 | Not available in store | ||||
| 024 | O-RING 6 | 2 | Not available in store | |||
| O-RING 6 | 2 | Not available in store | ||||
| O-RING 6 | 2 | Not available in store | ||||
| O-RING 6 | 2 | Not available in store | ||||
| 025 | LOCK PIN | 2 | Not available in store | |||
| LOCK PIN | 2 | Not available in store | ||||
| LOCK PIN | 2 | Not available in store | ||||
| LOCK PIN | 2 | Not available in store | ||||
| 026 | 951119-7 | SPRING PIN 4-24 | 2 | €0.83 | 1-4 weeks to ship | |
| 951119-7 | SPRING PIN 4-24 | 2 | €0.83 | 1-4 weeks to ship | ||
| 951119-7 | SPRING PIN 4-24 | 2 | €0.83 | 1-4 weeks to ship | ||
| 951119-7 | SPRING PIN 4-24 | 2 | €0.83 | 1-4 weeks to ship | ||
| 027 | LEVER | 2 | Not available in store | |||
| LEVER | 2 | Not available in store | ||||
| LEVER | 2 | Not available in store | ||||
| LEVER | 2 | Not available in store | ||||
| 028 | POWER SUPPLY CORD UNI | 1 | Not available in store | |||
| POWER SUPPLY CORD UNI | 1 | Not available in store | ||||
| POWER SUPPLY CORD UNI | 1 | Not available in store | ||||
| POWER SUPPLY CORD UNI | 1 | Not available in store | ||||
| 029 | 911163-6 | PAN HEAD SCREW M4X35 | 1 | €0.56 | 1-4 weeks to ship | |
| 911163-6 | PAN HEAD SCREW M4X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911163-6 | PAN HEAD SCREW M4X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 911163-6 | PAN HEAD SCREW M4X35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | CLAMP | 1 | Not available in store | |||
| CLAMP | 1 | Not available in store | ||||
| CLAMP | 1 | Not available in store | ||||
| CLAMP | 1 | Not available in store | ||||
| 031 | LOCK LEVER | 1 | Not available in store | |||
| LOCK LEVER | 1 | Not available in store | ||||
| LOCK LEVER | 1 | Not available in store | ||||
| LOCK LEVER | 1 | Not available in store | ||||
| 032 | 231037-8 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 231037-8 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 231037-8 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 231037-8 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | BATTERY COVER COMPLETE | 1 | Not available in store | |||
| BATTERY COVER COMPLETE | 1 | Not available in store | ||||
| BATTERY COVER COMPLETE | 1 | Not available in store | ||||
| BATTERY COVER COMPLETE | 1 | Not available in store | ||||
| 034 | INDICATION LABEL | 1 | Not available in store | |||
| INDICATION LABEL | 1 | Not available in store | ||||
| INDICATION LABEL | 1 | Not available in store | ||||
| INDICATION LABEL | 1 | Not available in store | ||||
| 035 | 266459-3 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 266459-3 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 266459-3 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 266459-3 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 036 | 273675-0 | GRIP A | 1 | €4.17 | 1-4 weeks to ship | |
| 273675-0 | GRIP A | 1 | €4.17 | 1-4 weeks to ship | ||
| 273675-0 | GRIP A | 1 | €4.17 | 1-4 weeks to ship | ||
| 273675-0 | GRIP A | 1 | €4.17 | 1-4 weeks to ship | ||
| 037 | + PAN HEAD SCREW M3X12 WIT | 2 | Not available in store | |||
| + PAN HEAD SCREW M3X12 WIT | 2 | Not available in store | ||||
| + PAN HEAD SCREW M3X12 WIT | 2 | Not available in store | ||||
| + PAN HEAD SCREW M3X12 WIT | 2 | Not available in store | ||||
| 038 | HEIGHT ADJUST LEVER GRIP | 1 | Not available in store | |||
| HEIGHT ADJUST LEVER GRIP | 1 | Not available in store | ||||
| HEIGHT ADJUST LEVER GRIP | 1 | Not available in store | ||||
| HEIGHT ADJUST LEVER GRIP | 1 | Not available in store | ||||
| 039 | 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 040 | HEIGHT ADJUST PLATE | 1 | Not available in store | |||
| HEIGHT ADJUST PLATE | 1 | Not available in store | ||||
| HEIGHT ADJUST PLATE | 1 | Not available in store | ||||
| HEIGHT ADJUST PLATE | 1 | Not available in store | ||||
| 041 | 266424-2 | TAPPING SCREW 4X20 | 1 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 1 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 1 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 1 | €1.11 | 1-4 weeks to ship | ||
| 042 | HOOK | 1 | Not available in store | |||
| HOOK | 1 | Not available in store | ||||
| HOOK | 1 | Not available in store | ||||
| HOOK | 1 | Not available in store | ||||
| 043 | LM004G NAME PLATE | 1 | Not available in store | |||
| LM004G NAME PLATE | 1 | Not available in store | ||||
| LM004G NAME PLATE | 1 | Not available in store | ||||
| LM004G NAME PLATE | 1 | Not available in store | ||||
| 045 | COWLING ASS'Y | 1 | Not available in store | |||
| COWLING ASS'Y | 1 | Not available in store | ||||
| COWLING ASS'Y | 1 | Not available in store | ||||

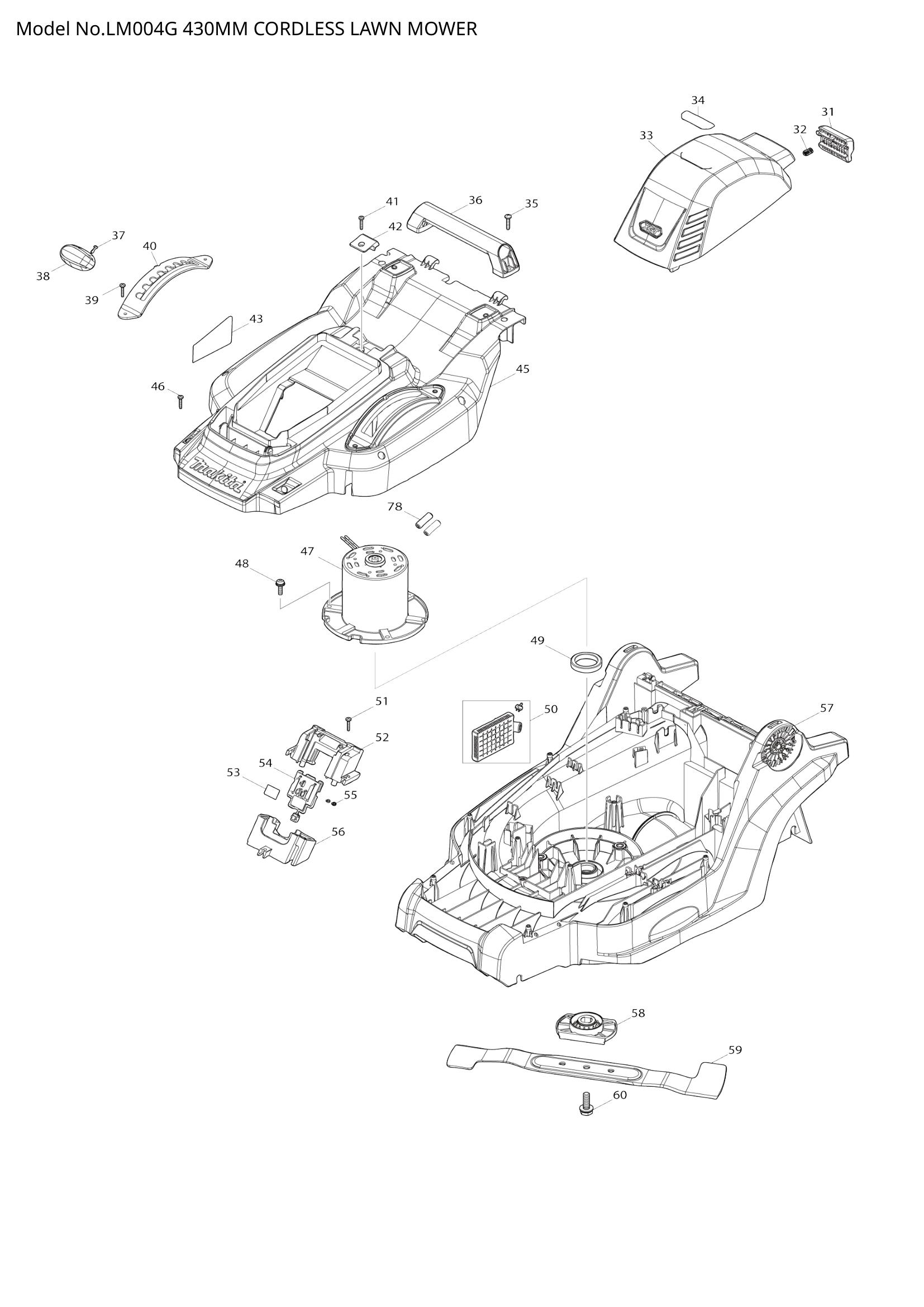

| COWLING ASS'Y | 1 | Not available in store | ||||
| 046 | 266424-2 | TAPPING SCREW 4X20 | 8 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 8 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 8 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 8 | €1.11 | 1-4 weeks to ship | ||
| 048 | + PAN HEAD SCREW M6X22 WIT | 3 | Not available in store | |||
| + PAN HEAD SCREW M6X22 WIT | 3 | Not available in store | ||||
| + PAN HEAD SCREW M6X22 WIT | 3 | Not available in store | ||||
| + PAN HEAD SCREW M6X22 WIT | 3 | Not available in store | ||||
| 050 | CONTROLLER | 1 | Not available in store | |||
| CONTROLLER | 1 | Not available in store | ||||
| CONTROLLER | 1 | Not available in store | ||||
| CONTROLLER | 1 | Not available in store | ||||
| 051 | 266424-2 | TAPPING SCREW 4X20 | 3 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 3 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 3 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 3 | €1.11 | 1-4 weeks to ship | ||
| 052 | TERMINAL HOUSING SET | 1 | Not available in store | |||
| TERMINAL HOUSING SET | 1 | Not available in store | ||||
| TERMINAL HOUSING SET | 1 | Not available in store | ||||
| TERMINAL HOUSING SET | 1 | Not available in store | ||||
| 053 | LM004G SERIAL NO. LABEL | 1 | Not available in store | |||
| LM004G SERIAL NO. LABEL | 1 | Not available in store | ||||
| LM004G SERIAL NO. LABEL | 1 | Not available in store | ||||
| LM004G SERIAL NO. LABEL | 1 | Not available in store | ||||
| 054 | TERMINAL UNIT | 1 | Not available in store | |||
| TERMINAL UNIT | 1 | Not available in store | ||||
| TERMINAL UNIT | 1 | Not available in store | ||||
| TERMINAL UNIT | 1 | Not available in store | ||||
| 055 | PAN HEAD SCREW M3X6 | 2 | Not available in store | |||
| PAN HEAD SCREW M3X6 | 2 | Not available in store | ||||
| PAN HEAD SCREW M3X6 | 2 | Not available in store | ||||
| PAN HEAD SCREW M3X6 | 2 | Not available in store | ||||
| 056 | TERMINAL HOUSING SET | 1 | Not available in store | |||
| TERMINAL HOUSING SET | 1 | Not available in store | ||||
| TERMINAL HOUSING SET | 1 | Not available in store | ||||
| TERMINAL HOUSING SET | 1 | Not available in store | ||||
| 057 | DECK | 1 | Not available in store | |||
| DECK | 1 | Not available in store | ||||
| DECK | 1 | Not available in store | ||||
| DECK | 1 | Not available in store | ||||
| 058 | BLADE SUPPORT | 1 | Not available in store | |||
| BLADE SUPPORT | 1 | Not available in store | ||||
| BLADE SUPPORT | 1 | Not available in store | ||||
| BLADE SUPPORT | 1 | Not available in store | ||||
| 059 | BLADE 430 SET | 1 | Not available in store | |||
| BLADE 430 SET | 1 | Not available in store | ||||
| BLADE 430 SET | 1 | Not available in store | ||||
| BLADE 430 SET | 1 | Not available in store | ||||

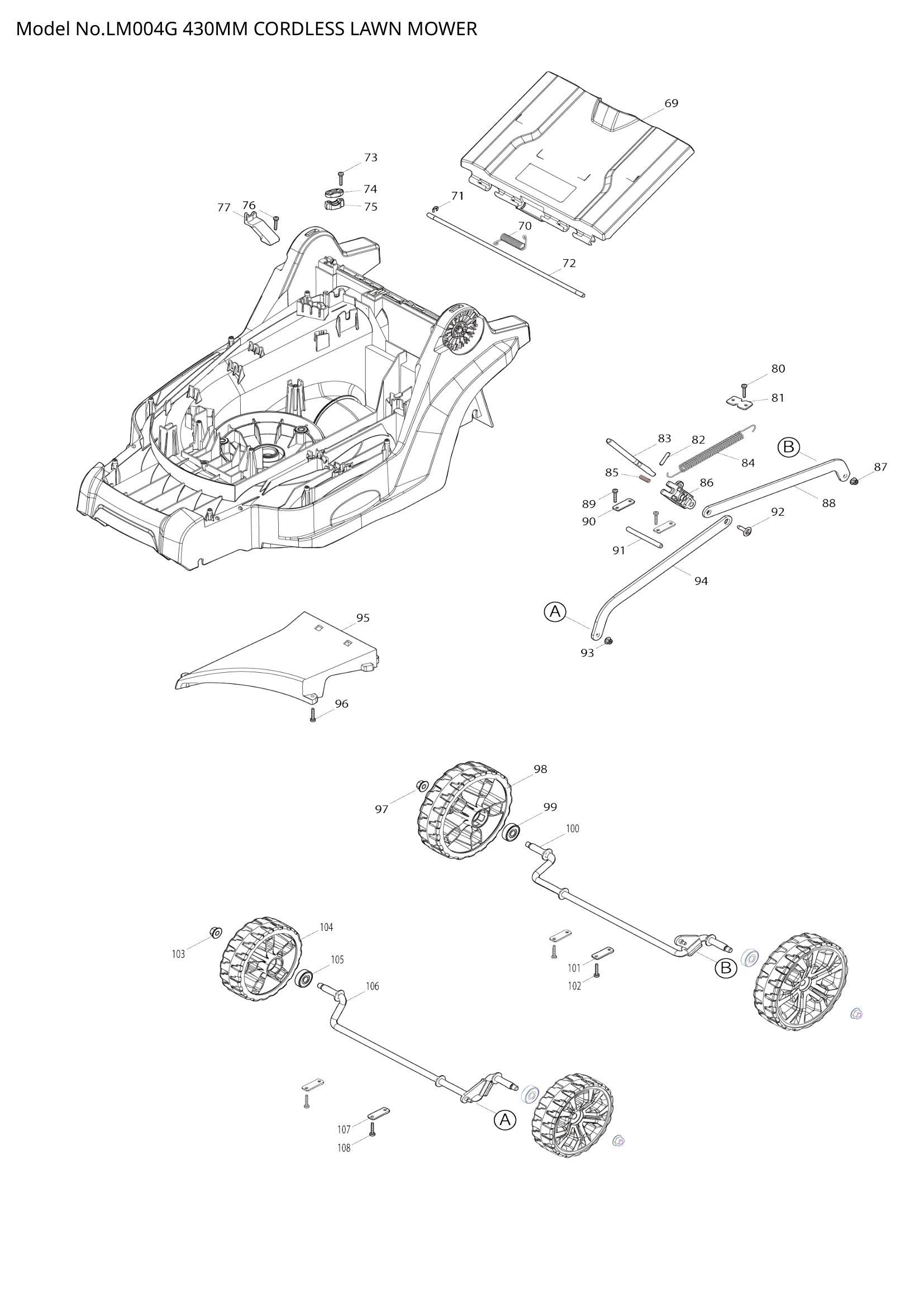

| 069 | REAR FLAP COMPLETE | 1 | Not available in store | |||
| REAR FLAP COMPLETE | 1 | Not available in store | ||||
| REAR FLAP COMPLETE | 1 | Not available in store | ||||
| REAR FLAP COMPLETE | 1 | Not available in store | ||||
| 070 | 233597-6 | TORSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 233597-6 | TORSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233597-6 | TORSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 233597-6 | TORSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 072 | ROD 6 | 1 | Not available in store | |||
| ROD 6 | 1 | Not available in store | ||||
| ROD 6 | 1 | Not available in store | ||||
| ROD 6 | 1 | Not available in store | ||||
| 073 | 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 074 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 075 | 687051-6 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | |
| 687051-6 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | ||
| 687051-6 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | ||
| 687051-6 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | ||
| 076 | 266424-2 | TAPPING SCREW 4X20 | 1 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 1 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 1 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 1 | €1.11 | 1-4 weeks to ship | ||
| 077 | LED HOLDER | 1 | Not available in store | |||
| LED HOLDER | 1 | Not available in store | ||||
| LED HOLDER | 1 | Not available in store | ||||
| LED HOLDER | 1 | Not available in store | ||||
| 080 | 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 081 | HOOK PLATE | 1 | Not available in store | |||
| HOOK PLATE | 1 | Not available in store | ||||
| HOOK PLATE | 1 | Not available in store | ||||
| HOOK PLATE | 1 | Not available in store | ||||
| 082 | 951119-7 | SPRING PIN 4-24 | 1 | €0.83 | 1-4 weeks to ship | |
| 951119-7 | SPRING PIN 4-24 | 1 | €0.83 | 1-4 weeks to ship | ||
| 951119-7 | SPRING PIN 4-24 | 1 | €0.83 | 1-4 weeks to ship | ||
| 951119-7 | SPRING PIN 4-24 | 1 | €0.83 | 1-4 weeks to ship | ||
| 083 | HEIGHT ADJUST LEVER | 1 | Not available in store | |||
| HEIGHT ADJUST LEVER | 1 | Not available in store | ||||
| HEIGHT ADJUST LEVER | 1 | Not available in store | ||||
| HEIGHT ADJUST LEVER | 1 | Not available in store | ||||
| 084 | TENSION SPRING 12 | 1 | Not available in store | |||
| TENSION SPRING 12 | 1 | Not available in store | ||||
| TENSION SPRING 12 | 1 | Not available in store | ||||
| TENSION SPRING 12 | 1 | Not available in store | ||||
| 085 | COMPRESSION SPRING 5 | 1 | Not available in store | |||
| COMPRESSION SPRING 5 | 1 | Not available in store | ||||
| COMPRESSION SPRING 5 | 1 | Not available in store | ||||
| COMPRESSION SPRING 5 | 1 | Not available in store | ||||
| 086 | ROD HOLDER | 1 | Not available in store | |||
| ROD HOLDER | 1 | Not available in store | ||||
| ROD HOLDER | 1 | Not available in store | ||||
| ROD HOLDER | 1 | Not available in store | ||||
| 087 | COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | |||
| COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | ||||
| COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | ||||
| COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | ||||
| 088 | CONNECTING ROD R | 1 | Not available in store | |||
| CONNECTING ROD R | 1 | Not available in store | ||||
| CONNECTING ROD R | 1 | Not available in store | ||||
| CONNECTING ROD R | 1 | Not available in store | ||||
| 089 | 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 090 | PLATE | 2 | Not available in store | |||
| PLATE | 2 | Not available in store | ||||
| PLATE | 2 | Not available in store | ||||
| PLATE | 2 | Not available in store | ||||
| 091 | ROD 7 | 1 | Not available in store | |||
| ROD 7 | 1 | Not available in store | ||||
| ROD 7 | 1 | Not available in store | ||||
| ROD 7 | 1 | Not available in store | ||||
| 092 | TAPPING SCREW FRANGE 5X20 | 1 | Not available in store | |||
| TAPPING SCREW FRANGE 5X20 | 1 | Not available in store | ||||
| TAPPING SCREW FRANGE 5X20 | 1 | Not available in store | ||||
| TAPPING SCREW FRANGE 5X20 | 1 | Not available in store | ||||
| 093 | COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | |||
| COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | ||||
| COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | ||||
| COLLARED HEX.LOCK NUT M5-8 | 1 | Not available in store | ||||
| 094 | CONNECTING ROD F | 1 | Not available in store | |||
| CONNECTING ROD F | 1 | Not available in store | ||||
| CONNECTING ROD F | 1 | Not available in store | ||||
| CONNECTING ROD F | 1 | Not available in store | ||||
| 095 | UNDER COVER | 1 | Not available in store | |||
| UNDER COVER | 1 | Not available in store | ||||
| UNDER COVER | 1 | Not available in store | ||||
| UNDER COVER | 1 | Not available in store | ||||
| 096 | 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 097 | 252145-2 | COLLARED HEX NUT M8 | 2 | €0.70 | 1-4 weeks to ship | |
| 252145-2 | COLLARED HEX NUT M8 | 2 | €0.70 | 1-4 weeks to ship | ||
| 252145-2 | COLLARED HEX NUT M8 | 2 | €0.70 | 1-4 weeks to ship | ||
| 252145-2 | COLLARED HEX NUT M8 | 2 | €0.70 | 1-4 weeks to ship | ||
| 098 | REAR WHEEL | 2 | Not available in store | |||
| REAR WHEEL | 2 | Not available in store | ||||
| REAR WHEEL | 2 | Not available in store | ||||
| REAR WHEEL | 2 | Not available in store | ||||
| 099 | 210070-3 | BALL BEARING 6200ZZ | 2 | €1.39 | 1-4 weeks to ship | |
| 210070-3 | BALL BEARING 6200ZZ | 2 | €1.39 | 1-4 weeks to ship | ||
| 210070-3 | BALL BEARING 6200ZZ | 2 | €1.39 | 1-4 weeks to ship | ||
| 210070-3 | BALL BEARING 6200ZZ | 2 | €1.39 | 1-4 weeks to ship | ||
| 100 | REAR SHAFT | 1 | Not available in store | |||
| REAR SHAFT | 1 | Not available in store | ||||
| REAR SHAFT | 1 | Not available in store | ||||
| REAR SHAFT | 1 | Not available in store | ||||
| 101 | PLATE | 2 | Not available in store | |||
| PLATE | 2 | Not available in store | ||||
| PLATE | 2 | Not available in store | ||||
| PLATE | 2 | Not available in store | ||||
| 102 | 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 103 | 252145-2 | COLLARED HEX NUT M8 | 2 | €0.70 | 1-4 weeks to ship | |
| 252145-2 | COLLARED HEX NUT M8 | 2 | €0.70 | 1-4 weeks to ship | ||
| 252145-2 | COLLARED HEX NUT M8 | 2 | €0.70 | 1-4 weeks to ship | ||
| 252145-2 | COLLARED HEX NUT M8 | 2 | €0.70 | 1-4 weeks to ship | ||
| 104 | FRONT WHEEL | 2 | Not available in store | |||
| FRONT WHEEL | 2 | Not available in store | ||||
| FRONT WHEEL | 2 | Not available in store | ||||
| FRONT WHEEL | 2 | Not available in store | ||||
| 105 | 210070-3 | BALL BEARING 6200ZZ | 2 | €1.39 | 1-4 weeks to ship | |
| 210070-3 | BALL BEARING 6200ZZ | 2 | €1.39 | 1-4 weeks to ship | ||
| 210070-3 | BALL BEARING 6200ZZ | 2 | €1.39 | 1-4 weeks to ship | ||
| 210070-3 | BALL BEARING 6200ZZ | 2 | €1.39 | 1-4 weeks to ship | ||
| 106 | FRONT SHAFT | 1 | Not available in store | |||
| FRONT SHAFT | 1 | Not available in store | ||||
| FRONT SHAFT | 1 | Not available in store | ||||
| FRONT SHAFT | 1 | Not available in store | ||||
| 107 | PLATE | 2 | Not available in store | |||
| PLATE | 2 | Not available in store | ||||
| PLATE | 2 | Not available in store | ||||
| PLATE | 2 | Not available in store | ||||
| 108 | 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 4 | €1.11 | 1-4 weeks to ship | ||

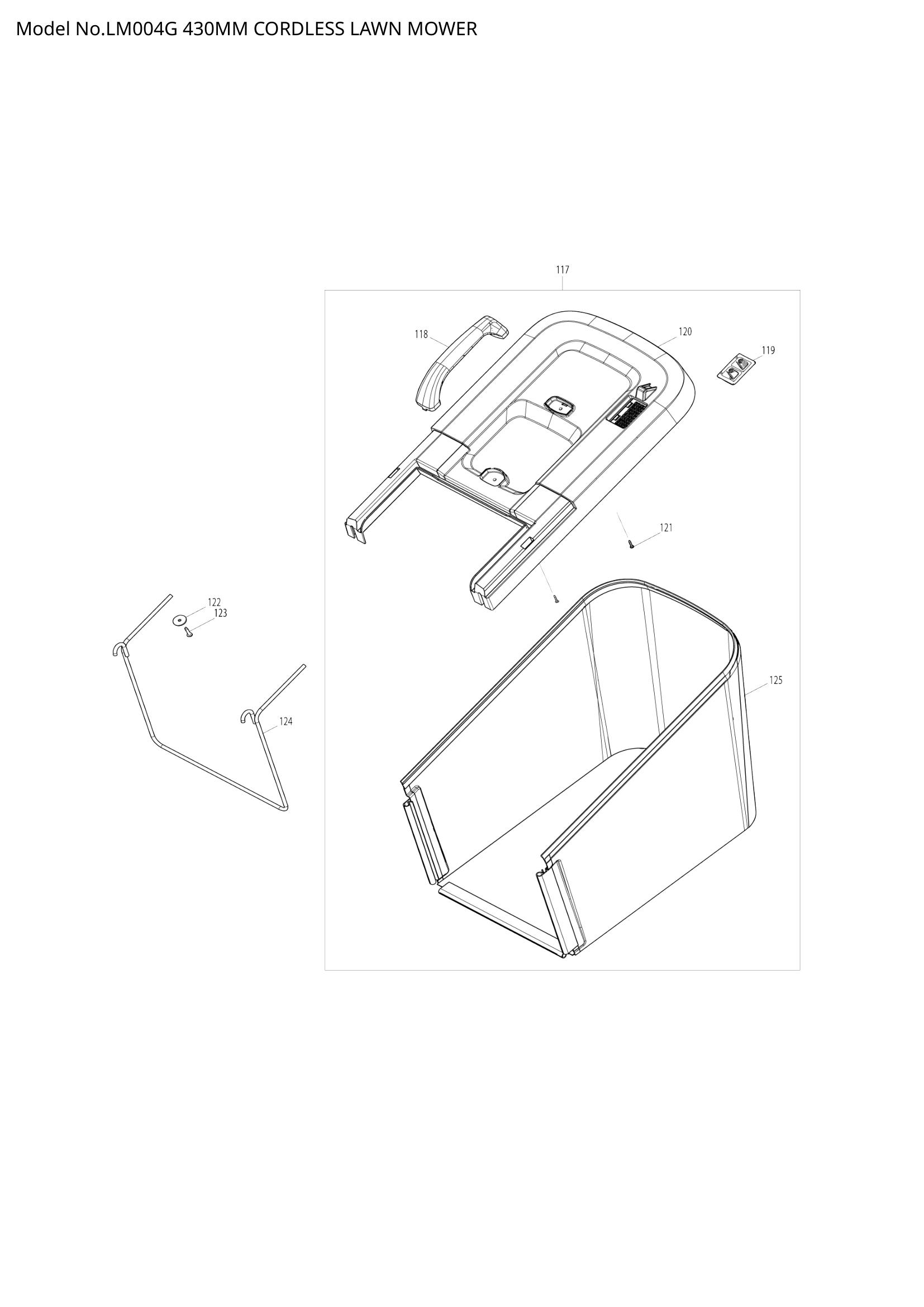

| 117 | REAR BAG ASSEMBLY | 1 | Not available in store | |||
| REAR BAG ASSEMBLY | 1 | Not available in store | ||||
| REAR BAG ASSEMBLY | 1 | Not available in store | ||||
| REAR BAG ASSEMBLY | 1 | Not available in store | ||||
| 118 | GRIP | 1 | Not available in store | |||
| GRIP | 1 | Not available in store | ||||
| GRIP | 1 | Not available in store | ||||
| GRIP | 1 | Not available in store | ||||
| 119 | INDICATOR M | 1 | Not available in store | |||
| INDICATOR M | 1 | Not available in store | ||||
| INDICATOR M | 1 | Not available in store | ||||
| INDICATOR M | 1 | Not available in store | ||||
| 120 | REAR BAG COVER | 1 | Not available in store | |||
| REAR BAG COVER | 1 | Not available in store | ||||
| REAR BAG COVER | 1 | Not available in store | ||||
| REAR BAG COVER | 1 | Not available in store | ||||
| 121 | 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 122 | 267438-4 | FLAT WASHER 5 | 2 | €0.28 | 1-4 weeks to ship | |
| 267438-4 | FLAT WASHER 5 | 2 | €0.28 | 1-4 weeks to ship | ||
| 267438-4 | FLAT WASHER 5 | 2 | €0.28 | 1-4 weeks to ship | ||
| 267438-4 | FLAT WASHER 5 | 2 | €0.28 | 1-4 weeks to ship | ||
| 123 | 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | |
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 266424-2 | TAPPING SCREW 4X20 | 2 | €1.11 | 1-4 weeks to ship | ||
| 124 | REAR BAG ROD | 1 | Not available in store | |||
| REAR BAG ROD | 1 | Not available in store | ||||
| REAR BAG ROD | 1 | Not available in store | ||||
| REAR BAG ROD | 1 | Not available in store | ||||
| 125 | REAR BAG | 1 | Not available in store | |||
| REAR BAG | 1 | Not available in store | ||||
| REAR BAG | 1 | Not available in store | ||||
| REAR BAG | 1 | Not available in store | ||||
