LC1230
LC1230

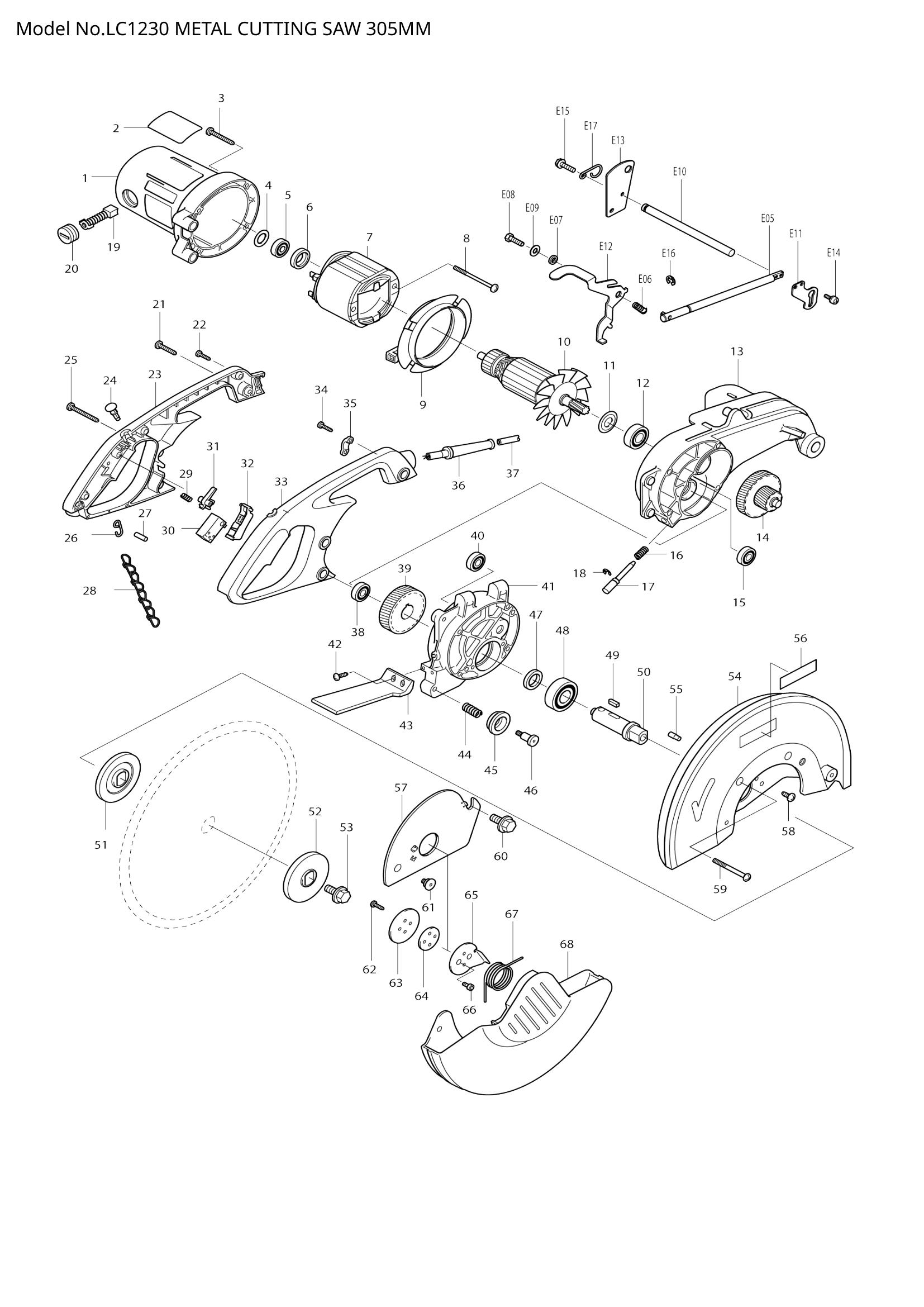

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 266028-0 | TAPPING SCREW BIND CT 5X40 | 4 | €2.09 | 1-4 weeks to ship | |
| 266028-0 | TAPPING SCREW BIND CT 5X40 | 4 | €2.09 | 1-4 weeks to ship | ||
| 004 | 253749-3 | FLAT WASHER 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 253749-3 | FLAT WASHER 16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 266059-9 | TAPPING SCREW 5X75 | 2 | €1.11 | 1-4 weeks to ship | |
| 266059-9 | TAPPING SCREW 5X75 | 2 | €1.11 | 1-4 weeks to ship | ||
| 009 | 415475-4 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 415475-4 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | ||
| 011 | 267714-6 | WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 267714-6 | WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 012 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | ||
| 014 | 226122-0 | GEAR COMPLETE 16-44 | 1 | €47.31 | 1-4 weeks to ship | |
| 226122-0 | GEAR COMPLETE 16-44 | 1 | €47.31 | 1-4 weeks to ship | ||
| 015 | 211064-1 | BALL BEARING 6000 | 1 | €7.65 | 1-4 weeks to ship | |
| 211064-1 | BALL BEARING 6000 | 1 | €7.65 | 1-4 weeks to ship | ||
| 016 | 231418-6 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 231418-6 | COMPRESSION SPRING 9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 322678-2 | SHAFT LOCK | 1 | €4.17 | 1-4 weeks to ship | |
| 322678-2 | SHAFT LOCK | 1 | €4.17 | 1-4 weeks to ship | ||
| 018 | 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 961014-3 | STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | ||
| 021 | 266032-9 | TAPPING SCREW BIND CT 5X30 | 1 | €2.09 | 1-4 weeks to ship | |
| 266032-9 | TAPPING SCREW BIND CT 5X30 | 1 | €2.09 | 1-4 weeks to ship | ||
| 022 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | ||
| 023 | 182628-7 | HANDLE SET | 1 | €19.48 | 1-4 weeks to ship | |
| 182628-7 | HANDLE SET | 1 | €19.48 | 1-4 weeks to ship | ||
| 024 | 411478-6 | SWITCH BUTTON | 1 | €0.83 | 1-4 weeks to ship | |
| 411478-6 | SWITCH BUTTON | 1 | €0.83 | 1-4 weeks to ship | ||
| 025 | 266033-7 | TAPPING SCREW BIND CT 5X50 | 2 | €2.09 | 1-4 weeks to ship | |
| 266033-7 | TAPPING SCREW BIND CT 5X50 | 2 | €2.09 | 1-4 weeks to ship | ||
| 029 | 231397-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 231397-8 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 651922-3 | SWITCH TG71B | 1 | €11.13 | 1-4 weeks to ship | |
| 651922-3 | SWITCH TG71B | 1 | €11.13 | 1-4 weeks to ship | ||
| 031 | 415366-9 | SWITCH LOCK | 1 | €0.83 | 1-4 weeks to ship | |
| 415366-9 | SWITCH LOCK | 1 | €0.83 | 1-4 weeks to ship | ||
| 032 | 152463-7 | SWITCH LEVER COMPLETE | 1 | €1.39 | 1-4 weeks to ship | |
| 152463-7 | SWITCH LEVER COMPLETE | 1 | €1.39 | 1-4 weeks to ship | ||
| 033 | 182628-7 | HANDLE SET | 1 | €19.48 | 1-4 weeks to ship | |
| 182628-7 | HANDLE SET | 1 | €19.48 | 1-4 weeks to ship | ||
| 034 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 038 | 211064-1 | BALL BEARING 6000 | 1 | €7.65 | 1-4 weeks to ship | |
| 211064-1 | BALL BEARING 6000 | 1 | €7.65 | 1-4 weeks to ship | ||
| 039 | 226427-8 | HELICAL GEAR 38 | 1 | €27.83 | 1-4 weeks to ship | |
| 226427-8 | HELICAL GEAR 38 | 1 | €27.83 | 1-4 weeks to ship | ||
| 042 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 043 | 416869-6 | PROTECTOR | 1 | €6.26 | 1-4 weeks to ship | |
| 416869-6 | PROTECTOR | 1 | €6.26 | 1-4 weeks to ship | ||
| 044 | 231226-5 | COMPRESSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 231226-5 | COMPRESSION SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | BLADE GUIDE | 1 | Not available in store | |||
| BLADE GUIDE | 1 | Not available in store | ||||
| 046 | SCREW M6 | 1 | Not available in store | |||
| SCREW M6 | 1 | Not available in store | ||||
| 048 | 211329-1 | BALL BEARING 6204DDW | 1 | €13.92 | 1-4 weeks to ship | |
| 211329-1 | BALL BEARING 6204DDW | 1 | €13.92 | 1-4 weeks to ship | ||
| 049 | 254229-2 | KEY 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 254229-2 | KEY 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 050 | 323828-2 | SPINDLE | 1 | €44.53 | 1-4 weeks to ship | |
| 323828-2 | SPINDLE | 1 | €44.53 | 1-4 weeks to ship | ||
| 051 | 224308-0 | INNER FLANGE 69 | 1 | €22.26 | 1-4 weeks to ship | |
| 224308-0 | INNER FLANGE 69 | 1 | €22.26 | 1-4 weeks to ship | ||
| 053 | 265414-2 | HEX. FLANGE HEAD BOLT M10X2 | 1 | €4.17 | 1-4 weeks to ship | |
| 265414-2 | HEX. FLANGE HEAD BOLT M10X2 | 1 | €4.17 | 1-4 weeks to ship | ||
| 055 | 256405-4 | PIN 6-7 | 2 | €4.45 | 1-4 weeks to ship | |
| 256405-4 | PIN 6-7 | 2 | €4.45 | 1-4 weeks to ship | ||
| 056 | 819064-1 | MAKITA MARK | 1 | €0.56 | 1-4 weeks to ship | |
| 819064-1 | MAKITA MARK | 1 | €0.56 | 1-4 weeks to ship | ||
| 057 | 344737-2 | CENTER COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 344737-2 | CENTER COVER | 1 | €13.92 | 1-4 weeks to ship | ||
| 058 | 266035-3 | TAPPING SCREW BIND CT 5X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 266035-3 | TAPPING SCREW BIND CT 5X12 | 2 | €0.56 | 1-4 weeks to ship | ||
| 059 | 911383-2 | PAN HEAD SCREW M6X60 | 4 | €0.56 | 1-4 weeks to ship | |
| 911383-2 | PAN HEAD SCREW M6X60 | 4 | €0.56 | 1-4 weeks to ship | ||
| 911383-2 | PAN HEAD SCREW M6X60 | 4 | €0.56 | 1-4 weeks to ship | ||
| 911383-2 | PAN HEAD SCREW M6X60 | 4 | €0.56 | 1-4 weeks to ship | ||
| 060 | 265414-2 | HEX. FLANGE HEAD BOLT M10X2 | 1 | €4.17 | 1-4 weeks to ship | |
| 265414-2 | HEX. FLANGE HEAD BOLT M10X2 | 1 | €4.17 | 1-4 weeks to ship | ||
| 062 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 063 | 344735-6 | CENTER SUPPORT | 1 | €1.67 | 1-4 weeks to ship | |
| 344735-6 | CENTER SUPPORT | 1 | €1.67 | 1-4 weeks to ship | ||
| 064 | 344734-8 | CENTER WASHER | 1 | €1.39 | 1-4 weeks to ship | |
| 344734-8 | CENTER WASHER | 1 | €1.39 | 1-4 weeks to ship | ||
| 065 | 344736-4 | CENTER PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 344736-4 | CENTER PLATE | 1 | €4.17 | 1-4 weeks to ship | ||
| 066 | 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 922107-1 | HEX. SOCKET HEAD BOLT M4X8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 067 | 231643-9 | TORSION SPRING 38 | 1 | €1.39 | 1-4 weeks to ship | |
| 231643-9 | TORSION SPRING 38 | 1 | €1.39 | 1-4 weeks to ship | ||
| 068 | 317152-3 | SAFETY COVER | 1 | €36.18 | 1-4 weeks to ship | |
| 317152-3 | SAFETY COVER | 1 | €36.18 | 1-4 weeks to ship | ||
| 069 | 256098-7 | PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 256098-7 | PIN 5 | 1 | €0.83 | 1-4 weeks to ship | ||
| 070 | 323882-6 | COLLARED SHAFT 12 | 1 | €9.74 | 1-4 weeks to ship | |
| 323882-6 | COLLARED SHAFT 12 | 1 | €9.74 | 1-4 weeks to ship | ||
| 071 | 253843-1 | FLAT WASHER 12 | 1 | €1.39 | 1-4 weeks to ship | |
| 253843-1 | FLAT WASHER 12 | 1 | €1.39 | 1-4 weeks to ship | ||
| 072 | 911103-4 | PAN HEAD SCREW M4X6 | 1 | €0.83 | 1-4 weeks to ship | |
| 911103-4 | PAN HEAD SCREW M4X6 | 1 | €0.83 | 1-4 weeks to ship | ||
| 073 | 816128-2 | POINTER | 1 | €0.56 | 1-4 weeks to ship | |
| 816128-2 | POINTER | 1 | €0.56 | 1-4 weeks to ship | ||
| 074 | 310086-9 | VISE | 1 | €85.99 | 1-4 weeks to ship | |
| 310086-9 | VISE | 1 | €85.99 | 1-4 weeks to ship | ||
| 075 | 256453-3 | PIN 12 | 1 | €1.67 | 1-4 weeks to ship | |
| 256453-3 | PIN 12 | 1 | €1.67 | 1-4 weeks to ship | ||
| 076 | COMPRESSION SPRING 45 | 1 | Not available in store | |||
| COMPRESSION SPRING 45 | 1 | Not available in store | ||||
| 077 | 165066-8 | SPRING HOLDER | 1 | €2.78 | 1-4 weeks to ship | |
| 165066-8 | SPRING HOLDER | 1 | €2.78 | 1-4 weeks to ship | ||
| 078 | 265412-6 | HEX. BOLT M8X20 | 1 | €0.83 | 1-4 weeks to ship | |
| 265412-6 | HEX. BOLT M8X20 | 1 | €0.83 | 1-4 weeks to ship | ||
| 079 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 080 | 232075-3 | LEAF SPRING | 1 | €0.83 | 1-4 weeks to ship | |
| 232075-3 | LEAF SPRING | 1 | €0.83 | 1-4 weeks to ship | ||
| 081 | 265413-4 | HEX. BOLT M16 | 1 | €22.54 | 1-4 weeks to ship | |
| 265413-4 | HEX. BOLT M16 | 1 | €22.54 | 1-4 weeks to ship | ||
| 082 | 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | |
| 253771-0 | FLAT WASHER 16 | 1 | €0.70 | 1-4 weeks to ship | ||
| 083 | 252044-8 | HEX. NUT M16-24 | 1 | €4.45 | 1-4 weeks to ship | |
| 252044-8 | HEX. NUT M16-24 | 1 | €4.45 | 1-4 weeks to ship | ||
| 084 | 344740-3 | DUST BOX | 1 | €13.92 | 1-4 weeks to ship | |
| 344740-3 | DUST BOX | 1 | €13.92 | 1-4 weeks to ship | ||
| 085 | 421671-4 | RUBBER PAD | 1 | €4.17 | 1-4 weeks to ship | |
| 421671-4 | RUBBER PAD | 1 | €4.17 | 1-4 weeks to ship | ||
| 087 | 257222-5 | RING 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 257222-5 | RING 8 | 1 | €2.78 | 1-4 weeks to ship | ||
| 088 | 253731-2 | FLAT WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | |
| 253731-2 | FLAT WASHER 8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 089 | 268040-6 | PIN 16 | 1 | €11.13 | 1-4 weeks to ship | |
| 268040-6 | PIN 16 | 1 | €11.13 | 1-4 weeks to ship | ||
| 090 | 344118-0 | VICE PLATE | 1 | €11.13 | 1-4 weeks to ship | |
| 344118-0 | VICE PLATE | 1 | €11.13 | 1-4 weeks to ship | ||
| 094 | 912212-2 | COUNTERSUNK HEAD SCREW M5 | 3 | €0.56 | 1-4 weeks to ship | |
| 912212-2 | COUNTERSUNK HEAD SCREW M5 | 3 | €0.56 | 1-4 weeks to ship | ||
| 912212-2 | COUNTERSUNK HEAD SCREW M5 | 3 | €0.56 | 1-4 weeks to ship | ||
| 912212-2 | COUNTERSUNK HEAD SCREW M5 | 3 | €0.56 | 1-4 weeks to ship | ||
| 095 | GUIDE PLATE | 1 | Not available in store | |||
| GUIDE PLATE | 1 | Not available in store | ||||
| 096 | 344739-8 | UNDER PLATE | 1 | €11.13 | 1-4 weeks to ship | |
| 344739-8 | UNDER PLATE | 1 | €11.13 | 1-4 weeks to ship | ||
| 097 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 3 | €0.56 | 1-4 weeks to ship | |
| 266026-4 | TAPPING SCREW BIND CT 4X12 | 3 | €0.56 | 1-4 weeks to ship | ||
| 098 | 286212-1 | CAP 20 | 5 | €0.56 | 1-4 weeks to ship | |
| 286212-1 | CAP 20 | 5 | €0.56 | 1-4 weeks to ship | ||
| 100 | 286236-7 | CAP 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 286236-7 | CAP 16 | 1 | €0.83 | 1-4 weeks to ship | ||
| 101 | 961014-3 | STOP RING E-8 | 2 | €0.56 | 1-4 weeks to ship | |
| 961014-3 | STOP RING E-8 | 2 | €0.56 | 1-4 weeks to ship | ||
| 102 | 323883-4 | LEVER ROD 10 | 1 | €8.35 | 1-4 weeks to ship | |
| 323883-4 | LEVER ROD 10 | 1 | €8.35 | 1-4 weeks to ship | ||
| 103 | 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253024-7 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 104 | 252161-4 | HEX. NUT M10-17 | 1 | €4.45 | 1-4 weeks to ship | |
| 252161-4 | HEX. NUT M10-17 | 1 | €4.45 | 1-4 weeks to ship | ||
| 105 | 151622-0 | LEVER HOLDER COMPLETE | 1 | €9.32 | 1-4 weeks to ship | |
| 151622-0 | LEVER HOLDER COMPLETE | 1 | €9.32 | 1-4 weeks to ship | ||
| 106 | 941152-7 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941152-7 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 108 | 951063-8 | SPRING PIN 3-16 | 1 | €0.56 | 1-4 weeks to ship | |
| 951063-8 | SPRING PIN 3-16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 109 | 322679-0 | VICE SCREW | 1 | €25.05 | 1-4 weeks to ship | |
| 322679-0 | VICE SCREW | 1 | €25.05 | 1-4 weeks to ship | ||
| 110 | 322209-7 | VICE NUT | 1 | €8.35 | 1-4 weeks to ship | |
| 322209-7 | VICE NUT | 1 | €8.35 | 1-4 weeks to ship | ||
| 111 | 911451-1 | PAN HEAD SCREW M8X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 911451-1 | PAN HEAD SCREW M8X30 | 2 | €0.56 | 1-4 weeks to ship | ||
| 112 | 311949-2 | SCREW GUIDE | 1 | €13.92 | 1-4 weeks to ship | |
| 311949-2 | SCREW GUIDE | 1 | €13.92 | 1-4 weeks to ship | ||
| 114 | 951166-8 | SPRING PIN 5-24 | 1 | €0.56 | 1-4 weeks to ship | |
| 951166-8 | SPRING PIN 5-24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 115 | 257157-0 | RING 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 257157-0 | RING 8 | 1 | €1.11 | 1-4 weeks to ship | ||
