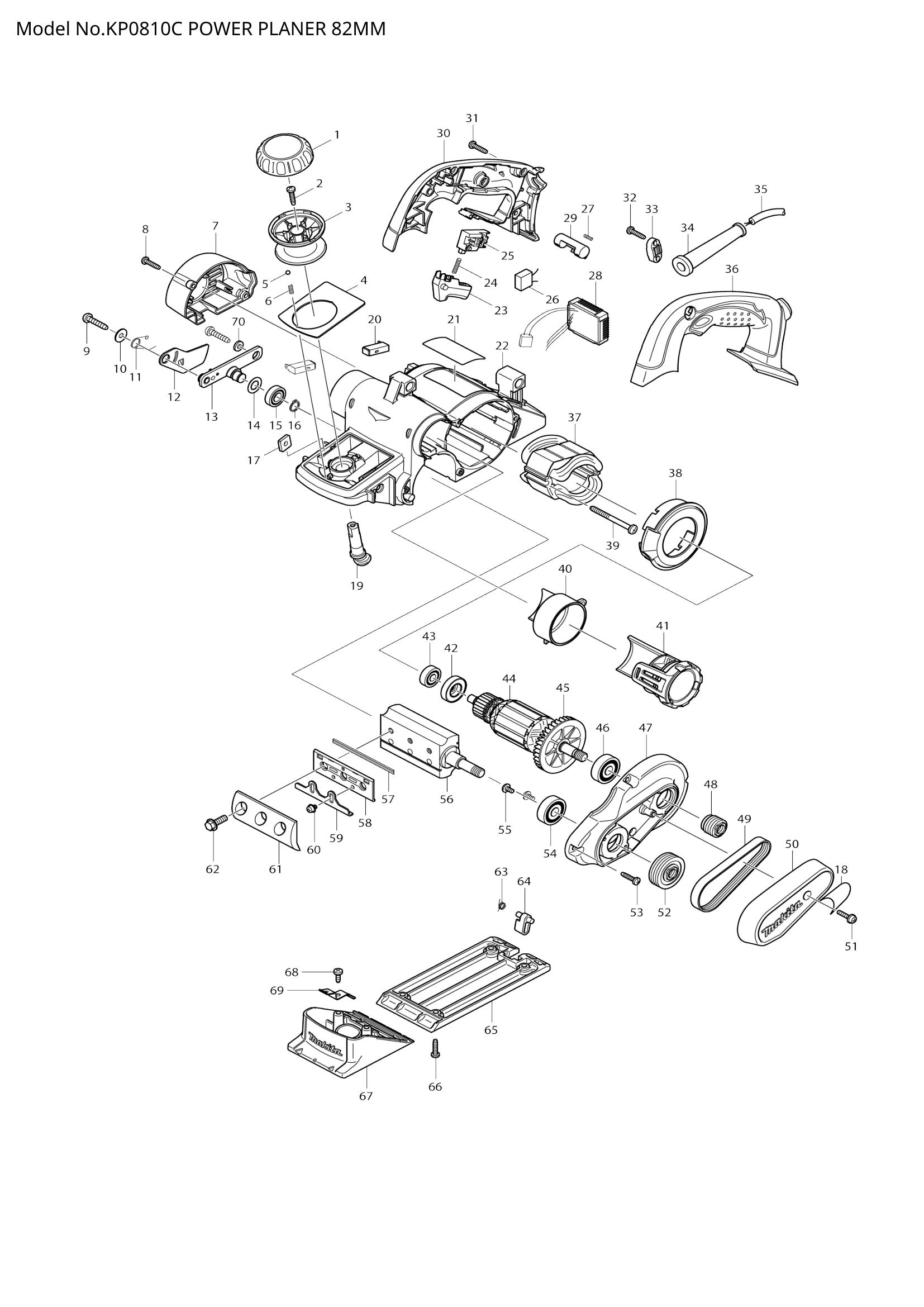

KP0810C
KP0810C
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 419700-5 | KNOB COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 002 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 419699-4 | KNOB | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | 345766-8 | FRONT PANEL | 1 | €5.57 | 1-4 weeks to ship | |
| 005 | 216008-6 | STEEL BALL 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 006 | 233325-9 | COMPRESSION SPRING 3 | 2 | €0.83 | 1-4 weeks to ship | |
| 007 | 419697-8 | REAR COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 009 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 010 | 253194-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 011 | 233521-9 | TORSION SPRING 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 012 | 345765-0 | DRUM COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 014 | 253758-2 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 210057-5 | BALL BEARING 6900LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 016 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 264002-2 | SQUARE NUT M5 | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 805594-8 | ELECTRIC SPEED CONTROL LABE | 1 | €0.83 | 1-4 weeks to ship | |
| 019 | 419702-1 | CAM | 1 | €1.67 | 1-4 weeks to ship | |
| 021 | 863215-8 | KP0810C NAME PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 419694-4 | HOUSING | 1 | €33.40 | 1-4 weeks to ship | |
| 023 | 419703-9 | SWITCH LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | 233408-5 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 651922-3 | SWITCH TG71B | 1 | €11.13 | 1-4 weeks to ship | |
| 027 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 631737-4 | CONTROLLER | 1 | €44.53 | 1-4 weeks to ship | |
| 030 | 188215-0 | HANDLE SET | 1 | €22.26 | 1-4 weeks to ship | |
| 031 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 032 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 682504-0 | CORD GUARD 10-85 | 1 | €1.67 | 1-4 weeks to ship | |
| 682504-0 | CORD GUARD 10-85 | 1 | €1.67 | 1-4 weeks to ship | ||
| 035 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 036 | 188215-0 | HANDLE SET | 1 | €22.26 | 1-4 weeks to ship | |
| 037 | 525753-5 | FIELD ASS'Y 220-240V | 1 | €30.61 | 1-4 weeks to ship | |
| 038 | 419701-3 | BAFFLE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 039 | 266095-5 | TAPPING SCREW 5X55 | 2 | €0.83 | 1-4 weeks to ship | |
| 040 | 419710-2 | NOZZLE | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | 125353-7 | DUCT ASS'Y | 1 | €5.57 | 1-4 weeks to ship | |
| 042 | 681660-3 | INSULATION WASHER | 1 | €8.35 | 1-4 weeks to ship | |
| 043 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 044 | 513688-2 | ARMATURE ASS'Y 220-240V | 1 | €52.88 | 1-4 weeks to ship | |
| 045 | 240079-1 | FAN 62 | 1 | €2.78 | 1-4 weeks to ship | |
| 046 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 047 | 158149-1 | BRACKET COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 048 | 222125-2 | V-PULLEY 4-20L | 1 | €2.78 | 1-4 weeks to ship | |
| 049 | 225007-7 | POLY V-BELT 4-241 | 1 | €8.35 | 1-4 weeks to ship | |
| 050 | 158362-1 | BELT COVER COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | 911133-5 | PAN HEAD SCREW M4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 222126-0 | V-PULLEY 4-37 | 1 | €4.17 | 1-4 weeks to ship | |
| 053 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 054 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 055 | 251291-8 | + SCREW M4X8 | 2 | €0.56 | 1-4 weeks to ship | |
| 056 | 158156-4 | DRUM COMPLETE | 1 | €58.44 | 1-4 weeks to ship | |
| 058 | 343433-9 | SET PLATE F/MINI BLADE | 2 | €4.17 | 1-4 weeks to ship | |
| 059 | 345644-2 | ADJUST PLATE | 2 | €0.74 | 1-4 weeks to ship | |
| 062 | 251609-3 | HEX. FLANGE HEAD BOLT M6X17 | 6 | €0.56 | 1-4 weeks to ship | |
| 063 | 231698-4 | TORSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 419706-3 | FOOT | 1 | €1.11 | 1-4 weeks to ship | |
| 065 | 318098-6 | BASE | 1 | €41.75 | 1-4 weeks to ship | |
| 066 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 067 | 158360-5 | FRONT BASE COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 068 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 069 | 232232-3 | LEAF SPRING | 2 | €1.11 | 1-4 weeks to ship | |
| 070 | 267012-8 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship |
