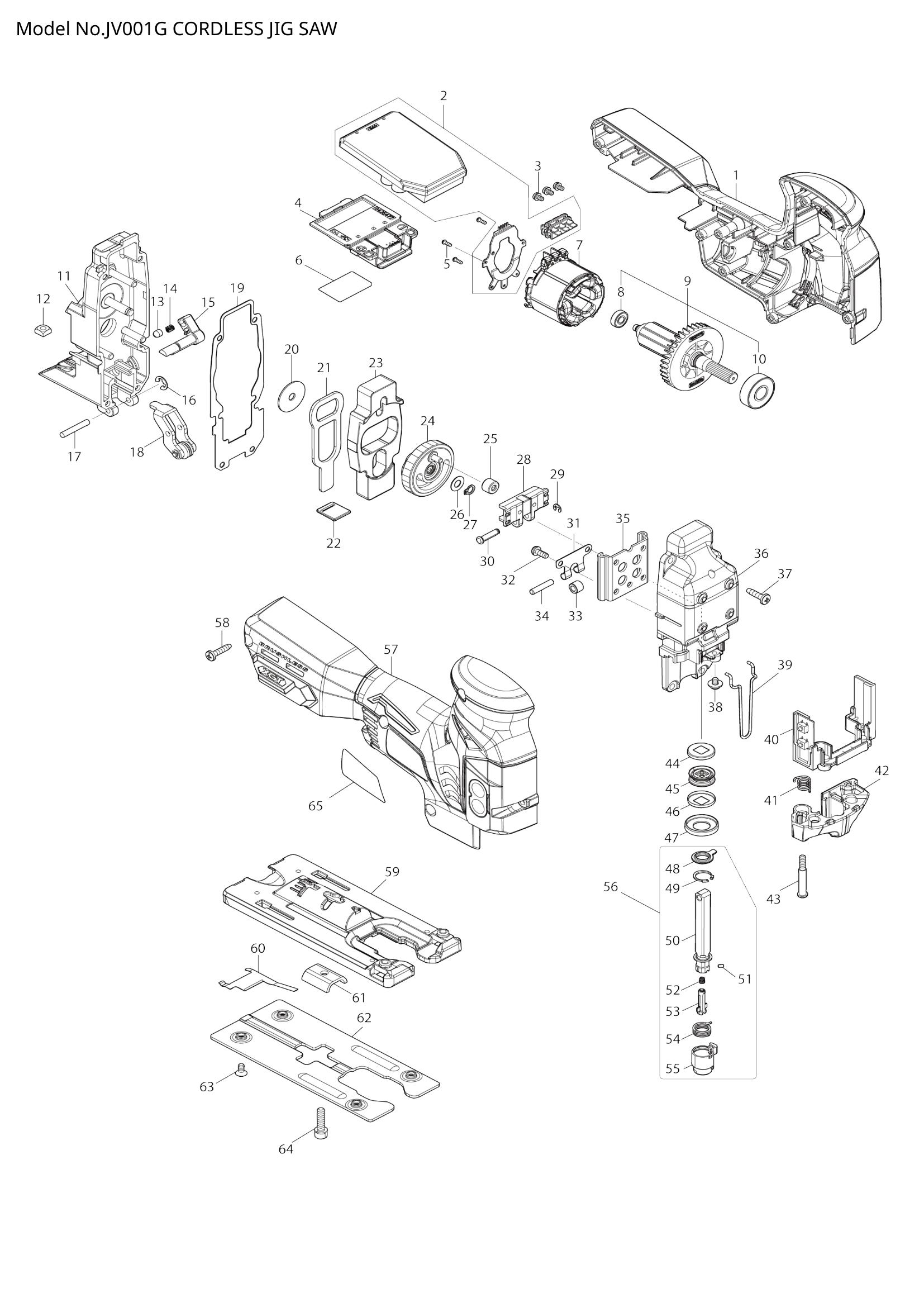

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 004 | 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | |
| 005 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 006 | JV001G SERIAL NO. LABEL | 1 | Not available in store | |||
| 007 | STATOR | 1 | Not available in store | |||
| 008 | BALL BEARING 695DDW | 1 | Not available in store | |||
| 009 | ROTOR ASS'Y | 1 | Not available in store | |||
| 010 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 011 | 142111-6 | GEAR HOUSING COMPLETE | 1 | €17.95 | 1-4 weeks to ship | |
| 012 | 252171-1 | SQUARE NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 286032-3 | CAP 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 233139-6 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 272280-0 | LEVER 17 | 1 | €1.25 | 1-4 weeks to ship | |
| 016 | 961018-5 | STOP RING E-5 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 268063-4 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 142110-8 | RETAINER COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 019 | 442195-7 | GASKET | 1 | €1.95 | 1-4 weeks to ship | |
| 020 | 253196-8 | FLAT WASHER 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 021 | 346688-5 | PUSH PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 022 | 454484-8 | SEAL PLATE | 1 | €0.28 | 1-4 weeks to ship | |
| 454484-8 | SEAL PLATE | 1 | €0.28 | 1-4 weeks to ship | ||
| 023 | 313260-8 | BALANCE PLATE | 1 | €10.44 | 1-4 weeks to ship | |
| 024 | 142109-3 | GEAR COMPLETE | 1 | €29.78 | 1-4 weeks to ship | |
| 025 | 212092-9 | NEEDLE BEARING 407 | 1 | €2.37 | 1-4 weeks to ship | |
| 026 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 310837-0 | SLIDER | 1 | €11.13 | 1-4 weeks to ship | |
| 029 | 961017-7 | STOP RING E-3 | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 268090-1 | PIN 4 | 1 | €1.11 | 1-4 weeks to ship | |
| 031 | 232207-2 | LEAF SPRING | 1 | €1.81 | 1-4 weeks to ship | |
| 032 | 911111-5 | PAN HEAD SCREW M4X10 WITH | 4 | €0.56 | 1-4 weeks to ship | |
| 033 | 214031-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 256117-9 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | LINEAR GUIDE | 1 | Not available in store | |||
| 036 | GEAR HOUSING COVER COMPLE | 1 | Not available in store | |||
| 037 | 266034-5 | TAPPING SCREW CT 4X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 039 | 326302-9 | SAFETY WIRE | 1 | €0.28 | 1-4 weeks to ship | |
| 040 | SWITCH UNIT | 1 | Not available in store | |||
| 041 | 231659-4 | TORSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 454483-0 | TOOL OPENER | 1 | €1.67 | 1-4 weeks to ship | |
| 454483-0 | TOOL OPENER | 1 | €1.67 | 1-4 weeks to ship | ||
| 043 | 265026-1 | + PAN HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 267854-0 | CAP WASHER 8 | 1 | €0.42 | 1-4 weeks to ship | |
| 045 | 421815-6 | DUST SEAL 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 046 | 267854-0 | CAP WASHER 8 | 1 | €0.42 | 1-4 weeks to ship | |
| 047 | 257347-5 | RING 21 | 1 | €1.67 | 1-4 weeks to ship | |
| 048 | 424569-4 | DUST COVER | 1 | €0.28 | 1-4 weeks to ship | |
| 049 | 962063-3 | RETAINING RING R-13 | 1 | €0.42 | 1-4 weeks to ship | |
| 050 | 165724-6 | ROD | 1 | €16.00 | 1-4 weeks to ship | |
| 051 | 256528-8 | PIN 2 | 1 | €0.14 | 1-4 weeks to ship | |
| 052 | 233314-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 310485-5 | LOCK PIN | 1 | €3.76 | 1-4 weeks to ship | |
| 054 | 233591-8 | TORSION SPRING 10 | 1 | €0.14 | 1-4 weeks to ship | |
| 055 | 310547-9 | BLADE HOLDER | 1 | €9.46 | 1-4 weeks to ship | |
| 056 | 135602-4 | ROD ASS'Y | 1 | €32.70 | 1-4 weeks to ship | |
| 058 | 265995-6 | TAPPING SCREW 4X18 | 8 | €0.56 | 1-4 weeks to ship | |
| 059 | BASE | 1 | Not available in store | |||
| 060 | 232208-0 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 345237-5 | CRANK PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | BASE PLATE | 1 | Not available in store | |||
| 063 | 265085-5 | + COUNTERSUNK HEAD SCREW | 4 | €0.56 | 1-4 weeks to ship | |
| 064 | 922231-0 | HEX. SOCKET HEAD BOLT M5X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | JV001G NAME PLATE | 1 | Not available in store | |||
