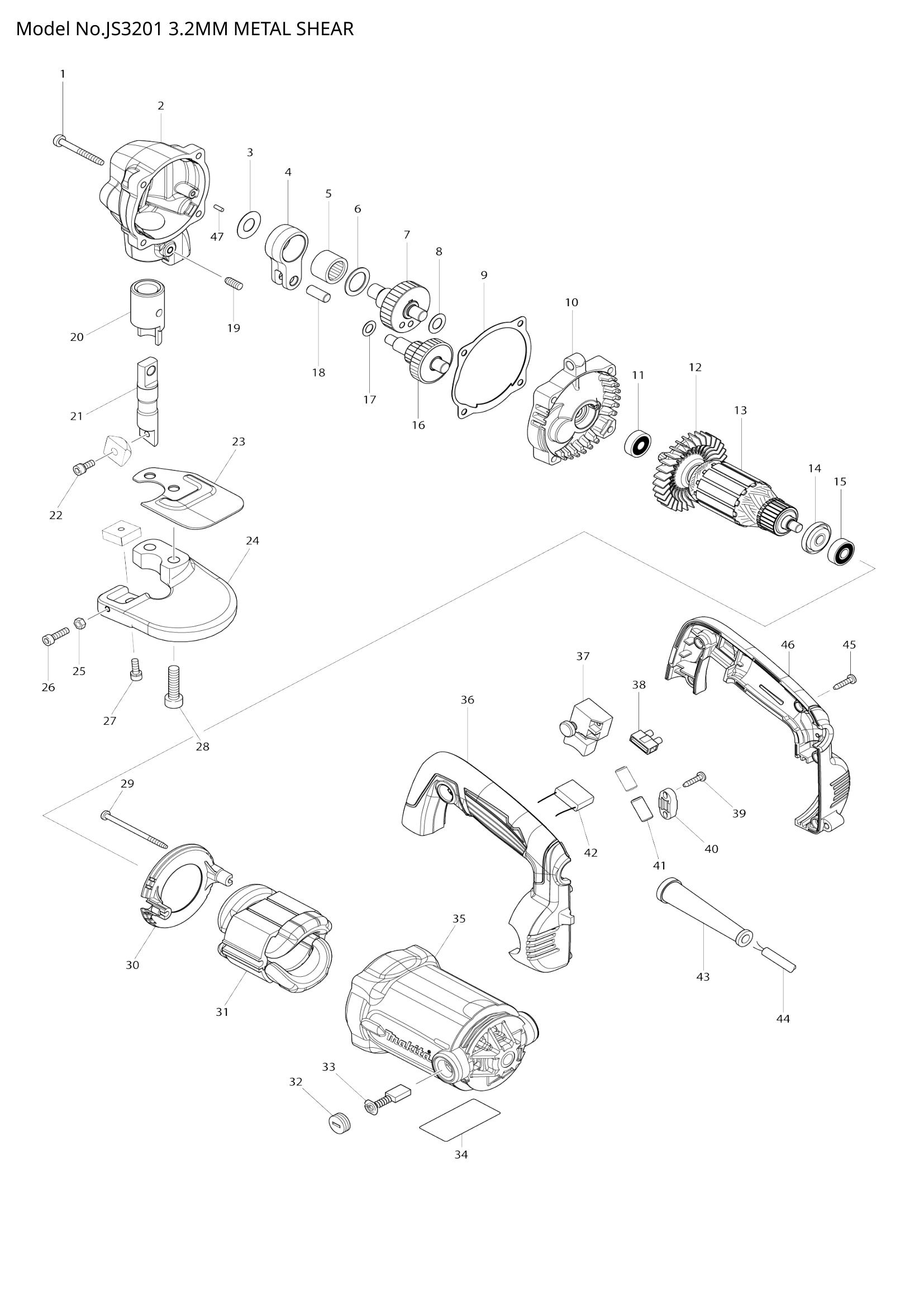

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266056-5 | TAPPING SCREW 5X45 | 4 | €0.83 | 1-4 weeks to ship | |
| 002 | 141795-7 | GEAR HOUSING COMPLETE | 1 | €37.57 | 1-4 weeks to ship | |
| 003 | 253759-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 331166-8 | ROD | 1 | €43.00 | 1-4 weeks to ship | |
| 005 | 212252-3 | NEEDLE BEARING 1816 | 1 | €11.13 | 1-4 weeks to ship | |
| 006 | 253198-4 | FLAT WASHER 18 | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | 153141-2 | CRANK SHAFT COMPLETE | 1 | €85.99 | 1-4 weeks to ship | |
| 008 | 253311-4 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 141796-5 | GEAR HOUSING COVER COMPLE | 1 | €33.26 | 1-4 weeks to ship | |
| 011 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 012 | 240094-5 | FAN 70 | 1 | €1.11 | 1-4 weeks to ship | |
| 013 | 513859-1 | ARMATURE ASS'Y 240V | 1 | €60.53 | 1-4 weeks to ship | |
| 014 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 015 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 016 | GEAR COMPLETE 18-46 | 1 | Not available in store | |||
| 017 | 253215-0 | FLAT WASHER 8 | 1 | €2.09 | 1-4 weeks to ship | |
| 018 | 256118-7 | PIN 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 019 | 913322-8 | SET SCREW M6X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 321405-4 | METAL | 1 | €36.18 | 1-4 weeks to ship | |
| 021 | 321404-6 | BLADE HOLDER | 1 | €33.40 | 1-4 weeks to ship | |
| 022 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 346641-1 | PROTECTOR | 1 | €1.67 | 1-4 weeks to ship | |
| 024 | 331165-0 | YOKE | 1 | €128.02 | 1-4 weeks to ship | |
| 025 | 931203-4 | HEX. NUT M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 922227-1 | HEX. SOCKET HEAD BOLT M5X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | HEX. SOCKET HEAD BOLT M8X30 | 2 | Not available in store | |||
| 029 | 266340-8 | TAPPING SCREW 4X65 | 2 | €0.56 | 1-4 weeks to ship | |
| 030 | 454140-0 | BAFFLE PLATE | 1 | €3.06 | 1-4 weeks to ship | |
| 031 | 525869-6 | FIELD ASS'Y 240V | 1 | €36.60 | 1-4 weeks to ship | |
| 034 | JS3201 NAME PLATE | 1 | Not available in store | |||
| 035 | 158278-0 | MOTOR HOUSING COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 036 | 187531-7 | HANDLE SET | 1 | €24.21 | 1-4 weeks to ship | |
| 037 | 651284-9 | SWITCH SGEL115CDY-6 | 1 | €11.13 | 1-4 weeks to ship | |
| 038 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 039 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 040 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 688172-7 | LINE FILTER | 2 | €0.70 | 1-4 weeks to ship | |
| 042 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 044 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 045 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 046 | 187531-7 | HANDLE SET | 1 | €24.21 | 1-4 weeks to ship | |
| 047 | 256255-7 | PIN 3 | 1 | €0.14 | 1-4 weeks to ship | |
