JS1300
JS1300

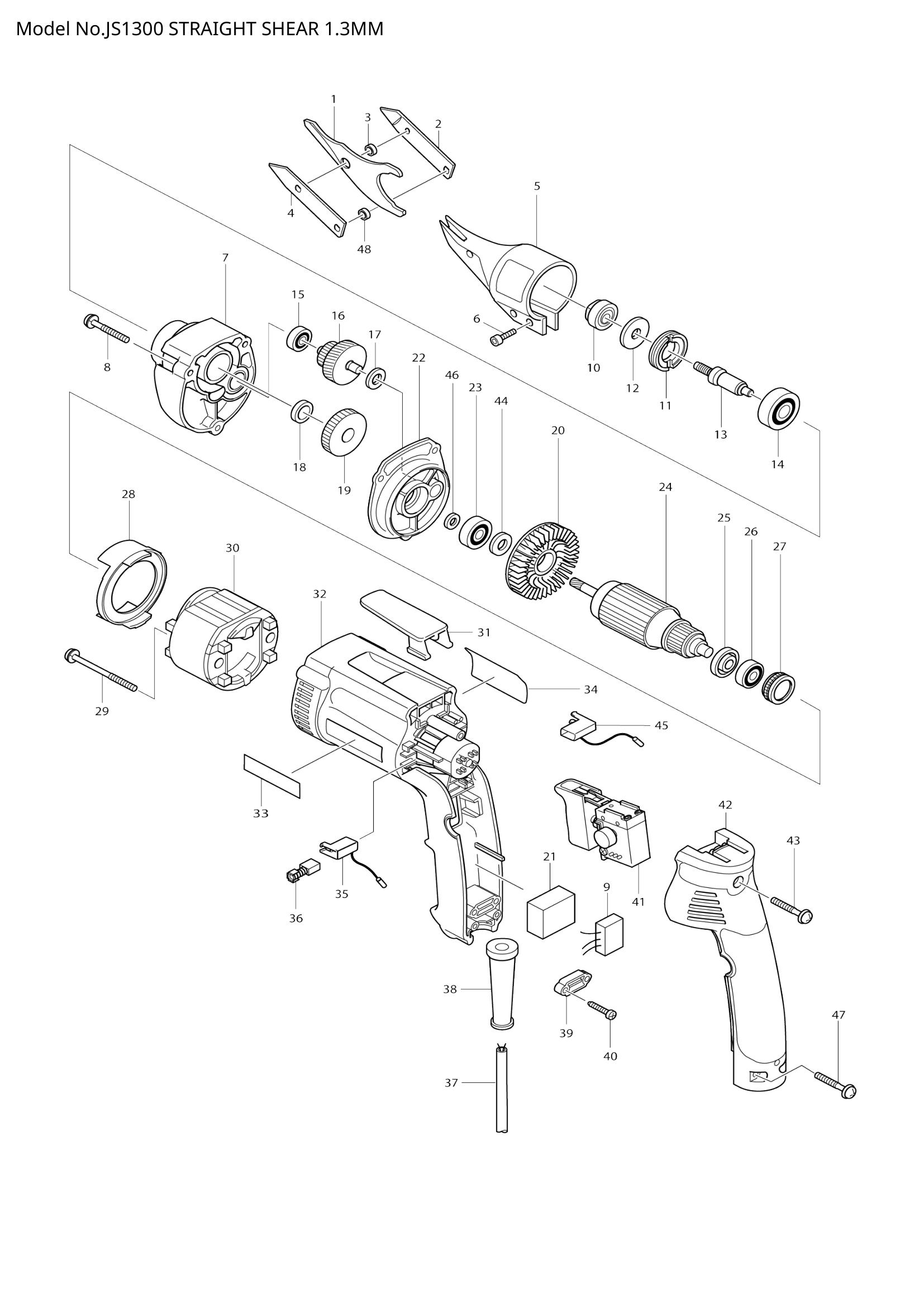

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | CENTER BLADE | 1 | Not available in store | |||
| 002 | SIDE BLADE R | 1 | Not available in store | |||
| 003 | 257705-5 | SLEEVE 5 | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | SIDE BLADE L | 1 | Not available in store | |||
| 005 | 152663-9 | CUTTING HEAD COMPLETE | 1 | €130.80 | 1-4 weeks to ship | |
| 006 | 266268-0 | HEX. SOCKET HEAD BOLT | 3 | €5.57 | 1-4 weeks to ship | |
| 007 | 317419-9 | GEAR HOUSING | 1 | €48.42 | 1-4 weeks to ship | |
| 008 | 266050-7 | TAPPING SCREW 4X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 009 | 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | |
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 010 | 125111-1 | BEARING ASS'Y | 1 | €44.53 | 1-4 weeks to ship | |
| 011 | 285802-7 | BEARING RETAINER 19-33 | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 267223-5 | FLAT WASHER 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 324066-9 | SPINDLE | 1 | €13.92 | 1-4 weeks to ship | |
| 014 | 211129-9 | BALL BEARING 6201DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 015 | 211014-6 | BALL BEARING 606 | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 226133-5 | GEAR COMPLETE 17-35 | 1 | €27.83 | 1-4 weeks to ship | |
| 017 | 267017-8 | FLAT WASHER 8 | 1 | €1.11 | 1-4 weeks to ship | |
| 018 | 257010-0 | RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 019 | 227010-4 | SPUR GEAR 36 | 1 | €27.00 | 1-4 weeks to ship | |
| 020 | 240022-0 | FAN 52 | 1 | €4.45 | 1-4 weeks to ship | |
| 021 | SPONGE SHEET | 1 | Not available in store | |||
| 023 | 210007-0 | BALL BEARING 608VV | 1 | €5.57 | 1-4 weeks to ship | |
| 024 | 517374-7 | ARMATURE ASS'Y 220-240V | 1 | €85.99 | 1-4 weeks to ship | |
| 025 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 027 | 421479-6 | RUBBER RING 19 | 1 | €5.57 | 1-4 weeks to ship | |
| 028 | BAFFLE PLATE | 1 | Not available in store | |||
| 029 | 266147-2 | TAPPING SCREW 4X55 | 2 | €0.83 | 1-4 weeks to ship | |
| 030 | 633484-3 | FIELD 220-240V | 1 | €15.03 | 1-4 weeks to ship | |
| 034 | 852518-5 | NAME PLATE JS1300 | 1 | €2.09 | 1-4 weeks to ship | |
| 035 | 643971-4 | BRUSH HOLDER | 1 | €2.92 | 1-4 weeks to ship | |
| 037 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 038 | 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 039 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 043 | 265999-8 | TAPPING SCREW 4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 253139-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 643972-2 | BRUSH HOLDER (W/CHOKE COIL) | 1 | €8.21 | 1-4 weeks to ship | |
| 047 | 265999-8 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 048 | 257705-5 | SLEEVE 5 | 1 | €4.17 | 1-4 weeks to ship | |
| 049 | 442136-3 | GASKET | 1 | €4.45 | 1-4 weeks to ship | |
