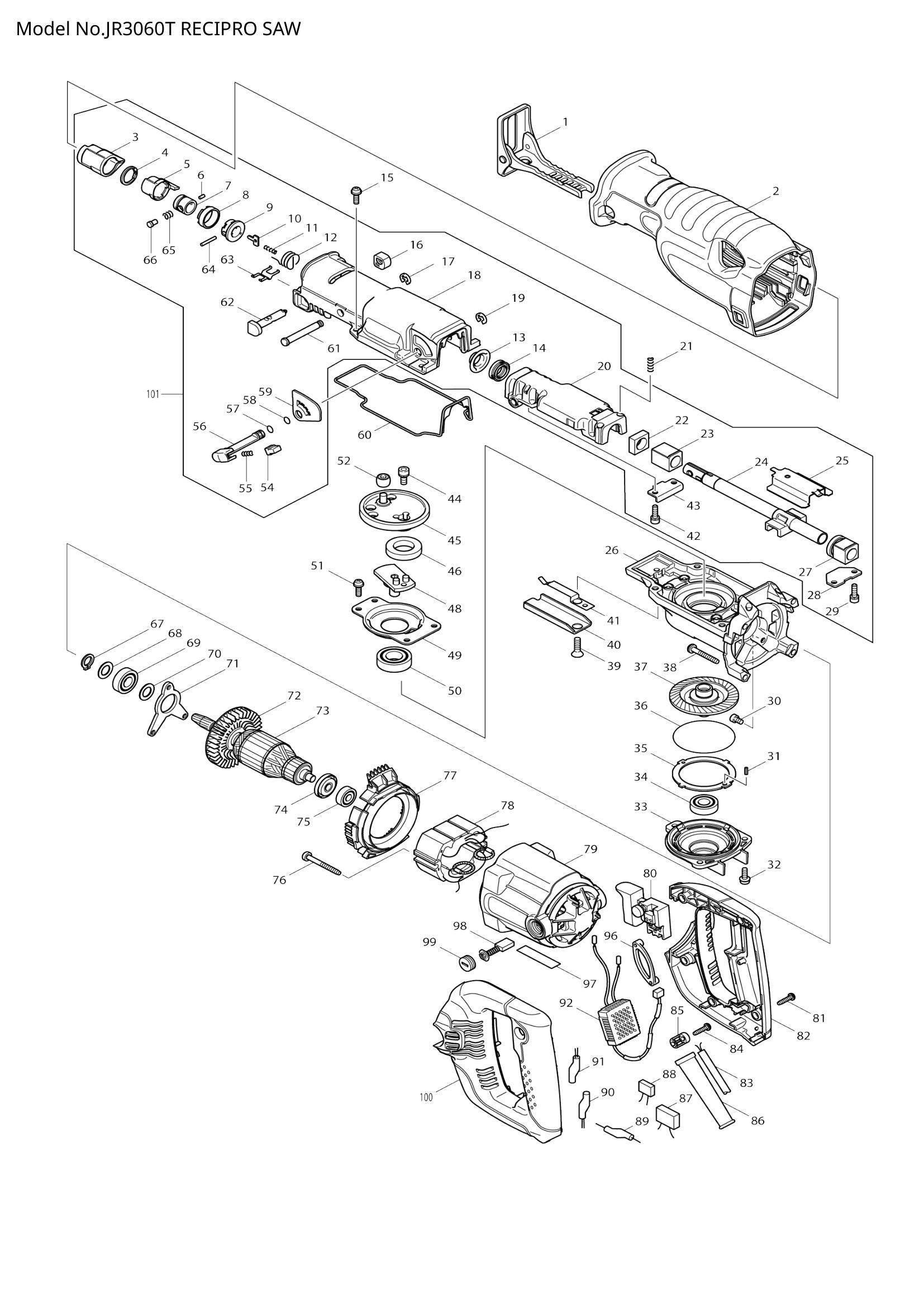

JR3060T
JR3060T
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 421898-6 | INSULATION COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 006 | 268094-3 | PIN 3 | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 417791-0 | DRIVING SLEEVE GUIDE | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 418311-3 | SLEEVE | 1 | €0.56 | 1-4 weeks to ship | |
| 010 | 345214-7 | PUSH PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 011 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 231687-9 | TORSION SPRING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 257742-9 | SHOULDER SLEEVE 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 213174-0 | X RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 911225-0 | PAN HEAD SCREW M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 016 | 418806-6 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 961012-7 | STOP RING E-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 018 | 154551-6 | GEAR HOUSING COVER COMPLE | 1 | €19.48 | 1-4 weeks to ship | |
| 019 | 961012-7 | STOP RING E-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 154502-9 | SLIDER SUPPORT COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 021 | 233038-2 | COMPRESSION SPRING 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 022 | 423343-7 | SEAL PLATE 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 214170-1 | PLANE BEARING 14A | 1 | €1.39 | 1-4 weeks to ship | |
| 025 | 345487-2 | SLIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 317842-8 | GEAR HOUSING | 1 | €25.05 | 1-4 weeks to ship | |
| 028 | 345486-4 | PLATE B | 1 | €0.56 | 1-4 weeks to ship | |
| 030 | 265530-0 | HEX.SOCKET HEAD BOLT M5X8 | 3 | €0.56 | 1-4 weeks to ship | |
| 032 | 911225-0 | PAN HEAD SCREW M5X16 | 3 | €0.56 | 1-4 weeks to ship | |
| 033 | 317844-4 | BEARING BOX | 1 | €8.21 | 1-4 weeks to ship | |
| 034 | 211101-1 | BALL BEARING 6001LLB | 1 | €11.13 | 1-4 weeks to ship | |
| 036 | 213726-7 | O RING 62 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 154549-3 | TORQUE LIMITER COMPLETE | 1 | €55.66 | 1-4 weeks to ship | |
| 040 | 345479-1 | SHOE GUIDE | 1 | €0.83 | 1-4 weeks to ship | |
| 041 | 232222-6 | LEAF SPRING B | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 345485-6 | PLATE A | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 265531-8 | HEX.SOCKET HEAD BOLT M6X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 257261-5 | RING 21B | 1 | €2.92 | 1-4 weeks to ship | |
| 048 | 154546-9 | CRANK BASE COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 049 | 285720-9 | BEARING RETAINER B | 1 | €1.39 | 1-4 weeks to ship | |
| 050 | 211251-2 | BALL BEARING 6003LLB | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | 911225-0 | PAN HEAD SCREW M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 052 | 212957-5 | NEEDLE BEARING 710 | 1 | €13.92 | 1-4 weeks to ship | |
| 054 | 418991-5 | STOPPER | 1 | €1.11 | 1-4 weeks to ship | |
| 055 | 231309-1 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 272247-8 | LEVER 20 | 1 | €5.57 | 1-4 weeks to ship | |
| 057 | 213021-5 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 213021-5 | O RING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 413095-8 | PLATE C | 1 | €0.83 | 1-4 weeks to ship | |
| 060 | 421899-4 | SEAL RING | 1 | €0.83 | 1-4 weeks to ship | |
| 061 | 268012-1 | PIN 7 | 1 | €5.57 | 1-4 weeks to ship | |
| 062 | 162236-0 | SHIFT BUTTON | 1 | €4.17 | 1-4 weeks to ship | |
| 063 | 232221-8 | LEAF SPRING A | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | 233345-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 256492-3 | SHOULDER PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 067 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 070 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 285719-4 | BEARING RETAINER A | 1 | €1.53 | 1-4 weeks to ship | |
| 072 | 241863-7 | FAN 70 | 1 | €1.67 | 1-4 weeks to ship | |
| 073 | 513609-4 | ARMATURE ASS'Y 240V | 1 | €36.18 | 1-4 weeks to ship | |
| 513609-4 | ARMATURE ASS'Y 240V | 1 | €36.18 | 1-4 weeks to ship | ||
| 074 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 075 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 077 | 418817-1 | BAFFLE PLATE | 1 | €1.81 | 1-4 weeks to ship | |
| 078 | 625724-3 | FIELD 240V | 1 | €22.26 | 1-4 weeks to ship | |
| 625724-3 | FIELD 240V | 1 | €22.26 | 1-4 weeks to ship | ||
| 079 | 154498-4 | MOTOR HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 081 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 082 | 183932-7 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | |
| 083 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 084 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 086 | 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 087 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 088 | 645006-7 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | |
| 645006-7 | NOISE SUPPRESSOR | 1 | €0.56 | 1-4 weeks to ship | ||
| 089 | 646049-2 | CHOKE COIL | 1 | €2.37 | 1-4 weeks to ship | |
| 646049-2 | CHOKE COIL | 1 | €2.37 | 1-4 weeks to ship | ||
| 090 | 646144-8 | CHOKE COIL | 1 | €2.92 | 1-4 weeks to ship | |
| 091 | 646145-6 | CHOKE COIL | 1 | €2.92 | 1-4 weeks to ship | |
| 092 | 631653-0 | CONTROLLER | 1 | €33.40 | 1-4 weeks to ship | |
| 096 | 421448-7 | RUBBER BAND | 1 | €2.78 | 1-4 weeks to ship | |
| 097 | 861223-3 | JR3060T NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | |
| 861223-3 | JR3060T NAME PLATE | 1 | €2.09 | 1-4 weeks to ship | ||
| 099 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 100 | 183932-7 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship |
