JR3050
JR3050

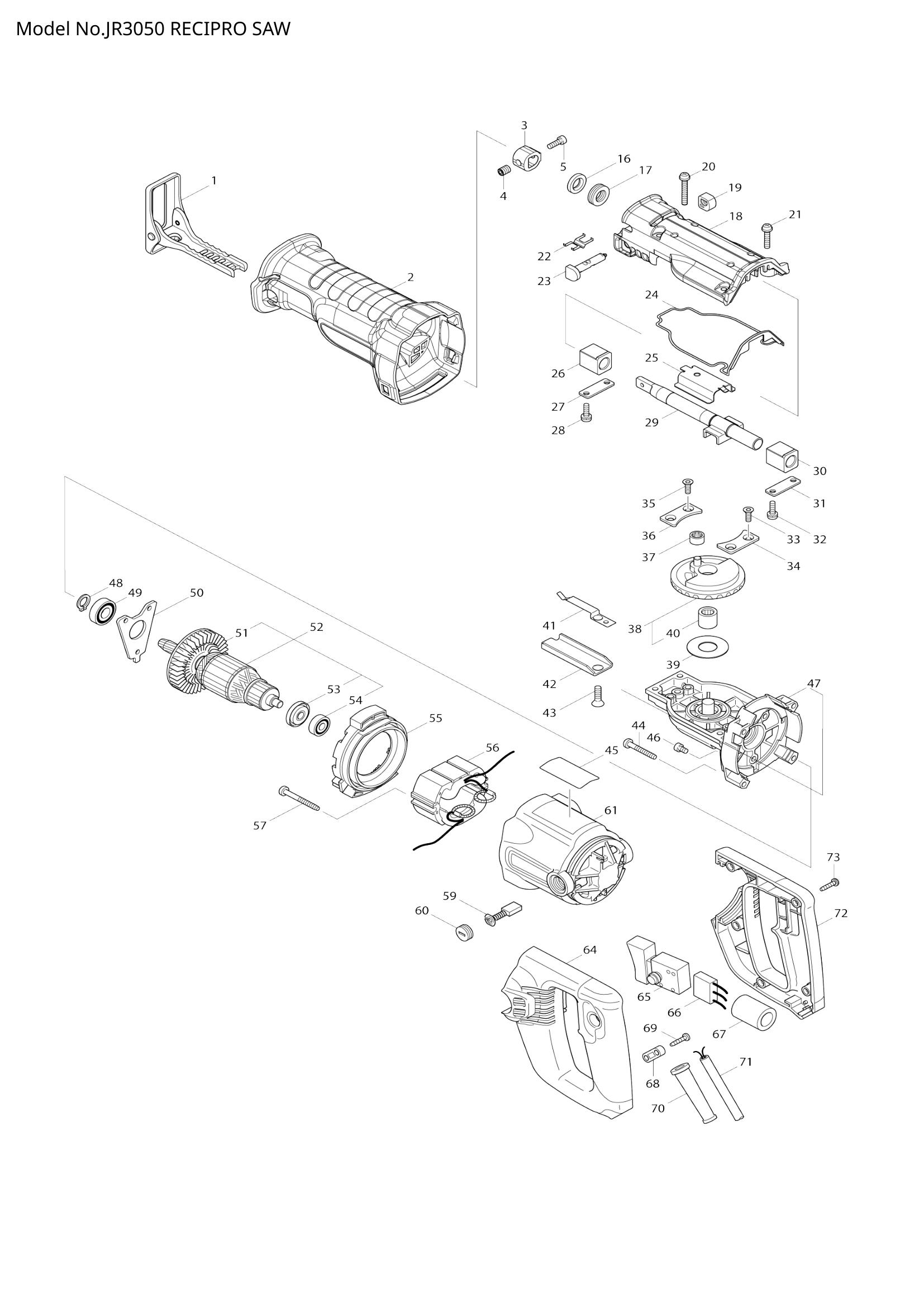

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 424677-1 | INSULATION COVER | 1 | €22.12 | 1-4 weeks to ship | |
| 424677-1 | INSULATION COVER | 1 | €22.12 | 1-4 weeks to ship | ||
| 003 | 313075-3 | BLADE CLAMP | 1 | €1.39 | 1-4 weeks to ship | |
| 313075-3 | BLADE CLAMP | 1 | €1.39 | 1-4 weeks to ship | ||
| 004 | 266202-0 | H.SOCKET SET SCREW(HOLE)M8X | 1 | €13.92 | 1-4 weeks to ship | |
| 266202-0 | H.SOCKET SET SCREW(HOLE)M8X | 1 | €13.92 | 1-4 weeks to ship | ||
| 005 | 266090-5 | HEX. SOCKET HEAD BOLT M5X15 | 1 | €1.11 | 1-4 weeks to ship | |
| 266090-5 | HEX. SOCKET HEAD BOLT M5X15 | 1 | €1.11 | 1-4 weeks to ship | ||
| 016 | 213151-2 | OIL SEAL 14 | 1 | €2.78 | 1-4 weeks to ship | |
| 213151-2 | OIL SEAL 14 | 1 | €2.78 | 1-4 weeks to ship | ||
| 017 | 213174-0 | X RING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 213174-0 | X RING 14 | 1 | €0.56 | 1-4 weeks to ship | ||
| 018 | 143038-3 | GEAR HOUSING COVER COMPLE | 1 | €17.12 | 1-4 weeks to ship | |
| 143038-3 | GEAR HOUSING COVER COMPLE | 1 | €17.12 | 1-4 weeks to ship | ||
| 019 | 418806-6 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 418806-6 | CAP | 1 | €0.56 | 1-4 weeks to ship | ||
| 020 | 911258-5 | PAN HEAD SCREW M5X35 | 2 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911258-5 | PAN HEAD SCREW M5X35 | 2 | €0.56 | 1-4 weeks to ship | ||
| 911258-5 | PAN HEAD SCREW M5X35 | 2 | €0.56 | 1-4 weeks to ship | ||
| 021 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 022 | 232221-8 | LEAF SPRING A | 1 | €0.56 | 1-4 weeks to ship | |
| 232221-8 | LEAF SPRING A | 1 | €0.56 | 1-4 weeks to ship | ||
| 023 | 162236-0 | SHIFT BUTTON | 1 | €4.17 | 1-4 weeks to ship | |
| 162236-0 | SHIFT BUTTON | 1 | €4.17 | 1-4 weeks to ship | ||
| 024 | 421893-6 | SEAL RING | 1 | €0.83 | 1-4 weeks to ship | |
| 421893-6 | SEAL RING | 1 | €0.83 | 1-4 weeks to ship | ||
| 025 | 345480-6 | SLIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 345480-6 | SLIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 026 | 214169-6 | PLANE BEARING 14 | 1 | €1.39 | 1-4 weeks to ship | |
| 214169-6 | PLANE BEARING 14 | 1 | €1.39 | 1-4 weeks to ship | ||
| 027 | 341462-6 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 341462-6 | PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 028 | 911225-0 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911225-0 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 030 | 214169-6 | PLANE BEARING 14 | 1 | €1.39 | 1-4 weeks to ship | |
| 214169-6 | PLANE BEARING 14 | 1 | €1.39 | 1-4 weeks to ship | ||
| 031 | 341462-6 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 341462-6 | PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 032 | 911225-0 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911225-0 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 033 | 265148-7 | TORX SOCKET HEAD SCREW M5X | 2 | €0.56 | 1-4 weeks to ship | |
| 265148-7 | TORX SOCKET HEAD SCREW M5X | 2 | €0.56 | 1-4 weeks to ship | ||
| 034 | 345478-3 | GEAR PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 345478-3 | GEAR PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 035 | 265148-7 | TORX SOCKET HEAD SCREW M5X | 2 | €0.56 | 1-4 weeks to ship | |
| 265148-7 | TORX SOCKET HEAD SCREW M5X | 2 | €0.56 | 1-4 weeks to ship | ||
| 036 | 345478-3 | GEAR PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 345478-3 | GEAR PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | 212959-1 | NEEDLE BEARING 708 | 1 | €5.57 | 1-4 weeks to ship | |
| 212959-1 | NEEDLE BEARING 708 | 1 | €5.57 | 1-4 weeks to ship | ||
| 038 | 125283-2 | GEAR ASS'Y | 1 | €16.70 | 1-4 weeks to ship | |
| 125283-2 | GEAR ASS'Y | 1 | €16.70 | 1-4 weeks to ship | ||
| 039 | 267290-0 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 267290-0 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 212115-3 | NEEDLE BEARING 1216 | 1 | €11.13 | 1-4 weeks to ship | |
| 212115-3 | NEEDLE BEARING 1216 | 1 | €11.13 | 1-4 weeks to ship | ||
| 041 | 232222-6 | LEAF SPRING B | 1 | €0.56 | 1-4 weeks to ship | |
| 232222-6 | LEAF SPRING B | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | 345479-1 | SHOE GUIDE | 1 | €0.83 | 1-4 weeks to ship | |
| 345479-1 | SHOE GUIDE | 1 | €0.83 | 1-4 weeks to ship | ||
| 043 | 265165-7 | TORXSOCKET C.S.HEADSCREW M | 1 | €0.56 | 1-4 weeks to ship | |
| 265165-7 | TORXSOCKET C.S.HEADSCREW M | 1 | €0.56 | 1-4 weeks to ship | ||
| 044 | 266373-3 | TAPPING SCREW 5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 266373-3 | TAPPING SCREW 5X35 | 4 | €0.56 | 1-4 weeks to ship | ||
| 045 | JR3050 NAME PLATE | 1 | Not available in store | |||
| JR3050 NAME PLATE | 1 | Not available in store | ||||
| 046 | 265530-0 | HEX.SOCKET HEAD BOLT M5X8 | 3 | €0.56 | 1-4 weeks to ship | |
| 265530-0 | HEX.SOCKET HEAD BOLT M5X8 | 3 | €0.56 | 1-4 weeks to ship | ||
| 047 | 154497-6 | GEAR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 154497-6 | GEAR HOUSING COMPLETE | 1 | €22.26 | 1-4 weeks to ship | ||
| 048 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 049 | 210102-6 | BALL BEARING 6001DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210102-6 | BALL BEARING 6001DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 050 | 285718-6 | BEARING RETAINER | 1 | €1.39 | 1-4 weeks to ship | |
| 285718-6 | BEARING RETAINER | 1 | €1.39 | 1-4 weeks to ship | ||
| 051 | 241863-7 | FAN 70 | 1 | €1.67 | 1-4 weeks to ship | |
| 241863-7 | FAN 70 | 1 | €1.67 | 1-4 weeks to ship | ||
| 052 | 513598-3 | ARMATURE ASS'Y 220-240V | 1 | €36.18 | 1-4 weeks to ship | |
| 513598-3 | ARMATURE ASS'Y 220-240V | 1 | €36.18 | 1-4 weeks to ship | ||
| 513598-3 | ARMATURE ASS'Y 220-240V | 1 | €36.18 | 1-4 weeks to ship | ||
| 513598-3 | ARMATURE ASS'Y 220-240V | 1 | €36.18 | 1-4 weeks to ship | ||
| 053 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 054 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | ||
| 055 | 418805-8 | BAFFLE PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 418805-8 | BAFFLE PLATE | 1 | €1.11 | 1-4 weeks to ship | ||
| 056 | 525713-7 | FIELD ASS'Y 220-240V | 1 | €25.05 | 1-4 weeks to ship | |
| 525713-7 | FIELD ASS'Y 220-240V | 1 | €25.05 | 1-4 weeks to ship | ||
| 525713-7 | FIELD ASS'Y 220-240V | 1 | €25.05 | 1-4 weeks to ship | ||
| 525713-7 | FIELD ASS'Y 220-240V | 1 | €25.05 | 1-4 weeks to ship | ||
| 057 | 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | |
| 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | ||
| 060 | 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | |
| 643750-0 | BRUSH HOLDER CAP 7-11 | 2 | €0.56 | 1-4 weeks to ship | ||
| 061 | 154498-4 | MOTOR HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 154498-4 | MOTOR HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | ||
| 064 | 183920-4 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | |
| 183920-4 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | ||
| 065 | 650543-8 | SWITCH TG843TB-1 | 1 | €19.48 | 1-4 weeks to ship | |
| 650543-8 | SWITCH TG843TB-1 | 1 | €19.48 | 1-4 weeks to ship | ||
| 650543-8 | SWITCH TG843TB-1 | 1 | €19.48 | 1-4 weeks to ship | ||
| 650543-8 | SWITCH TG843TB-1 | 1 | €19.48 | 1-4 weeks to ship | ||
| 066 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 067 | 685722-9 | SPONGE | 1 | €0.56 | 1-4 weeks to ship | |
| 685722-9 | SPONGE | 1 | €0.56 | 1-4 weeks to ship | ||
| 068 | 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687124-5 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 069 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 070 | 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 682573-1 | CORD GUARD 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 071 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | ||
| 072 | 183920-4 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | |
| 183920-4 | HANDLE SET | 1 | €13.92 | 1-4 weeks to ship | ||
| 073 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | ||
