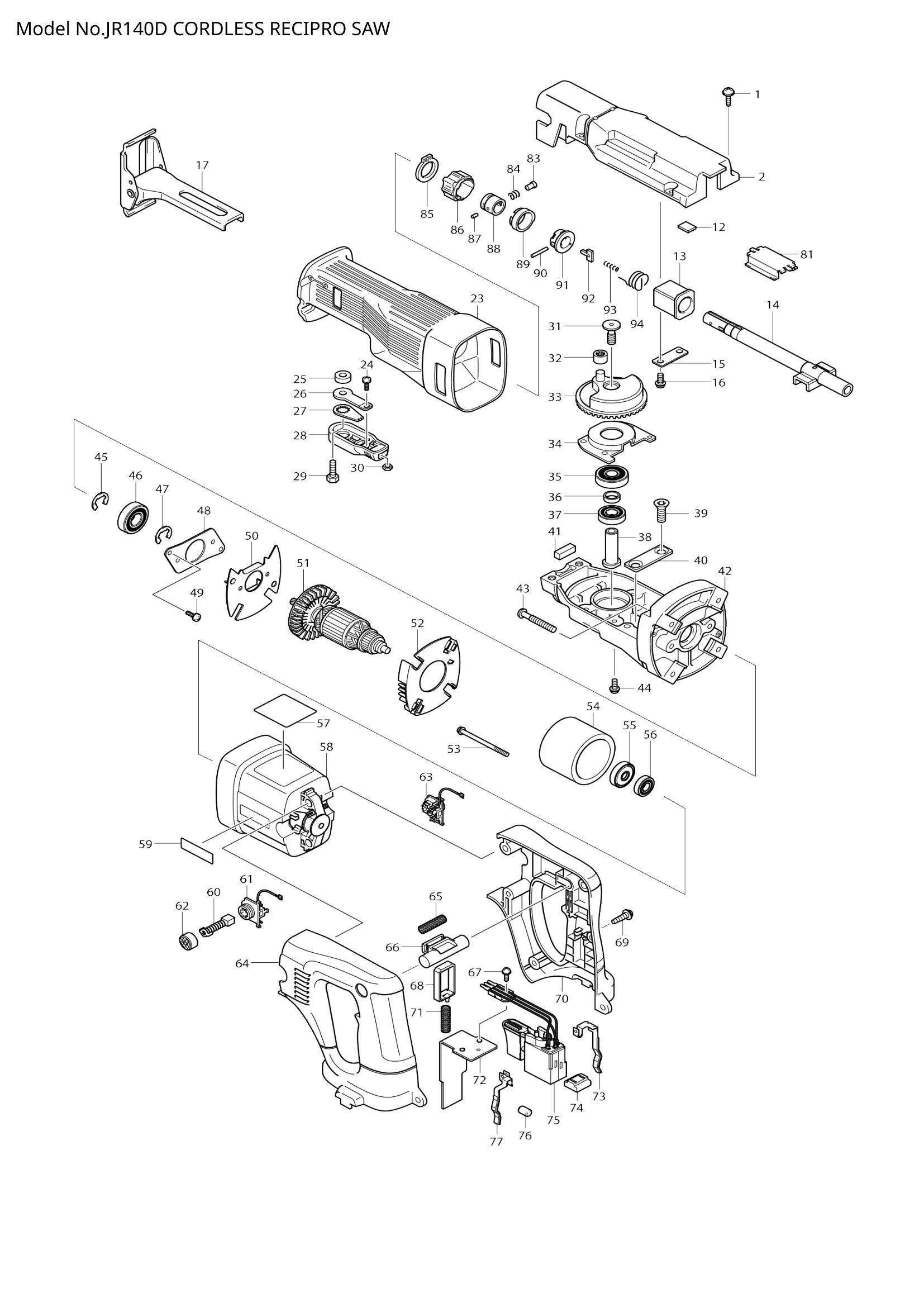

JR140D
JR140D
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 911228-4 | PAN HEAD SCREW M5X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 012 | 443070-0 | PLATE 12X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 013 | 214169-6 | PLANE BEARING 14 | 2 | €1.39 | 1-4 weeks to ship | |
| 015 | 341462-6 | PLATE | 2 | €0.56 | 1-4 weeks to ship | |
| 016 | 911225-0 | PAN HEAD SCREW M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 023 | 421693-4 | INSULATION COVER | 1 | €27.00 | 1-4 weeks to ship | |
| 024 | 911114-9 | PAN HEAD SCREW M4X10 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 257558-2 | SLEEVE 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 344732-2 | INNER PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 344733-0 | LOCK PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 028 | 272240-2 | LEVER 60 | 1 | €0.83 | 1-4 weeks to ship | |
| 029 | 921442-4 | HEX. BOLT M8X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 921442-4 | HEX. BOLT M8X25 | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 931102-0 | HEX. NUT M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 212001-8 | NEEDLE BEARING 708 | 1 | €11.13 | 1-4 weeks to ship | |
| 033 | 153267-0 | GEAR COMPLETE | 1 | €74.72 | 1-4 weeks to ship | |
| 034 | 285696-0 | BEARING RETAINER A | 1 | €4.45 | 1-4 weeks to ship | |
| 035 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 036 | RING 10 | 1 | Not available in store | |||
| 038 | 323887-6 | GEAR SHAFT | 1 | €7.10 | 1-4 weeks to ship | |
| 039 | 251969-3 | HEX. SOCKET HEAD BOLT M5X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 040 | 344795-8 | PLATE C | 1 | €1.81 | 1-4 weeks to ship | |
| 041 | 443107-3 | FELT 8X24 | 1 | €2.09 | 1-4 weeks to ship | |
| 042 | 317229-4 | GEAR HOUSING | 1 | €53.57 | 1-4 weeks to ship | |
| 044 | 911601-8 | PAN HEAD SCREW M5X8 | 3 | €2.09 | 1-4 weeks to ship | |
| 045 | 961016-9 | STOP RING E-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 047 | 961016-9 | STOP RING E-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 285697-8 | BEARING RETAINER B | 1 | €4.45 | 1-4 weeks to ship | |
| 049 | 911516-9 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 050 | 416960-0 | FAN GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 051 | 519052-5 | ARMATURE ASS'Y 14.4V | 1 | €114.80 | 1-4 weeks to ship | |
| 052 | 416959-5 | BAFFLE PLATE | 1 | €4.45 | 1-4 weeks to ship | |
| 053 | 266209-6 | TAPPING SCREW 4X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 054 | 632828-4 | YOKE UNIT | 1 | €22.26 | 1-4 weeks to ship | |
| 055 | 681652-2 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 210017-7 | BALL BEARING 607DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 057 | 851730-4 | NAME PLATE JR140D | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 416957-9 | MOTOR HOUSING | 1 | €18.09 | 1-4 weeks to ship | |
| 061 | 643949-7 | BRUSH HOLDER R | 1 | €4.17 | 1-4 weeks to ship | |
| 062 | 643941-3 | BRUSH HOLDER CAP | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 643950-2 | BRUSH HOLDER L | 1 | €4.45 | 1-4 weeks to ship | |
| 064 | 183140-0 | HANDLE SET | 1 | €25.60 | 1-4 weeks to ship | |
| 065 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 416958-7 | LOCK-OFF BUTTON | 1 | €2.92 | 1-4 weeks to ship | |
| 067 | 911006-2 | PAN HEAD SCREW M3X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 416976-5 | STOPPER | 1 | €2.78 | 1-4 weeks to ship | |
| 070 | 183140-0 | HANDLE SET | 1 | €25.60 | 1-4 weeks to ship | |
| 071 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 689090-2 | HEAT SINK | 1 | €8.07 | 1-4 weeks to ship | |
| 073 | 654195-7 | SPRING TERMINAL (PLUS) | 1 | €4.17 | 1-4 weeks to ship | |
| 074 | 687085-9 | HOLDER | 1 | €0.83 | 1-4 weeks to ship | |
| 077 | 654196-5 | SPRING TERMINAL (MINUS) | 1 | €4.17 | 1-4 weeks to ship | |
| 081 | 344858-0 | SLIDE PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 084 | 233345-3 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 961078-7 | RETAINING RING (EXT) S-18 | 1 | €0.56 | 1-4 weeks to ship | |
| 086 | 162228-9 | DRIVING SLEEVE | 1 | €36.18 | 1-4 weeks to ship | |
| 087 | 268094-3 | PIN 3 | 1 | €2.78 | 1-4 weeks to ship | |
| 088 | 331639-1 | GUIDE SLEEVE | 1 | €1.11 | 1-4 weeks to ship | |
| 089 | 417791-0 | DRIVING SLEEVE GUIDE | 1 | €0.56 | 1-4 weeks to ship | |
| 090 | 256158-5 | PIN 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 345214-7 | PUSH PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 093 | 233025-1 | COMPRESSION SPRING 2 | 1 | €0.56 | 1-4 weeks to ship | |
