HS7100
HS7100

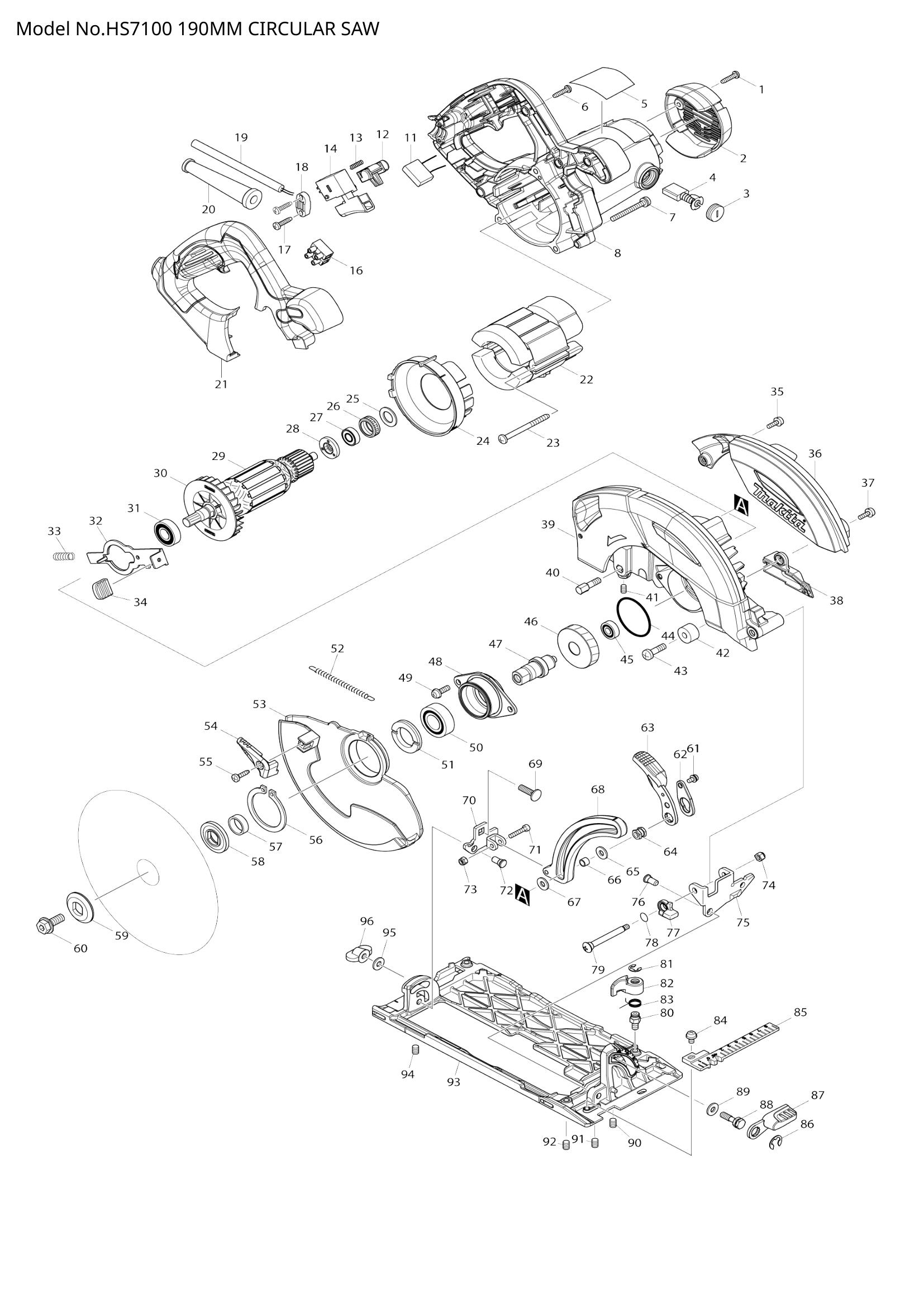

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 002 | 453288-5 | REAR COVER | 1 | €1.67 | 1-4 weeks to ship | |
| 005 | HS7100 NAME PLATE | 1 | Not available in store | |||
| 006 | 265995-6 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 007 | 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | |
| 911268-2 | PAN HEAD SCREW M5X45 | 3 | €0.56 | 1-4 weeks to ship | ||
| 008 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 011 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | 453284-3 | LOCK OFF BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 013 | 231469-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 650245-6 | SWITCH SGE115CDY-10 | 1 | €6.12 | 1-4 weeks to ship | |
| 016 | 654532-5 | TERMINAL BLOCK 1P | 1 | €1.11 | 1-4 weeks to ship | |
| 017 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 020 | 682540-6 | CORD GUARD 9.3-90 | 1 | €1.39 | 1-4 weeks to ship | |
| 021 | 453282-7 | HANDLE COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 022 | FIELD ASS'Y 220-240 | 1 | Not available in store | |||
| 023 | 266044-2 | TAPPING SCREW 5X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 024 | 453283-5 | BAFFLE PLATE | 1 | €1.11 | 1-4 weeks to ship | |
| 025 | 261103-7 | RUBBER WASHER 13 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 421479-6 | RUBBER RING 19 | 1 | €5.57 | 1-4 weeks to ship | |
| 027 | 210016-9 | BALL BEARING 698ZZ | 1 | €11.13 | 1-4 weeks to ship | |
| 028 | 681654-8 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 513833-9 | ARMATURE ASS'Y 220V | 1 | €54.63 | 1-4 weeks to ship | |
| 030 | 240133-1 | FAN 70 | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 032 | 346547-3 | SHAFT LOCK | 1 | €1.67 | 1-4 weeks to ship | |
| 033 | 233429-7 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 286275-7 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 453287-7 | BLADE COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 037 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 453285-1 | DUCT | 1 | €0.83 | 1-4 weeks to ship | |
| 039 | 141311-5 | BLADE CASE COMPLETE | 1 | €55.66 | 1-4 weeks to ship | |
| 040 | 265594-4 | HEX.BOLT M6X18 | 1 | €5.57 | 1-4 weeks to ship | |
| 041 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 262552-1 | RUBBER SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 251247-1 | + PAN HEAD SCREW M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 213560-5 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 211022-7 | BALL BEARING 607ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 046 | 227754-6 | HELICAL GEAR 43 | 1 | €27.83 | 1-4 weeks to ship | |
| 047 | 326127-1 | SPINDLE | 1 | €4.17 | 1-4 weeks to ship | |
| 048 | 318820-1 | BEARING BOX | 1 | €5.57 | 1-4 weeks to ship | |
| 049 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 2 | €0.56 | 1-4 weeks to ship | ||
| 050 | 211275-8 | BALL BEARING 6003DDW | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | 285848-3 | BEARING RETAINER 23-36 | 1 | €0.83 | 1-4 weeks to ship | |
| 052 | 231877-4 | TENSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 318821-9 | SAFETY COVER | 1 | €25.05 | 1-4 weeks to ship | |
| 054 | 272271-1 | LEVER 37 | 1 | €1.11 | 1-4 weeks to ship | |
| 055 | 266034-5 | TAPPING SCREW CT 4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 961201-4 | RETAINING RING S-42 | 1 | €1.11 | 1-4 weeks to ship | |
| 057 | 257279-6 | RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 224409-4 | OUTER FLANGE 35 | 1 | €1.67 | 1-4 weeks to ship | |
| 060 | 266283-4 | HEX. SOCKET HEX. BOLT M8X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 911108-4 | PAN HEAD SCREW M4X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 453362-9 | LOCK PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 063 | 272273-7 | LEVER 70 | 1 | €4.17 | 1-4 weeks to ship | |
| 064 | 264071-3 | HEX. NUT M6 | 1 | €2.78 | 1-4 weeks to ship | |
| 065 | 267100-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 257669-3 | SLEEVE 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 267100-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 141312-3 | DEPTH GUIDE COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 069 | 251919-8 | CAP SQUARE NECK BOLT M6X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 165670-3 | REAR ANGULAR GUIDE | 1 | €1.67 | 1-4 weeks to ship | |
| 071 | 922137-2 | HEX. SOCKET HEAD BOLT M4X20 | 1 | €0.56 | 1-4 weeks to ship | |
| 922137-2 | HEX. SOCKET HEAD BOLT M4X20 | 1 | €0.56 | 1-4 weeks to ship | ||
| 072 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | 252126-6 | HEX. LOCK NUT M4-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 345590-9 | ANGULAR GUIDE | 1 | €4.17 | 1-4 weeks to ship | |
| 076 | 256480-0 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 318823-5 | STOPPER | 1 | €1.67 | 1-4 weeks to ship | |
| 078 | 213062-1 | O RING 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 079 | 266734-7 | + TRUSS HEAD SCREW M5 | 1 | €1.39 | 1-4 weeks to ship | |
| 080 | 265571-6 | HEX. BOLT M6X10 | 2 | €2.78 | 1-4 weeks to ship | |
| 081 | 961012-7 | STOP RING E-6 | 2 | €0.56 | 1-4 weeks to ship | |
| 082 | 453165-1 | LOCK LEVER | 2 | €1.11 | 1-4 weeks to ship | |
| 083 | 233596-8 | TORSION SPRING 11 | 2 | €0.56 | 1-4 weeks to ship | |
| 084 | 911203-0 | PAN HEAD SCREW M5X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 453286-9 | TOP GUIDE | 1 | €1.39 | 1-4 weeks to ship | |
| 086 | 257982-9 | BOW STOP RING E-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 272272-9 | LEVER 45 | 1 | €2.78 | 1-4 weeks to ship | |
| 088 | 266735-5 | HEX.BOLT M6X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 089 | 267100-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 090 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 093 | 318819-6 | BASE | 1 | €41.75 | 1-4 weeks to ship | |
| 094 | 266208-8 | H.S.SET SCREW(CUP POINT)M6X8 | 1 | €0.56 | 1-4 weeks to ship | |
| 095 | 267100-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 096 | 252631-3 | THUMB NUT M6 | 1 | €3.06 | 1-4 weeks to ship | |
