HS003G
HS003G

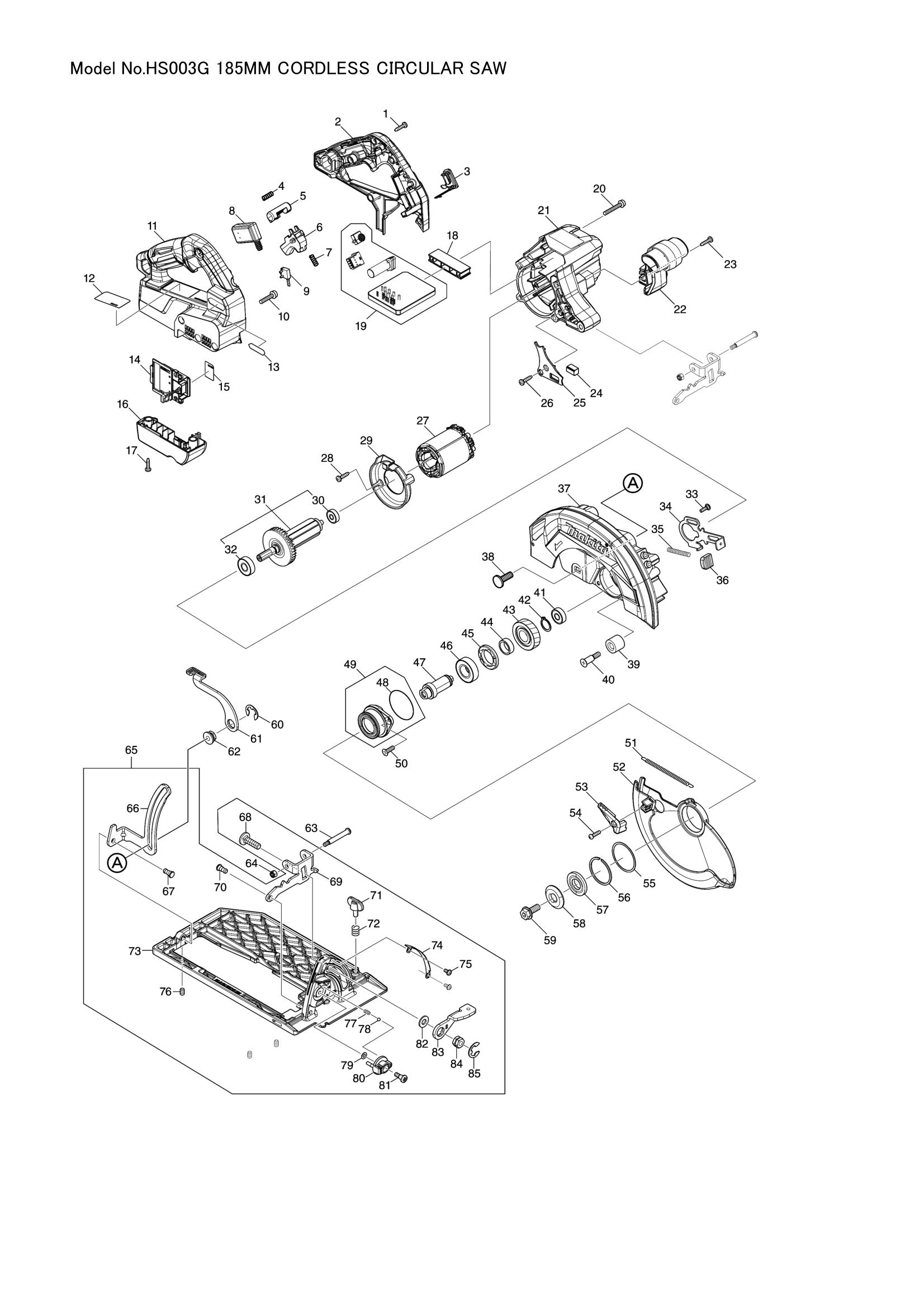

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 002 | HANDLE SET | 1 | Not available in store | |||
| 003 | CAP COMPLETE | 1 | Not available in store | |||
| 004 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 419704-7 | LOCK OFF BUTTON | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | SWITCH LEVER | 1 | Not available in store | |||
| 007 | 231433-0 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | |
| 651083-9 | SWITCH C3XA-1PSPM | 1 | €18.09 | 1-4 weeks to ship | ||
| 009 | SWITCH UNIT | 1 | Not available in store | |||
| 010 | 911243-8 | PAN HEAD SCREW M5X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 011 | HANDLE SET | 1 | Not available in store | |||
| 012 | HS003G NAME PLATE | 1 | Not available in store | |||
| 013 | XGT LOGO LABEL | 1 | Not available in store | |||
| 014 | 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | |
| 015 | HS003G SERIAL NO. LABEL | 1 | Not available in store | |||
| 017 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 018 | SPACER | 1 | Not available in store | |||
| 020 | 911258-5 | PAN HEAD SCREW M5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 911258-5 | PAN HEAD SCREW M5X35 | 4 | €0.56 | 1-4 weeks to ship | ||
| 021 | MOTOR HOUSING | 1 | Not available in store | |||
| 022 | FRONT GRIP | 1 | Not available in store | |||
| 023 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | LED CIRCUIT | 1 | Not available in store | |||
| 025 | LIGHT COVER | 1 | Not available in store | |||
| 026 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 029 | BAFFLE PLATE | 1 | Not available in store | |||
| 030 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 031 | 519534-7 | ROTOR ASSY | 1 | €48.70 | 1-4 weeks to ship | |
| 519534-7 | ROTOR ASSY | 1 | €48.70 | 1-4 weeks to ship | ||
| 032 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 033 | + PAN HEAD SCREW M4X14 | 1 | Not available in store | |||
| 034 | SHAFT LOCK | 1 | Not available in store | |||
| 035 | 233084-5 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | CAP | 1 | Not available in store | |||
| 037 | 140S42-7 | BLADE CASE COMPLETE | 1 | €51.49 | 1-4 weeks to ship | |
| 039 | RUBBER SLEEVE8 | 1 | Not available in store | |||
| 041 | 210029-0 | BALL BEARING 608ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 226838-7 | HELICAL GEAR 37 | 1 | €5.57 | 1-4 weeks to ship | |
| 044 | RING 17 | 1 | Not available in store | |||
| 045 | 285809-3 | BEARING RETAINER 23-36 | 1 | €0.83 | 1-4 weeks to ship | |
| 046 | 210301-0 | BALL BEARING 6003DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 047 | SPINDLE | 1 | Not available in store | |||
| 048 | 213565-5 | O RING 42 | 1 | €0.56 | 1-4 weeks to ship | |
| 049 | BEARING BOX ASSY | 1 | Not available in store | |||
| 051 | TENSION SPRING 4 | 1 | Not available in store | |||
| 052 | 319970-5 | SAFETY COVER | 1 | €29.22 | 1-4 weeks to ship | |
| 053 | LEVER 37 | 1 | Not available in store | |||
| 054 | 265178-8 | PAN HEAD SCREW M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 267337-0 | FLAT WASHER 40 | 1 | €0.83 | 1-4 weeks to ship | |
| 056 | RETAINING RING (EXT) WR-40 | 1 | Not available in store | |||
| 057 | 224593-5 | INNER FLANGE 35 | 1 | €1.81 | 1-4 weeks to ship | |
| 058 | 224409-4 | OUTER FLANGE 35 | 1 | €1.67 | 1-4 weeks to ship | |
| 060 | 257953-6 | BOW STOP RING E-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | LEVER 90 | 1 | Not available in store | |||
| 062 | COLLERED HEX. NUT M8 | 1 | Not available in store | |||
| 063 | 265075-8 | + PAN HEAD SCREW M5 | 1 | €0.83 | 1-4 weeks to ship | |
| 064 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | BASE ASSY | 1 | Not available in store | |||
| 066 | DEPTH GUIDE | 1 | Not available in store | |||
| 067 | 256511-5 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | ANGULAR GUIDE | 1 | Not available in store | |||
| 070 | 256511-5 | SHOULDER PIN 6-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 265701-9 | THUMB SCREW M6X14 | 1 | €1.67 | 1-4 weeks to ship | |
| 072 | 233376-2 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | BASE | 1 | Not available in store | |||
| 074 | SCALE PLATE | 1 | Not available in store | |||
| 075 | 251358-2 | + PAN HEAD SCREW M4X8 | 2 | €0.83 | 1-4 weeks to ship | |
| 077 | 233314-4 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 079 | 253811-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 450704-8 | DIAL 27 | 1 | €0.60 | 1-4 weeks to ship | |
| 081 | 251370-2 | + PAN HEAD SCREW M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 941201-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 083 | LEVER PLATE | 1 | Not available in store | |||
| 084 | HEX. NUT M8-13 | 1 | Not available in store | |||
| 085 | 257953-6 | BOW STOP RING E-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 086 | CONTROLLER B S | 1 | Not available in store | |||
| 087 | PAN HEAD SCREW M2X6 S | 6 | Not available in store | |||
