HR5001C
HR5001C

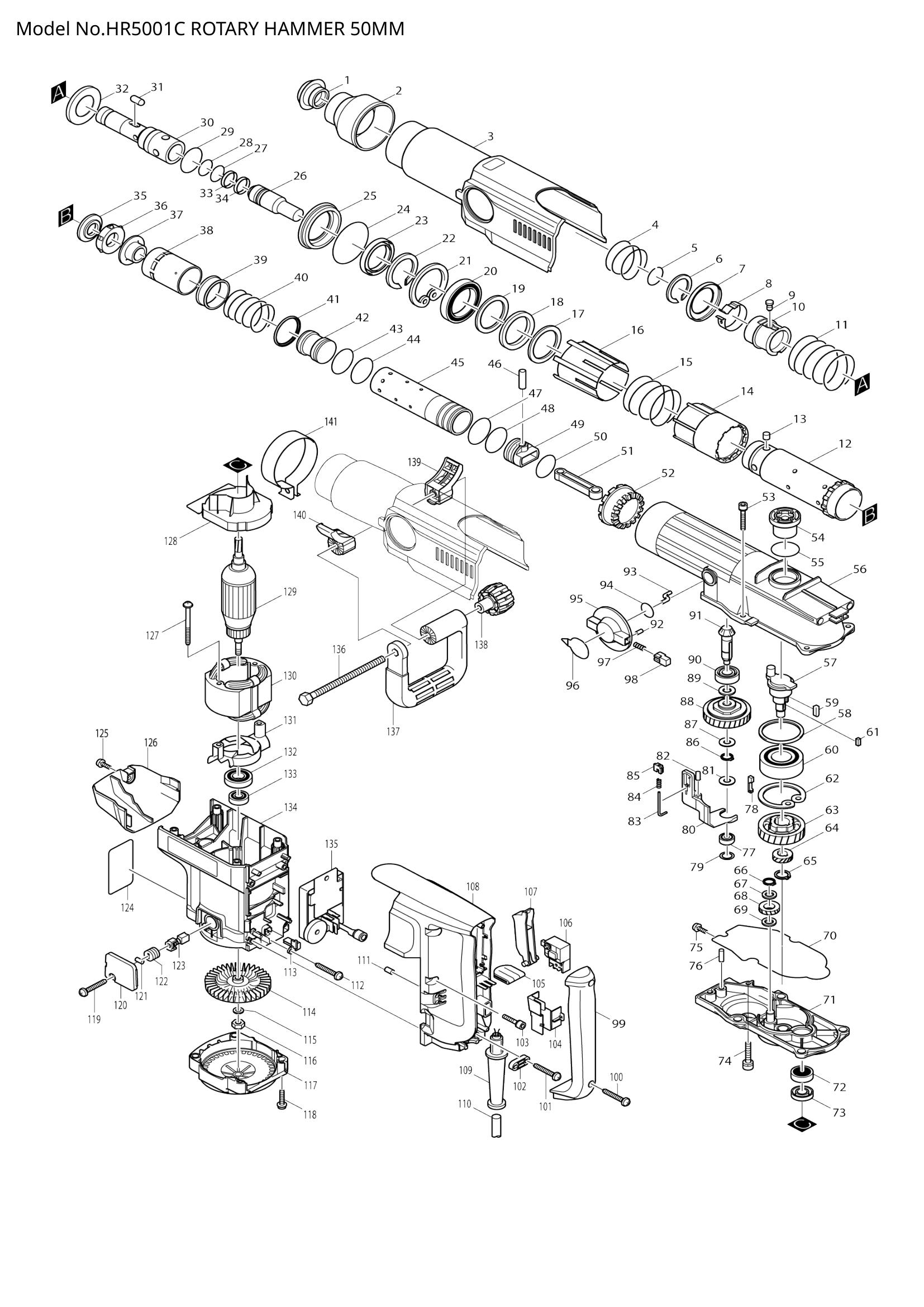

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286250-3 | TOOL HOLDER CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 002 | 416568-0 | CHUCK COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 003 | 150836-8 | CRANK HOUSING COVER COMPL | 1 | €41.75 | 1-4 weeks to ship | |
| 004 | 233217-2 | COMPRESSION SPRING 51 | 1 | €1.11 | 1-4 weeks to ship | |
| 005 | 231984-3 | RING SPRING 25 | 1 | €1.11 | 1-4 weeks to ship | |
| 006 | 961232-3 | RETAINING RING WR-45 | 1 | €2.78 | 1-4 weeks to ship | |
| 007 | 267735-8 | CUP WASHER 45 | 1 | €4.17 | 1-4 weeks to ship | |
| 008 | 232180-6 | LEAF SPRING 41 | 1 | €5.57 | 1-4 weeks to ship | |
| 009 | 323767-6 | PIN 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 323773-1 | CHUCK RING | 1 | €58.44 | 1-4 weeks to ship | |
| 011 | 233218-0 | COMPRESSION SPRING 55 | 1 | €1.11 | 1-4 weeks to ship | |
| 012 | 323772-3 | TOOL HOLDER B | 1 | €128.02 | 1-4 weeks to ship | |
| 013 | 256265-4 | PIN 10 | 4 | €1.11 | 1-4 weeks to ship | |
| 014 | 416572-9 | LOCK SLEEVE A | 1 | €5.57 | 1-4 weeks to ship | |
| 015 | 233216-4 | COMPRESSION SPRING 58 | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 416573-7 | LOCK SLEEVE B | 1 | €4.17 | 1-4 weeks to ship | |
| 017 | 267180-7 | FLAT WASHER 50 | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | 262543-2 | URETHANE SLEEVE 50 | 1 | €11.13 | 1-4 weeks to ship | |
| 019 | 267180-7 | FLAT WASHER 50 | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | 211751-2 | BALL BEARING 6910 | 1 | €41.75 | 1-4 weeks to ship | |
| 021 | 962351-8 | RETAINING RING R-72 | 1 | €2.78 | 1-4 weeks to ship | |
| 022 | 961234-9 | RETAINING RING WR-50 | 1 | €1.67 | 1-4 weeks to ship | |
| 023 | 213618-0 | OIL SEAL 48 | 1 | €4.17 | 1-4 weeks to ship | |
| 024 | 213715-2 | O RING 67 | 1 | €0.83 | 1-4 weeks to ship | |
| 025 | 416565-6 | SEAL CASE | 1 | €5.57 | 1-4 weeks to ship | |
| 026 | 323768-4 | IMPACT BOLT | 1 | €22.26 | 1-4 weeks to ship | |
| 027 | 213394-6 | O RING 23 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 213394-6 | O RING 23 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 213522-3 | O RING 36 | 1 | €2.78 | 1-4 weeks to ship | |
| 030 | 323771-5 | TOOL HOLDER A | 1 | €86.27 | 1-4 weeks to ship | |
| 031 | 322908-1 | ROLLER 8 | 2 | €2.78 | 1-4 weeks to ship | |
| 032 | 267734-0 | CUP WASHER 37 | 1 | €2.78 | 1-4 weeks to ship | |
| 033 | 213431-6 | FLUORIDE RING 28 | 1 | €11.13 | 1-4 weeks to ship | |
| 034 | 213431-6 | FLUORIDE RING 28 | 1 | €11.13 | 1-4 weeks to ship | |
| 035 | 323817-7 | RING 22 | 1 | €8.35 | 1-4 weeks to ship | |
| 036 | 421623-5 | RUBBER RING 24 | 1 | €8.35 | 1-4 weeks to ship | |
| 037 | 331530-3 | COLLAR SLEEVE 22 | 1 | €19.48 | 1-4 weeks to ship | |
| 038 | 416566-4 | SLIDE SLEEVE | 1 | €5.57 | 1-4 weeks to ship | |
| 039 | 331531-1 | RING 45 | 1 | €13.92 | 1-4 weeks to ship | |
| 040 | 233215-6 | COMPRESSION SPRING 45 | 1 | €1.67 | 1-4 weeks to ship | |
| 041 | 267736-6 | WASHER 45 | 1 | €4.17 | 1-4 weeks to ship | |
| 042 | 323769-2 | STRIKER | 1 | €19.48 | 1-4 weeks to ship | |
| 043 | 213482-9 | O RING 34 | 1 | €1.11 | 1-4 weeks to ship | |
| 044 | 231985-1 | RING SPRING 43 | 1 | €0.83 | 1-4 weeks to ship | |
| 045 | 331534-5 | CYLINDER 40 | 1 | €80.71 | 1-4 weeks to ship | |
| 047 | 213510-0 | O RING 36 | 3 | €0.56 | 1-4 weeks to ship | |
| 048 | 213482-9 | O RING 34 | 1 | €1.11 | 1-4 weeks to ship | |
| 049 | 416563-0 | PISTON | 1 | €11.13 | 1-4 weeks to ship | |
| 051 | 416564-8 | ROD | 1 | €5.57 | 1-4 weeks to ship | |
| 052 | 226761-6 | SPIRAL BEVEL GEAR 41 | 1 | €55.66 | 1-4 weeks to ship | |
| 053 | 922361-7 | HEX. SOCKET HEAD BOLT M6X40 | 4 | €0.56 | 1-4 weeks to ship | |
| 054 | 416561-4 | CRANK CAP | 1 | €8.35 | 1-4 weeks to ship | |
| 055 | 213510-0 | O RING 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 150831-8 | CRANK HOUSING COMPLETE | 1 | €130.80 | 1-4 weeks to ship | |
| 057 | 323774-9 | CRANK SHAFT | 1 | €22.26 | 1-4 weeks to ship | |
| 058 | 267181-5 | FLAT WASHER 56 | 1 | €2.78 | 1-4 weeks to ship | |
| 059 | 254229-2 | KEY 5 | 2 | €0.83 | 1-4 weeks to ship | |
| 060 | 211470-0 | BALL BEARING 62/32 2RS | 1 | €22.26 | 1-4 weeks to ship | |
| 061 | 254202-2 | KEY 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 062 | 962303-9 | RETAINING RING R-65 | 1 | €4.45 | 1-4 weeks to ship | |
| 063 | 226493-5 | HELICAL GEAR 50 | 1 | €61.23 | 1-4 weeks to ship | |
| 064 | 226490-1 | HELICAL GEAR 20A | 1 | €13.92 | 1-4 weeks to ship | |
| 065 | 961054-1 | RETAINING RING S-14 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 150835-0 | HELICAL GEAR | 1 | €16.70 | 1-4 weeks to ship | |
| 069 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 421622-7 | SEAL RING | 1 | €2.78 | 1-4 weeks to ship | |
| 073 | 213160-1 | OIL SEAL 14 | 1 | €5.57 | 1-4 weeks to ship | |
| 074 | 922351-0 | HEX. SOCKET HEAD BOLT M6X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 075 | 911223-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 076 | 256286-6 | PIN 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 077 | 210024-0 | BALL BEARING 608LLU | 1 | €4.17 | 1-4 weeks to ship | |
| 078 | 322951-0 | CHANGE KEY | 2 | €8.35 | 1-4 weeks to ship | |
| 079 | 253314-8 | THIN WASHER 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 080 | 416571-1 | CHANGE LINK | 1 | €4.17 | 1-4 weeks to ship | |
| 081 | 253810-6 | FLAT WASHER 12 | 1 | €1.11 | 1-4 weeks to ship | |
| 082 | 256263-8 | PIN 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 083 | 322963-3 | GUIDE PIN 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | 233180-9 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 416289-4 | SLIDE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 087 | 267113-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 150986-9 | TORQUE LIMITER COMPLETE | 1 | €153.07 | 1-4 weeks to ship | |
| 089 | 267113-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 090 | 211109-5 | BALL BEARING 6201 | 1 | €4.17 | 1-4 weeks to ship | |
| 091 | 226760-8 | SPIRAL BEVEL GEAR 12 | 1 | €27.83 | 1-4 weeks to ship | |
| 092 | 256122-6 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 094 | 213304-3 | O RING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 095 | 416287-8 | CHANGE LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 096 | 816329-2 | INDICATION LABEL | 1 | €1.11 | 1-4 weeks to ship | |
| 097 | 233188-3 | COMPRESSION SPRING 2.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 100 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 101 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 104 | 416126-2 | LEAD GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 105 | 421583-1 | SPONGE SHEET | 1 | €0.56 | 1-4 weeks to ship | |
| 110 | 665883-1 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 111 | 416285-2 | ACRYLIC PIN 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 112 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 113 | 416562-2 | FIX ROD | 1 | €4.45 | 1-4 weeks to ship | |
| 114 | 240016-5 | FAN 90 | 1 | €11.13 | 1-4 weeks to ship | |
| 115 | 253165-9 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 116 | 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 931402-8 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 117 | 416570-3 | REAR COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 118 | 266021-4 | TAPPING SCREW 5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 119 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 120 | 416292-5 | BRUSH HOLDER COVER | 2 | €1.67 | 1-4 weeks to ship | |
| 121 | 263002-9 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 124 | 859584-3 | NAME PLATE HR5001C | 1 | €2.92 | 1-4 weeks to ship | |
| 125 | 911223-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 911223-4 | PAN HEAD SCREW M5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 126 | 416575-3 | GEAR HOUSING COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 127 | 266095-5 | TAPPING SCREW 5X55 | 2 | €0.83 | 1-4 weeks to ship | |
| 128 | 416569-8 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 129 | 516778-0 | ARMATURE ASS'Y 220-240V | 1 | €125.24 | 1-4 weeks to ship | |
| 130 | 626078-1 | FIELD 220-240V | 1 | €55.66 | 1-4 weeks to ship | |
| 131 | 416567-2 | DUST GUIDE | 1 | €5.57 | 1-4 weeks to ship | |
| 132 | 681642-5 | INSULATION WASHER | 1 | €8.35 | 1-4 weeks to ship | |
| 133 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 134 | 150833-4 | MOTOR HOUSING COMPLETE | 1 | €66.79 | 1-4 weeks to ship | |
| 136 | 265439-6 | HEX. BOLT M8X150 | 1 | €2.78 | 1-4 weeks to ship | |
| 138 | 252640-2 | WING NUT M8 | 1 | €8.35 | 1-4 weeks to ship | |
| 143 | 417002-3 | SIDE HANDLE CAM S | 2 | €1.11 | 1-4 weeks to ship |
