HR5000
HR5000

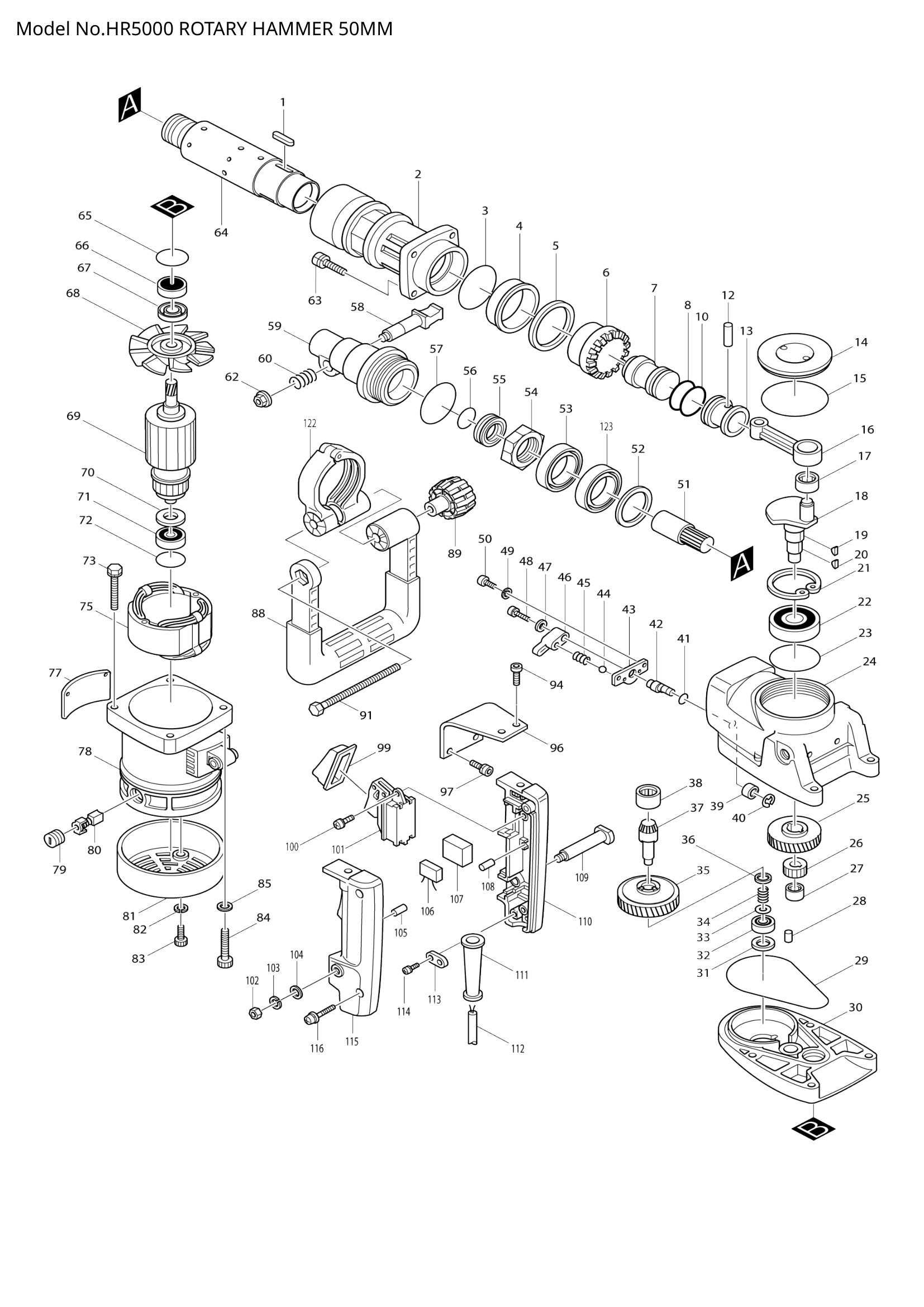

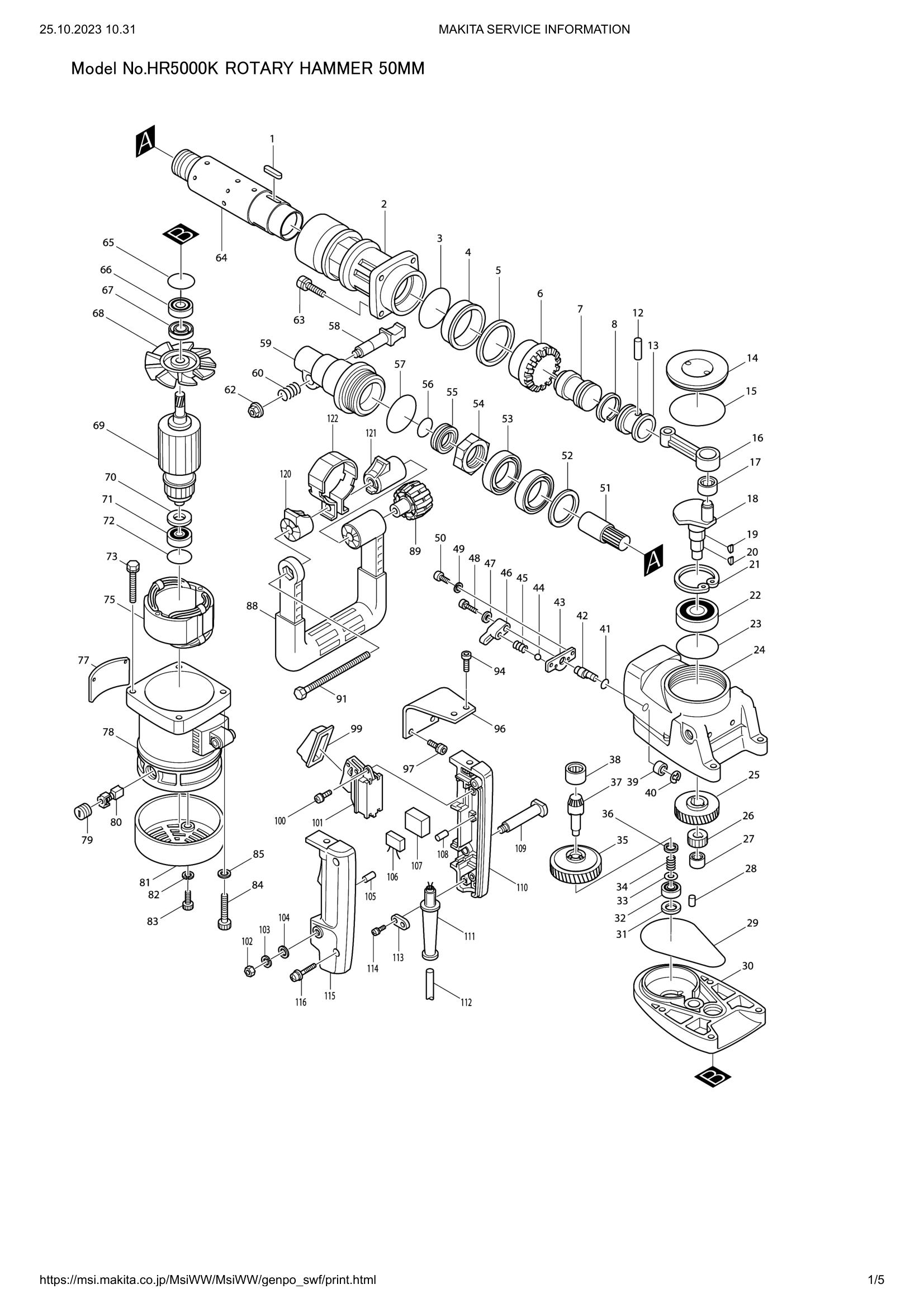

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 003 | 213707-1 | O RING 65 | 1 | €0.83 | 1-4 weeks to ship | |
| 213707-1 | O RING 65 | 1 | €0.83 | 1-4 weeks to ship | ||
| 004 | PLANE BEARING 52 | 1 | Not available in store | |||
| PLANE BEARING 52 | 1 | Not available in store | ||||
| 005 | 267044-5 | FLAT WASHER 52 | 1 | €8.21 | 1-4 weeks to ship | |
| 267044-5 | FLAT WASHER 52 | 1 | €8.21 | 1-4 weeks to ship | ||
| 006 | SPIRAL BEVEL GEAR 41 | 1 | Not available in store | |||
| SPIRAL BEVEL GEAR 41 | 1 | Not available in store | ||||
| 012 | 256120-0 | PIN 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 256120-0 | PIN 10 | 1 | €4.17 | 1-4 weeks to ship | ||
| 015 | 213754-2 | O RING 71 | 1 | €1.11 | 1-4 weeks to ship | |
| 213754-2 | O RING 71 | 1 | €1.11 | 1-4 weeks to ship | ||
| 016 | 315419-3 | CONNECTING ROD | 1 | €27.27 | 1-4 weeks to ship | |
| 315419-3 | CONNECTING ROD | 1 | €27.27 | 1-4 weeks to ship | ||
| 017 | 212208-6 | NEEDLE BEARING 1516 | 1 | €22.26 | 1-4 weeks to ship | |
| 212208-6 | NEEDLE BEARING 1516 | 1 | €22.26 | 1-4 weeks to ship | ||
| 018 | 153176-3 | CRANK SHAFT COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 153176-3 | CRANK SHAFT COMPLETE | 1 | €52.88 | 1-4 weeks to ship | ||
| 019 | 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | ||
| 020 | 254001-2 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 254001-2 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 021 | 962251-2 | RETAINING RING R-52 | 1 | €1.67 | 1-4 weeks to ship | |
| 962251-2 | RETAINING RING R-52 | 1 | €1.67 | 1-4 weeks to ship | ||
| 023 | 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | |
| 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | ||
| 024 | 157868-6 | CRANK HOUSING COMPLETE | 1 | €127.60 | 1-4 weeks to ship | |
| 157868-6 | CRANK HOUSING COMPLETE | 1 | €127.60 | 1-4 weeks to ship | ||
| 025 | 221761-1 | HELICAL GEAR 41 | 1 | €27.83 | 1-4 weeks to ship | |
| 221761-1 | HELICAL GEAR 41 | 1 | €27.83 | 1-4 weeks to ship | ||
| 026 | 221957-4 | SPUR GEAR 24 | 1 | €16.70 | 1-4 weeks to ship | |
| 221957-4 | SPUR GEAR 24 | 1 | €16.70 | 1-4 weeks to ship | ||
| 027 | 212113-7 | NEEDLE BEARING 1212 | 1 | €13.92 | 1-4 weeks to ship | |
| 212113-7 | NEEDLE BEARING 1212 | 1 | €13.92 | 1-4 weeks to ship | ||
| 028 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 253787-5 | FLAT WASHER 16 | 1 | €2.09 | 1-4 weeks to ship | |
| 253787-5 | FLAT WASHER 16 | 1 | €2.09 | 1-4 weeks to ship | ||
| 032 | 210004-6 | BALL BEARING 638 | 1 | €8.49 | 1-4 weeks to ship | |
| 210004-6 | BALL BEARING 638 | 1 | €8.49 | 1-4 weeks to ship | ||
| 033 | 253865-1 | FLAT WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 253865-1 | FLAT WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 034 | 231446-1 | COMPRESSION SPRING 12 | 1 | €4.45 | 1-4 weeks to ship | |
| 231446-1 | COMPRESSION SPRING 12 | 1 | €4.45 | 1-4 weeks to ship | ||
| 035 | 134499-8 | TORQUE LIMITER ASS'Y | 1 | €292.22 | 1-4 weeks to ship | |
| 134499-8 | TORQUE LIMITER ASS'Y | 1 | €292.22 | 1-4 weeks to ship | ||
| 036 | 253310-6 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 253310-6 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 037 | GEAR COMPLETE | 1 | Not available in store | |||
| GEAR COMPLETE | 1 | Not available in store | ||||
| 038 | 212359-5 | NEEDLE BEARING 2216 | 1 | €16.70 | 1-4 weeks to ship | |
| 212359-5 | NEEDLE BEARING 2216 | 1 | €16.70 | 1-4 weeks to ship | ||
| 039 | 212011-5 | NEEDLE BEARING 609 | 1 | €5.57 | 1-4 weeks to ship | |
| 212011-5 | NEEDLE BEARING 609 | 1 | €5.57 | 1-4 weeks to ship | ||
| 040 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 041 | 213055-8 | O RING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 213055-8 | O RING 10 | 1 | €0.56 | 1-4 weeks to ship | ||
| 042 | CHANGE SHAFT | 1 | Not available in store | |||
| CHANGE SHAFT | 1 | Not available in store | ||||
| 043 | 342786-3 | PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 342786-3 | PLATE | 1 | €2.92 | 1-4 weeks to ship | ||
| 044 | 216002-8 | STEEL BALL 4.8 | 1 | €0.56 | 1-4 weeks to ship | |
| 216002-8 | STEEL BALL 4.8 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | COMPRESSION SPRING 3 | 1 | Not available in store | |||
| COMPRESSION SPRING 3 | 1 | Not available in store | ||||
| 046 | 410331-3 | CHANGE LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 410331-3 | CHANGE LEVER | 1 | €0.83 | 1-4 weeks to ship | ||
| 051 | 322156-2 | IMPACT BOLT | 1 | €30.61 | 1-4 weeks to ship | |
| 322156-2 | IMPACT BOLT | 1 | €30.61 | 1-4 weeks to ship | ||
| 052 | FLAT WASHER 43 | 1 | Not available in store | |||
| FLAT WASHER 43 | 1 | Not available in store | ||||
| 056 | 213411-2 | O RING 27 | 1 | €0.97 | 1-4 weeks to ship | |
| 213411-2 | O RING 27 | 1 | €0.97 | 1-4 weeks to ship | ||
| 057 | 213663-5 | O RING 55 | 1 | €0.83 | 1-4 weeks to ship | |
| 213663-5 | O RING 55 | 1 | €0.83 | 1-4 weeks to ship | ||
| 058 | 331132-5 | TOOL RETAINER | 1 | €25.05 | 1-4 weeks to ship | |
| 331132-5 | TOOL RETAINER | 1 | €25.05 | 1-4 weeks to ship | ||
| 060 | 231281-7 | COMPRESSION SPRING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 231281-7 | COMPRESSION SPRING 15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 063 | 922451-6 | HEX. SOCKET HEAD BOLT M8X30 | 4 | €0.83 | 1-4 weeks to ship | |
| 922451-6 | HEX. SOCKET HEAD BOLT M8X30 | 4 | €0.83 | 1-4 weeks to ship | ||
| 065 | 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | |
| 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | ||
| 067 | 213160-1 | OIL SEAL 14 | 1 | €5.57 | 1-4 weeks to ship | |
| 213160-1 | OIL SEAL 14 | 1 | €5.57 | 1-4 weeks to ship | ||
| 068 | 241634-2 | FAN 94 | 1 | €11.13 | 1-4 weeks to ship | |
| 241634-2 | FAN 94 | 1 | €11.13 | 1-4 weeks to ship | ||
| 072 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 081 | 284055-5 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 284055-5 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | ||
| 084 | 922376-4 | HEX. SOCKET HEAD BOLT M6X55 | 4 | €1.39 | 1-4 weeks to ship | |
| 922376-4 | HEX. SOCKET HEAD BOLT M6X55 | 4 | €1.39 | 1-4 weeks to ship | ||
| 085 | 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | ||
| 099 | 421265-5 | DUST COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 421265-5 | DUST COVER | 1 | €2.78 | 1-4 weeks to ship | ||
| 100 | 911129-6 | PAN HEAD SCREW M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 911129-6 | PAN HEAD SCREW M4X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 102 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 103 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 104 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 105 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 108 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 109 | 321210-9 | HANDLE SHAFT | 1 | €2.78 | 1-4 weeks to ship | |
| 321210-9 | HANDLE SHAFT | 1 | €2.78 | 1-4 weeks to ship | ||
| 114 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 116 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 117 | RUBBER RING 9 | 2 | Not available in store | |||
| RUBBER RING 9 | 2 | Not available in store | ||||
| 118 | 262052-1 | RUBBER RING 9 | 2 | €0.42 | 1-4 weeks to ship | |
| 262052-1 | RUBBER RING 9 | 2 | €0.42 | 1-4 weeks to ship | ||
| 119 | 257636-8 | SLEEVE 6 | 2 | €2.23 | 1-4 weeks to ship | |
| 257636-8 | SLEEVE 6 | 2 | €2.23 | 1-4 weeks to ship | ||
| 123 | 211469-5 | BALL BEARING 6907 | 1 | €22.26 | 1-4 weeks to ship | |
| 211469-5 | BALL BEARING 6907 | 1 | €22.26 | 1-4 weeks to ship | ||
| 401 | HEX. WRENCH 4 | 1 | Not available in store | |||
| HEX. WRENCH 4 | 1 | Not available in store | ||||
| 404 | GRIP 32 | 1 | Not available in store | |||
| GRIP 32 | 1 | Not available in store | ||||
