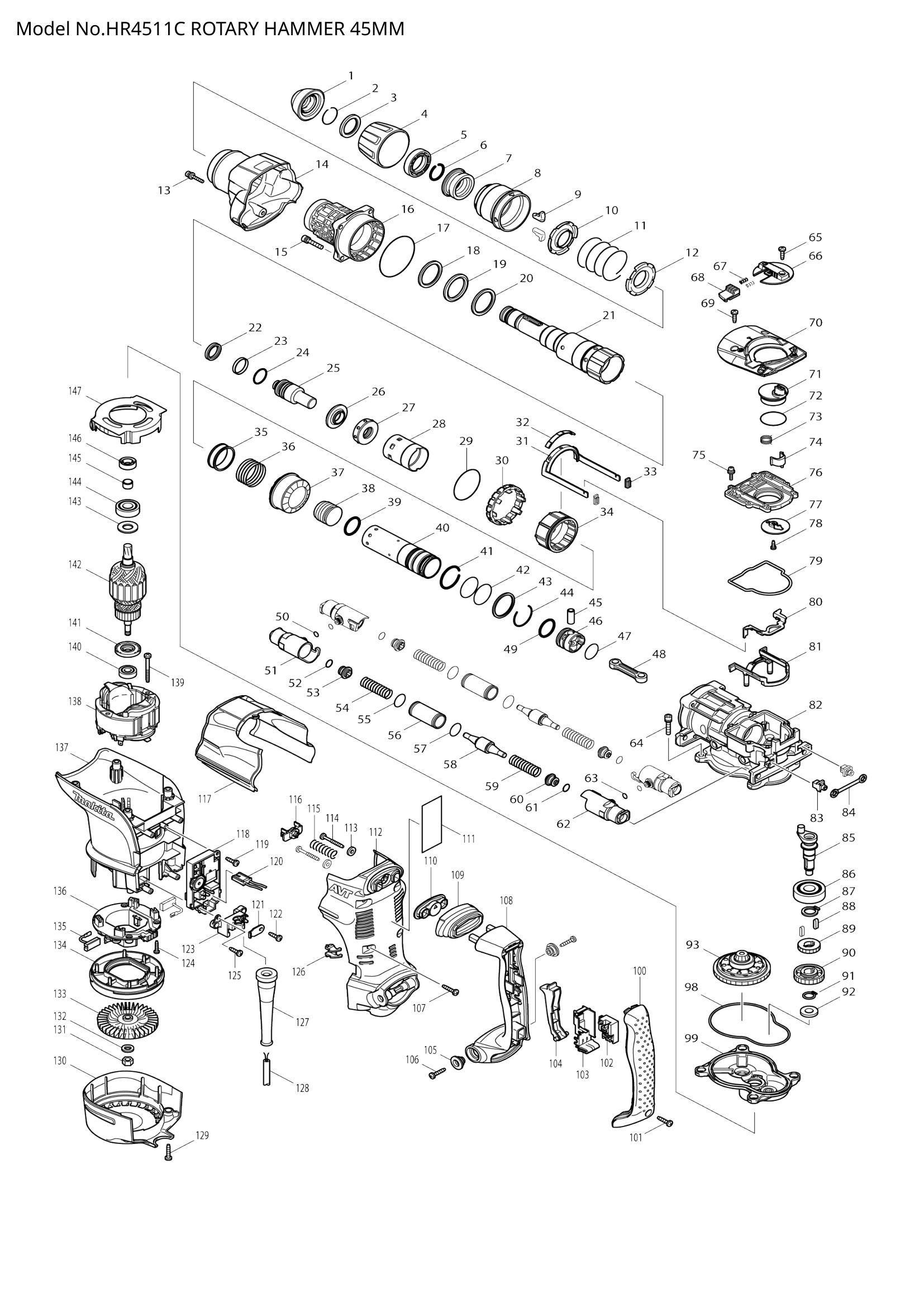

HR4511C
HR4511C
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 233948-3 | RING SPRING 25 | 1 | €0.83 | 1-4 weeks to ship | |
| 003 | 257280-1 | RING 28 | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | 450064-8 | CHUCK COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 005 | 419002-9 | SPACER | 1 | €1.39 | 1-4 weeks to ship | |
| 006 | 233948-3 | RING SPRING 25 | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | 324752-2 | CHUCK RING | 1 | €19.48 | 1-4 weeks to ship | |
| 008 | 450030-5 | RELEASE COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 009 | 310178-4 | TOOL RETAINER | 2 | €11.13 | 1-4 weeks to ship | |
| 010 | 345804-6 | SPRING GUIDE | 1 | €1.67 | 1-4 weeks to ship | |
| 011 | 233496-2 | COMPRESSION SPRING 49 | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 345804-6 | SPRING GUIDE | 1 | €1.67 | 1-4 weeks to ship | |
| 013 | 922148-7 | HEX. SOCKET HEAD BOLT M4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 158300-3 | BARREL COVER COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 015 | 922353-6 | HEX.SOCKET HEAD BOLT M6X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 017 | 213754-2 | O RING 71 | 1 | €1.11 | 1-4 weeks to ship | |
| 018 | 267357-4 | FLAT WASHER 36 | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | 262135-7 | RUBBER RING 36 | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | 267357-4 | FLAT WASHER 36 | 1 | €4.17 | 1-4 weeks to ship | |
| 021 | 324872-2 | TOOL HOLDER | 1 | €180.90 | 1-4 weeks to ship | |
| 022 | 213980-3 | X-RING 21 | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 213431-6 | FLUORIDE RING 28 | 1 | €11.13 | 1-4 weeks to ship | |
| 024 | 213394-6 | O RING 23 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 324802-3 | IMPACT BOLT | 1 | €16.70 | 1-4 weeks to ship | |
| 026 | 324805-7 | RING 19 | 1 | €5.57 | 1-4 weeks to ship | |
| 027 | 424032-7 | RUBBER RING 20 | 1 | €5.57 | 1-4 weeks to ship | |
| 028 | 450024-0 | SLIDE SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | |
| 030 | 450031-3 | LOCK SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 165465-4 | LINK ARM | 1 | €22.26 | 1-4 weeks to ship | |
| 032 | 450032-1 | LINK ARM GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 033 | 424024-6 | SEAL PLATE | 2 | €0.56 | 1-4 weeks to ship | |
| 034 | 324800-7 | DRIVING SLEEVE | 1 | €22.26 | 1-4 weeks to ship | |
| 035 | 331599-7 | RING 38 | 1 | €11.13 | 1-4 weeks to ship | |
| 036 | 234024-6 | COMPRESSION SPRING 39 | 1 | €2.78 | 1-4 weeks to ship | |
| 037 | 227526-9 | STRAIGHT BEVEL GEAR 35 | 1 | €44.53 | 1-4 weeks to ship | |
| 038 | 324804-9 | STRIKER | 1 | €8.35 | 1-4 weeks to ship | |
| 039 | 213981-1 | O-RING 27 | 1 | €1.67 | 1-4 weeks to ship | |
| 040 | 324803-1 | CYLINDER 34 | 1 | €55.66 | 1-4 weeks to ship | |
| 041 | 233956-4 | RING SPRING 37 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 213460-9 | O RING 35 | 2 | €0.56 | 1-4 weeks to ship | |
| 043 | 257283-5 | RING 38 | 1 | €4.17 | 1-4 weeks to ship | |
| 044 | 233955-6 | RING SPRING 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 331598-9 | PIPE 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 046 | 450025-8 | PISTON | 1 | €11.13 | 1-4 weeks to ship | |
| 047 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 450026-6 | CONNECTING ROD | 1 | €5.57 | 1-4 weeks to ship | |
| 049 | 213981-1 | O-RING 27 | 1 | €1.67 | 1-4 weeks to ship | |
| 050 | 213030-4 | O RING 8 | 2 | €0.14 | 1-4 weeks to ship | |
| 051 | 318169-9 | PIPE HOLDER | 2 | €13.92 | 1-4 weeks to ship | |
| 052 | 213118-0 | O RING 12 | 2 | €0.56 | 1-4 weeks to ship | |
| 053 | 450027-4 | SPRING GUIDE | 2 | €1.11 | 1-4 weeks to ship | |
| 054 | 234023-8 | COMPRESSION SPRING 14 | 2 | €1.67 | 1-4 weeks to ship | |
| 055 | 213373-4 | O RING 22 | 2 | €0.56 | 1-4 weeks to ship | |
| 056 | 331778-7 | PIPE 20 | 2 | €4.17 | 1-4 weeks to ship | |
| 057 | 213373-4 | O RING 22 | 2 | €0.56 | 1-4 weeks to ship | |
| 059 | 234023-8 | COMPRESSION SPRING 14 | 2 | €1.67 | 1-4 weeks to ship | |
| 060 | 450027-4 | SPRING GUIDE | 2 | €1.11 | 1-4 weeks to ship | |
| 061 | 213118-0 | O RING 12 | 2 | €0.56 | 1-4 weeks to ship | |
| 062 | 318169-9 | PIPE HOLDER | 2 | €13.92 | 1-4 weeks to ship | |
| 063 | 213030-4 | O RING 8 | 2 | €0.14 | 1-4 weeks to ship | |
| 064 | 922353-6 | HEX.SOCKET HEAD BOLT M6X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 065 | 266192-7 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 419020-7 | CHANGE LEVER | 1 | €5.57 | 1-4 weeks to ship | |
| 067 | 233436-0 | COMPRESSION SPRING 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 068 | 419009-5 | LOCK BUTTON | 1 | €1.39 | 1-4 weeks to ship | |
| 069 | 266192-7 | TAPPING SCREW 4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 070 | 318170-4 | CRANK CAP COVER | 1 | €16.70 | 1-4 weeks to ship | |
| 073 | 233506-5 | TORSION SPRING 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 074 | 310207-3 | LINK LEVER | 1 | €8.35 | 1-4 weeks to ship | |
| 075 | 911133-5 | PAN HEAD SCREW M4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 077 | 345778-1 | RETAINER PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 079 | 424034-3 | SEAL RING | 1 | €1.11 | 1-4 weeks to ship | |
| 080 | 345822-4 | LINK PLATE | 1 | €5.57 | 1-4 weeks to ship | |
| 081 | 450029-0 | LINK PLATE GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 082 | 158297-6 | CRANK HOUSING COMPLETE | 1 | €58.44 | 1-4 weeks to ship | |
| 083 | 419008-7 | FIX GUIDE | 2 | €0.56 | 1-4 weeks to ship | |
| 084 | 423345-3 | CUSHION PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 085 | 324801-5 | CRANK SHAFT | 1 | €22.26 | 1-4 weeks to ship | |
| 086 | 211279-0 | BALL BEARING 6303LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 087 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 254220-0 | KEY 5 | 2 | €1.39 | 1-4 weeks to ship | |
| 091 | 961054-1 | RETAINING RING S-14 | 1 | €0.56 | 1-4 weeks to ship | |
| 092 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 093 | 125415-1 | TORQUE LIMITER ASS'Y | 1 | €128.02 | 1-4 weeks to ship | |
| 098 | 424033-5 | SEAL RING | 1 | €1.11 | 1-4 weeks to ship | |
| 099 | 158299-2 | GEAR HOUSING COMPLETE | 1 | €52.88 | 1-4 weeks to ship | |
| 100 | 419796-6 | HANDLE COVER | 1 | €16.70 | 1-4 weeks to ship | |
| 101 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 103 | 154626-1 | SWITCH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 104 | 419025-7 | SWITCH LEVER | 1 | €5.57 | 1-4 weeks to ship | |
| 105 | 313124-6 | SHOULDER SLEEVE 6 | 2 | €2.78 | 1-4 weeks to ship | |
| 106 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 107 | 266041-8 | TAPPING SCREW 5X25 | 6 | €0.56 | 1-4 weeks to ship | |
| 108 | 419798-2 | HANDLE | 1 | €13.92 | 1-4 weeks to ship | |
| 109 | 424035-1 | DUST COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 110 | 450028-2 | DUST COVER SUPPORT | 1 | €1.67 | 1-4 weeks to ship | |
| 112 | 450038-9 | HANDLE BASE | 1 | €27.83 | 1-4 weeks to ship | |
| 113 | 253807-5 | FLAT WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 114 | 266211-9 | TAPPING SCREW 5X40 | 2 | €0.56 | 1-4 weeks to ship | |
| 115 | 233434-4 | COMPRESSION SPRING 11 | 1 | €1.39 | 1-4 weeks to ship | |
| 116 | 419013-4 | SPRING GUIDE | 1 | €1.67 | 1-4 weeks to ship | |
| 117 | 450036-3 | CRANK HOUSING COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 118 | 631751-0 | CONTROLLER | 1 | €55.66 | 1-4 weeks to ship | |
| 120 | 638510-3 | LEAD UNIT | 1 | €2.78 | 1-4 weeks to ship | |
| 121 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 122 | 266192-7 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 123 | 419024-9 | CORD CLAMP BASE | 1 | €1.39 | 1-4 weeks to ship | |
| 124 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 126 | 419774-6 | LENS | 1 | €1.11 | 1-4 weeks to ship | |
| 127 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 129 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 130 | 450035-5 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 131 | 252178-7 | HEX. NUT M8-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 132 | 253165-9 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 133 | 240016-5 | FAN 90 | 1 | €11.13 | 1-4 weeks to ship | |
| 134 | 419782-7 | FAN GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 137 | 450041-0 | MOTOR HOUSING | 1 | €30.61 | 1-4 weeks to ship | |
| 138 | 636313-9 | FIELD 220-240V | 1 | €33.40 | 1-4 weeks to ship | |
| 139 | 266046-8 | TAPPING SCREW 5X50 | 2 | €1.11 | 1-4 weeks to ship | |
| 140 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 141 | 681642-5 | INSULATION WASHER | 1 | €8.35 | 1-4 weeks to ship | |
| 142 | 517768-6 | ARMATURE ASS'Y 220-240V | 1 | €114.10 | 1-4 weeks to ship | |
| 143 | 267025-9 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 144 | 211238-4 | BALL BEARING 6202LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 145 | 331596-3 | SLEEVE 12 | 1 | €4.17 | 1-4 weeks to ship | |
| 146 | 213231-4 | OIL SEAL 15 | 1 | €8.35 | 1-4 weeks to ship | |
| 147 | 450033-9 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 155 | 331840-8 | SHOULDER SLEEVE 19 | 1 | €8.35 | 1-4 weeks to ship | |
| 156 | CLEAR LABEL | 1 | Not available in store | |||
