HR4500C
HR4500C

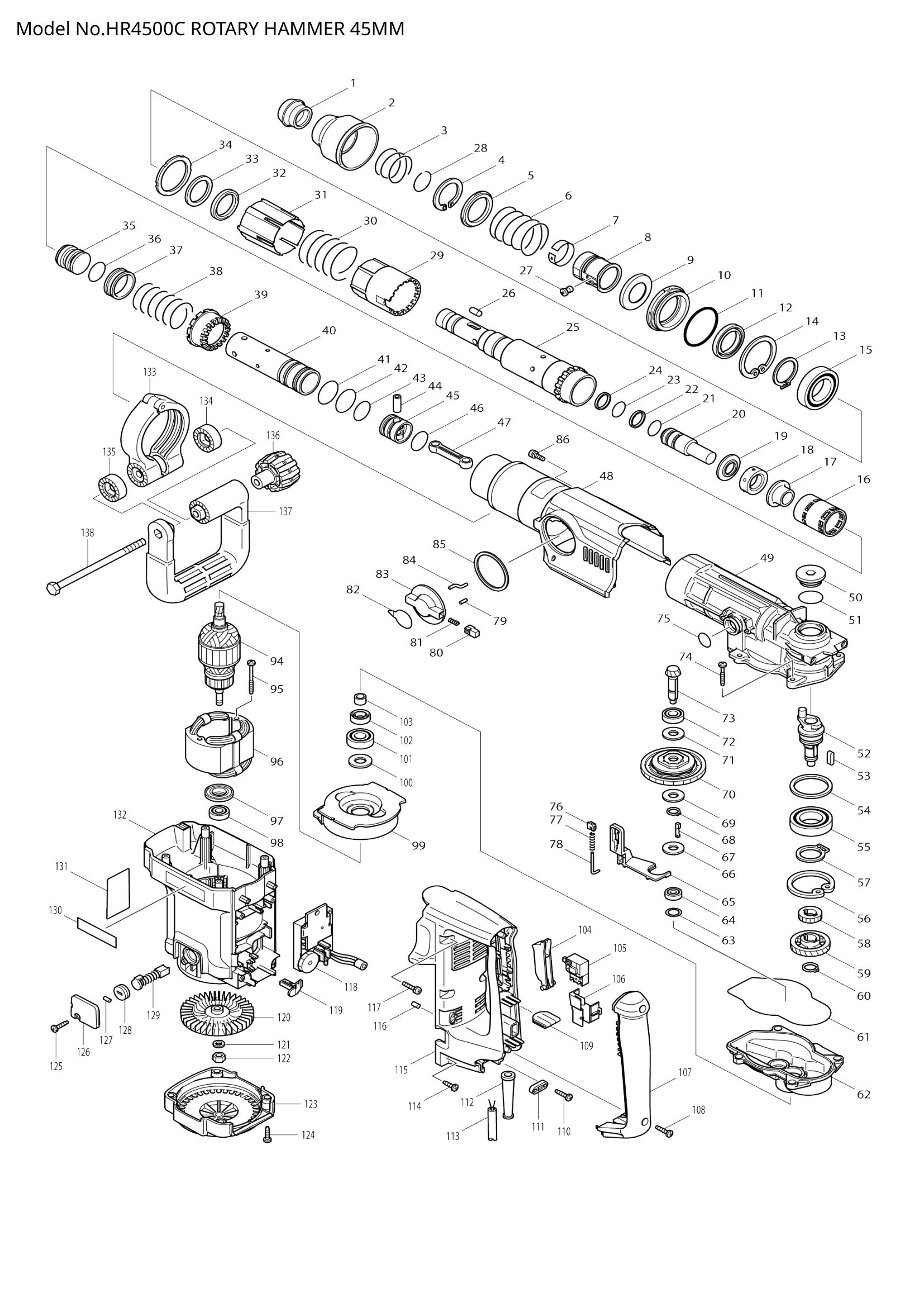

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286259-5 | TOOL HOLDER CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 002 | 417459-8 | CHUCK COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 003 | 233178-6 | COMPRESSION SPRING 46 | 1 | €0.83 | 1-4 weeks to ship | |
| 004 | 961186-4 | RETAINING RING WR-40 | 1 | €1.67 | 1-4 weeks to ship | |
| 005 | 344489-5 | WASHER 40 | 1 | €8.35 | 1-4 weeks to ship | |
| 006 | 233179-4 | COMPRESSION SPRING 50 | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | 232171-7 | LEAF SPRING 37 | 1 | €1.67 | 1-4 weeks to ship | |
| 008 | 322948-9 | CHUCK RING | 1 | €30.61 | 1-4 weeks to ship | |
| 009 | 344488-7 | CUP WASHER 32 | 1 | €1.11 | 1-4 weeks to ship | |
| 010 | 417435-2 | SEAL CASE | 1 | €5.57 | 1-4 weeks to ship | |
| 011 | 213669-3 | O RING 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 012 | 213480-3 | OIL SEAL 35 | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 961153-9 | RETAINING RING S-35 | 1 | €0.83 | 1-4 weeks to ship | |
| 014 | 962301-3 | RETAINING RING R-62 | 1 | €2.78 | 1-4 weeks to ship | |
| 015 | 211471-8 | BALL BEARING 6007LLU | 1 | €16.70 | 1-4 weeks to ship | |
| 016 | 417434-4 | SLIDE SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 017 | 331589-0 | SLEEVE 19 | 1 | €13.92 | 1-4 weeks to ship | |
| 018 | 421767-1 | RUBBER RING 22 | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | 331597-1 | WASHER 19 | 1 | €5.57 | 1-4 weeks to ship | |
| 020 | 324088-9 | IMPACT BOLT | 1 | €13.92 | 1-4 weeks to ship | |
| 021 | 213317-4 | O RING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 213392-0 | FLUORIDE RING 25 | 1 | €8.35 | 1-4 weeks to ship | |
| 023 | 213317-4 | O RING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | 213392-0 | FLUORIDE RING 25 | 1 | €8.35 | 1-4 weeks to ship | |
| 025 | 324064-3 | TOOL HOLDER | 1 | €306.13 | 1-4 weeks to ship | |
| 026 | 322908-1 | ROLLER 8 | 2 | €2.78 | 1-4 weeks to ship | |
| 027 | 310052-6 | SHOULDER PIN 8 | 1 | €1.81 | 1-4 weeks to ship | |
| 028 | 231984-3 | RING SPRING 25 | 1 | €1.11 | 1-4 weeks to ship | |
| 029 | 417437-8 | LOCK SLEEVE A | 1 | €8.35 | 1-4 weeks to ship | |
| 030 | COMPRESSION SPRING 55 | 1 | Not available in store | |||
| 031 | 417436-0 | LOCK SLEEVE B | 1 | €5.57 | 1-4 weeks to ship | |
| 032 | 262093-7 | URETHAN RING 35 | 1 | €4.17 | 1-4 weeks to ship | |
| 033 | 267221-9 | FLAT WASHER 35 | 1 | €2.78 | 1-4 weeks to ship | |
| 034 | 267222-7 | FLAT WASHER 49 | 1 | €5.57 | 1-4 weeks to ship | |
| 035 | 324089-7 | STRIKER | 1 | €11.13 | 1-4 weeks to ship | |
| 036 | 213440-5 | O RING 27 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 331599-7 | RING 38 | 1 | €11.13 | 1-4 weeks to ship | |
| 038 | COMPRESSION SPRING 39 | 1 | Not available in store | |||
| 039 | 227401-9 | SPIRAL BEVEL GEAR 36 | 1 | €47.31 | 1-4 weeks to ship | |
| 040 | 331592-1 | CYLINDER 34 | 1 | €91.84 | 1-4 weeks to ship | |
| 041 | 213486-1 | O RING 35 | 1 | €0.83 | 1-4 weeks to ship | |
| 042 | 213486-1 | O RING 35 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 213440-5 | O RING 27 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 331598-9 | PIPE 10 | 1 | €2.78 | 1-4 weeks to ship | |
| 045 | 417433-6 | PISTON | 1 | €8.35 | 1-4 weeks to ship | |
| 046 | 213440-5 | O RING 27 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 417432-8 | ROD | 1 | €2.78 | 1-4 weeks to ship | |
| 048 | 152766-9 | CRANK HOUSING COVER COMPL | 1 | €25.05 | 1-4 weeks to ship | |
| 049 | 152764-3 | CRANK HOUSING COMPLETE | 1 | €94.62 | 1-4 weeks to ship | |
| 051 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 324065-1 | CRANK SHAFT | 1 | €36.18 | 1-4 weeks to ship | |
| 053 | 254218-7 | KEY 5 | 2 | €1.11 | 1-4 weeks to ship | |
| 054 | 267219-6 | FLAT WASHER 45 | 1 | €1.11 | 1-4 weeks to ship | |
| 055 | 211418-2 | BALL BEARING 6006LLU | 1 | €16.70 | 1-4 weeks to ship | |
| 056 | 962252-0 | RETAINING RING R-55 | 1 | €2.92 | 1-4 weeks to ship | |
| 057 | 961110-7 | RETAINING RING S-30 | 1 | €2.78 | 1-4 weeks to ship | |
| 058 | 227017-0 | SPUR GEAR 22 | 1 | €11.13 | 1-4 weeks to ship | |
| 059 | 226533-9 | HELICAL GEAR 37 | 1 | €22.26 | 1-4 weeks to ship | |
| 060 | 961056-7 | RETAINING RING S-16 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 421768-9 | SEAL RING | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 152765-1 | GEAR HOUSING COMPLETE | 1 | €44.53 | 1-4 weeks to ship | |
| 063 | 253314-8 | THIN WASHER 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 064 | 210024-0 | BALL BEARING 608LLU | 1 | €4.17 | 1-4 weeks to ship | |
| 065 | 417438-6 | CHANGE LINK | 1 | €5.57 | 1-4 weeks to ship | |
| 066 | 253810-6 | FLAT WASHER 12 | 1 | €1.11 | 1-4 weeks to ship | |
| 067 | 322951-0 | CHANGE KEY | 2 | €8.35 | 1-4 weeks to ship | |
| 068 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 267113-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 267113-2 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 211138-8 | BALL BEARING 6001LLU | 1 | €8.35 | 1-4 weeks to ship | |
| 073 | 227405-1 | SPIRAL BEVEL GEAR 10 | 1 | €27.83 | 1-4 weeks to ship | |
| 074 | 266012-5 | TAPPING SCREW 5X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 075 | 213304-3 | O RING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 416289-4 | SLIDE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 077 | 233180-9 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 322963-3 | GUIDE PIN 2 | 1 | €0.56 | 1-4 weeks to ship | |
| 079 | 256122-6 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 417340-3 | LOCK BUTTON | 1 | €1.39 | 1-4 weeks to ship | |
| 081 | 233188-3 | COMPRESSION SPRING 2.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | 816329-2 | INDICATION LABEL | 1 | €1.11 | 1-4 weeks to ship | |
| 083 | 416287-8 | CHANGE LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 084 | 322962-5 | CRANK PIN 4 | 1 | €1.67 | 1-4 weeks to ship | |
| 085 | 421698-4 | DUSTPROOF WASHER 55 | 1 | €4.17 | 1-4 weeks to ship | |
| 086 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | €0.56 | 1-4 weeks to ship | ||
| 095 | 266046-8 | TAPPING SCREW 5X50 | 2 | €1.11 | 1-4 weeks to ship | |
| 097 | 681642-5 | INSULATION WASHER | 1 | €8.35 | 1-4 weeks to ship | |
| 098 | 211088-7 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 099 | BAFFLE PLATE | 1 | Not available in store | |||
| 100 | 267025-9 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 101 | 211238-4 | BALL BEARING 6202LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 102 | 213231-4 | OIL SEAL 15 | 1 | €8.35 | 1-4 weeks to ship | |
| 103 | 331596-3 | SLEEVE 12 | 1 | €4.17 | 1-4 weeks to ship | |
| 104 | 416284-4 | SWITCH LEVER | 1 | €1.67 | 1-4 weeks to ship | |
| 106 | 416126-2 | LEAD GUIDE | 1 | €2.78 | 1-4 weeks to ship | |
| 107 | 417443-3 | HANDLE COVER | 1 | €40.08 | 1-4 weeks to ship | |
| 108 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 109 | 421583-1 | SPONGE SHEET | 1 | €0.56 | 1-4 weeks to ship | |
| 110 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 112 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 114 | 266021-4 | TAPPING SCREW 5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 115 | 417444-1 | HANDLE | 1 | €38.68 | 1-4 weeks to ship | |
| 116 | 416285-2 | ACRYLIC PIN 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 117 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 119 | 417431-0 | FIX ROD | 1 | €4.45 | 1-4 weeks to ship | |
| 120 | 240016-5 | FAN 90 | 1 | €11.13 | 1-4 weeks to ship | |
| 121 | 253165-9 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 122 | 931403-6 | HEX. NUT M8 | 1 | €0.56 | 1-4 weeks to ship | |
| 123 | 417441-7 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 124 | 266021-4 | TAPPING SCREW 5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 125 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 126 | 416292-5 | BRUSH HOLDER COVER | 2 | €1.67 | 1-4 weeks to ship | |
| 127 | 263002-9 | RUBBER PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 130 | 819064-1 | MAKITA MARK | 2 | €0.56 | 1-4 weeks to ship | |
| 131 | NAME PLATE HR4500C | 1 | Not available in store | |||
| 132 | 183332-1 | MOTOR HOUSING SET | 1 | €75.14 | 1-4 weeks to ship | |
| 133 | 152768-5 | SIDE HANDLE BASE 75 COMPLET | 1 | €22.26 | 1-4 weeks to ship | |
| 134 | 417002-3 | SIDE HANDLE CAM | 1 | €1.11 | 1-4 weeks to ship | |
| 135 | 417002-3 | SIDE HANDLE CAM | 1 | €1.11 | 1-4 weeks to ship | |
| 136 | 252640-2 | WING NUT M8 | 1 | €8.35 | 1-4 weeks to ship | |
| 137 | SIDE HANDLE | 1 | Not available in store | |||
| 138 | 265439-6 | HEX. BOLT M8X150 | 1 | €2.78 | 1-4 weeks to ship | |
