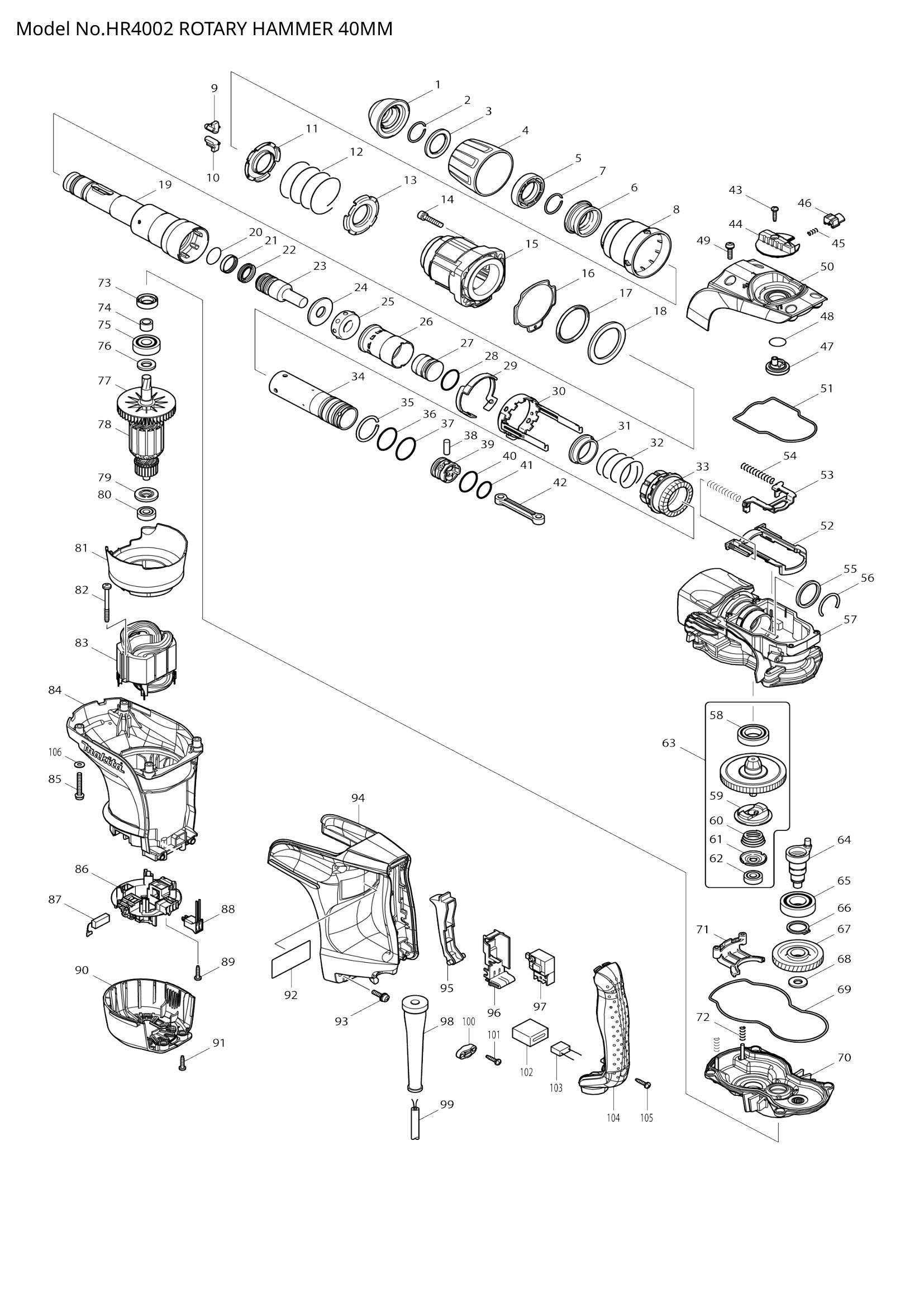

HR4002
HR4002
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286272-3 | TOOL HOLDER CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 002 | 231984-3 | RING SPRING 25 | 1 | €1.11 | 1-4 weeks to ship | |
| 003 | 267272-2 | FLAT WASHER 28 | 1 | €4.17 | 1-4 weeks to ship | |
| 004 | 419015-0 | CHUCK COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 005 | 419002-9 | SPACER | 1 | €1.39 | 1-4 weeks to ship | |
| 006 | 324548-1 | CHUCK RING | 1 | €8.35 | 1-4 weeks to ship | |
| 007 | 231984-3 | RING SPRING 25 | 1 | €1.11 | 1-4 weeks to ship | |
| 008 | 419016-8 | RELEASE COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 310161-1 | TOOL RETAINER | 1 | €11.13 | 1-4 weeks to ship | |
| 010 | 310161-1 | TOOL RETAINER | 1 | €11.13 | 1-4 weeks to ship | |
| 011 | 345579-7 | SPRING GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 012 | 233431-0 | COMPRESSION SPRING 48 | 1 | €0.83 | 1-4 weeks to ship | |
| 013 | 345579-7 | SPRING GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 922351-0 | HEX. SOCKET HEAD BOLT M6X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 017 | 262116-1 | URETHAN RING 45 | 1 | €8.35 | 1-4 weeks to ship | |
| 018 | 267336-2 | FLAT WASHER 45 | 1 | €2.78 | 1-4 weeks to ship | |
| 019 | 324542-3 | TOOL HOLDER | 1 | €208.73 | 1-4 weeks to ship | |
| 020 | 213317-4 | O RING 20 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 213392-0 | FLUORIDE RING 25 | 1 | €8.35 | 1-4 weeks to ship | |
| 022 | 213281-9 | X-RING 18 | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 324569-3 | IMPACT BOLT | 1 | €5.57 | 1-4 weeks to ship | |
| 024 | 324573-2 | RING 17 | 1 | €8.21 | 1-4 weeks to ship | |
| 025 | 421901-3 | RUBBER RING 17 | 1 | €8.35 | 1-4 weeks to ship | |
| 026 | 419003-7 | SLIDE SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 027 | 324571-6 | STRIKER | 1 | €4.17 | 1-4 weeks to ship | |
| 028 | 213962-5 | O RING 22 | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 419760-7 | LOCK SLEEVE GUIDE | 1 | €1.11 | 1-4 weeks to ship | |
| 031 | 331709-6 | RING 33 | 1 | €8.35 | 1-4 weeks to ship | |
| 032 | 233448-3 | COMPRESSION SPRING 37 | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | 227509-9 | STRAIGHT BEVEL GEAR 25 | 1 | €44.53 | 1-4 weeks to ship | |
| 035 | 233935-2 | RING SPRING 32 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 256197-5 | PIN 7 | 1 | €1.11 | 1-4 weeks to ship | |
| 039 | 419004-5 | PISTON | 1 | €2.78 | 1-4 weeks to ship | |
| 040 | 213962-5 | O RING 22 | 1 | €2.78 | 1-4 weeks to ship | |
| 041 | 213379-2 | O RING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 233436-0 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | LOCK BUTTON | 1 | Not available in store | |||
| 049 | 911231-5 | PAN HEAD SCREW M5X20 | 4 | €0.83 | 1-4 weeks to ship | |
| 052 | LINK PLATE GUIDE | 1 | Not available in store | |||
| 053 | 345582-8 | LINK PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 054 | 233432-8 | COMPRESSION SPRING 7 | 2 | €0.56 | 1-4 weeks to ship | |
| 055 | 257268-1 | RING 33 | 1 | €4.17 | 1-4 weeks to ship | |
| 056 | 233937-8 | RING SPRING 31 | 1 | €0.56 | 1-4 weeks to ship | |
| 057 | CRANK HOUSING COMPLETE | 1 | Not available in store | |||
| 058 | 211323-3 | BALL BEARING 6904LLU | 1 | €13.92 | 1-4 weeks to ship | |
| 059 | 324549-9 | DRIVING FLANGE | 1 | €11.13 | 1-4 weeks to ship | |
| 060 | 233936-0 | CONICAL COMPRESSIONSPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 345581-0 | CUP WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 062 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 064 | 324550-4 | CRANK SHAFT | 1 | €16.70 | 1-4 weeks to ship | |
| 065 | 211332-2 | BALL BEARING 6004LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 066 | 961060-6 | RETAINING RING S-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | HELICAL GEAR 46 | 1 | Not available in store | |||
| 068 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 419018-4 | CHANGE PLATE | 1 | €1.67 | 1-4 weeks to ship | |
| 072 | 233433-6 | COMPRESSION SPRING 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 073 | 213231-4 | OIL SEAL 15 | 1 | €8.35 | 1-4 weeks to ship | |
| 074 | 331596-3 | SLEEVE 12 | 1 | €4.17 | 1-4 weeks to ship | |
| 075 | 211137-0 | BALL BEARING 6201LLU | 1 | €8.35 | 1-4 weeks to ship | |
| 076 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 241863-7 | FAN 70 | 1 | €1.67 | 1-4 weeks to ship | |
| 078 | 513699-7 | ARMATURE ASS'Y 240V | 1 | €39.77 | 1-4 weeks to ship | |
| 513699-7 | ARMATURE ASS'Y 240V | 1 | €39.77 | 1-4 weeks to ship | ||
| 079 | 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681644-1 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 080 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 081 | BAFFLE PLATE | 1 | Not available in store | |||
| 082 | 266418-7 | TAPPING SCREW 5X55 | 2 | €0.28 | 1-4 weeks to ship | |
| 083 | 625764-1 | FIELD 240V | 1 | €25.05 | 1-4 weeks to ship | |
| 625764-1 | FIELD 240V | 1 | €25.05 | 1-4 weeks to ship | ||
| 084 | MOTOR HOUSING | 1 | Not available in store | |||
| 085 | 922256-4 | HEX. SOCKET HEAD BOLT M5X35 | 4 | €0.83 | 1-4 weeks to ship | |
| 086 | 638393-1 | BRUSH HOLDER UNIT | 1 | €11.13 | 1-4 weeks to ship | |
| 087 | 194160-9 | CARBON BRUSH CB-350 | 1 | €8.35 | 1-4 weeks to ship | |
| 088 | LEAD UNIT | 1 | Not available in store | |||
| 089 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 090 | REAR COVER | 1 | Not available in store | |||
| 091 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 092 | HR4002 NAME PLATE | 1 | Not available in store | |||
| 093 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 094 | HANDLE | 1 | Not available in store | |||
| 095 | 419025-7 | SWITCH LEVER | 1 | €5.57 | 1-4 weeks to ship | |
| 096 | 154626-1 | SWITCH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 098 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 099 | 695123-3 | POWER SUPPLY CORD 1.5-2-4.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 100 | STRAIN RELIEF | 1 | Not available in store | |||
| 101 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 102 | 685725-3 | SPONGE SHEET | 1 | €0.56 | 1-4 weeks to ship | |
| 103 | 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 104 | HANDLE COVER | 1 | Not available in store | |||
| 105 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 106 | 941101-4 | FLAT WASHER 5 | 4 | €0.56 | 1-4 weeks to ship | |
