HR3850K
HR3850K

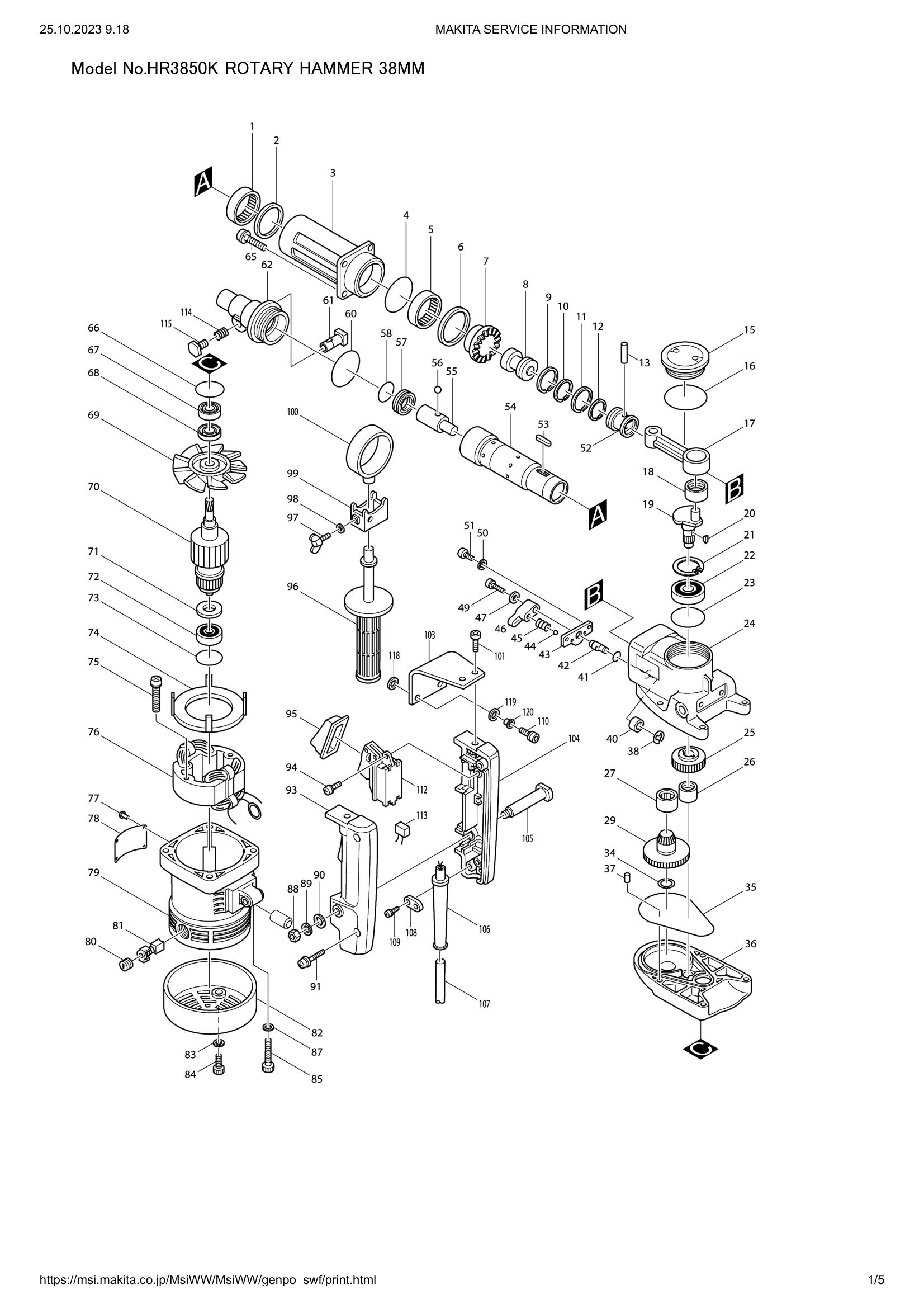

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | NEEDLE BEARING 4516 | 1 | Not available in store | |||
| 003 | 311674-5 | BARREL | 1 | €102.69 | 1-4 weeks to ship | |
| 004 | 213655-4 | O RING 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 005 | NEEDLE BEARING 4516 | 1 | Not available in store | |||
| 006 | 253832-6 | FLAT WASHER 45 | 1 | €9.04 | 1-4 weeks to ship | |
| 007 | 221347-1 | SPIRAL BEVEL GEAR 36 | 1 | €62.34 | 1-4 weeks to ship | |
| 009 | 412038-7 | PISTON RING 34 | 1 | €8.35 | 1-4 weeks to ship | |
| 010 | 412041-8 | INNER RING 30 | 1 | €11.13 | 1-4 weeks to ship | |
| 011 | 412038-7 | PISTON RING 34 | 1 | €8.35 | 1-4 weeks to ship | |
| 012 | 341743-8 | INNER RING 30 | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 256029-6 | PIN 8 | 1 | €1.39 | 1-4 weeks to ship | |
| 016 | 213654-6 | O RING 60 | 1 | €0.83 | 1-4 weeks to ship | |
| 017 | 312956-8 | ROD | 1 | €22.26 | 1-4 weeks to ship | |
| 018 | 212108-0 | NEEDLE BEARING 1212 | 1 | €13.92 | 1-4 weeks to ship | |
| 019 | 321726-4 | CRANK SHAFT | 1 | €27.83 | 1-4 weeks to ship | |
| 020 | 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 021 | 962203-3 | RETAINING RING R-47 | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 213606-7 | O RING 48 | 1 | €0.83 | 1-4 weeks to ship | |
| 025 | 221689-3 | HELICAL GEAR 33 | 1 | €19.48 | 1-4 weeks to ship | |
| 026 | 212102-2 | NEEDLE BEARING 1210 | 1 | €6.26 | 1-4 weeks to ship | |
| 027 | 212359-5 | NEEDLE BEARING 2216 | 1 | €16.70 | 1-4 weeks to ship | |
| 034 | 253314-8 | THIN WASHER 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 037 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 212011-5 | NEEDLE BEARING 609 | 1 | €5.57 | 1-4 weeks to ship | |
| 041 | 213055-8 | O RING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 321727-2 | CHANGE SHAFT | 1 | €28.66 | 1-4 weeks to ship | |
| 043 | 342786-3 | PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 044 | 216002-8 | STEEL BALL 4.8 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | COMPRESSION SPRING 3 | 1 | Not available in store | |||
| 046 | 410331-3 | CHANGE LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 047 | 941052-1 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | PISTON | 1 | Not available in store | |||
| 055 | 321934-7 | IMPACT BOLT | 1 | €102.28 | 1-4 weeks to ship | |
| 056 | 216004-4 | STEEL BALL 7.9 | 3 | €0.56 | 1-4 weeks to ship | |
| 058 | O RING 30 | 1 | Not available in store | |||
| 060 | 213604-1 | O RING 50 | 1 | €0.83 | 1-4 weeks to ship | |
| 066 | 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 211109-5 | BALL BEARING 6201 | 1 | €4.17 | 1-4 weeks to ship | |
| 068 | 213160-1 | OIL SEAL 14 | 1 | €5.57 | 1-4 weeks to ship | |
| 069 | 241634-2 | FAN 94 | 1 | €11.13 | 1-4 weeks to ship | |
| 073 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 410163-8 | BAFFLE PLATE | 1 | €5.84 | 1-4 weeks to ship | |
| 077 | 953106-2 | RIVET 0-5 | 4 | €0.56 | 1-4 weeks to ship | |
| 078 | 855545-1 | NAME PLATE HR3850K | 1 | €4.45 | 1-4 weeks to ship | |
| 082 | 284055-5 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 087 | 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | ||
| 088 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 089 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 090 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 091 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 095 | 421265-5 | DUST COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 096 | GRIP 32 | 1 | Not available in store | |||
| 097 | 924321-5 | WING BOLT M6X18 | 1 | €0.83 | 1-4 weeks to ship | |
| 098 | 261049-7 | RUBBER WASHER 5.5 | 2 | €0.56 | 1-4 weeks to ship | |
| 099 | 164543-7 | GRIP BASE | 1 | €8.35 | 1-4 weeks to ship | |
| 100 | 164572-0 | GRIP HOLDER | 1 | €22.26 | 1-4 weeks to ship | |
| 105 | 321210-9 | HANDLE SHAFT | 1 | €2.78 | 1-4 weeks to ship | |
| 114 | 231375-8 | COMPRESSION SPRING 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 118 | RUBBER RING 9 | 2 | Not available in store | |||
| 119 | 262052-1 | RUBBER RING 9 | 2 | €0.42 | 1-4 weeks to ship | |
| 120 | 257636-8 | SLEEVE 6 | 2 | €2.23 | 1-4 weeks to ship | |
| 121 | 819063-3 | MAKITA LABEL | 2 | €0.56 | 1-4 weeks to ship | |
| 401 | 321248-4 | DEPTH GAUGE | 1 | €2.78 | 1-4 weeks to ship | |
| 403 | HEX. WRENCH 4 | 1 | Not available in store | |||
| 405 | 835258-0 | INNER CASE | 1 | €27.00 | 1-4 weeks to ship | |
