HR3850B
HR3850B

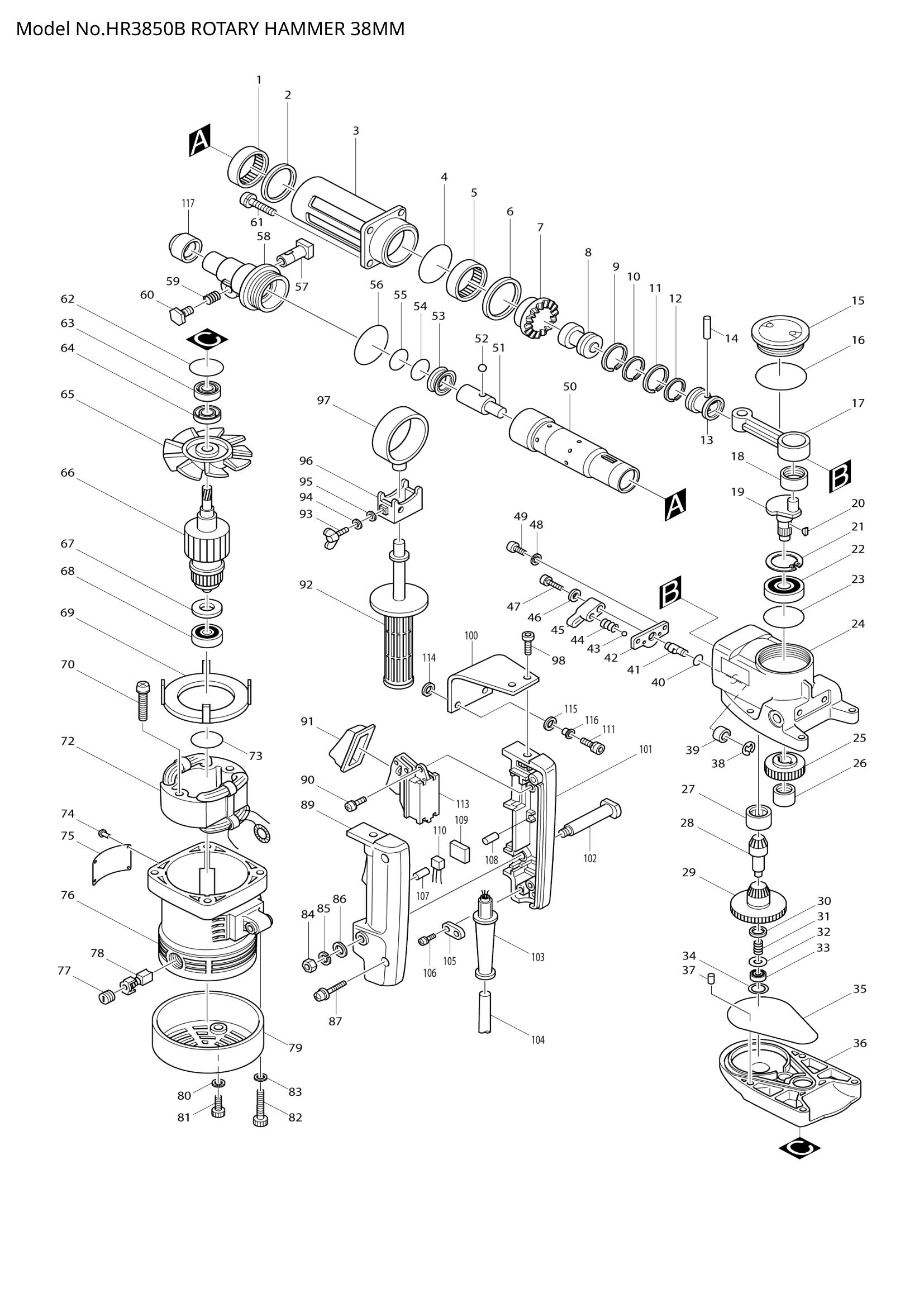

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | NEEDLE BEARING 4516 | 1 | Not available in store | |||
| 002 | 267057-6 | FLAT WASHER 40 | 1 | €11.97 | 1-4 weeks to ship | |
| 003 | 311674-5 | BARREL | 1 | €102.69 | 1-4 weeks to ship | |
| 004 | 213655-4 | O RING 56 | 1 | €0.83 | 1-4 weeks to ship | |
| 005 | NEEDLE BEARING 4516 | 1 | Not available in store | |||
| 006 | 253832-6 | FLAT WASHER 45 | 1 | €9.04 | 1-4 weeks to ship | |
| 007 | 221347-1 | SPIRAL BEVEL GEAR 36 | 1 | €62.34 | 1-4 weeks to ship | |
| 009 | 412038-7 | PISTON RING 34 | 1 | €8.35 | 1-4 weeks to ship | |
| 010 | 412041-8 | INNER RING 30 | 1 | €11.13 | 1-4 weeks to ship | |
| 011 | 412038-7 | PISTON RING 34 | 1 | €8.35 | 1-4 weeks to ship | |
| 012 | 341743-8 | INNER RING 30 | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | PISTON | 1 | Not available in store | |||
| 014 | 256029-6 | PIN 8 | 1 | €1.39 | 1-4 weeks to ship | |
| 016 | 213654-6 | O RING 60 | 1 | €0.83 | 1-4 weeks to ship | |
| 017 | 312956-8 | ROD | 1 | €22.26 | 1-4 weeks to ship | |
| 018 | 212108-0 | NEEDLE BEARING 1212 | 1 | €13.92 | 1-4 weeks to ship | |
| 019 | 321726-4 | CRANK SHAFT | 1 | €27.83 | 1-4 weeks to ship | |
| 020 | 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 021 | 962203-3 | RETAINING RING R-47 | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 213606-7 | O RING 48 | 1 | €0.83 | 1-4 weeks to ship | |
| 024 | 157307-6 | CRANK HOUSING COMPLETE | 1 | €115.08 | 1-4 weeks to ship | |
| 025 | 221689-3 | HELICAL GEAR 33 | 1 | €19.48 | 1-4 weeks to ship | |
| 026 | 212102-2 | NEEDLE BEARING 1210 | 1 | €6.26 | 1-4 weeks to ship | |
| 027 | 212359-5 | NEEDLE BEARING 2216 | 1 | €16.70 | 1-4 weeks to ship | |
| 028 | 153150-1 | GEAR COMPLETE | 1 | €131.50 | 1-4 weeks to ship | |
| 029 | TORQUE LIMITER ASS'Y | 1 | Not available in store | |||
| 030 | 253310-6 | THIN WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 231430-6 | COMPRESSION SPRING 11 | 1 | €2.78 | 1-4 weeks to ship | |
| 032 | 253865-1 | FLAT WASHER 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | 211034-0 | BALL BEARING 608 | 1 | €4.17 | 1-4 weeks to ship | |
| 034 | 253314-8 | THIN WASHER 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 037 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 212011-5 | NEEDLE BEARING 609 | 1 | €5.57 | 1-4 weeks to ship | |
| 040 | 213055-8 | O RING 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 321727-2 | CHANGE SHAFT | 1 | €28.66 | 1-4 weeks to ship | |
| 042 | 342786-3 | PLATE | 1 | €2.92 | 1-4 weeks to ship | |
| 043 | 216002-8 | STEEL BALL 4.8 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | COMPRESSION SPRING 3 | 1 | Not available in store | |||
| 045 | 410331-3 | CHANGE LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 046 | 941052-1 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 922126-7 | HEX. SOCKET HEAD BOLT M4X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | |
| 942101-7 | SPRING WASHER 5 | 2 | €0.56 | 1-4 weeks to ship | ||
| 049 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 050 | CYLINDER LINER COMPLETE | 1 | Not available in store | |||
| 052 | 216004-4 | STEEL BALL 7.9 | 3 | €0.56 | 1-4 weeks to ship | |
| 054 | 213411-2 | O RING 27 | 1 | €0.97 | 1-4 weeks to ship | |
| 055 | 213411-2 | O RING 27 | 1 | €0.97 | 1-4 weeks to ship | |
| 056 | 213604-1 | O RING 50 | 1 | €0.83 | 1-4 weeks to ship | |
| 057 | 331301-8 | TOOL RETAINER | 1 | €13.92 | 1-4 weeks to ship | |
| 059 | 231375-8 | COMPRESSION SPRING 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 060 | 265321-9 | HEX. BOLT M8X12 | 1 | €6.40 | 1-4 weeks to ship | |
| 061 | 922341-3 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 062 | 213459-4 | O RING 32 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 211109-5 | BALL BEARING 6201 | 1 | €4.17 | 1-4 weeks to ship | |
| 064 | 213160-1 | OIL SEAL 14 | 1 | €5.57 | 1-4 weeks to ship | |
| 065 | 241634-2 | FAN 94 | 1 | €11.13 | 1-4 weeks to ship | |
| 069 | 410163-8 | BAFFLE PLATE | 1 | €5.84 | 1-4 weeks to ship | |
| 073 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 953106-2 | RIVET 0-5 | 4 | €0.56 | 1-4 weeks to ship | |
| 075 | 856221-0 | NAME PLATE HR3850B | 1 | €2.78 | 1-4 weeks to ship | |
| 079 | 284055-5 | REAR COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 082 | 922376-4 | HEX. SOCKET HEAD BOLT M6X55 | 4 | €1.39 | 1-4 weeks to ship | |
| 083 | 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 4 | €0.56 | 1-4 weeks to ship | ||
| 084 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 942151-2 | SPRING WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 086 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 087 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 090 | 911129-6 | PAN HEAD SCREW M4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 091 | 421265-5 | DUST COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 092 | GRIP 32 | 1 | Not available in store | |||
| 093 | 924321-5 | WING BOLT M6X18 | 1 | €0.83 | 1-4 weeks to ship | |
| 094 | 261049-7 | RUBBER WASHER 5.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 095 | 261049-7 | RUBBER WASHER 5.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 096 | 164543-7 | GRIP BASE | 1 | €8.35 | 1-4 weeks to ship | |
| 097 | 164572-0 | GRIP HOLDER | 1 | €22.26 | 1-4 weeks to ship | |
| 102 | 321210-9 | HANDLE SHAFT | 1 | €2.78 | 1-4 weeks to ship | |
| 106 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 107 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 108 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 109 | SPONGE SHEET | 1 | Not available in store | |||
| 114 | RUBBER RING 9 | 2 | Not available in store | |||
| 115 | 262052-1 | RUBBER RING 9 | 2 | €0.42 | 1-4 weeks to ship | |
| 116 | 257636-8 | SLEEVE 6 | 2 | €2.23 | 1-4 weeks to ship | |
| 117 | 421596-2 | CAP | 1 | €1.67 | 1-4 weeks to ship | |
| 118 | 819063-3 | MAKITA LABEL | 2 | €0.56 | 1-4 weeks to ship | |
| 401 | 321248-4 | DEPTH GAUGE | 1 | €2.78 | 1-4 weeks to ship | |
| 403 | HEX. WRENCH 4 | 1 | Not available in store | |||
