HR3210FCT
HR3210FCT

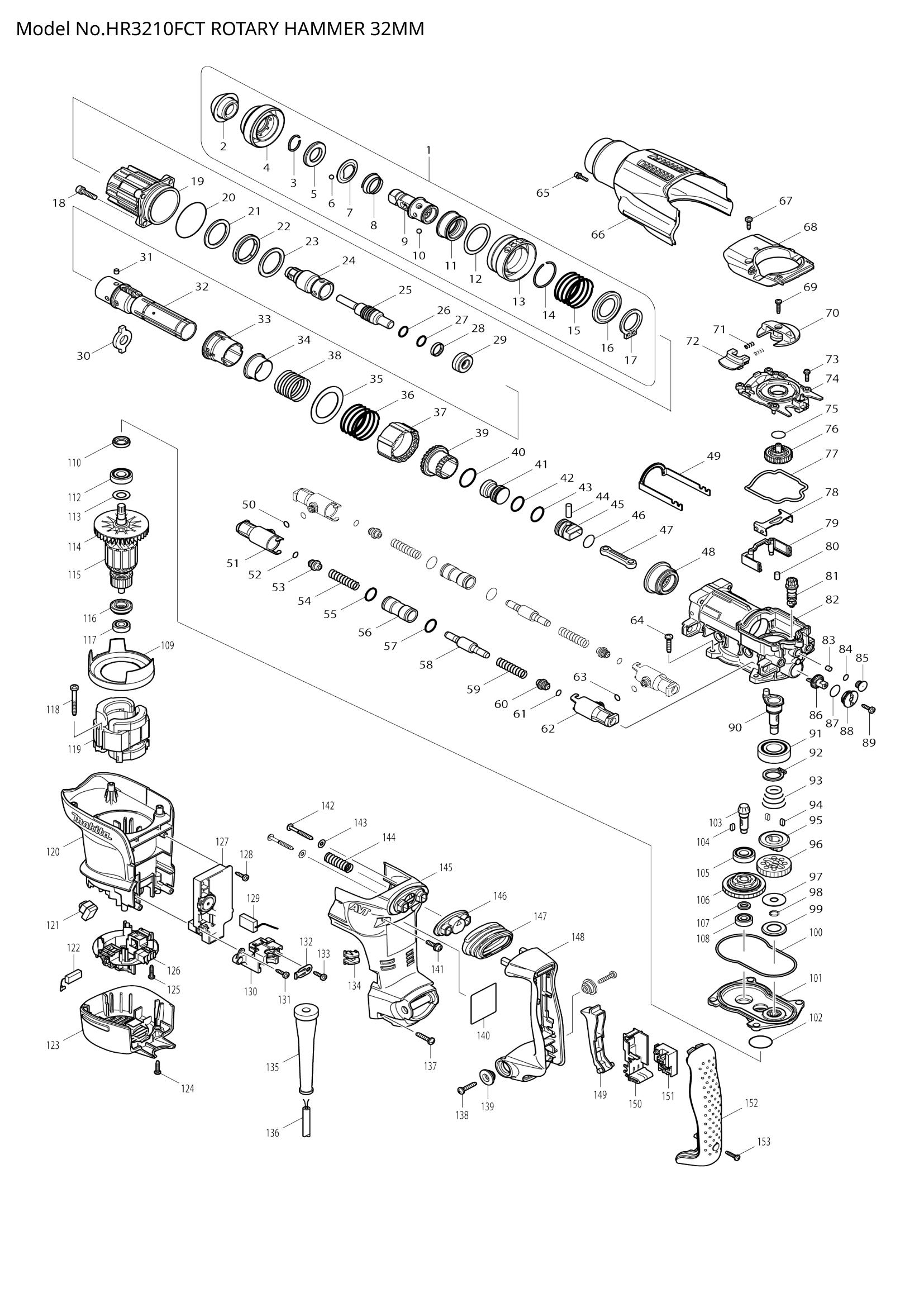

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 125420-8 | TOOL HOLDER ASS'Y | 1 | €89.06 | 1-4 weeks to ship | |
| 002 | 286282-0 | TOOL HOLDER CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 003 | 233940-9 | RING SPRING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 450245-4 | CHUCK COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 005 | 257288-5 | RING 21 | 1 | €11.13 | 1-4 weeks to ship | |
| 006 | 216022-2 | STEEL BALL 7.0 | 2 | €0.56 | 1-4 weeks to ship | |
| 007 | 345873-7 | GUIDE WASHER | 1 | €1.39 | 1-4 weeks to ship | |
| 008 | 234049-0 | CONICAL COMPRESSIONSPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 324842-1 | TOOL HOLDER | 1 | €55.66 | 1-4 weeks to ship | |
| 010 | 216013-3 | STEEL BALL 6 | 3 | €0.56 | 1-4 weeks to ship | |
| 011 | 331801-8 | CHANGE RING | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 267362-1 | FLAT WASHER 37 | 1 | €2.78 | 1-4 weeks to ship | |
| 013 | 450258-5 | CHANGE COVER | 1 | €8.35 | 1-4 weeks to ship | |
| 014 | 231988-5 | RING SPRING 34 | 1 | €0.83 | 1-4 weeks to ship | |
| 015 | 234052-1 | COMPRESSION SPRING 42 | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 345870-3 | WASHER 28 | 1 | €8.35 | 1-4 weeks to ship | |
| 017 | 961108-4 | RETAINING RING S-28 | 1 | €1.11 | 1-4 weeks to ship | |
| 018 | 922341-3 | HEX. SOCKET HEAD BOLT M6X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 019 | 158533-0 | BARREL COMPLETE | 1 | €30.61 | 1-4 weeks to ship | |
| 020 | 213656-2 | O RING 53 | 1 | €0.83 | 1-4 weeks to ship | |
| 021 | 267810-0 | FLAT WASHER 34 | 1 | €8.35 | 1-4 weeks to ship | |
| 022 | 262138-1 | URETHAN RING 34 | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 267810-0 | FLAT WASHER 34 | 1 | €8.35 | 1-4 weeks to ship | |
| 024 | 324841-3 | TOOL HOLDER GUIDE | 1 | €36.18 | 1-4 weeks to ship | |
| 025 | 324850-2 | IMPACT BOLT | 1 | €19.48 | 1-4 weeks to ship | |
| 026 | 213228-3 | O RING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 213228-3 | O RING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 213321-3 | FLUORO CARBON RESIN RING 20 | 1 | €8.35 | 1-4 weeks to ship | |
| 029 | 424062-8 | RUBBER RING 13 | 1 | €11.13 | 1-4 weeks to ship | |
| 030 | 324838-2 | SLIDE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 031 | 256266-2 | PIN 6 | 4 | €0.56 | 1-4 weeks to ship | |
| 032 | 331794-9 | CYLINDER 25 | 1 | €130.80 | 1-4 weeks to ship | |
| 033 | 450243-8 | SLIDE SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 034 | 331805-0 | RING 29 | 1 | €13.92 | 1-4 weeks to ship | |
| 035 | 267360-5 | FLAT WASHER 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 036 | 234052-1 | COMPRESSION SPRING 42 | 1 | €2.78 | 1-4 weeks to ship | |
| 037 | 450236-5 | LOCK SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | 234050-5 | COMPRESSION SPRING 34 | 1 | €1.39 | 1-4 weeks to ship | |
| 039 | 331795-7 | DRIVING SLEEVE | 1 | €33.40 | 1-4 weeks to ship | |
| 040 | 213434-0 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 041 | 324858-6 | STRIKER | 1 | €8.35 | 1-4 weeks to ship | |
| 042 | 213283-5 | O-RING 18 | 1 | €2.78 | 1-4 weeks to ship | |
| 043 | 213283-5 | O-RING 18 | 1 | €2.78 | 1-4 weeks to ship | |
| 044 | 256087-2 | PIN 7 | 1 | €0.83 | 1-4 weeks to ship | |
| 045 | 324918-4 | PISTON | 1 | €25.05 | 1-4 weeks to ship | |
| 046 | 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 047 | 450235-7 | CONECTING ROD | 1 | €4.17 | 1-4 weeks to ship | |
| 048 | 227531-6 | SPIRAL BEVEL GEAR 37 | 1 | €44.53 | 1-4 weeks to ship | |
| 049 | 345867-2 | LINK ARM | 1 | €5.57 | 1-4 weeks to ship | |
| 050 | 213030-4 | O RING 8 | 2 | €0.14 | 1-4 weeks to ship | |
| 051 | 450248-8 | PIPE HOLDER | 2 | €2.78 | 1-4 weeks to ship | |
| 052 | 213030-4 | O RING 8 | 2 | €0.14 | 1-4 weeks to ship | |
| 053 | 450239-9 | SPRING GUIDE | 2 | €1.11 | 1-4 weeks to ship | |
| 054 | 234048-2 | COMPRESSION SPRING 10 | 2 | €1.39 | 1-4 weeks to ship | |
| 055 | 213275-4 | O RING 18 | 2 | €0.28 | 1-4 weeks to ship | |
| 056 | 331800-0 | PIPE 15 | 2 | €5.57 | 1-4 weeks to ship | |
| 057 | 213275-4 | O RING 18 | 2 | €0.28 | 1-4 weeks to ship | |
| 058 | 324862-5 | COUNTER WEIGHT | 2 | €16.70 | 1-4 weeks to ship | |
| 059 | 234048-2 | COMPRESSION SPRING 10 | 2 | €1.39 | 1-4 weeks to ship | |
| 060 | 450239-9 | SPRING GUIDE | 2 | €1.11 | 1-4 weeks to ship | |
| 061 | 213030-4 | O RING 8 | 2 | €0.14 | 1-4 weeks to ship | |
| 062 | 450248-8 | PIPE HOLDER | 2 | €2.78 | 1-4 weeks to ship | |
| 063 | 213030-4 | O RING 8 | 2 | €0.14 | 1-4 weeks to ship | |
| 064 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 065 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 450254-3 | CRANK HOUSING COVER | 1 | €11.13 | 1-4 weeks to ship | |
| 067 | 266192-7 | TAPPING SCREW 4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 068 | 318201-9 | CRANK CAP COVER | 1 | €13.92 | 1-4 weeks to ship | |
| 069 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 450249-6 | CHANGE LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 071 | 233436-0 | COMPRESSION SPRING 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 072 | 450250-1 | LOCK BUTTON | 1 | €1.39 | 1-4 weeks to ship | |
| 073 | 911128-8 | P.H.SCREW M4X16 WITH WR | 5 | €0.56 | 1-4 weeks to ship | |
| 911128-8 | P.H.SCREW M4X16 WITH WR | 5 | €0.56 | 1-4 weeks to ship | ||
| 074 | 450241-2 | CRANK CAP | 1 | €2.78 | 1-4 weeks to ship | |
| 075 | 213223-3 | O RING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 158437-6 | SPUR GEAR 33 COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 077 | 424064-4 | SEAL RING B | 1 | €0.83 | 1-4 weeks to ship | |
| 078 | 345868-0 | LINK PLATE | 1 | €1.39 | 1-4 weeks to ship | |
| 080 | 263005-3 | RUBBER PIN 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 083 | 443138-2 | FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | 213030-4 | O RING 8 | 1 | €0.14 | 1-4 weeks to ship | |
| 085 | 450238-1 | FILTER CAP | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 450244-6 | CRANK GEAR | 1 | €1.39 | 1-4 weeks to ship | |
| 088 | 450237-3 | CAP HOLDER | 1 | €1.11 | 1-4 weeks to ship | |
| 089 | 266192-7 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 090 | 324839-0 | CRANK SHAFT | 1 | €13.92 | 1-4 weeks to ship | |
| 091 | 211332-2 | BALL BEARING 6004LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 092 | 961060-6 | RETAINING RING S-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 093 | 231991-6 | CONICAL COMP. SPRING 21-31 | 1 | €0.56 | 1-4 weeks to ship | |
| 094 | 254239-9 | KEY 4 | 2 | €1.11 | 1-4 weeks to ship | |
| 095 | 324848-9 | CLUTCH | 1 | €4.17 | 1-4 weeks to ship | |
| 096 | 227188-3 | SPUR GEAR 33 | 1 | €22.26 | 1-4 weeks to ship | |
| 097 | 253197-6 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 098 | 961036-3 | RETAINING RING WR-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 099 | 345869-8 | CUP WASHER 18 | 1 | €1.39 | 1-4 weeks to ship | |
| 100 | 424063-6 | SEAL RING A | 1 | €0.83 | 1-4 weeks to ship | |
| 101 | 158534-8 | GEAR HOUSING COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 102 | 213415-4 | O RING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 103 | 227533-2 | SPIRAL BEVEL GEAR 9 | 1 | €22.26 | 1-4 weeks to ship | |
| 104 | 254239-9 | KEY 4 | 1 | €1.11 | 1-4 weeks to ship | |
| 105 | 210105-0 | BALL BEARING 6001LLU | 1 | €4.17 | 1-4 weeks to ship | |
| 106 | 125421-6 | TORQUE LIMITER ASS'Y | 1 | €75.14 | 1-4 weeks to ship | |
| 107 | 257291-6 | RING 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 108 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 109 | 450251-9 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 110 | 213133-4 | OIL SEAL 12 | 1 | €5.57 | 1-4 weeks to ship | |
| 112 | 210105-0 | BALL BEARING 6001LLU | 1 | €4.17 | 1-4 weeks to ship | |
| 113 | 253084-9 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 114 | 241863-7 | FAN 70 | 1 | €1.67 | 1-4 weeks to ship | |
| 115 | 513748-0 | ARMATURE ASS'Y 220-240V | 1 | €72.36 | 1-4 weeks to ship | |
| 116 | 681650-6 | INSULATION WASHER | 1 | €5.57 | 1-4 weeks to ship | |
| 117 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 118 | 266056-5 | TAPPING SCREW 5X45 | 2 | €0.83 | 1-4 weeks to ship | |
| 119 | 625813-4 | FIELD 220-240V | 1 | €25.05 | 1-4 weeks to ship | |
| 120 | 450260-8 | MOTOR HOUSING | 1 | €22.26 | 1-4 weeks to ship | |
| 121 | 631785-3 | LED CIRCUIT | 1 | €16.70 | 1-4 weeks to ship | |
| 123 | 450253-5 | REAR COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 124 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 125 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 126 | 638519-5 | BRUSH HOLDER UNIT | 1 | €11.13 | 1-4 weeks to ship | |
| 127 | 631783-7 | CONTROLLER | 1 | €77.92 | 1-4 weeks to ship | |
| 129 | LEAD UNIT | 1 | Not available in store | |||
| 130 | 450246-2 | CORD CLAMP BASE | 1 | €1.67 | 1-4 weeks to ship | |
| 132 | 687169-3 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 133 | 266192-7 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 134 | 450240-4 | LENS | 1 | €1.11 | 1-4 weeks to ship | |
| 135 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 136 | 695123-3 | POWER SUPPLY CORD 1.5-2-4.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 137 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 138 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 139 | 450352-3 | SHOULDER SLEEVE 6 | 2 | €0.83 | 1-4 weeks to ship | |
| 141 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | €0.56 | 1-4 weeks to ship | |
| 142 | 266211-9 | TAPPING SCREW 5X40 | 2 | €0.56 | 1-4 weeks to ship | |
| 143 | 267066-5 | FLAT WASHER 5 | 2 | €0.42 | 1-4 weeks to ship | |
| 144 | 234051-3 | COMPRESSION SPRING 11 | 1 | €0.83 | 1-4 weeks to ship | |
| 145 | 450255-1 | HANDLE BASE | 1 | €19.48 | 1-4 weeks to ship | |
| 146 | 419014-2 | DUST COVER SUPPORT | 1 | €2.37 | 1-4 weeks to ship | |
| 147 | 421912-8 | DUST COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 148 | 450256-9 | HANDLE | 1 | €11.13 | 1-4 weeks to ship | |
| 149 | 419025-7 | SWITCH LEVER | 1 | €5.57 | 1-4 weeks to ship | |
| 150 | 154626-1 | SWITCH HOLDER COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 152 | 450257-7 | HANDLE COVER | 1 | €16.70 | 1-4 weeks to ship | |
| 153 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 154 | 267383-3 | FLAT WASHER 22 | 1 | €1.11 | 1-4 weeks to ship | |
| 155 | 267721-9 | WAVE WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 156 | 213083-3 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
