HR2670FT
HR2670FT

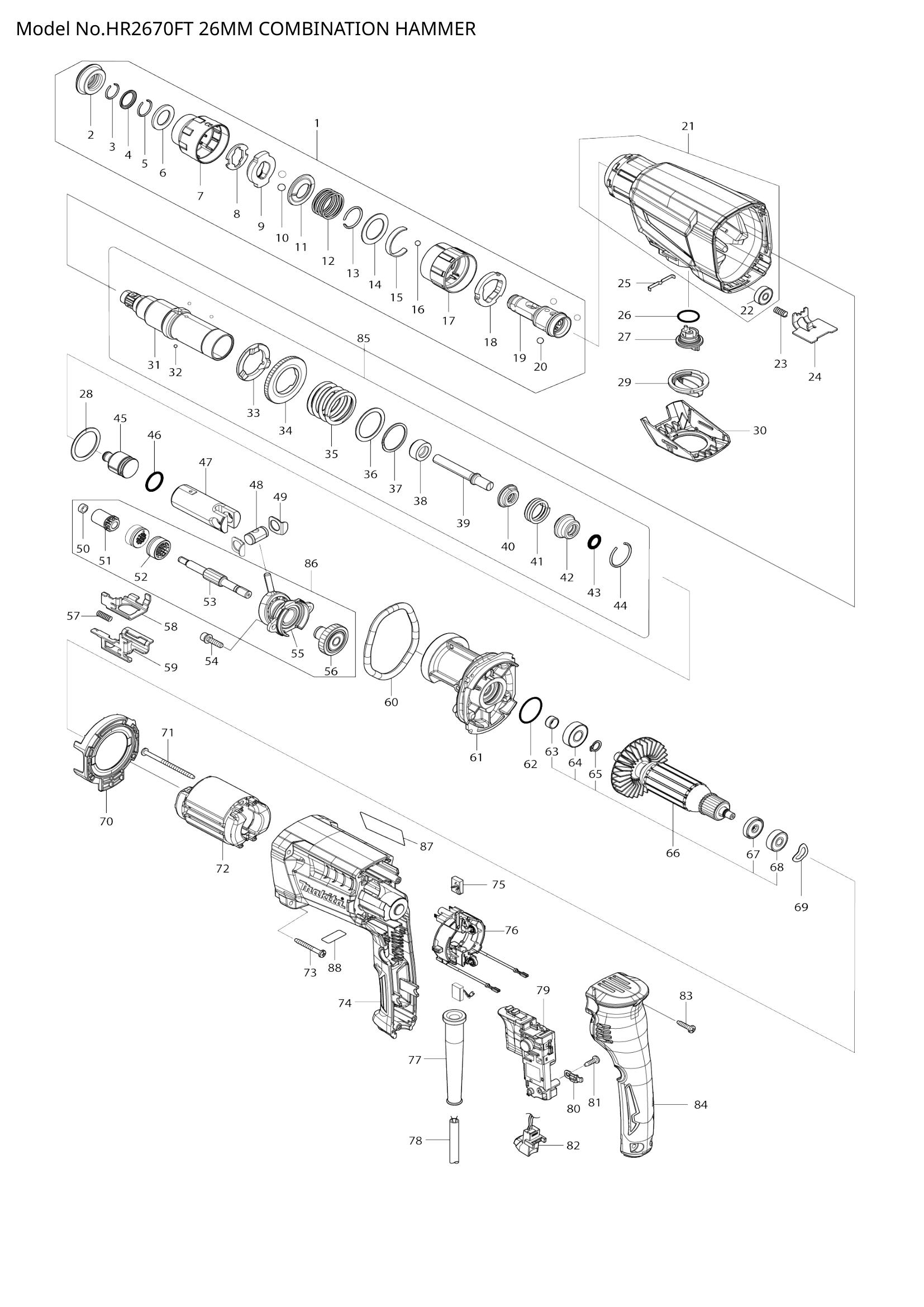

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 127219-7 | TOOL HOLDER ASSEMBLY | 1 | €38.96 | 1-4 weeks to ship | |
| 002 | CAP 35 | 1 | Not available in store | |||
| 003 | 233989-9 | RING SPRING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 346834-0 | WASHER 16 | 1 | €0.42 | 1-4 weeks to ship | |
| 005 | 233992-0 | RING SPRING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | WASHER 17 | 1 | Not available in store | |||
| 007 | CHUCK COVER | 1 | Not available in store | |||
| 008 | PLATE | 1 | Not available in store | |||
| 009 | STOPPER | 1 | Not available in store | |||
| 010 | 216022-2 | STEEL BALL 7.0 | 2 | €0.56 | 1-4 weeks to ship | |
| 011 | GUIDE WASHER | 1 | Not available in store | |||
| 012 | COMPRESSION SPRING 26 | 1 | Not available in store | |||
| 013 | 233924-7 | RING SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | FLAT WASHER 24 | 1 | Not available in store | |||
| 015 | LEAF SPRING | 1 | Not available in store | |||
| 016 | 216018-3 | STEEL BALL 5.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | CHANGE COVER A | 1 | Not available in store | |||
| 018 | CHANGE RING A | 1 | Not available in store | |||
| 019 | TOOL HOLDER | 1 | Not available in store | |||
| 021 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 022 | 210143-2 | BALL BEARING 626ZZ | 1 | €1.11 | 1-4 weeks to ship | |
| 023 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 024 | LOCK PLATE | 1 | Not available in store | |||
| 025 | 232286-0 | LEAF SPRING | 1 | €0.28 | 1-4 weeks to ship | |
| 026 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | CHANGE LEVER ASSEMBLY | 1 | Not available in store | |||
| 028 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 455394-2 | CHANGE LEVER CAP | 1 | €0.42 | 1-4 weeks to ship | |
| 455394-2 | CHANGE LEVER CAP | 1 | €0.42 | 1-4 weeks to ship | ||
| 030 | CHANGE LEVER COVER | 1 | Not available in store | |||
| 031 | TOOL HOLDER GUIDE COMPLET | 1 | Not available in store | |||
| 033 | DRIVING FLANGE | 1 | Not available in store | |||
| 034 | SPUR GEAR 40 | 1 | Not available in store | |||
| 035 | 234148-8 | COMPRESSION SPRING 31 | 1 | €1.11 | 1-4 weeks to ship | |
| 036 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 038 | SLEEVE 9 | 1 | Not available in store | |||
| 039 | IMPACT BOLT B | 1 | Not available in store | |||
| 040 | 325792-3 | WASHER 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 041 | 234149-6 | COMPRESSION SPRING 20 | 1 | €0.83 | 1-4 weeks to ship | |
| 042 | 325793-1 | O-RING CASE B | 1 | €1.67 | 1-4 weeks to ship | |
| 043 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 044 | 233979-2 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 325784-2 | STRIKER | 1 | €2.78 | 1-4 weeks to ship | |
| 046 | 213258-4 | O RING 17.5 | 1 | €1.11 | 1-4 weeks to ship | |
| 047 | PISTON CYLINDER | 1 | Not available in store | |||
| 048 | PISTON JOINT | 1 | Not available in store | |||
| 049 | GUIDE PLATE | 2 | Not available in store | |||
| 050 | RING 6 | 1 | Not available in store | |||
| 051 | SPUR GEAR 9 | 1 | Not available in store | |||
| 052 | 310678-4 | CLUTCH CAM | 2 | €1.39 | 1-4 weeks to ship | |
| 053 | CAM SHAFT | 1 | Not available in store | |||
| 054 | HEX SOCKET HEAD BOLT M5X20 | 2 | Not available in store | |||
| 055 | SWASH BEARING 9-15 | 1 | Not available in store | |||
| 056 | HELICAL GEAR 30 COMPLETE | 1 | Not available in store | |||
| 057 | 234343-0 | COMPRESSION SPRING 5 | 1 | €0.14 | 1-4 weeks to ship | |
| 058 | 346833-2 | CHANGE PLATE B | 1 | €0.97 | 1-4 weeks to ship | |
| 059 | 346832-4 | CHANGE PLATE A | 1 | €1.39 | 1-4 weeks to ship | |
| 060 | 213728-3 | O-RING 68 | 1 | €0.83 | 1-4 weeks to ship | |
| 061 | INNER HOUSING COMPLETE | 1 | Not available in store | |||
| 062 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | SLEEVE 9 | 1 | Not available in store | |||
| 064 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 065 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | ARMATURE ASS'Y 240V | 1 | Not available in store | |||
| 067 | 681652-2 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 069 | 267804-5 | WAVE WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | BAFFLE PLATE | 1 | Not available in store | |||
| 071 | 266340-8 | TAPPING SCREW 4X65 | 2 | €0.56 | 1-4 weeks to ship | |
| 072 | FIELD 240V | 1 | Not available in store | |||
| 073 | 266053-1 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 074 | MOTOR HOUSING | 1 | Not available in store | |||
| 075 | 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | |
| 076 | BRUSH HOLDER UNIT | 1 | Not available in store | |||
| 077 | 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 078 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 079 | 651086-3 | SWITCH TG853TB-2 | 1 | €15.35 | 1-4 weeks to ship | |
| 080 | 687682-1 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687682-1 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 082 | 631937-6 | LIGHT CIRCUIT | 1 | €8.35 | 1-4 weeks to ship | |
| 084 | HANDLE COVER | 1 | Not available in store | |||
| 086 | CAM SHAFT ASS'Y | 1 | Not available in store | |||
| 087 | HR2670FT NAME PLATE | 1 | Not available in store | |||
| 088 | HR2670FT SERIAL NO. LABEL | 1 | Not available in store | |||
