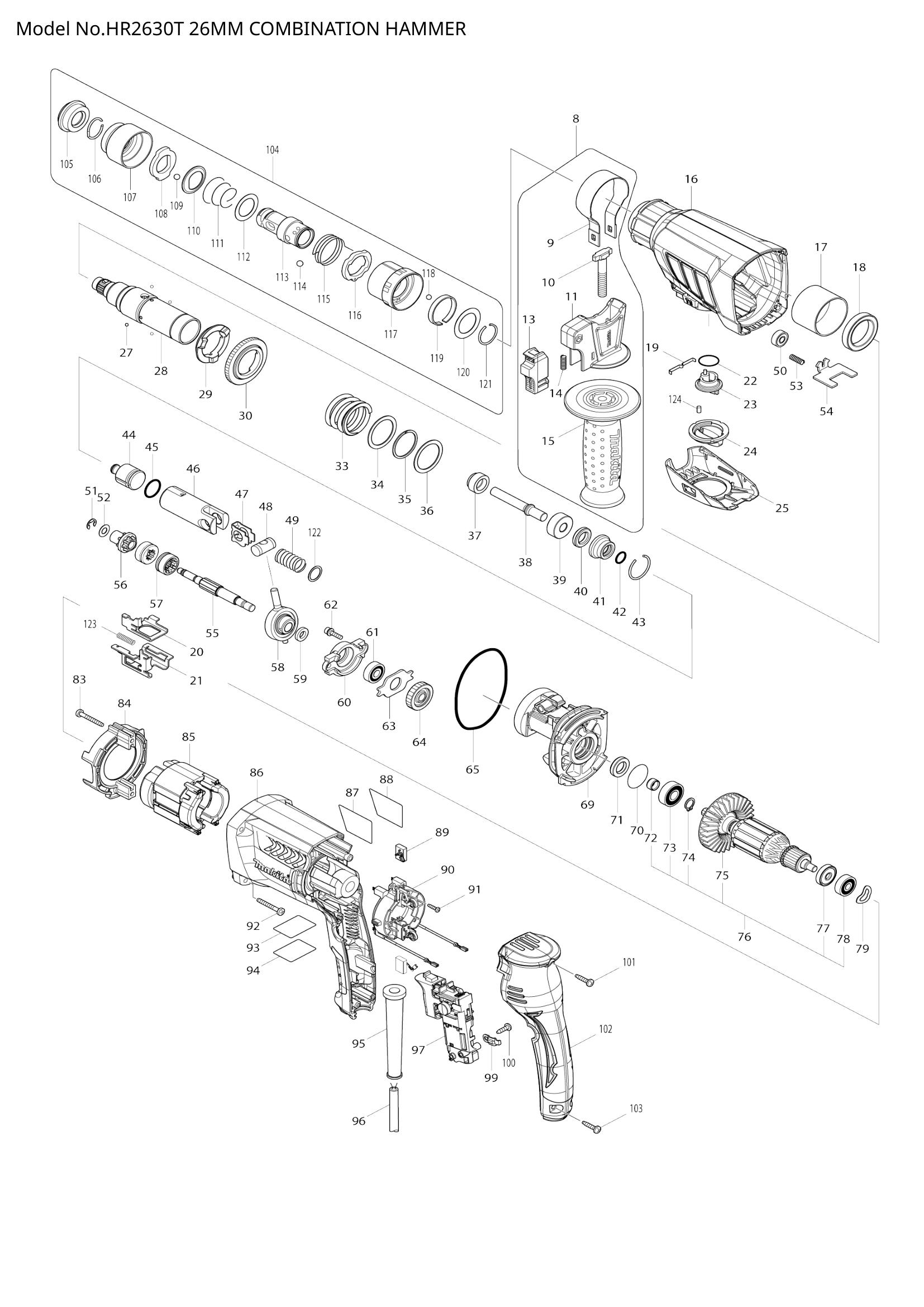

HR2630T
HR2630T
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 009 | 346181-9 | GRIP SPRING 50 | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 266349-0 | SQUARE BOLT M8X50 | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 451539-0 | GRIP BASE | 1 | €1.11 | 1-4 weeks to ship | |
| 013 | 141765-6 | LOCK BUTTON COMPLETE | 1 | €0.83 | 1-4 weeks to ship | |
| 014 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | GRIP 36 COMPLETE | 1 | Not available in store | |||
| 016 | 142971-6 | GEAR HOUSING COMPLETE | 1 | €8.35 | 1-4 weeks to ship | |
| 017 | 331890-3 | CUP SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 018 | 211294-4 | BALL BEARING 6806LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 019 | 232286-0 | LEAF SPRING | 1 | €0.28 | 1-4 weeks to ship | |
| 020 | 346833-2 | CHANGE PLATE B | 1 | €0.97 | 1-4 weeks to ship | |
| 021 | 346832-4 | CHANGE PLATE A | 1 | €1.39 | 1-4 weeks to ship | |
| 022 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 455392-6 | CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 455392-6 | CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 455394-2 | CHANGE LEVER CAP | 1 | €0.42 | 1-4 weeks to ship | |
| 455394-2 | CHANGE LEVER CAP | 1 | €0.42 | 1-4 weeks to ship | ||
| 025 | 455391-8 | CHANGE LEVER COVER | 1 | €1.67 | 1-4 weeks to ship | |
| 455391-8 | CHANGE LEVER COVER | 1 | €1.67 | 1-4 weeks to ship | ||
| 028 | 140266-1 | TOOL HOLDERGUIDE COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 029 | 332139-4 | DRIVING FLANGE | 1 | €5.57 | 1-4 weeks to ship | |
| 030 | 227360-7 | SPUR GEAR 51 | 1 | €6.40 | 1-4 weeks to ship | |
| 033 | 234148-8 | COMPRESSION SPRING 31 | 1 | €1.11 | 1-4 weeks to ship | |
| 034 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 036 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 325783-4 | SLEEVE 9B | 1 | €1.11 | 1-4 weeks to ship | |
| 038 | 325791-5 | IMPACT BOLT B | 1 | €1.67 | 1-4 weeks to ship | |
| 039 | 325795-7 | RING 10B | 1 | €1.53 | 1-4 weeks to ship | |
| 040 | 424267-0 | CUSHION RING 12 | 1 | €1.11 | 1-4 weeks to ship | |
| 041 | 325798-1 | O-RING CASE A | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 233979-2 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 325784-2 | STRIKER | 1 | €2.78 | 1-4 weeks to ship | |
| 045 | 213258-4 | O RING 17.5 | 1 | €1.11 | 1-4 weeks to ship | |
| 046 | 310345-1 | PISTON CYLINDER | 1 | €11.13 | 1-4 weeks to ship | |
| 047 | 346036-8 | GUIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 324215-8 | PISTON JOINT | 1 | €1.39 | 1-4 weeks to ship | |
| 049 | 234098-7 | COMPRESSION SPRING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 210028-2 | BALL BEARING 606ZZ | 1 | €0.83 | 1-4 weeks to ship | |
| 051 | 257336-0 | STOP RING EXT U-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 253186-1 | FLAT WASHER 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 346831-6 | LOCK PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 326448-1 | CAM SHAFT | 1 | €5.57 | 1-4 weeks to ship | |
| 056 | 227359-2 | SPUR GEAR 10 | 1 | €16.28 | 1-4 weeks to ship | |
| 059 | 257321-3 | RING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 310344-3 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 266437-3 | HEX. SOCKET HEAD BOLT M4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 285735-6 | BEARING RETAINER | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 227719-8 | HELICAL GEAR 26 | 1 | €4.17 | 1-4 weeks to ship | |
| 065 | 213728-3 | O-RING 68 | 1 | €0.83 | 1-4 weeks to ship | |
| 069 | 141572-7 | INNER HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 070 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 213678-2 | OIL SEAL 12 | 1 | €5.57 | 1-4 weeks to ship | |
| 073 | 211097-6 | BALL BEARING 6000LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 074 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 240121-8 | FAN 65 | 1 | €1.11 | 1-4 weeks to ship | |
| 076 | 515359-7 | ARMATURE ASSEMBLY 240V | 1 | €30.61 | 1-4 weeks to ship | |
| 077 | 681652-2 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 079 | 267804-5 | WAVE WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | 451527-7 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 451536-6 | MOTOR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 087 | HR2630T NAME PLATE | 1 | Not available in store | |||
| 090 | 638655-7 | BRUSH HOLDER UNIT | 1 | €8.35 | 1-4 weeks to ship | |
| 091 | 266556-5 | TAPPING SCREW 3X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 093 | HR2630T SERIAL NO. LABEL | 1 | Not available in store | |||
| 095 | 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 097 | SWITCH TG853TB-1 | 1 | Not available in store | |||
| 099 | 687682-1 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687682-1 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 102 | 451528-5 | HANDLE COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 104 | TOOL HOLDER SET | 1 | Not available in store | |||
| 105 | 286263-4 | CAP 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 106 | 233940-9 | RING SPRING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 107 | 418217-5 | CHUCK COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 108 | 345333-9 | STOPPER | 1 | €0.56 | 1-4 weeks to ship | |
| 109 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 110 | 345187-4 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 111 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 112 | 267279-8 | FLAT WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 113 | 324355-2 | TOOL HOLDER | 1 | €25.05 | 1-4 weeks to ship | |
| 115 | 231669-1 | TORSION SPRING 31 | 1 | €0.56 | 1-4 weeks to ship | |
| 116 | 345334-7 | CHANGE RING | 1 | €1.39 | 1-4 weeks to ship | |
| 117 | 418218-3 | CHANGE COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 118 | 216018-3 | STEEL BALL 5.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 119 | 345335-5 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 120 | 267270-6 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 121 | 233924-7 | RING SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 122 | 267447-3 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 123 | 234343-0 | COMPRESSION SPRING 5 | 1 | €0.14 | 1-4 weeks to ship | |
| 124 | 263005-3 | RUBBER PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
