HR2610T
HR2610T

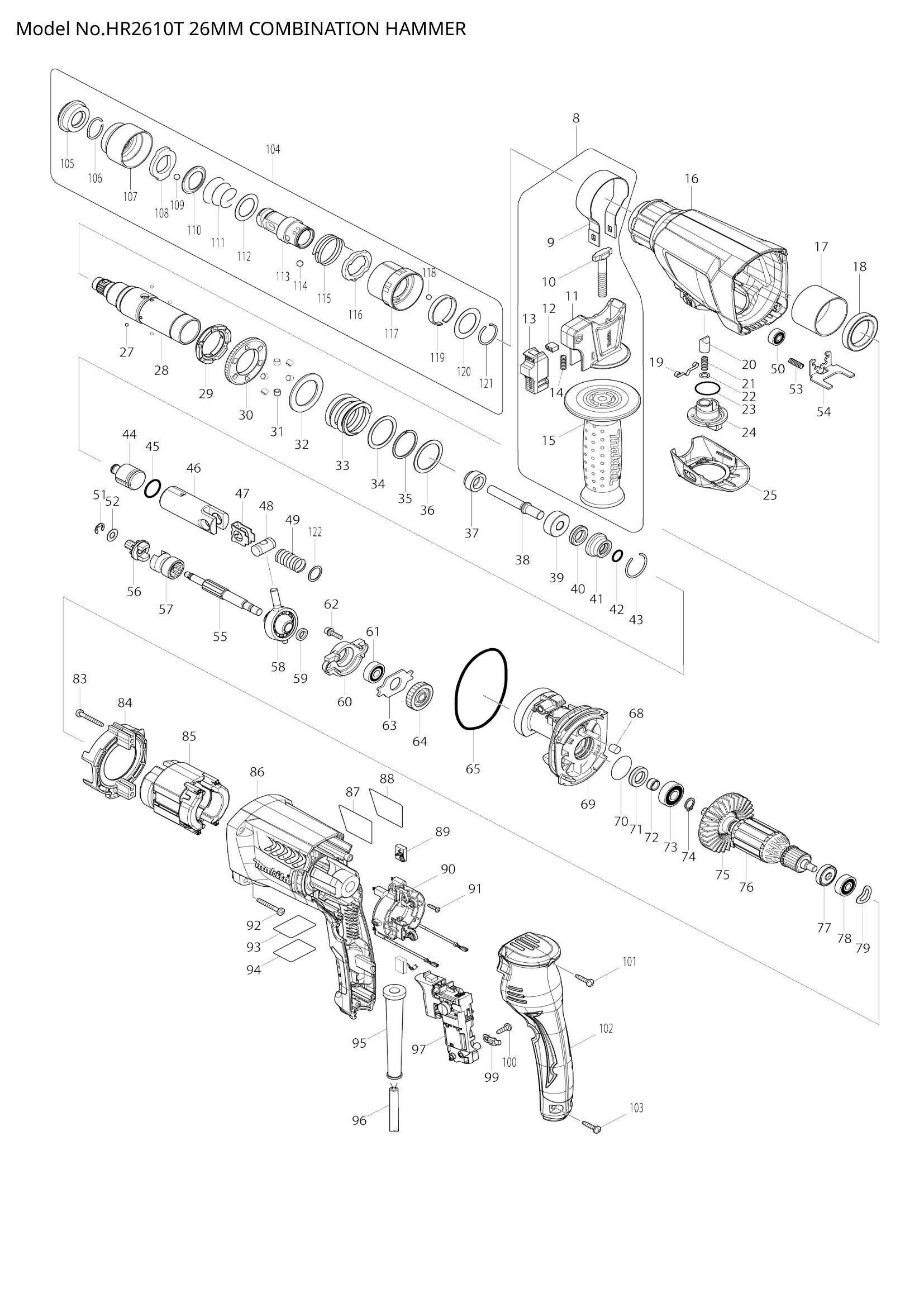

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 008 | 122878-2 | GRIP ASSEMBLY | 1 | €13.92 | 1-4 weeks to ship | |
| 009 | 346181-9 | GRIP SPRING 50 | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 266349-0 | SQUARE BOLT M8X50 | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 451539-0 | GRIP BASE | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | GRIP 36 COMPLETE | 1 | Not available in store | |||
| 016 | 140422-3 | GEAR HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 017 | 331890-3 | CUP SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 018 | 211294-4 | BALL BEARING 6806LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 019 | 232152-1 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 021 | 234147-0 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 253308-3 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 213381-5 | O RING 21 | 1 | €0.83 | 1-4 weeks to ship | |
| 024 | 451529-3 | CHANGE LEVER A | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 451530-8 | CHANGE LEVER COVER A | 1 | €0.97 | 1-4 weeks to ship | |
| 027 | 216019-1 | STEEL BALL 3 | 4 | €0.56 | 1-4 weeks to ship | |
| 028 | 140266-1 | TOOL HOLDERGUIDE COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 033 | 234148-8 | COMPRESSION SPRING 31 | 1 | €1.11 | 1-4 weeks to ship | |
| 034 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 036 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 325783-4 | SLEEVE 9B | 1 | €1.11 | 1-4 weeks to ship | |
| 038 | 325791-5 | IMPACT BOLT B | 1 | €1.67 | 1-4 weeks to ship | |
| 039 | 325795-7 | RING 10B | 1 | €1.53 | 1-4 weeks to ship | |
| 040 | 424267-0 | CUSHION RING 12 | 1 | €1.11 | 1-4 weeks to ship | |
| 041 | 325798-1 | O-RING CASE A | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 233979-2 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 325784-2 | STRIKER | 1 | €2.78 | 1-4 weeks to ship | |
| 045 | 213258-4 | O RING 17.5 | 1 | €1.11 | 1-4 weeks to ship | |
| 046 | 310345-1 | PISTON CYLINDER | 1 | €11.13 | 1-4 weeks to ship | |
| 047 | 346036-8 | GUIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 324215-8 | PISTON JOINT | 1 | €1.39 | 1-4 weeks to ship | |
| 049 | 234098-7 | COMPRESSION SPRING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 346176-2 | LOCK PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 325786-8 | CAM SHAFT | 1 | €5.57 | 1-4 weeks to ship | |
| 056 | 227231-8 | SPUR GEAR 10 | 1 | €6.96 | 1-4 weeks to ship | |
| 058 | 219020-5 | SWASH BEARING 10 | 1 | €27.83 | 1-4 weeks to ship | |
| 059 | 267234-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 310344-3 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 061 | 211032-4 | BALL BEARING 608ZZ | 1 | €1.67 | 1-4 weeks to ship | |
| 062 | 266437-3 | HEX. SOCKET HEAD BOLT M4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 285735-6 | BEARING RETAINER | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 227719-8 | HELICAL GEAR 26 | 1 | €4.17 | 1-4 weeks to ship | |
| 065 | 213728-3 | O-RING 68 | 1 | €0.83 | 1-4 weeks to ship | |
| 070 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | 211097-6 | BALL BEARING 6000LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 074 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 240121-8 | FAN 65 | 1 | €1.11 | 1-4 weeks to ship | |
| 076 | 515359-7 | ARMATURE ASSEMBLY 240V | 1 | €30.61 | 1-4 weeks to ship | |
| 077 | 681652-2 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 079 | 267804-5 | WAVE WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 083 | 266361-0 | TAPPING SCREW 4X30 | 2 | €0.56 | 1-4 weeks to ship | |
| 084 | 451527-7 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 451536-6 | MOTOR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 087 | HR2610T NAME PLATE | 1 | Not available in store | |||
| 088 | 819390-8 | CLEAR LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 089 | 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | |
| 090 | 638655-7 | BRUSH HOLDER UNIT | 1 | €8.35 | 1-4 weeks to ship | |
| 091 | 266556-5 | TAPPING SCREW 3X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 092 | 266361-0 | TAPPING SCREW 4X30 | 4 | €0.56 | 1-4 weeks to ship | |
| 093 | HR2610T SERIAL NO.LABEL | 1 | Not available in store | |||
| 094 | CLEAR LABEL | 1 | Not available in store | |||
| 095 | 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 096 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 099 | 687682-1 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687682-1 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 100 | 266385-6 | TAPPING SCREW 4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 101 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 102 | 451528-5 | HANDLE COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 103 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 104 | TOOL HOLDER SET | 1 | Not available in store | |||
| 105 | 286263-4 | CAP 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 106 | 233940-9 | RING SPRING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 107 | 418217-5 | CHUCK COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 108 | 345333-9 | STOPPER | 1 | €0.56 | 1-4 weeks to ship | |
| 109 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 110 | 345187-4 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 111 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 112 | 267279-8 | FLAT WASHER 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 113 | 324355-2 | TOOL HOLDER | 1 | €25.05 | 1-4 weeks to ship | |
| 114 | 216013-3 | STEEL BALL 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 115 | 231669-1 | TORSION SPRING 31 | 1 | €0.56 | 1-4 weeks to ship | |
| 116 | 345334-7 | CHANGE RING | 1 | €1.39 | 1-4 weeks to ship | |
| 117 | 418218-3 | CHANGE COVER | 1 | €1.11 | 1-4 weeks to ship | |
| 118 | 216018-3 | STEEL BALL 5.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 119 | 345335-5 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 120 | 267270-6 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 121 | 233924-7 | RING SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 122 | 267447-3 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
