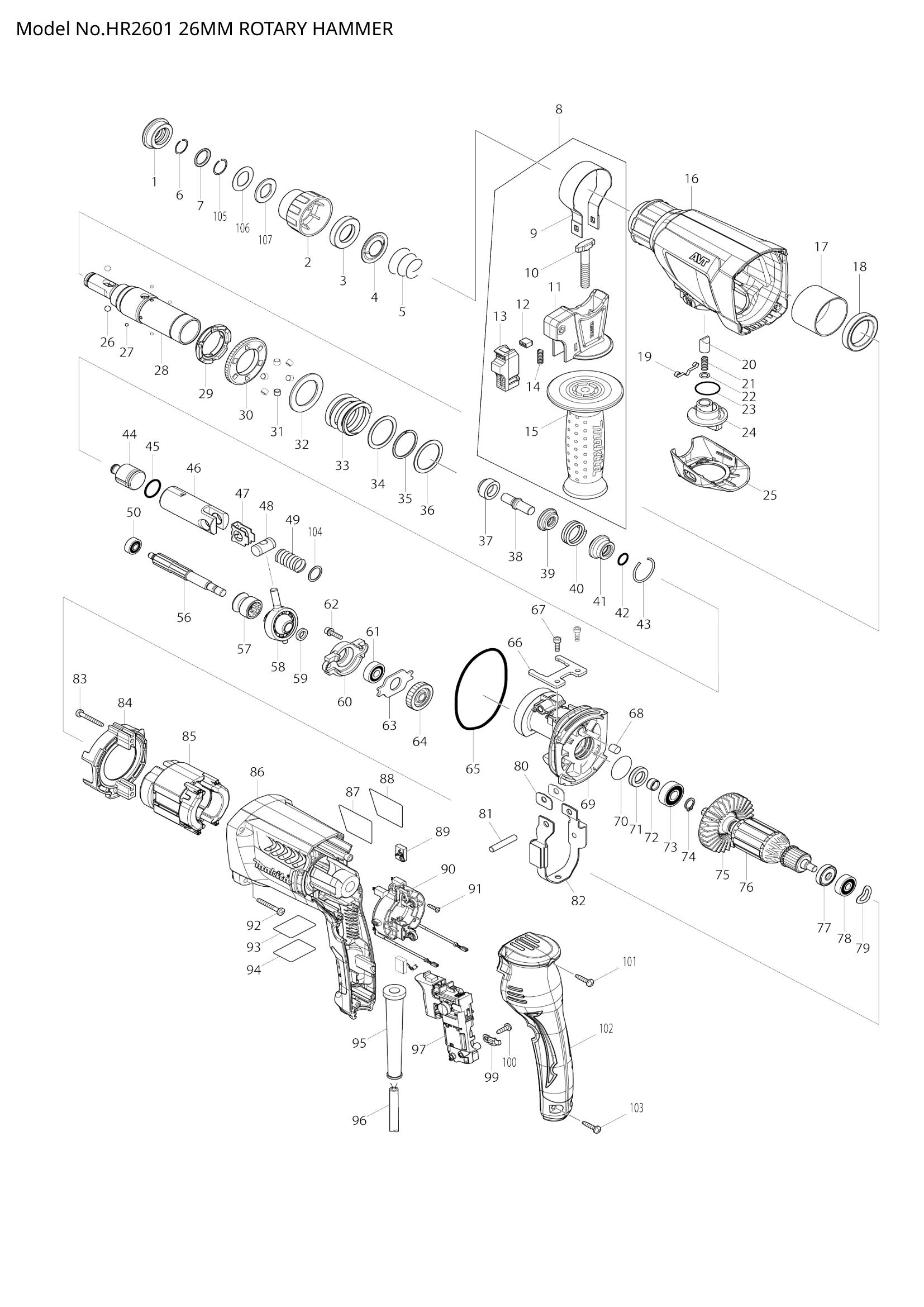

HR2601
HR2601
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286288-8 | CAP 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 325813-1 | RING 21 | 1 | €1.11 | 1-4 weeks to ship | |
| 004 | 346177-0 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 233989-9 | RING SPRING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 346181-9 | GRIP SPRING 50 | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 266349-0 | SQUARE BOLT M8X50 | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 451539-0 | GRIP BASE | 1 | €1.11 | 1-4 weeks to ship | |
| 014 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | GRIP 36 COMPLETE | 1 | Not available in store | |||
| 016 | GEAR HOUSING COMPLETE | 1 | Not available in store | |||
| 017 | 331890-3 | CUP SLEEVE | 1 | €2.78 | 1-4 weeks to ship | |
| 018 | 211294-4 | BALL BEARING 6806LLU | 1 | €11.13 | 1-4 weeks to ship | |
| 019 | 232152-1 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 020 | 325785-0 | PUSH CORN | 1 | €0.83 | 1-4 weeks to ship | |
| 021 | 234147-0 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 253308-3 | THIN WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 213381-5 | O RING 21 | 1 | €0.83 | 1-4 weeks to ship | |
| 024 | 451531-6 | CHANGE LEVER B | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 451532-4 | CHANGE LEVER COVER B | 1 | €0.97 | 1-4 weeks to ship | |
| 026 | 216022-2 | STEEL BALL 7.0 | 2 | €0.56 | 1-4 weeks to ship | |
| 033 | 234148-8 | COMPRESSION SPRING 31 | 1 | €1.11 | 1-4 weeks to ship | |
| 034 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | €2.78 | 1-4 weeks to ship | |
| 036 | 267153-0 | FLAT WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 325783-4 | SLEEVE 9B | 1 | €1.11 | 1-4 weeks to ship | |
| 038 | 325789-2 | IMPACT BOLT A | 1 | €1.11 | 1-4 weeks to ship | |
| 039 | 325792-3 | WASHER 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 040 | 234149-6 | COMPRESSION SPRING 20 | 1 | €0.83 | 1-4 weeks to ship | |
| 041 | 325793-1 | O-RING CASE B | 1 | €1.67 | 1-4 weeks to ship | |
| 042 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 043 | 233979-2 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 044 | 325784-2 | STRIKER | 1 | €2.78 | 1-4 weeks to ship | |
| 045 | 213258-4 | O RING 17.5 | 1 | €1.11 | 1-4 weeks to ship | |
| 046 | 310345-1 | PISTON CYLINDER | 1 | €11.13 | 1-4 weeks to ship | |
| 047 | 346036-8 | GUIDE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 048 | 324215-8 | PISTON JOINT | 1 | €1.39 | 1-4 weeks to ship | |
| 049 | 234098-7 | COMPRESSION SPRING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 056 | 227243-1 | SPUR GEAR 10 | 1 | €5.57 | 1-4 weeks to ship | |
| 057 | 331815-7 | CLUTCH CAM B | 1 | €4.17 | 1-4 weeks to ship | |
| 058 | 219020-5 | SWASH BEARING 10 | 1 | €27.83 | 1-4 weeks to ship | |
| 059 | 267234-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 310344-3 | BEARING BOX | 1 | €2.78 | 1-4 weeks to ship | |
| 062 | 266437-3 | HEX. SOCKET HEAD BOLT M4X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 285735-6 | BEARING RETAINER | 1 | €0.56 | 1-4 weeks to ship | |
| 064 | 227719-8 | HELICAL GEAR 26 | 1 | €4.17 | 1-4 weeks to ship | |
| 065 | 213728-3 | O-RING 68 | 1 | €0.83 | 1-4 weeks to ship | |
| 066 | 346222-1 | PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 265353-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 070 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | 211097-6 | BALL BEARING 6000LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 074 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 240121-8 | FAN 65 | 1 | €1.11 | 1-4 weeks to ship | |
| 076 | 515359-7 | ARMATURE ASSEMBLY 240V | 1 | €30.61 | 1-4 weeks to ship | |
| 077 | 681652-2 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 079 | 267804-5 | WAVE WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 346180-1 | WEIGHT HOLDER GUIDE | 2 | €0.56 | 1-4 weeks to ship | |
| 081 | 256246-8 | PIN 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | 165593-5 | COUNTER WEIGHT | 1 | €5.57 | 1-4 weeks to ship | |
| 084 | 451527-7 | BAFFLE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 086 | 451536-6 | MOTOR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 087 | HR2601 NAME PLATE | 1 | Not available in store | |||
| 089 | 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | |
| 090 | 638655-7 | BRUSH HOLDER UNIT | 1 | €8.35 | 1-4 weeks to ship | |
| 091 | 266556-5 | TAPPING SCREW 3X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 093 | HR2601 SERIAL NO.LABEL | 1 | Not available in store | |||
| 095 | 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 096 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 099 | 687682-1 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687682-1 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 102 | 451528-5 | HANDLE COVER | 1 | €4.17 | 1-4 weeks to ship | |
| 104 | 267447-3 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 105 | 233992-0 | RING SPRING 15 | 1 | €0.56 | 1-4 weeks to ship | |
