HR2510
HR2510

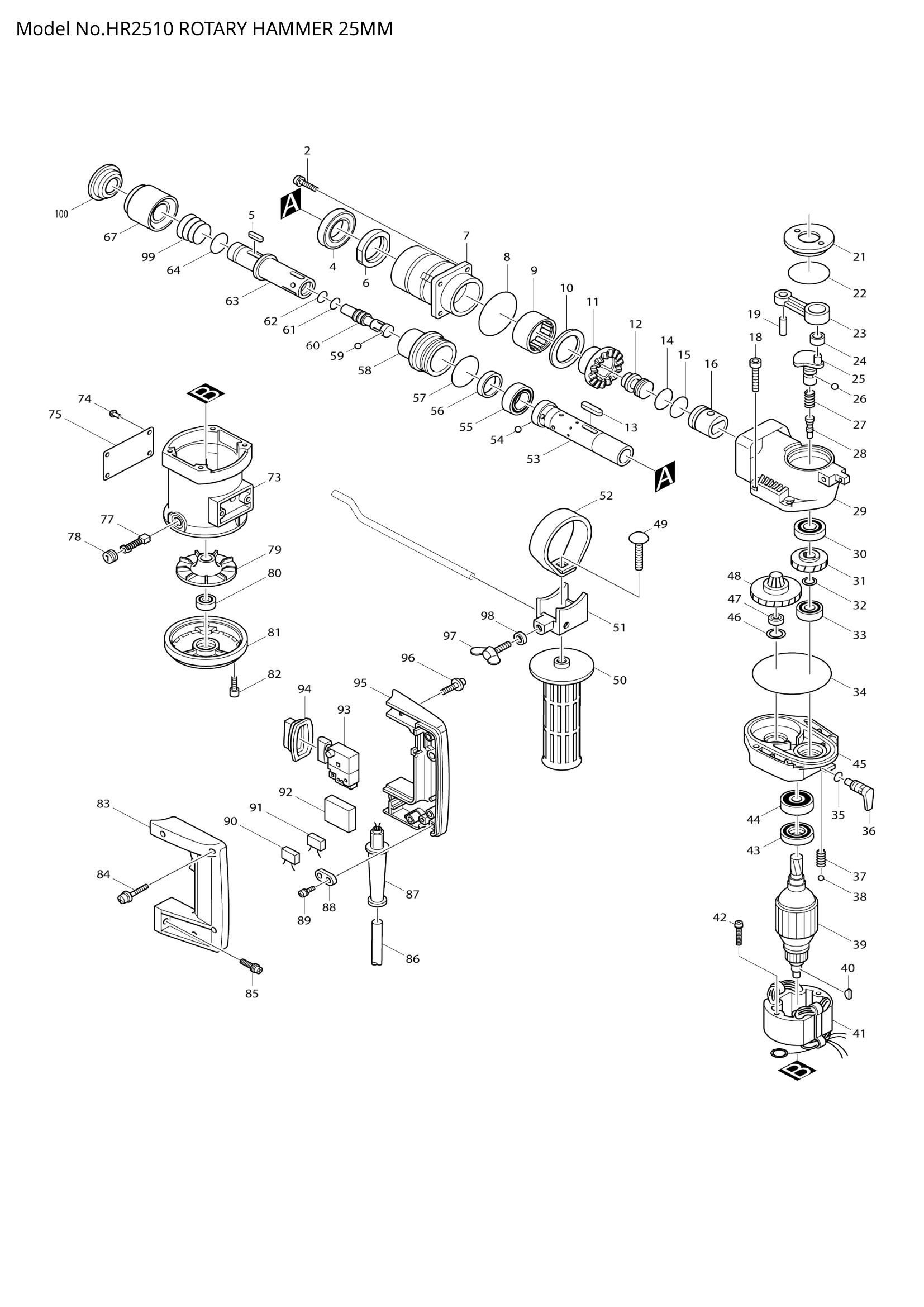

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 004 | 211441-7 | BALL BEARING 3009 | 1 | €19.48 | 1-4 weeks to ship | |
| 006 | 252214-9 | NUT M30.3-36 | 1 | €20.73 | 1-4 weeks to ship | |
| 007 | BARREL | 1 | Not available in store | |||
| 008 | 213606-7 | O RING 48 | 1 | €0.83 | 1-4 weeks to ship | |
| 009 | NEEDLE BEARING 3516 | 1 | Not available in store | |||
| 010 | 253802-5 | FLAT WASHER 35 | 1 | €7.93 | 1-4 weeks to ship | |
| 011 | 221333-2 | SPIRAL BEVEL GEAR 33 | 1 | €64.43 | 1-4 weeks to ship | |
| 014 | 213308-5 | O RING 19 | 1 | €1.67 | 1-4 weeks to ship | |
| 015 | 213308-5 | O RING 19 | 1 | €1.67 | 1-4 weeks to ship | |
| 016 | 321685-2 | PISTON | 1 | €16.70 | 1-4 weeks to ship | |
| 019 | 256099-5 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 022 | 213554-0 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 315146-2 | ROD | 1 | €19.48 | 1-4 weeks to ship | |
| 024 | 212025-4 | NEEDLE BEARING 810 | 1 | €10.99 | 1-4 weeks to ship | |
| 025 | 321615-3 | CRANK SHAFT | 1 | €58.16 | 1-4 weeks to ship | |
| 026 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 027 | 231327-9 | COMPRESSION SPRING 6 | 1 | €2.09 | 1-4 weeks to ship | |
| 028 | 321618-7 | CHANGE PIN 8 | 1 | €4.45 | 1-4 weeks to ship | |
| 030 | BALL BEARING 6002 | 1 | Not available in store | |||
| 031 | 221719-0 | HELICAL GEAR 36 | 1 | €22.26 | 1-4 weeks to ship | |
| 032 | 253147-1 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 033 | 211221-1 | BALL BEARING 6902 | 1 | €21.57 | 1-4 weeks to ship | |
| 034 | 213806-9 | O RING 90 | 1 | €1.11 | 1-4 weeks to ship | |
| 035 | 213011-8 | O RING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | CHANGE LEVER | 1 | Not available in store | |||
| 037 | COMPRESSION SPRING 2 | 1 | Not available in store | |||
| 038 | 216008-6 | STEEL BALL 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 254031-3 | WOODRUFF KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | OIL SEAL 13 | 1 | Not available in store | |||
| 044 | BALL BEARING 6200 | 1 | Not available in store | |||
| 045 | 157166-8 | GEAR HOUSING | 1 | €59.42 | 1-4 weeks to ship | |
| 046 | 253314-8 | THIN WASHER 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 047 | 211034-0 | BALL BEARING 608 | 1 | €4.17 | 1-4 weeks to ship | |
| 049 | CAP SQUARE NECK BOLT M8X35 | 1 | Not available in store | |||
| 051 | 315145-4 | GRIP BASE | 1 | €5.57 | 1-4 weeks to ship | |
| 052 | BELT | 1 | Not available in store | |||
| 054 | 216007-8 | STEEL BALL 6.4 | 3 | €0.56 | 1-4 weeks to ship | |
| 055 | OIL SEAL 21 | 1 | Not available in store | |||
| 056 | FELT RING 20 | 1 | Not available in store | |||
| 057 | 213554-0 | O RING 44 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 216007-8 | STEEL BALL 6.4 | 3 | €0.56 | 1-4 weeks to ship | |
| 060 | 321616-1 | IMPACT BOLT | 1 | €41.75 | 1-4 weeks to ship | |
| 061 | 213058-2 | O RING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 062 | 213058-2 | O RING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 074 | 953106-2 | RIVET 0-5 | 4 | €0.56 | 1-4 weeks to ship | |
| 075 | 854940-2 | NAME PLATE HR2510 | 1 | €2.92 | 1-4 weeks to ship | |
| 077 | 181038-5 | A.C. CARBON BRUSH CB-105 | 1 | €0.56 | 1-4 weeks to ship | |
| 078 | 643600-9 | BRUSH HOLDER CAP 6-10 | 2 | €0.83 | 1-4 weeks to ship | |
| 079 | 241819-0 | FAN 65 | 1 | €8.35 | 1-4 weeks to ship | |
| 081 | 152229-5 | BEARING BOX COMPLETE | 1 | €22.26 | 1-4 weeks to ship | |
| 082 | 911241-2 | PAN HEAD SCREW M5X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 083 | 181562-8 | HANDLE SET | 1 | €31.73 | 1-4 weeks to ship | |
| 084 | 911243-8 | PAN HEAD SCREW M5X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 085 | 911343-4 | PAN HEAD SCREW M6X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 092 | SPONGE SHEET | 1 | Not available in store | |||
| 094 | DUST COVER | 1 | Not available in store | |||
| 095 | 181562-8 | HANDLE SET | 1 | €31.73 | 1-4 weeks to ship | |
| 096 | PAN HEAD SCREW M6X18 | 2 | Not available in store | |||
| 097 | 924216-2 | WING BOLT M5X15 | 1 | €0.56 | 1-4 weeks to ship | |
| 098 | 261042-1 | RUBBER WASHER 4.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 100 | 286220-2 | CAP 34 | 1 | €4.17 | 1-4 weeks to ship | |
| 400 | 321144-6 | DEPTH GAUGE | 1 | €1.11 | 1-4 weeks to ship | |
