HR2432
HR2432

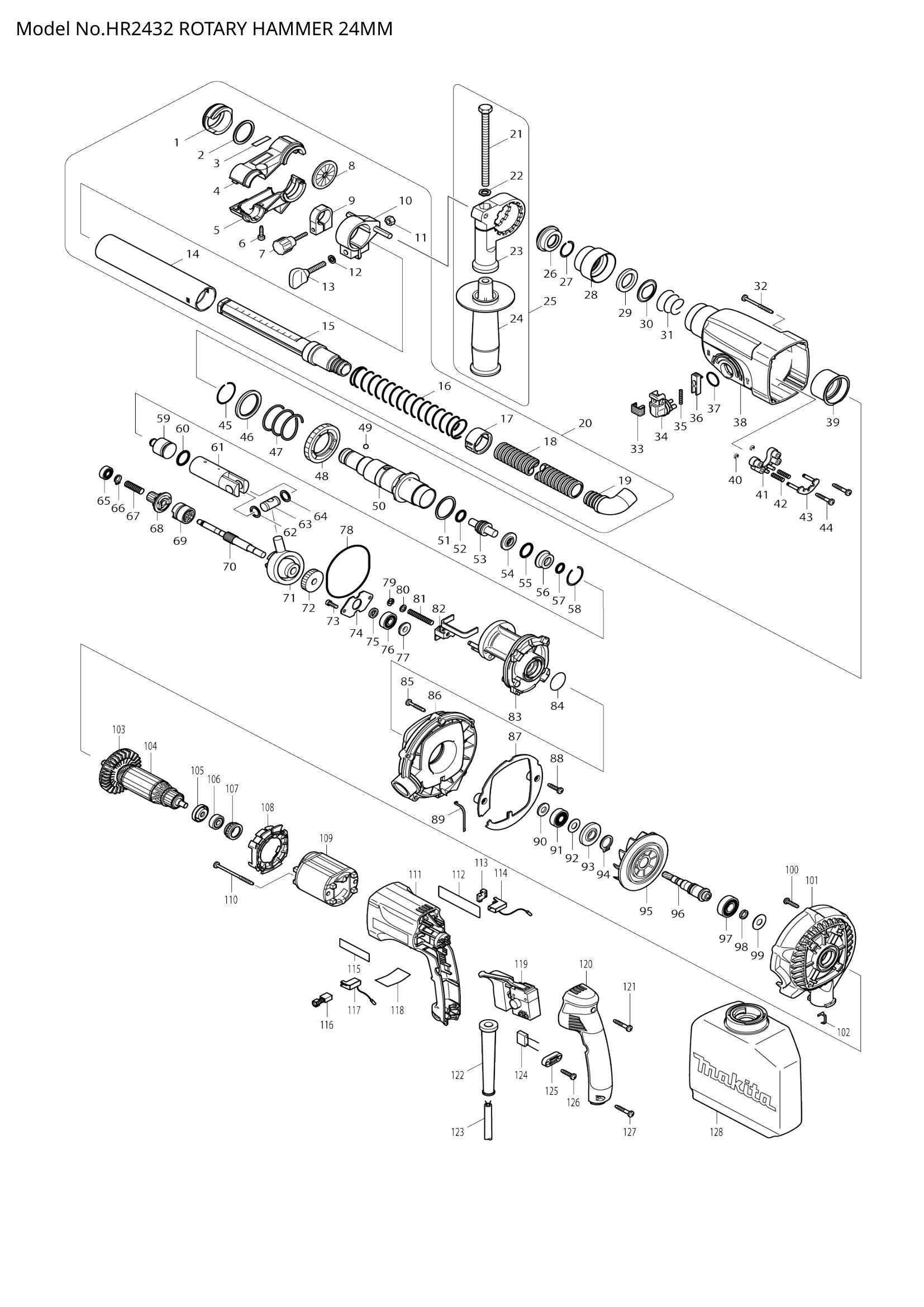

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 421396-0 | FITTING RUBBER | 1 | €2.78 | 1-4 weeks to ship | |
| 002 | 267091-6 | FLAT WASHER 28 | 1 | €2.78 | 1-4 weeks to ship | |
| 003 | 819071-4 | MAKITA LABEL | 1 | €2.09 | 1-4 weeks to ship | |
| 004 | 414799-5 | COLLECTOR 25R | 1 | €12.11 | 1-4 weeks to ship | |
| 005 | 414800-6 | COLLECTOR 25L | 1 | €12.25 | 1-4 weeks to ship | |
| 006 | 265926-5 | TAPPING SCREW 4X16 | 1 | €0.83 | 1-4 weeks to ship | |
| 007 | 265706-9 | THUMB SCREW M4X24 | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 421384-7 | SEALING CAP 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 414795-3 | STOPPER RING | 1 | €8.35 | 1-4 weeks to ship | |
| 010 | 417156-6 | PIPE HOLDER | 1 | €11.13 | 1-4 weeks to ship | |
| 011 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 013 | 265705-1 | THUMB SCREW M6X30 | 1 | €1.67 | 1-4 weeks to ship | |
| 014 | 414797-9 | SUPPORT PIPE | 1 | €11.13 | 1-4 weeks to ship | |
| 015 | 414796-1 | SLIDE PIPE | 1 | €11.13 | 1-4 weeks to ship | |
| 016 | 233015-4 | COMPRESSION SPRING 25 | 1 | €4.17 | 1-4 weeks to ship | |
| 017 | 414794-5 | SPRING STOPPER | 1 | €11.13 | 1-4 weeks to ship | |
| 018 | 414898-3 | HOSE 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 019 | 417153-2 | CUFFS 19-22 | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | DUST COLLECTOR ASS'Y | 1 | Not available in store | |||
| 021 | 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | |
| 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | ||
| 022 | 345280-4 | HEX. WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 417630-4 | GRIP BASE | 1 | €1.39 | 1-4 weeks to ship | |
| 026 | 286263-4 | CAP 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 028 | 417629-9 | CHUCK COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 257241-1 | RING 21 | 1 | €0.83 | 1-4 weeks to ship | |
| 030 | 345187-4 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | 266069-6 | TAPPING SCREW 4X45 | 4 | €0.56 | 1-4 weeks to ship | |
| 033 | 417794-4 | CAP | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 162229-7 | CHANGE LEVER COMPLETE | 1 | €1.39 | 1-4 weeks to ship | |
| 035 | 233341-1 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 417795-2 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 183441-6 | GEAR HOUSING SET | 1 | €13.92 | 1-4 weeks to ship | |
| 039 | 153290-5 | NEEDLE BEARING COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | 961017-7 | STOP RING E-3 | 2 | €0.56 | 1-4 weeks to ship | |
| 041 | 417796-0 | GUIDE BASE | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 233344-5 | COMPRESSION SPRING 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 043 | 163430-7 | LOCK PLATE COMPLETE | 1 | €1.39 | 1-4 weeks to ship | |
| 044 | 265999-8 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 045 | 233918-2 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 267228-5 | WASHER 30 | 1 | €0.83 | 1-4 weeks to ship | |
| 047 | 233328-3 | COMPRESSION SPRING 31 | 1 | €0.83 | 1-4 weeks to ship | |
| 048 | 227028-5 | SPUR GEAR 51 | 1 | €11.13 | 1-4 weeks to ship | |
| 049 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 153365-0 | TOOL HOLDER COMPLETE | 1 | €25.05 | 1-4 weeks to ship | |
| 051 | 267229-3 | FLAT WASHER 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 213128-7 | O RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 053 | 324396-8 | IMPACT BOLT | 1 | €13.92 | 1-4 weeks to ship | |
| 054 | 324218-2 | RING 9 | 1 | €2.78 | 1-4 weeks to ship | |
| 055 | 213232-2 | O RING 15 | 1 | €1.67 | 1-4 weeks to ship | |
| 056 | 324216-6 | O RING CASE | 1 | €4.17 | 1-4 weeks to ship | |
| 057 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 058 | 233917-4 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 324214-0 | STRIKER | 1 | €2.78 | 1-4 weeks to ship | |
| 060 | 213227-5 | O RING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | 331632-5 | PISTON CYLINDER | 1 | €22.26 | 1-4 weeks to ship | |
| 062 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 324215-8 | PISTON JOINT | 1 | €1.39 | 1-4 weeks to ship | |
| 064 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 066 | 961003-8 | RETAINING RING S-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 233343-7 | COMPRESSION SPRING 7 | 1 | €0.56 | 1-4 weeks to ship | |
| 068 | 226399-7 | SPUR GEAR 10 | 1 | €20.87 | 1-4 weeks to ship | |
| 070 | 324248-3 | CAM SHAFT | 1 | €13.92 | 1-4 weeks to ship | |
| 071 | 219014-0 | SWASH BEARING 10 | 1 | €25.05 | 1-4 weeks to ship | |
| 072 | 226550-9 | HELICAL GEAR 26 | 1 | €8.35 | 1-4 weeks to ship | |
| 073 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 074 | 345179-3 | BEARING RETAINER | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 267234-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 324212-4 | RING 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 078 | 213725-9 | O RING 68 | 1 | €1.11 | 1-4 weeks to ship | |
| 079 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 941102-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 941102-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 081 | 233342-9 | COMPRESSION SPRING 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | 345363-0 | CHANGE PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 083 | 153687-8 | INNER HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 084 | 213380-7 | O RING 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 265999-8 | TAPPING SCREW 4X25 | 5 | €0.56 | 1-4 weeks to ship | |
| 086 | 418807-4 | FAN HOUSING A | 1 | €7.51 | 1-4 weeks to ship | |
| 087 | 418809-0 | DUST COVER PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 088 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 089 | 345483-0 | EARTH PLATE A | 1 | €0.28 | 1-4 weeks to ship | |
| 090 | 267271-4 | FLAT WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 091 | 210060-6 | BALL BEARING 609LLU | 1 | €2.78 | 1-4 weeks to ship | |
| 092 | 267231-6 | FLAT WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 093 | 324500-9 | DUST GUARD | 1 | €1.81 | 1-4 weeks to ship | |
| 094 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 095 | 241668-5 | FAN 81 | 1 | €13.92 | 1-4 weeks to ship | |
| 097 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 100 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 101 | 418808-2 | FAN HOUSING B | 1 | €8.35 | 1-4 weeks to ship | |
| 102 | 345484-8 | EARTH PLATE B | 1 | €0.28 | 1-4 weeks to ship | |
| 105 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 106 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 107 | 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 109 | 633488-5 | FIELD 220-240V | 1 | €13.92 | 1-4 weeks to ship | |
| 633488-5 | FIELD 220-240V | 1 | €13.92 | 1-4 weeks to ship | ||
| 110 | 266052-3 | TAPPING SCREW 4X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 112 | 861193-6 | HR2432 NAME PLATE | 1 | €2.50 | 1-4 weeks to ship | |
| 861193-6 | HR2432 NAME PLATE | 1 | €2.50 | 1-4 weeks to ship | ||
| 113 | 689111-0 | SPACER | 2 | €0.56 | 1-4 weeks to ship | |
| 114 | 643988-7 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 117 | 643989-5 | BRUSH HOLDER | 1 | €4.17 | 1-4 weeks to ship | |
| 118 | HR2432 SERIAL NO. LABEL | 1 | Not available in store | |||
| 119 | 650508-0 | SWITCH TG813TLB-1 | 1 | €22.26 | 1-4 weeks to ship | |
| 650508-0 | SWITCH TG813TLB-1 | 1 | €22.26 | 1-4 weeks to ship | ||
| 120 | 153284-0 | HANDLE COVER COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 121 | 265999-8 | TAPPING SCREW 4X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 122 | 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 123 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 124 | 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | |
| 645253-0 | NOISE SUPPRESSOR | 1 | €1.11 | 1-4 weeks to ship | ||
| 126 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 127 | 265999-8 | TAPPING SCREW 4X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 128 | DUST BAG ASS'Y | 1 | Not available in store | |||
| 129 | 257273-8 | RING 8 | 1 | €2.78 | 1-4 weeks to ship | |
