HR2430
HR2430

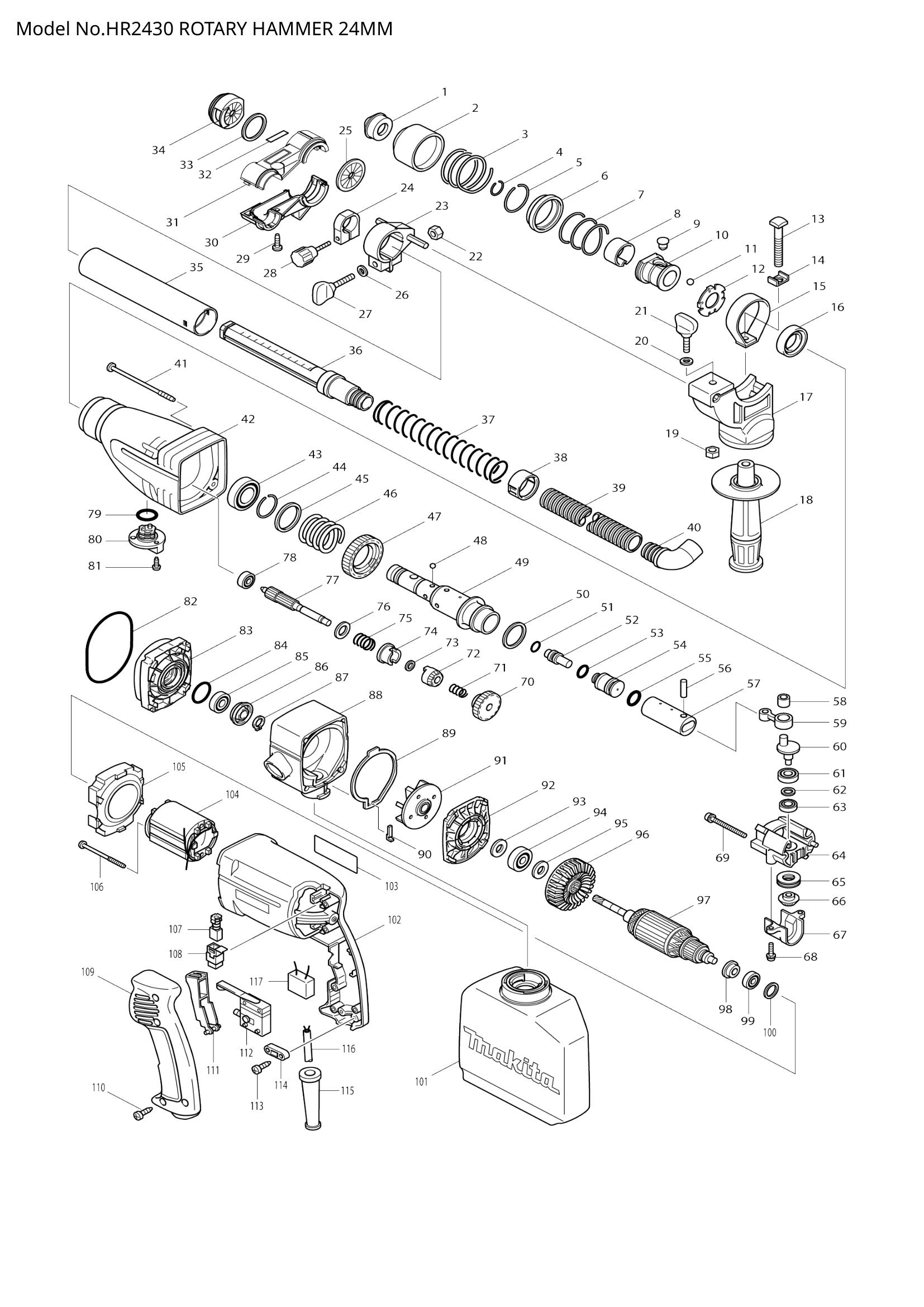

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 416410-5 | CHUCK COVER | 1 | €1.67 | 1-4 weeks to ship | |
| 003 | 233203-3 | COMPRESSION SPRING 38 | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 231979-6 | RING SPRING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 231936-4 | RING SPRING 30.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 323819-3 | SPRING GUIDE | 1 | €4.17 | 1-4 weeks to ship | |
| 007 | 233234-2 | COMPRESSION SPRING 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 232190-3 | LEAF SPRING 26 | 1 | €2.78 | 1-4 weeks to ship | |
| 009 | 256447-8 | PIN 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 323820-8 | CHUCK RING | 1 | €5.57 | 1-4 weeks to ship | |
| 011 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 012 | 344690-2 | GUIDE WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 013 | 266092-1 | SQUARE BOLT M8X60 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 267719-6 | SQUARE WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 344205-5 | BELT | 1 | €2.78 | 1-4 weeks to ship | |
| 016 | 213313-2 | OIL SEAL 20 | 1 | €5.57 | 1-4 weeks to ship | |
| 017 | 417157-4 | GRIP BASE | 1 | €8.35 | 1-4 weeks to ship | |
| 018 | 152521-9 | GRIP 36 COMPLETE | 1 | €2.78 | 1-4 weeks to ship | |
| 019 | 931202-6 | HEX. NUT M5 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 941101-4 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 251878-6 | SCREW M5X20 | 1 | €1.39 | 1-4 weeks to ship | |
| 022 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 417156-6 | PIPE HOLDER | 1 | €11.13 | 1-4 weeks to ship | |
| 024 | 414795-3 | STOPPER RING | 1 | €8.35 | 1-4 weeks to ship | |
| 025 | 421384-7 | SEALING CAP 40 | 1 | €2.78 | 1-4 weeks to ship | |
| 026 | 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 941151-9 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 265705-1 | THUMB SCREW M6X30 | 1 | €1.67 | 1-4 weeks to ship | |
| 028 | 265706-9 | THUMB SCREW M4X24 | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 265926-5 | TAPPING SCREW 4X16 | 1 | €0.83 | 1-4 weeks to ship | |
| 030 | 414800-6 | COLLECTOR 25L | 1 | €12.25 | 1-4 weeks to ship | |
| 031 | 414799-5 | COLLECTOR 25R | 1 | €12.11 | 1-4 weeks to ship | |
| 032 | 819071-4 | MAKITA LABEL | 1 | €2.09 | 1-4 weeks to ship | |
| 033 | 267091-6 | FLAT WASHER 28 | 1 | €2.78 | 1-4 weeks to ship | |
| 034 | FITTING RUBBER | 1 | Not available in store | |||
| 035 | 414797-9 | SUPPORT PIPE | 1 | €11.13 | 1-4 weeks to ship | |
| 036 | 414796-1 | SLIDE PIPE | 1 | €11.13 | 1-4 weeks to ship | |
| 037 | 233015-4 | COMPRESSION SPRING 25 | 1 | €4.17 | 1-4 weeks to ship | |
| 038 | 414794-5 | SPRING STOPPER | 1 | €11.13 | 1-4 weeks to ship | |
| 039 | 414898-3 | HOSE 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 040 | 417153-2 | CUFFS 19-22 | 1 | €4.17 | 1-4 weeks to ship | |
| 041 | 266243-6 | TAPPING SCREW 4X90 | 4 | €2.92 | 1-4 weeks to ship | |
| 042 | 150965-7 | GEAR HOUSING COMPLETE | 1 | €16.70 | 1-4 weeks to ship | |
| 043 | 211323-3 | BALL BEARING 6904LLU | 1 | €13.92 | 1-4 weeks to ship | |
| 044 | 231962-3 | RING SPRING 26 | 1 | €0.28 | 1-4 weeks to ship | |
| 045 | 267132-8 | FLAT WASHER 29 | 1 | €1.67 | 1-4 weeks to ship | |
| 046 | 233109-5 | COMPRESSION SPRING 29 | 1 | €1.67 | 1-4 weeks to ship | |
| 047 | 226290-9 | SPUR GEAR 48 | 1 | €22.26 | 1-4 weeks to ship | |
| 048 | 216011-7 | STEEL BALL 5.6 | 4 | €0.56 | 1-4 weeks to ship | |
| 049 | 323822-4 | TOOL HOLDER | 1 | €61.23 | 1-4 weeks to ship | |
| 050 | 267129-7 | FLAT WASHER 27 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 213063-9 | O RING 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 052 | 323818-5 | IMPACT BOLT | 1 | €4.17 | 1-4 weeks to ship | |
| 053 | 213117-2 | O RING 11 | 1 | €1.39 | 1-4 weeks to ship | |
| 054 | 322740-3 | STRIKER | 1 | €5.57 | 1-4 weeks to ship | |
| 055 | 213214-4 | O RING 16 | 1 | €1.11 | 1-4 weeks to ship | |
| 056 | 256099-5 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 057 | 331446-2 | PISTON CYLINDER | 1 | €19.48 | 1-4 weeks to ship | |
| 058 | 212005-0 | NEEDLE BEARING 810 | 1 | €4.17 | 1-4 weeks to ship | |
| 059 | 331447-0 | CONNECTING ROD | 1 | €11.13 | 1-4 weeks to ship | |
| 060 | 322741-1 | CRANK SHAFT | 1 | €13.92 | 1-4 weeks to ship | |
| 061 | 211098-4 | BALL BEARING 699ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 062 | 267130-2 | FLAT WASHER 9 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 211099-2 | BALL BEARING 689ZZ | 1 | €5.57 | 1-4 weeks to ship | |
| 064 | 159761-0 | CRANK HOUSING COMPLETE | 1 | €11.13 | 1-4 weeks to ship | |
| 065 | 212110-3 | THRUST NEEDLE BEARING 1224 | 1 | €13.92 | 1-4 weeks to ship | |
| 066 | 226726-8 | STRAIGHT BEVEL GEAR 12 | 1 | €19.48 | 1-4 weeks to ship | |
| 067 | GEAR COVER | 1 | Not available in store | |||
| 068 | 911526-6 | P.H.SCREW M4X16 WITH WRM | 2 | €0.56 | 1-4 weeks to ship | |
| 911526-6 | P.H.SCREW M4X16 WITH WRM | 2 | €0.56 | 1-4 weeks to ship | ||
| 069 | 911576-1 | PAN HEAD SCREW M4X50 | 3 | €0.56 | 1-4 weeks to ship | |
| 911576-1 | PAN HEAD SCREW M4X50 | 3 | €0.56 | 1-4 weeks to ship | ||
| 070 | 226434-1 | HELICAL GEAR 31 | 1 | €8.35 | 1-4 weeks to ship | |
| 071 | 233110-0 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 072 | 226725-0 | STRAIGHT BEVEL GEAR 14 | 1 | €27.83 | 1-4 weeks to ship | |
| 073 | 267131-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 322743-7 | CLUTCH CAM | 1 | €13.92 | 1-4 weeks to ship | |
| 075 | 233089-5 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 253744-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 226293-3 | SPUR GEAR 10 | 1 | €8.35 | 1-4 weeks to ship | |
| 078 | 211012-0 | BALL BEARING 606ZZ | 1 | €4.17 | 1-4 weeks to ship | |
| 079 | 213261-5 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 080 | 152471-8 | CHANGE LEVER COMPLETE | 1 | €0.83 | 1-4 weeks to ship | |
| 081 | 251392-2 | + PAN HEAD SCREW M4 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | 213720-9 | O RING 67 | 1 | €0.83 | 1-4 weeks to ship | |
| 083 | 152616-8 | INNER HOUSING COMPLETE | 1 | €37.29 | 1-4 weeks to ship | |
| 084 | 213953-6 | O RING 24 | 1 | €0.83 | 1-4 weeks to ship | |
| 085 | 210060-6 | BALL BEARING 609LLU | 1 | €2.78 | 1-4 weeks to ship | |
| 086 | 317332-1 | DUST GUARD | 1 | €11.13 | 1-4 weeks to ship | |
| 087 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 088 | 417158-2 | FAN HOUSING | 1 | €19.48 | 1-4 weeks to ship | |
| 089 | 421725-7 | DUSTPROOF SHEET | 1 | €8.35 | 1-4 weeks to ship | |
| 090 | 344853-0 | PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 091 | 241664-3 | FAN 56 | 1 | €19.76 | 1-4 weeks to ship | |
| 092 | 317334-7 | DUST COVER | 1 | €23.93 | 1-4 weeks to ship | |
| 093 | 267213-8 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 094 | 210054-1 | BALL BEARING 6000LLU | 1 | €8.35 | 1-4 weeks to ship | |
| 095 | 267213-8 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 096 | 240032-7 | FAN 60 | 1 | €5.98 | 1-4 weeks to ship | |
| 097 | 517353-5 | ARMATURE ASS'Y 220V | 1 | €89.06 | 1-4 weeks to ship | |
| 098 | 681600-1 | INSULATION WASHER | 1 | €2.09 | 1-4 weeks to ship | |
| 099 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 100 | 253842-3 | FLAT WASHER 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 101 | DUST BAG ASS'Y | 1 | Not available in store | |||
| 102 | 416970-7 | MOTOR HOUSING | 1 | €11.13 | 1-4 weeks to ship | |
| 103 | 852335-3 | NAME PLATE HR2430 | 1 | €2.78 | 1-4 weeks to ship | |
| 104 | 633313-0 | FIELD 220V | 1 | €13.92 | 1-4 weeks to ship | |
| 633313-0 | FIELD 220V | 1 | €13.92 | 1-4 weeks to ship | ||
| 105 | 415628-5 | BAFFLE PLATE | 1 | €2.78 | 1-4 weeks to ship | |
| 106 | 266052-3 | TAPPING SCREW 4X60 | 2 | €1.11 | 1-4 weeks to ship | |
| 108 | 643923-5 | BRUSH HOLDER | 2 | €1.11 | 1-4 weeks to ship | |
| 109 | 415627-7 | HANDLE COVER | 1 | €2.78 | 1-4 weeks to ship | |
| 110 | 266045-0 | TAPPING SCREW 4X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 111 | 415629-3 | SWITCH LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 113 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 116 | 665865-3 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €16.70 | 1-4 weeks to ship | |
| 117 | 645200-1 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
