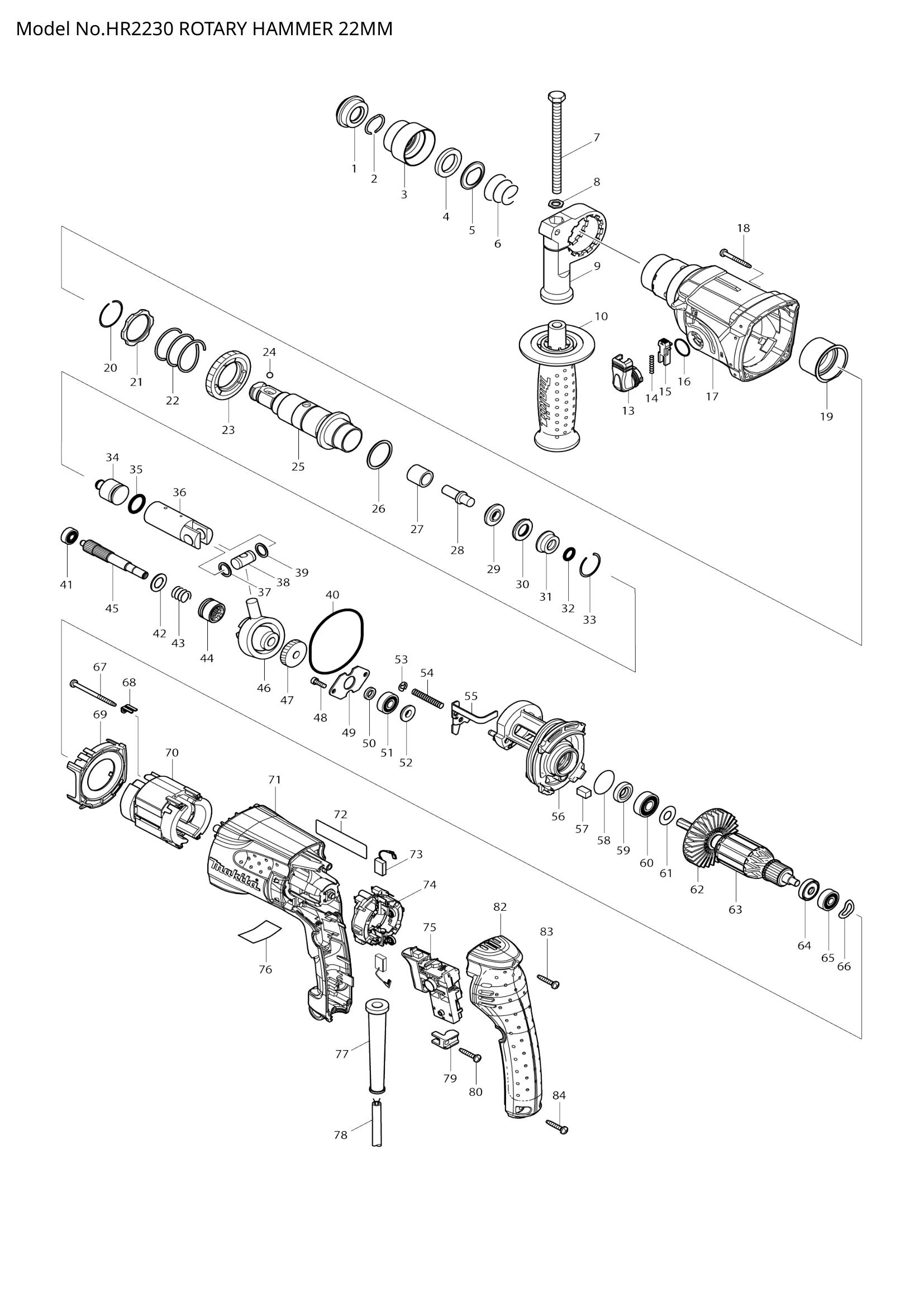

HR2230
HR2230
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286263-4 | CAP 35 | 1 | €1.11 | 1-4 weeks to ship | |
| 002 | 233940-9 | RING SPRING 19 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 417629-9 | CHUCK COVER | 1 | €0.56 | 1-4 weeks to ship | |
| 004 | 257241-1 | RING 21 | 1 | €0.83 | 1-4 weeks to ship | |
| 005 | 345187-4 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.56 | 1-4 weeks to ship | |
| 007 | 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | |
| 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | ||
| 008 | 345280-4 | HEX. WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 009 | 417630-4 | GRIP BASE | 1 | €1.39 | 1-4 weeks to ship | |
| 010 | 158057-6 | GRIP 36 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 013 | 162244-1 | CHANGE LEVER | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | 233459-8 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 419192-8 | LOCK BUTTON | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 017 | 158305-3 | GEAR HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 018 | 266351-3 | TAPPING SCREW 4X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 019 | 153290-5 | NEEDLE BEARING COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 020 | 233918-2 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 021 | 267805-3 | WASHER 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 233328-3 | COMPRESSION SPRING 31 | 1 | €0.83 | 1-4 weeks to ship | |
| 023 | 227019-6 | SPUR GEAR 51 | 1 | €5.57 | 1-4 weeks to ship | |
| 024 | 216022-2 | STEEL BALL 7.0 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 267229-3 | FLAT WASHER 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 027 | 331769-8 | SLEEVE 9 | 1 | €2.78 | 1-4 weeks to ship | |
| 028 | 324669-9 | IMPACT BOLT | 1 | €2.78 | 1-4 weeks to ship | |
| 029 | 324402-9 | RING 10 | 1 | €1.39 | 1-4 weeks to ship | |
| 030 | 421955-0 | CUSHION RING 13 | 1 | €0.83 | 1-4 weeks to ship | |
| 031 | 324216-6 | O RING CASE | 1 | €4.17 | 1-4 weeks to ship | |
| 032 | 213073-6 | O RING 9 | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | 233917-4 | RING SPRING 28 | 1 | €0.56 | 1-4 weeks to ship | |
| 034 | 324214-0 | STRIKER | 1 | €2.78 | 1-4 weeks to ship | |
| 035 | 213227-5 | O RING 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 036 | 317517-9 | PISTON CYLINDER | 1 | €11.13 | 1-4 weeks to ship | |
| 037 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 324215-8 | PISTON JOINT | 1 | €1.39 | 1-4 weeks to ship | |
| 039 | 267104-3 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 040 | 213727-5 | O-RING 63 | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 267212-0 | FLAT WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 233347-9 | COMPRESSION SPRING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 227182-5 | SPUR GEAR 10 | 1 | €5.57 | 1-4 weeks to ship | |
| 047 | 226656-3 | HELICAL GEAR 26 | 1 | €4.17 | 1-4 weeks to ship | |
| 048 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 049 | 345179-3 | BEARING RETAINER | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 267234-0 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 324212-4 | RING 8 | 1 | €2.78 | 1-4 weeks to ship | |
| 053 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 054 | 233388-5 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 058 | 213407-3 | O RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 210059-1 | BALL BEARING 6000DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 061 | 267213-8 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 062 | 240092-9 | FAN 64 | 1 | €0.83 | 1-4 weeks to ship | |
| 063 | 515284-2 | ARMATURE ASS'Y 240V | 1 | €25.05 | 1-4 weeks to ship | |
| 065 | 210023-2 | BALL BEARING 627DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 066 | 267804-5 | WAVE WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 266415-3 | TAPPING SCREW 4X55 | 2 | €0.56 | 1-4 weeks to ship | |
| 068 | 344871-8 | RETAINER | 2 | €0.56 | 1-4 weeks to ship | |
| 069 | 419716-0 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 419720-9 | MOTOR HOUSING | 1 | €12.52 | 1-4 weeks to ship | |
| 072 | 863508-3 | HR2230 NAME PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 073 | 194074-2 | CARBON BRUSH CB-325 | 1 | €1.39 | 1-4 weeks to ship | |
| 074 | 638500-6 | BRUSH HOLDER UNIT | 1 | €11.13 | 1-4 weeks to ship | |
| 075 | 650588-6 | SWITCH C3VA-2L-C | 1 | €16.70 | 1-4 weeks to ship | |
| 076 | 814954-3 | HR2230 SERIAL NO.LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 077 | 682566-8 | CORD GUARD 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 078 | 665890-4 | POWER SUPPLY CORD 1.0-2-4.0 | 1 | €25.05 | 1-4 weeks to ship | |
| 079 | 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 687260-7 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | ||
| 080 | 266324-6 | TAPPING SCREW 4X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 082 | 419717-8 | HANDLE COVER | 1 | €5.57 | 1-4 weeks to ship | |
| 083 | 266324-6 | TAPPING SCREW 4X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 084 | 266324-6 | TAPPING SCREW 4X22 | 2 | €0.56 | 1-4 weeks to ship |
