HR1800
HR1800

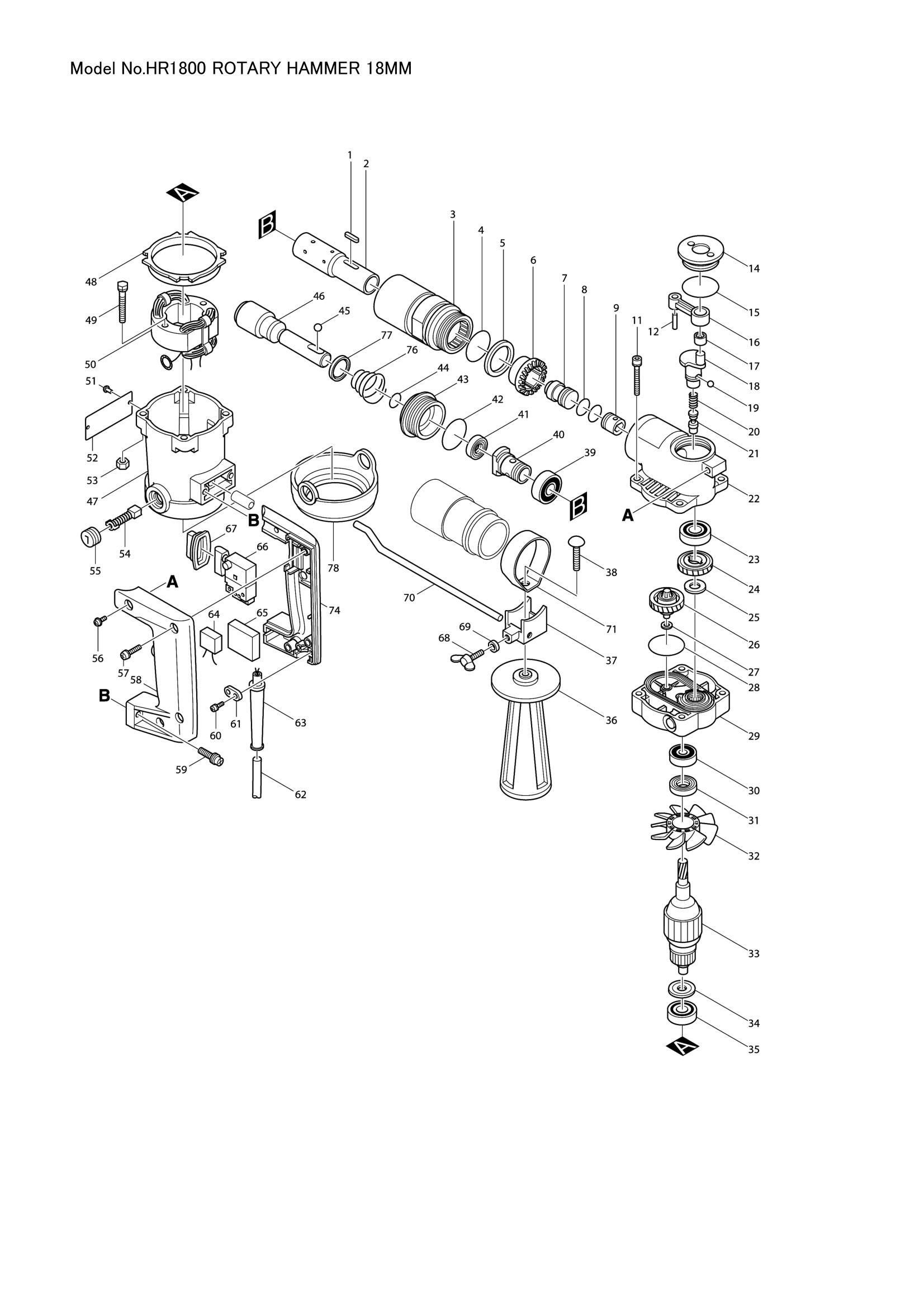

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 331193-5 | CYLINDER LINER 20 | 1 | €138.18 | 1-4 weeks to ship | |
| 003 | BARREL COMPLETE | 1 | Not available in store | |||
| 004 | 213507-9 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 253854-6 | FLAT WASHER 30 | 1 | €6.54 | 1-4 weeks to ship | |
| 006 | SPIRAL BEVEL GEAR 26 | 1 | Not available in store | |||
| 008 | 213214-4 | O RING 16 | 2 | €1.11 | 1-4 weeks to ship | |
| 009 | 321483-4 | PISTON | 1 | €11.13 | 1-4 weeks to ship | |
| 012 | 256123-4 | PIN 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 014 | CRANK CAP | 1 | Not available in store | |||
| 015 | 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 321489-2 | ROD | 1 | €22.54 | 1-4 weeks to ship | |
| 017 | 212005-0 | NEEDLE BEARING 810 | 1 | €4.17 | 1-4 weeks to ship | |
| 018 | 321485-0 | CRANK SHAFT | 1 | €58.16 | 1-4 weeks to ship | |
| 019 | 216011-7 | STEEL BALL 5.6 | 2 | €0.56 | 1-4 weeks to ship | |
| 020 | 231327-9 | COMPRESSION SPRING 6 | 1 | €2.09 | 1-4 weeks to ship | |
| 021 | 321484-2 | CHANGE PIN 8 | 1 | €3.34 | 1-4 weeks to ship | |
| 023 | BALL BEARING 6002 | 1 | Not available in store | |||
| 024 | 221705-1 | HELICAL GEAR 29 | 1 | €30.47 | 1-4 weeks to ship | |
| 025 | 253853-8 | FLAT WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 026 | 151153-9 | TORQUE LIMITER COMPLETE | 1 | €225.42 | 1-4 weeks to ship | |
| 027 | 253715-0 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 028 | 213707-1 | O RING 65 | 1 | €0.83 | 1-4 weeks to ship | |
| 029 | 156910-0 | GEAR HOUSING | 1 | €128.99 | 1-4 weeks to ship | |
| 030 | BALL BEARING 6200 | 1 | Not available in store | |||
| 031 | OIL SEAL 13 | 1 | Not available in store | |||
| 032 | 241820-5 | FAN 67 | 1 | €8.49 | 1-4 weeks to ship | |
| 034 | 681613-2 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 035 | 211033-2 | BALL BEARING 608LB | 1 | €4.17 | 1-4 weeks to ship | |
| 037 | 315145-4 | GRIP BASE | 1 | €5.57 | 1-4 weeks to ship | |
| 039 | 211304-7 | BALL BEARING 6004 | 1 | €11.13 | 1-4 weeks to ship | |
| 040 | HOLDER 27-37 | 1 | Not available in store | |||
| 041 | OIL SEAL 14 | 1 | Not available in store | |||
| 042 | 213507-9 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 043 | 321482-6 | SEAL HOLDER | 1 | €55.38 | 1-4 weeks to ship | |
| 044 | 213164-3 | O RING 14 | 1 | €2.92 | 1-4 weeks to ship | |
| 045 | 216011-7 | STEEL BALL 5.6 | 3 | €0.56 | 1-4 weeks to ship | |
| 048 | 410043-8 | BAFFLE PLATE | 1 | €5.57 | 1-4 weeks to ship | |
| 051 | 953106-2 | RIVET 0-5 | 2 | €0.56 | 1-4 weeks to ship | |
| 052 | 854795-5 | NAME PLATE HR1800 | 1 | €2.92 | 1-4 weeks to ship | |
| 053 | 931302-2 | HEX. NUT M6 | 4 | €0.56 | 1-4 weeks to ship | |
| 054 | 181038-5 | A.C. CARBON BRUSH CB-105 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 643600-9 | BRUSH HOLDER CAP 6-10 | 2 | €0.83 | 1-4 weeks to ship | |
| 056 | 911323-0 | PAN HEAD SCREW M6X16 | 2 | €0.56 | 1-4 weeks to ship | |
| 057 | 911238-1 | PAN HEAD SCREW M5X22 | 3 | €0.56 | 1-4 weeks to ship | |
| 058 | 181488-4 | HANDLE SET | 1 | €30.47 | 1-4 weeks to ship | |
| 059 | 911343-4 | PAN HEAD SCREW M6X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 061 | 687001-1 | STRAIN RELIEF | 1 | €2.09 | 1-4 weeks to ship | |
| 063 | 682505-8 | CORD GUARD 10-90 | 1 | €2.78 | 1-4 weeks to ship | |
| 065 | SPONGE SHEET | 1 | Not available in store | |||
| 068 | 924216-2 | WING BOLT M5X15 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 261042-1 | RUBBER WASHER 4.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | 321144-6 | DEPTH GAUGE | 1 | €1.11 | 1-4 weeks to ship | |
| 071 | 341539-7 | BELT | 1 | €5.01 | 1-4 weeks to ship | |
| 074 | 181488-4 | HANDLE SET | 1 | €30.47 | 1-4 weeks to ship | |
| 077 | 253982-7 | CUP WASHER 20 | 1 | €4.45 | 1-4 weeks to ship | |
| 078 | 421456-8 | PROTECTOR | 1 | €8.21 | 1-4 weeks to ship | |
| 400 | 163141-4 | CLAMP | 1 | €5.57 | 1-4 weeks to ship | |
| 403 | BLOW-OUT BULB 64 | 1 | Not available in store | |||
| 407 | DUST CUP 5 | 1 | Not available in store | |||
