HR166D
HR166D

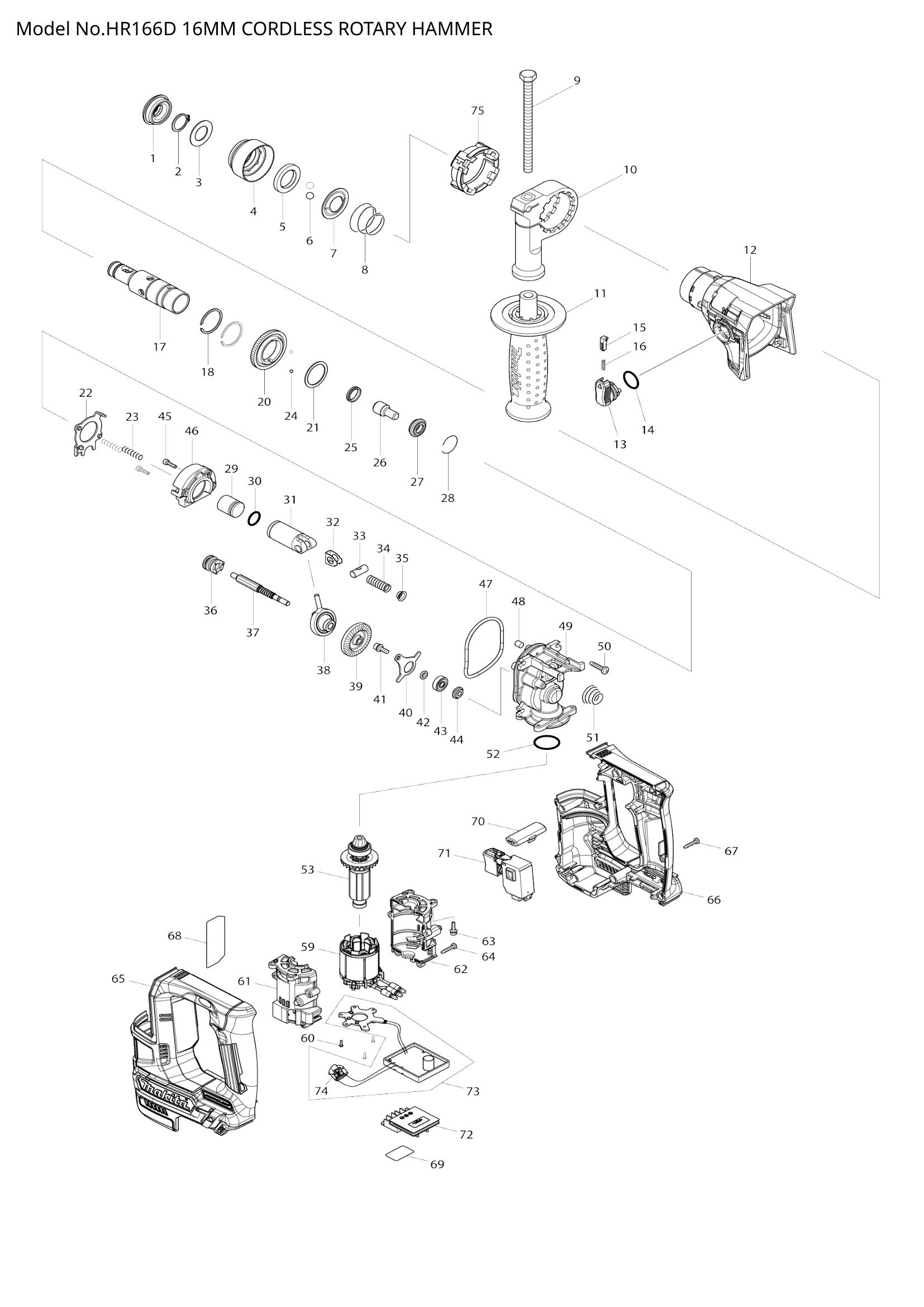

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286037-3 | CAP 34 | 1 | €0.70 | 1-4 weeks to ship | |
| 002 | 961057-5 | RETAINING RING S-17 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 253377-4 | FLAT WASHER 17 | 1 | €0.28 | 1-4 weeks to ship | |
| 004 | CHUCK COVER | 1 | Not available in store | |||
| 005 | 257416-2 | RING 21 | 1 | €0.97 | 1-4 weeks to ship | |
| 006 | 216022-2 | STEEL BALL 7.0 | 2 | €0.56 | 1-4 weeks to ship | |
| 007 | 346177-0 | GUIDE WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 008 | 232347-6 | CONICAL COMP. SPRING 21-29 | 1 | €0.14 | 1-4 weeks to ship | |
| 009 | 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | |
| 921923-8 | HEX. BOLT M8X120 | 1 | €0.83 | 1-4 weeks to ship | ||
| 010 | 417911-6 | GRIP BASE | 1 | €2.78 | 1-4 weeks to ship | |
| 011 | 158057-6 | GRIP 36 COMPLETE | 1 | €4.17 | 1-4 weeks to ship | |
| 012 | 144218-4 | GEAR HOUSING COMPLETE | 1 | €17.12 | 1-4 weeks to ship | |
| 013 | 161569-0 | CHANGE LEVER COMPLETE | 1 | €0.97 | 1-4 weeks to ship | |
| 014 | 213278-8 | O RING 17 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | 161568-2 | LOCK BUTTON COMPLETE | 1 | €0.97 | 1-4 weeks to ship | |
| 016 | 232344-2 | COMPRESSION SPRING 3 | 1 | €0.14 | 1-4 weeks to ship | |
| 018 | 961135-1 | RETAINING(EXT) WR-25 | 2 | €0.56 | 1-4 weeks to ship | |
| 961135-1 | RETAINING(EXT) WR-25 | 2 | €0.56 | 1-4 weeks to ship | ||
| 020 | 221483-3 | SPUR GEAR 57 | 1 | €5.57 | 1-4 weeks to ship | |
| 021 | 267175-0 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 022 | 161570-5 | CHANGE PLATE COMPLETE | 1 | €1.67 | 1-4 weeks to ship | |
| 023 | 233194-8 | COMPRESSION SPRING 4 | 2 | €2.09 | 1-4 weeks to ship | |
| 024 | 216019-1 | STEEL BALL 3 | 2 | €0.56 | 1-4 weeks to ship | |
| 025 | 213183-9 | X RING 13 | 1 | €0.70 | 1-4 weeks to ship | |
| 026 | 326843-5 | IMPACT BOLT | 1 | €1.11 | 1-4 weeks to ship | |
| 027 | 326842-7 | RING 10 | 1 | €1.11 | 1-4 weeks to ship | |
| 028 | 232343-4 | RING SPRING 23 | 1 | €0.14 | 1-4 weeks to ship | |
| 029 | 326844-3 | STRIKER | 1 | €2.37 | 1-4 weeks to ship | |
| 030 | 213128-7 | O RING 12 | 1 | €0.83 | 1-4 weeks to ship | |
| 031 | 319510-9 | PISTON CYLINDER | 1 | €5.29 | 1-4 weeks to ship | |
| 032 | 347101-6 | GUIDE PLATE | 1 | €0.28 | 1-4 weeks to ship | |
| 033 | 326846-9 | PISTON JOINT | 1 | €0.83 | 1-4 weeks to ship | |
| 034 | 232346-8 | COMPRESSION SPRING 8 | 1 | €0.14 | 1-4 weeks to ship | |
| 035 | 347102-4 | SPRING GUIDE | 1 | €0.28 | 1-4 weeks to ship | |
| 036 | 326845-1 | CLUTCH CAM | 1 | €3.20 | 1-4 weeks to ship | |
| 037 | 221482-5 | SPUR GEAR 8 | 1 | €4.45 | 1-4 weeks to ship | |
| 038 | 219026-3 | SWASH BEARING 6 | 1 | €11.27 | 1-4 weeks to ship | |
| 039 | 221481-7 | SPIRAL BEVEL GEAR 37 | 1 | €7.10 | 1-4 weeks to ship | |
| 040 | 347100-8 | BEARING RETAINER | 1 | €0.42 | 1-4 weeks to ship | |
| 041 | 266273-7 | HEX. SOCKET HEAD BOLT M4X12 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 257415-4 | RING 5 | 1 | €0.42 | 1-4 weeks to ship | |
| 044 | 326847-7 | RING 5 | 1 | €0.83 | 1-4 weeks to ship | |
| 045 | 265910-0 | HEX. SOCKET HEAD BOLT M3X12 | 2 | €0.83 | 1-4 weeks to ship | |
| 046 | 144219-2 | INNER SUPPORT COMPLETE | 1 | €5.84 | 1-4 weeks to ship | |
| 048 | 443138-2 | FILTER | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 051 | 232345-0 | CONICAL COMP. SPRING 8-19 | 1 | €0.28 | 1-4 weeks to ship | |
| 052 | 213008-7 | O RING 22.4 | 1 | €0.56 | 1-4 weeks to ship | |
| 059 | 629244-9 | STATOR | 1 | €13.64 | 1-4 weeks to ship | |
| 629244-9 | STATOR | 1 | €13.64 | 1-4 weeks to ship | ||
| 060 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | €0.14 | 1-4 weeks to ship | |
| 061 | 183G09-0 | MOTOR CASE SET | 1 | €4.31 | 1-4 weeks to ship | |
| 062 | 183G09-0 | MOTOR CASE SET | 1 | €4.31 | 1-4 weeks to ship | |
| 063 | 251510-2 | H. S. HEAD BOLT M3X12 WITH W | 4 | €0.42 | 1-4 weeks to ship | |
| 064 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 065 | 183G15-5 | HOUSING SET | 1 | €18.92 | 1-4 weeks to ship | |
| 066 | 183G15-5 | HOUSING SET | 1 | €18.92 | 1-4 weeks to ship | |
| 067 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | €0.56 | 1-4 weeks to ship | |
| 069 | HR166D SERIAL NO. LABEL | 1 | Not available in store | |||
| 070 | 457210-4 | F/R CHANGE LEVER | 1 | €0.83 | 1-4 weeks to ship | |
| 071 | 650689-0 | SWITCH C3JW-2B | 1 | €16.70 | 1-4 weeks to ship | |
| 072 | 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | |
| 644813-5 | TERMINAL | 1 | €2.50 | 1-4 weeks to ship | ||
| 073 | 620578-3 | CONTROLLER | 1 | €85.16 | 1-4 weeks to ship | |
| 620578-3 | CONTROLLER | 1 | €85.16 | 1-4 weeks to ship | ||
| 074 | 620553-9 | LED CIRCUIT | 1 | €5.98 | 1-4 weeks to ship | |
| 620553-9 | LED CIRCUIT | 1 | €5.98 | 1-4 weeks to ship | ||
