HR008G
HR008G

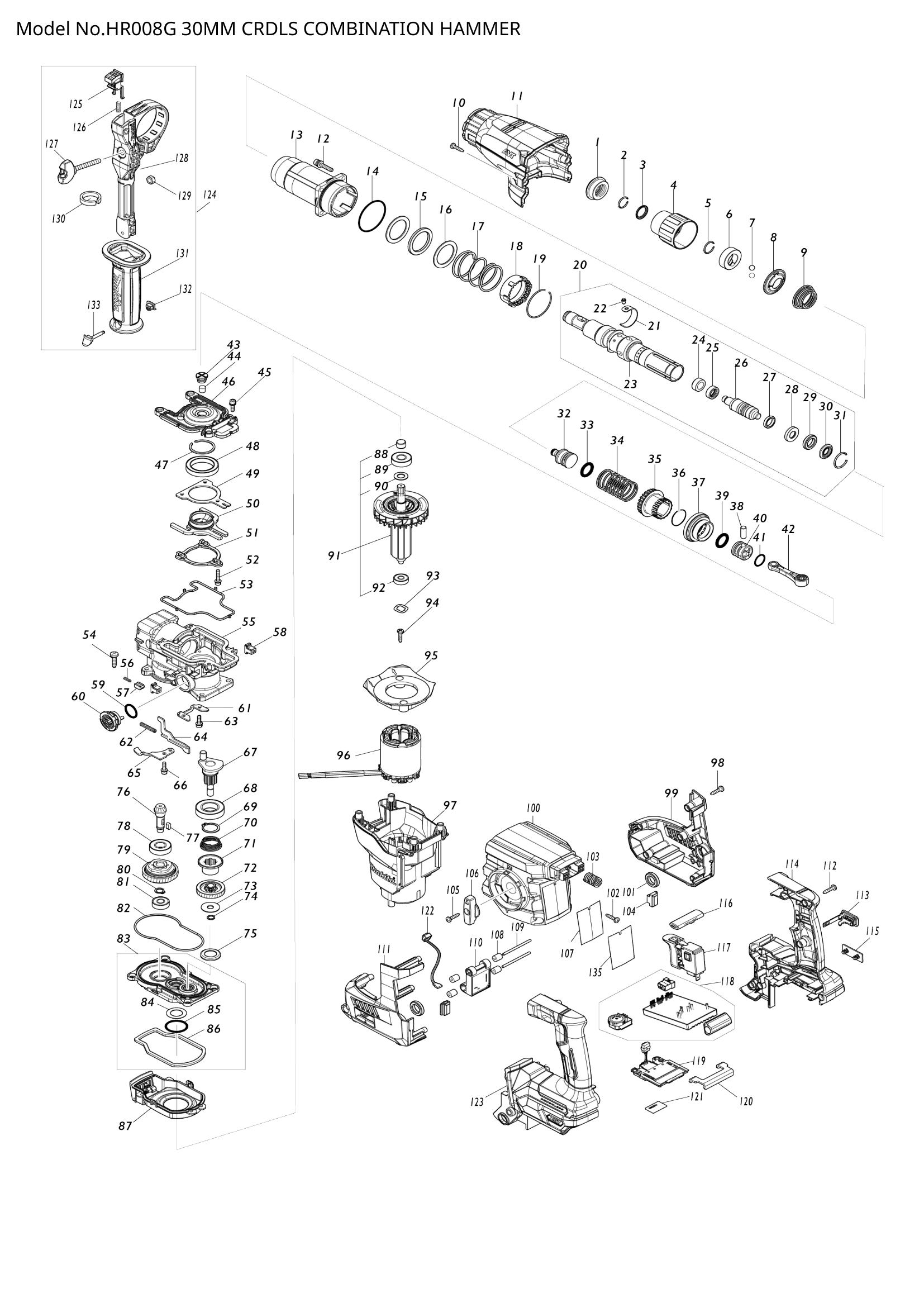

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 286288-8 | CAP 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 002 | 233989-9 | RING SPRING 14 | 1 | €0.56 | 1-4 weeks to ship | |
| 003 | 346834-0 | WASHER 16 | 1 | €0.42 | 1-4 weeks to ship | |
| 004 | CHUCK COVER | 1 | Not available in store | |||
| 005 | 233992-0 | RING SPRING 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 006 | 327269-4 | RING 17 | 1 | €4.17 | 1-4 weeks to ship | |
| 007 | 216022-2 | STEEL BALL 7.0 | 2 | €0.56 | 1-4 weeks to ship | |
| 008 | GUIDE WASHER | 1 | Not available in store | |||
| 009 | CONICAL COMP. SPRING 21-34 | 1 | Not available in store | |||
| 010 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 011 | BARREL COVER | 1 | Not available in store | |||
| 012 | HEX. S.H.B. M5X25 WITH WR | 4 | Not available in store | |||
| 013 | BARREL COMPLETE | 1 | Not available in store | |||
| 014 | 213620-3 | O RING 46 | 1 | €0.56 | 1-4 weeks to ship | |
| 015 | RUBBER RING 31 | 1 | Not available in store | |||
| 016 | 267354-0 | FLAT WASHER 31 | 2 | €0.56 | 1-4 weeks to ship | |
| 017 | COMPRESSION SPRING 37 | 1 | Not available in store | |||
| 018 | 419986-1 | LOCK SLEEVE | 1 | €0.83 | 1-4 weeks to ship | |
| 019 | 233952-2 | RING SPRING 41 | 1 | €0.56 | 1-4 weeks to ship | |
| 020 | 136312-6 | TOOL HOLDER ASS'Y | 1 | €59.83 | 1-4 weeks to ship | |
| 021 | LEAF SPRING | 1 | Not available in store | |||
| 022 | SHOULDER PIN 4 | 1 | Not available in store | |||
| 023 | TOOL HOLDER | 1 | Not available in store | |||
| 024 | SLEEVE 11 | 1 | Not available in store | |||
| 025 | RING 11 | 1 | Not available in store | |||
| 026 | 140S89-1 | IMPACT BOLT A COMPLETE | 1 | €9.04 | 1-4 weeks to ship | |
| 027 | 213880-7 | SEAL RING 12 | 1 | €1.11 | 1-4 weeks to ship | |
| 028 | RING 11 | 1 | Not available in store | |||
| 029 | 424267-0 | CUSHION RING 12 | 1 | €1.11 | 1-4 weeks to ship | |
| 030 | WASHER 11 | 1 | Not available in store | |||
| 031 | 231987-7 | RING SPRING 21 | 1 | €0.56 | 1-4 weeks to ship | |
| 032 | STRIKER | 1 | Not available in store | |||
| 033 | O RING 16 | 1 | Not available in store | |||
| 034 | COMPRESSION SPRING 27 | 1 | Not available in store | |||
| 035 | DRIVING SLEEVE | 1 | Not available in store | |||
| 036 | 232501-2 | RING SPRING 24 | 1 | €0.04 | 1-4 weeks to ship | |
| 037 | SPIRAL BEVEL GEAR 31 | 1 | Not available in store | |||
| 038 | PIN 7 | 1 | Not available in store | |||
| 039 | O RING 16 | 1 | Not available in store | |||
| 040 | PISTON | 1 | Not available in store | |||
| 041 | 213226-7 | O RING 16 | 1 | €1.11 | 1-4 weeks to ship | |
| 042 | CONNECTING ROD COMPLETE | 1 | Not available in store | |||
| 043 | FILTER CAP | 1 | Not available in store | |||
| 044 | 443153-6 | FELT | 1 | €0.56 | 1-4 weeks to ship | |
| 045 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 4 | €0.56 | 1-4 weeks to ship | |
| 046 | CRANK CAP | 1 | Not available in store | |||
| 047 | 961140-8 | RETAINING RING | 1 | €0.83 | 1-4 weeks to ship | |
| 048 | 211423-9 | BALL BEARING 6806DDW | 1 | €5.57 | 1-4 weeks to ship | |
| 049 | 347500-2 | BEARING RETAINER B | 1 | €1.04 | 1-4 weeks to ship | |
| 050 | COUNTER WEIGHT COMPLETE | 1 | Not available in store | |||
| 051 | WEIGHT RETAINER | 1 | Not available in store | |||
| 052 | 266948-8 | HEX S. H. BOLT M4X20 WITH WR | 3 | €0.28 | 1-4 weeks to ship | |
| 053 | SEAL RING B | 1 | Not available in store | |||
| 054 | 266021-4 | TAPPING SCREW 5X20 | 4 | €0.56 | 1-4 weeks to ship | |
| 055 | CRANK HOUSING COMPLETE | 1 | Not available in store | |||
| 056 | COMPRESSION SPRING 2 | 1 | Not available in store | |||
| 057 | PUSH CORN | 1 | Not available in store | |||
| 058 | 455165-7 | FIX GUIDE | 2 | €0.28 | 1-4 weeks to ship | |
| 455165-7 | FIX GUIDE | 2 | €0.28 | 1-4 weeks to ship | ||
| 059 | 213262-3 | O RING 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | LINK LEVER | 1 | Not available in store | |||
| 061 | BEARING RETAINER A | 1 | Not available in store | |||
| 062 | 234019-9 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 063 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 064 | 345814-3 | LINK PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 065 | GUIDE PLATE | 1 | Not available in store | |||
| 066 | 922123-3 | HEX. SOCKET HEAD BOLT M4X14 | 1 | €0.56 | 1-4 weeks to ship | |
| 067 | 140M22-7 | CRANK SHAFT COMPLETE | 1 | €9.68 | 1-4 weeks to ship | |
| 068 | 211323-3 | BALL BEARING 6904LLU | 1 | €13.92 | 1-4 weeks to ship | |
| 069 | 961060-6 | RETAINING RING S-20 | 1 | €0.56 | 1-4 weeks to ship | |
| 070 | CONICAL COMP. SPRING 21-26 | 1 | Not available in store | |||
| 071 | 327273-3 | CLUTCH | 1 | €3.63 | 1-4 weeks to ship | |
| 072 | 226869-6 | HELICAL GEAR 31 | 1 | €6.05 | 1-4 weeks to ship | |
| 073 | 267353-2 | FLAT WASHER 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 074 | 961034-7 | RETAINING RING | 1 | €0.56 | 1-4 weeks to ship | |
| 075 | 345818-5 | CUP WASHER 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 076 | 226867-0 | SPIRAL BEVEL GEAR 8 | 1 | €8.47 | 1-4 weeks to ship | |
| 077 | 254239-9 | KEY 4 | 1 | €1.11 | 1-4 weeks to ship | |
| 078 | 211131-2 | BALL BEARING 6001DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 079 | 125386-2 | TORQUE LIMITER ASS'Y | 1 | €52.88 | 1-4 weeks to ship | |
| 080 | 961006-2 | RETAINING RING S-10 | 1 | €0.56 | 1-4 weeks to ship | |
| 081 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 082 | 459181-1 | SEAL RING A | 1 | €0.56 | 1-4 weeks to ship | |
| 083 | GEAR HOUSING ASS'Y | 1 | Not available in store | |||
| 084 | 253749-3 | FLAT WASHER 16 | 1 | €0.56 | 1-4 weeks to ship | |
| 085 | 213445-5 | O-RING 26 | 1 | €0.56 | 1-4 weeks to ship | |
| 086 | SPONGE SHEET | 1 | Not available in store | |||
| 087 | AIR DUCT COMPLETE | 1 | Not available in store | |||
| 088 | 331775-3 | SLEEVE 10 | 1 | €0.83 | 1-4 weeks to ship | |
| 089 | 211097-6 | BALL BEARING 6000LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 090 | 253828-7 | FLAT WASHER 10 | 1 | €0.70 | 1-4 weeks to ship | |
| 091 | ROTOR ASS'Y | 1 | Not available in store | |||
| 092 | 210022-4 | BALL BEARING 626DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 093 | WAVE WASHER 12 | 1 | Not available in store | |||
| 094 | 266326-2 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 095 | BAFFLE PLATE | 1 | Not available in store | |||
| 096 | STATOR | 1 | Not available in store | |||
| 097 | MOTOR HOUSING COMPLETE | 1 | Not available in store | |||
| 098 | 266326-2 | TAPPING SCREW 4X18 | 5 | €0.56 | 1-4 weeks to ship | |
| 099 | HOUSING SET | 1 | Not available in store | |||
| 100 | HANDLE BASE | 1 | Not available in store | |||
| 101 | CUSHION RING 12 | 2 | Not available in store | |||
| 102 | 266326-2 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 103 | COMPRESSION SPRING 10 | 1 | Not available in store | |||
| 104 | BATTERY CUSHION | 2 | Not available in store | |||
| 105 | 266326-2 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 106 | CHANGE LEVER | 1 | Not available in store | |||
| 107 | HR008G NAME PLATE | 1 | Not available in store | |||
| 108 | SPONGE SLEEVE 3 | 4 | Not available in store | |||
| 109 | ROD 3 | 2 | Not available in store | |||
| 110 | ACCELEROMETER CIRCUIT | 1 | Not available in store | |||
| 111 | HOUSING SET | 1 | Not available in store | |||
| 112 | 266326-2 | TAPPING SCREW 4X18 | 6 | €0.56 | 1-4 weeks to ship | |
| 113 | CAP COMPLETE | 1 | Not available in store | |||
| 114 | HANDLE SET | 1 | Not available in store | |||
| 115 | CAP | 1 | Not available in store | |||
| 116 | 453124-5 | F/R CHANGE LEVER | 1 | €0.42 | 1-4 weeks to ship | |
| 117 | 651439-6 | SWITCH C3JR-4B-2 | 1 | €23.88 | 1-4 weeks to ship | |
| 118 | CONTROLLER | 1 | Not available in store | |||
| 119 | 632P65-6 | TERMINAL UNIT | 1 | €9.41 | 1-4 weeks to ship | |
| 120 | SUPPORT PLATE | 1 | Not available in store | |||
| 121 | HR008G SERIAL NO. LABEL | 1 | Not available in store | |||
| 122 | LED CIRCUIT | 1 | Not available in store | |||
| 123 | HANDLE SET | 1 | Not available in store | |||
| 124 | 126882-3 | GRIP ASSEMBLY | 1 | €17.67 | 1-4 weeks to ship | |
| 125 | LOCK BUTTON COMPLETE | 1 | Not available in store | |||
| 126 | 233360-7 | COMPRESSION SPRING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 127 | THUMB SCREW M6X50 | 1 | Not available in store | |||
| 128 | SIDE HANDLE BASE | 1 | Not available in store | |||
| 129 | 931302-2 | HEX. NUT M6 | 1 | €0.56 | 1-4 weeks to ship | |
| 130 | SPONGE SHEET | 1 | Not available in store | |||
| 131 | GRIP 36 | 1 | Not available in store | |||
| 132 | CAP | 1 | Not available in store | |||
| 133 | FIX PIN | 1 | Not available in store | |||
