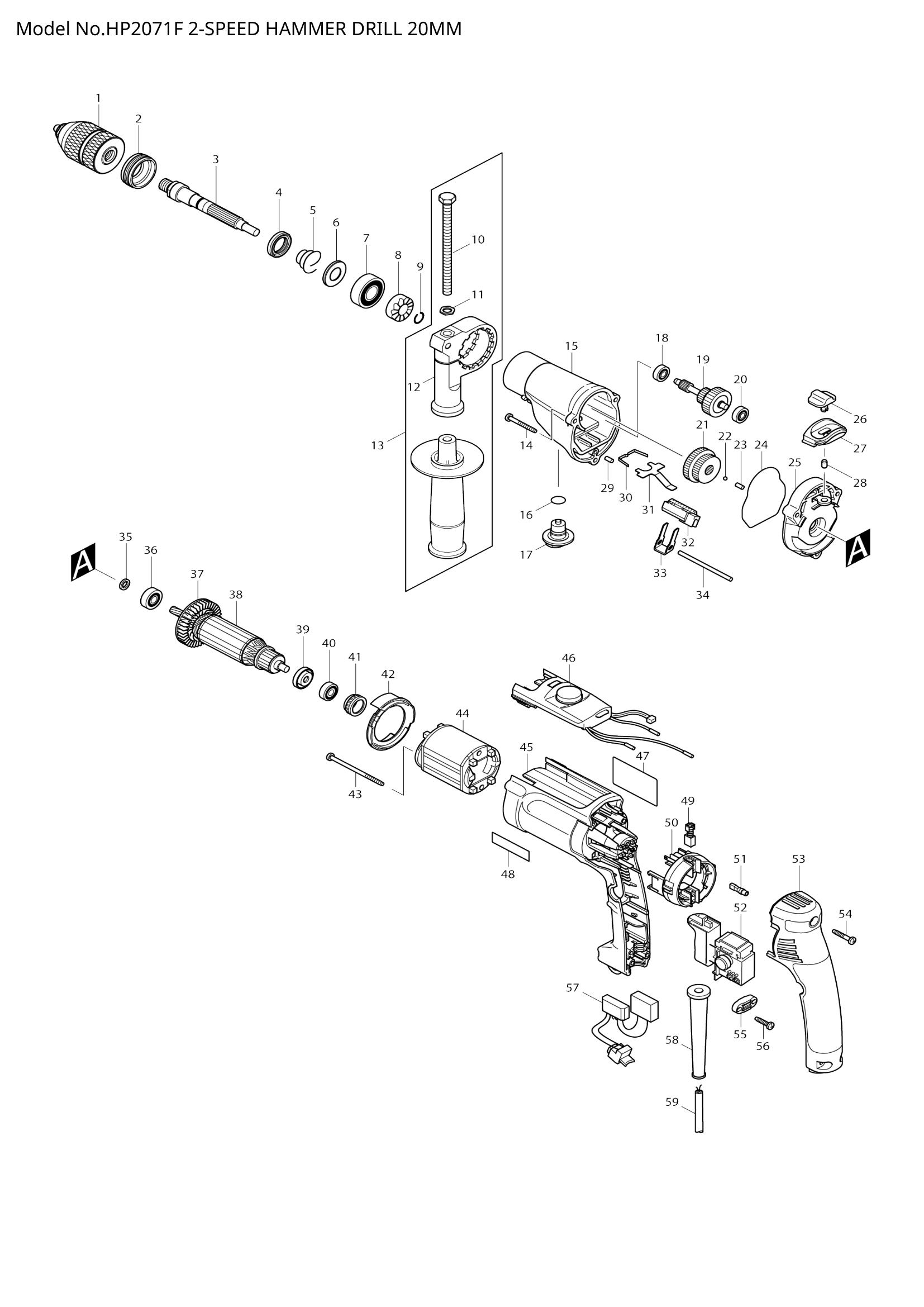

HP2071F
HP2071F
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 002 | 285839-4 | BEARING RETAINER | 1 | €2.78 | 1-4 weeks to ship | |
| 285839-4 | BEARING RETAINER | 1 | €2.78 | 1-4 weeks to ship | ||
| 003 | 324247-5 | SPINDLE | 1 | €13.92 | 1-4 weeks to ship | |
| 324247-5 | SPINDLE | 1 | €13.92 | 1-4 weeks to ship | ||
| 004 | 213314-0 | OIL SEAL 19 | 1 | €1.11 | 1-4 weeks to ship | |
| 213314-0 | OIL SEAL 19 | 1 | €1.11 | 1-4 weeks to ship | ||
| 005 | 233921-3 | CONICAL COMPRESSION SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 233921-3 | CONICAL COMPRESSION SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 006 | 345224-4 | CUP WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | |
| 345224-4 | CUP WASHER 15 | 1 | €0.56 | 1-4 weeks to ship | ||
| 007 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | ||
| 008 | 223141-7 | CAM A | 1 | €2.78 | 1-4 weeks to ship | |
| 223141-7 | CAM A | 1 | €2.78 | 1-4 weeks to ship | ||
| 009 | 233920-5 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | |
| 233920-5 | RING SPRING 11 | 1 | €0.56 | 1-4 weeks to ship | ||
| 011 | 345280-4 | HEX. WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 345280-4 | HEX. WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 014 | 266053-1 | TAPPING SCREW 4X35 | 3 | €0.56 | 1-4 weeks to ship | |
| 266053-1 | TAPPING SCREW 4X35 | 3 | €0.56 | 1-4 weeks to ship | ||
| 015 | 153621-8 | GEAR HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | |
| 153621-8 | GEAR HOUSING COMPLETE | 1 | €13.92 | 1-4 weeks to ship | ||
| 016 | 213122-9 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 213122-9 | O RING 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 417805-5 | CHANGE LEVER B | 1 | €0.83 | 1-4 weeks to ship | |
| 417805-5 | CHANGE LEVER B | 1 | €0.83 | 1-4 weeks to ship | ||
| 019 | 153622-6 | GEAR COMPLETE | 1 | €27.83 | 1-4 weeks to ship | |
| 153622-6 | GEAR COMPLETE | 1 | €27.83 | 1-4 weeks to ship | ||
| 022 | 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | |
| 216001-0 | STEEL BALL 3.5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 023 | 256251-5 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 256251-5 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 024 | 421810-6 | SEAL RING | 1 | €0.83 | 1-4 weeks to ship | |
| 421810-6 | SEAL RING | 1 | €0.83 | 1-4 weeks to ship | ||
| 025 | 153620-0 | GEAR HOUSING COVER COMPLE | 1 | €13.92 | 1-4 weeks to ship | |
| 153620-0 | GEAR HOUSING COVER COMPLE | 1 | €13.92 | 1-4 weeks to ship | ||
| 026 | 418083-0 | CHANGE LEVER A | 1 | €0.56 | 1-4 weeks to ship | |
| 418083-0 | CHANGE LEVER A | 1 | €0.56 | 1-4 weeks to ship | ||
| 027 | 417802-1 | LEVER CASE | 1 | €0.83 | 1-4 weeks to ship | |
| 417802-1 | LEVER CASE | 1 | €0.83 | 1-4 weeks to ship | ||
| 028 | 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 263002-9 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 029 | 256251-5 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 256251-5 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 030 | 232143-2 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 232143-2 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | ||
| 031 | 345225-2 | LOCK PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 345225-2 | LOCK PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 032 | 417804-7 | RACK 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 417804-7 | RACK 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 033 | 345223-6 | CHANGE PLATE B | 1 | €0.56 | 1-4 weeks to ship | |
| 345223-6 | CHANGE PLATE B | 1 | €0.56 | 1-4 weeks to ship | ||
| 034 | 268092-7 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 268092-7 | PIN 4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 036 | 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | |
| 210005-4 | BALL BEARING 608DDW | 1 | €2.78 | 1-4 weeks to ship | ||
| 037 | 240065-2 | FAN 52 | 1 | €1.39 | 1-4 weeks to ship | |
| 240065-2 | FAN 52 | 1 | €1.39 | 1-4 weeks to ship | ||
| 038 | 517464-6 | ARMATURE ASS'Y 220-240V | 1 | €52.88 | 1-4 weeks to ship | |
| 517464-6 | ARMATURE ASS'Y 220-240V | 1 | €52.88 | 1-4 weeks to ship | ||
| 517464-6 | ARMATURE ASS'Y 220-240V | 1 | €52.88 | 1-4 weeks to ship | ||
| 517464-6 | ARMATURE ASS'Y 220-240V | 1 | €52.88 | 1-4 weeks to ship | ||
| 039 | 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | |
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 681636-0 | INSULATION WASHER | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | |
| 211021-9 | BALL BEARING 607LLB | 1 | €5.57 | 1-4 weeks to ship | ||
| 041 | 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | |
| 421494-0 | RUBBER RING 19 | 1 | €4.17 | 1-4 weeks to ship | ||
| 042 | 418269-6 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | |
| 418269-6 | BAFFLE PLATE | 1 | €0.56 | 1-4 weeks to ship | ||
| 043 | 266004-4 | TAPPING SCREW 4X70 | 2 | €1.11 | 1-4 weeks to ship | |
| 266004-4 | TAPPING SCREW 4X70 | 2 | €1.11 | 1-4 weeks to ship | ||
| 044 | 633573-4 | FIELD 220-240V | 1 | €22.26 | 1-4 weeks to ship | |
| 633573-4 | FIELD 220-240V | 1 | €22.26 | 1-4 weeks to ship | ||
| 633573-4 | FIELD 220-240V | 1 | €22.26 | 1-4 weeks to ship | ||
| 633573-4 | FIELD 220-240V | 1 | €22.26 | 1-4 weeks to ship | ||
| 046 | 631534-8 | CONTROLLER | 1 | €52.88 | 1-4 weeks to ship | |
| 631534-8 | CONTROLLER | 1 | €52.88 | 1-4 weeks to ship | ||
| 047 | 850579-9 | NAME PLATE HP2071F | 1 | €0.56 | 1-4 weeks to ship | |
| 850579-9 | NAME PLATE HP2071F | 1 | €0.56 | 1-4 weeks to ship | ||
| 048 | 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | |
| 819063-3 | MAKITA LABEL | 1 | €0.56 | 1-4 weeks to ship | ||
| 051 | 686038-5 | RECEPTACLE SLEEVE | 2 | €0.56 | 1-4 weeks to ship | |
| 686038-5 | RECEPTACLE SLEEVE | 2 | €0.56 | 1-4 weeks to ship | ||
| 052 | 650212-1 | SWITCH TG813TB-4 | 1 | €19.48 | 1-4 weeks to ship | |
| 650212-1 | SWITCH TG813TB-4 | 1 | €19.48 | 1-4 weeks to ship | ||
| 650212-1 | SWITCH TG813TB-4 | 1 | €19.48 | 1-4 weeks to ship | ||
| 650212-1 | SWITCH TG813TB-4 | 1 | €19.48 | 1-4 weeks to ship | ||
| 054 | 265999-8 | TAPPING SCREW 4X25 | 3 | €0.56 | 1-4 weeks to ship | |
| 265999-8 | TAPPING SCREW 4X25 | 3 | €0.56 | 1-4 weeks to ship | ||
| 056 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | ||
| 057 | 631545-3 | LIGHT CIRCUIT | 1 | €27.83 | 1-4 weeks to ship | |
| 631545-3 | LIGHT CIRCUIT | 1 | €27.83 | 1-4 weeks to ship | ||
| 631545-3 | LIGHT CIRCUIT | 1 | €27.83 | 1-4 weeks to ship | ||
| 631545-3 | LIGHT CIRCUIT | 1 | €27.83 | 1-4 weeks to ship | ||
| 058 | 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | |
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 682559-5 | CORD GUARD 8 | 1 | €0.83 | 1-4 weeks to ship | ||
| 059 | 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship | |
| 665394-6 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | €9.04 | 1-4 weeks to ship |
