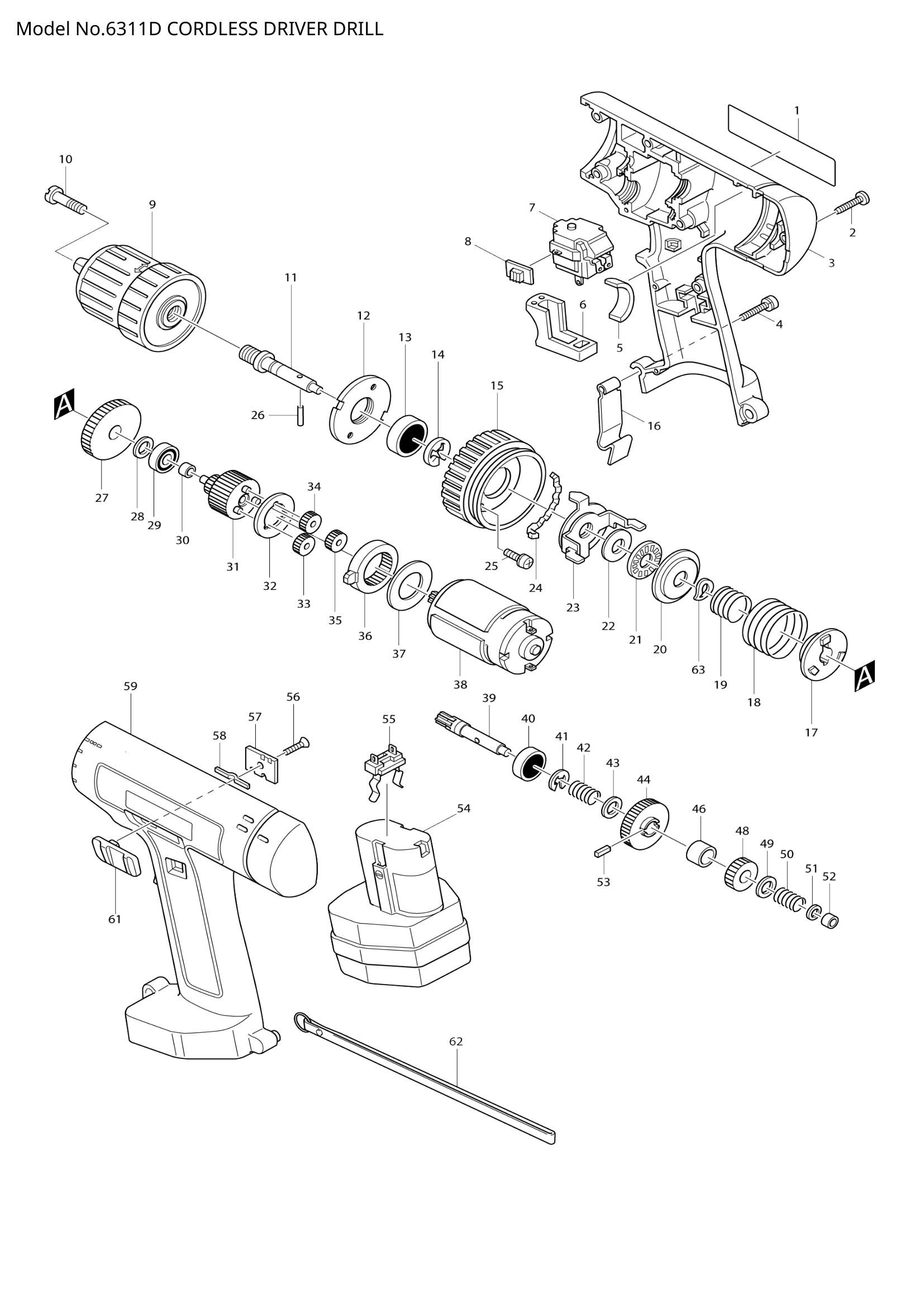

6311D
6311D
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 857037-6 | NAME PLATE 6311D | 1 | €2.78 | 1-4 weeks to ship | |
| 004 | 911143-2 | PAN HEAD SCREW M4X22 | 1 | €0.56 | 1-4 weeks to ship | |
| 005 | 835244-1 | SPONGE 14-72 | 2 | €2.09 | 1-4 weeks to ship | |
| 008 | 414740-8 | LEVER | 1 | €2.78 | 1-4 weeks to ship | |
| 010 | 251425-3 | - FLAT HEAD SCREW M6X22 | 1 | €1.11 | 1-4 weeks to ship | |
| 011 | 322540-1 | SPINDLE | 1 | €20.73 | 1-4 weeks to ship | |
| 012 | BEARING RETAINER 17 | 1 | Not available in store | |||
| 013 | 211061-7 | BALL BEARING 6000LLB | 1 | €2.78 | 1-4 weeks to ship | |
| 014 | 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | |
| 961015-1 | STOP RING E-9 | 1 | €0.28 | 1-4 weeks to ship | ||
| 015 | 415013-2 | CHANGE RING | 1 | €8.35 | 1-4 weeks to ship | |
| 016 | SET PLATE | 1 | Not available in store | |||
| 017 | 223090-8 | CLUTCH CAM | 1 | €30.47 | 1-4 weeks to ship | |
| 018 | 233044-7 | COMPRESSION SPRING 27 | 1 | €2.78 | 1-4 weeks to ship | |
| 020 | WASHER 10 | 1 | Not available in store | |||
| 021 | THRUST NEEDLE CAGE 1023 | 1 | Not available in store | |||
| 022 | 253180-3 | FLAT WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
| 023 | 165024-4 | SLIDER | 1 | €8.35 | 1-4 weeks to ship | |
| 024 | 343976-1 | CAM PLATE | 2 | €4.45 | 1-4 weeks to ship | |
| 025 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | €0.56 | 1-4 weeks to ship | |
| 026 | 256054-7 | PIN 4 | 1 | €0.42 | 1-4 weeks to ship | |
| 027 | 226250-1 | SPUR GEAR 49 | 1 | €17.53 | 1-4 weeks to ship | |
| 028 | 267100-1 | FLAT WASHER 6 | 1 | €0.56 | 1-4 weeks to ship | |
| 029 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 030 | 214019-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 031 | GEAR COMPLETE | 1 | Not available in store | |||
| 032 | 267098-2 | FLAT WASHER 16 | 1 | €0.83 | 1-4 weeks to ship | |
| 033 | SPUR GEAR 15 | 1 | Not available in store | |||
| 034 | SPUR GEAR 15 | 1 | Not available in store | |||
| 035 | SPUR GEAR 15 | 1 | Not available in store | |||
| 036 | 226248-8 | INTERNAL GEAR 48 | 1 | €11.13 | 1-4 weeks to ship | |
| 037 | 253794-8 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 038 | 629636-2 | DC MOTOR 12V | 1 | €69.58 | 1-4 weeks to ship | |
| 039 | SPUR GEAR 8 | 1 | Not available in store | |||
| 040 | 211031-6 | BALL BEARING 608LLB | 1 | €1.67 | 1-4 weeks to ship | |
| 041 | 961013-5 | STOP RING E-7 | 1 | €0.56 | 1-4 weeks to ship | |
| 042 | 233041-3 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 233041-3 | COMPRESSION SPRING 8 | 1 | €0.56 | 1-4 weeks to ship | |
| 051 | 267099-0 | FLAT WASHER 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 052 | 214019-5 | PLANE BEARING 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 254236-5 | KEY 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 055 | 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | |
| 643909-9 | BATTERY HOLDER | 1 | €1.39 | 1-4 weeks to ship | ||
| 056 | +COUNTERSUNK HEAD SCREW M | 1 | Not available in store | |||
| 058 | 232053-3 | LEAF SPRING | 1 | €0.56 | 1-4 weeks to ship | |
| 061 | LEVER | 1 | Not available in store | |||
| 063 | 253932-2 | WAVE WASHER 10 | 1 | €0.56 | 1-4 weeks to ship | |
