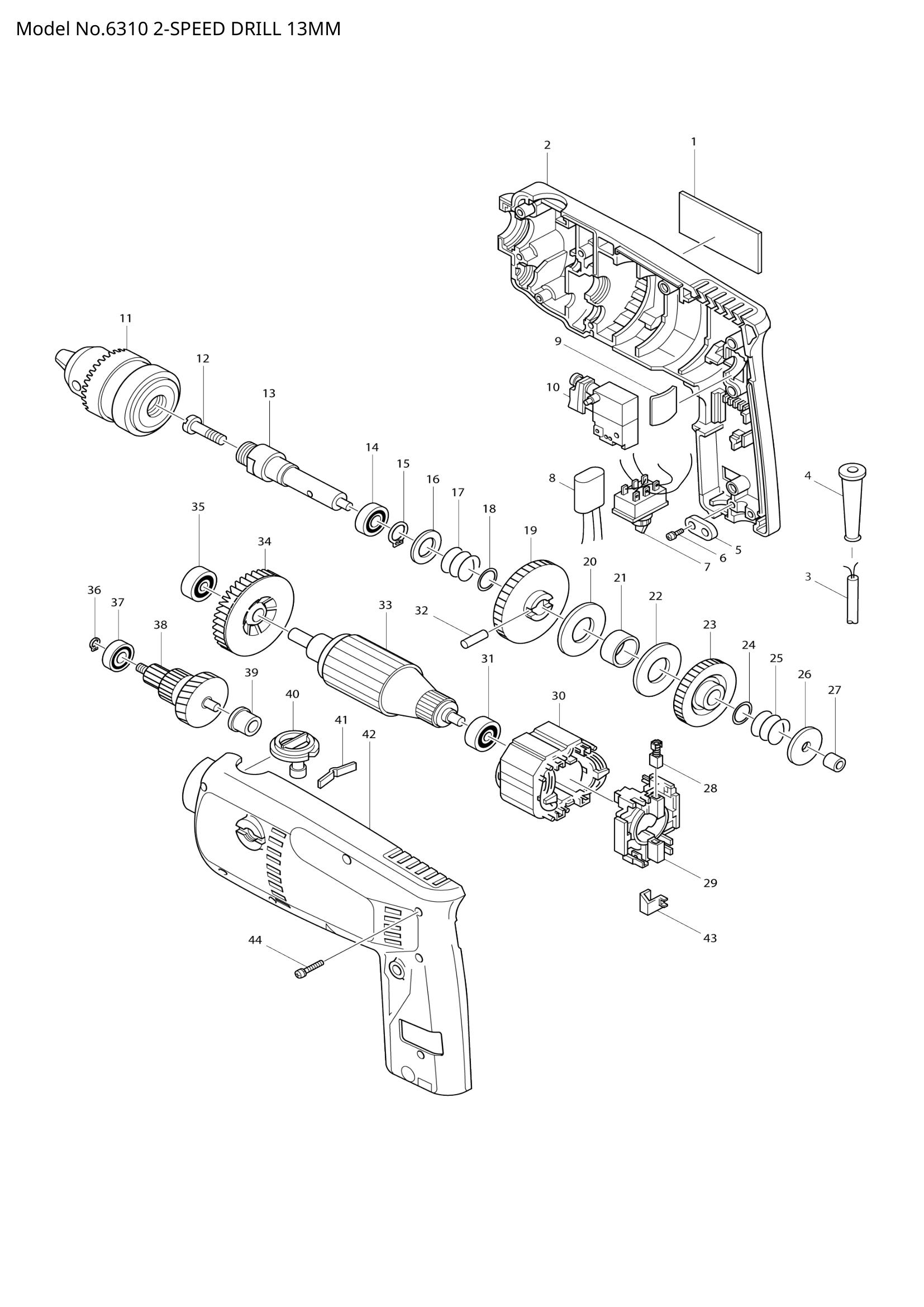

6310
6310
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 856175-1 | NAME PLATE 6310 | 1 | €2.78 | 1-4 weeks to ship | |
| 006 | 911133-5 | PAN HEAD SCREW M4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 009 | 232104-2 | LEAF SPRING | 1 | €2.78 | 1-4 weeks to ship | |
| 012 | 251425-3 | - FLAT HEAD SCREW M6X22 | 1 | €1.11 | 1-4 weeks to ship | |
| 013 | 322212-8 | SPINDLE | 1 | €36.18 | 1-4 weeks to ship | |
| 014 | 211201-7 | BALL BEARING 6002LLB | 1 | €6.96 | 1-4 weeks to ship | |
| 015 | 961055-9 | RETAINING RING S-15 | 1 | €0.56 | 1-4 weeks to ship | |
| 016 | 253781-7 | FLAT WASHER 15 | 1 | €2.78 | 1-4 weeks to ship | |
| 017 | 231458-4 | COMPRESSION SPRING 18 | 1 | €2.09 | 1-4 weeks to ship | |
| 018 | 253343-1 | THIN WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 019 | 221983-3 | SPUR GEAR 53 | 1 | €41.19 | 1-4 weeks to ship | |
| 020 | 253342-3 | THIN WASHER 18 | 1 | €2.78 | 1-4 weeks to ship | |
| 021 | 257155-4 | RING 18 | 1 | €4.45 | 1-4 weeks to ship | |
| 022 | 253342-3 | THIN WASHER 18 | 1 | €2.78 | 1-4 weeks to ship | |
| 023 | 221982-5 | SPUR GEAR 42 | 1 | €25.05 | 1-4 weeks to ship | |
| 024 | 253343-1 | THIN WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 025 | 231458-4 | COMPRESSION SPRING 18 | 1 | €2.09 | 1-4 weeks to ship | |
| 026 | 253196-8 | FLAT WASHER 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 027 | 214004-8 | PLANE BEARING 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 032 | 256188-6 | PIN 5 | 1 | €2.09 | 1-4 weeks to ship | |
| 034 | 241844-1 | FAN 52 | 1 | €5.43 | 1-4 weeks to ship | |
| 036 | 961002-0 | RETAINING RING S-6 | 1 | €0.56 | 1-4 weeks to ship | |
| 037 | 211016-2 | BALL BEARING 626LLB | 1 | €4.17 | 1-4 weeks to ship | |
| 038 | 226090-7 | GEAR COMPLETE 9-20-45 | 1 | €52.88 | 1-4 weeks to ship | |
| 039 | 152329-1 | NEEDLE BEARING 609 COMPLET | 1 | €9.18 | 1-4 weeks to ship | |
| 040 | SHIFTER | 1 | Not available in store | |||
| 041 | 232101-8 | LEAF SPRING | 1 | €1.11 | 1-4 weeks to ship | |
| 043 | TERMINAL CAP | 1 | Not available in store | |||
| 044 | 911153-9 | PAN HEAD SCREW M4X28 | 9 | €0.56 | 1-4 weeks to ship | |
| 401 | 251851-6 | SCREW M5X7 | 1 | €2.92 | 1-4 weeks to ship | |
| 402 | 286226-0 | CAP 20 | 1 | €2.09 | 1-4 weeks to ship | |
| 403 | DEPTH GAUGE ASS'Y | 1 | Not available in store | |||
| 404 | 164549-5 | STOPPER HOLDER | 1 | €10.02 | 1-4 weeks to ship | |
