HM1511
HM1511

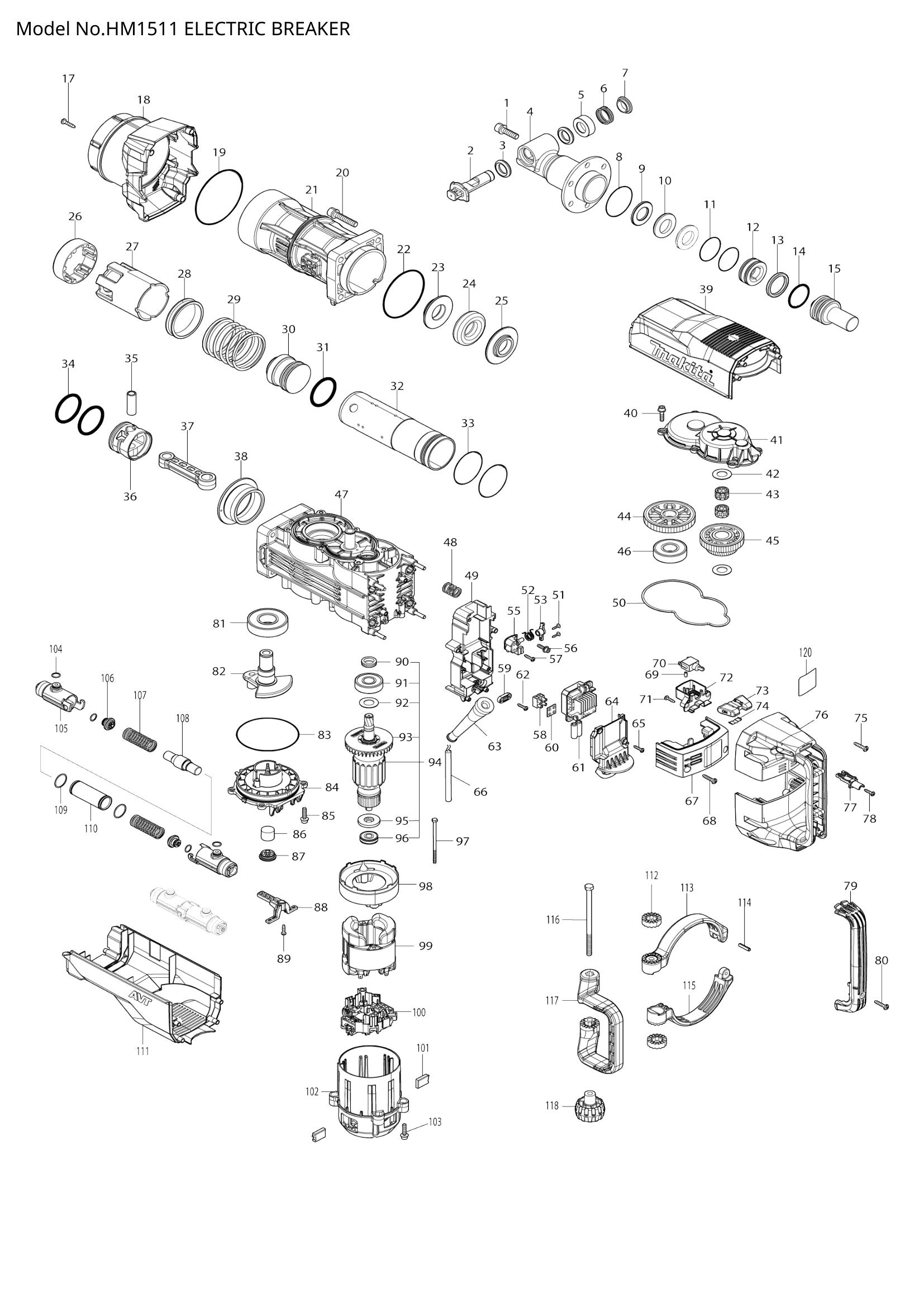

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | H.S HEAD BOLT M10X35 WM | 6 | Not available in store | |||
| 002 | TOOL RETAINER | 1 | Not available in store | |||
| 003 | RUBBER RING 20 | 2 | Not available in store | |||
| 004 | TOOL HOLDER A | 1 | Not available in store | |||
| 005 | SPRING BASE B | 1 | Not available in store | |||
| 006 | COMPRESSION SPRING 28 | 1 | Not available in store | |||
| 007 | RETAINER SLEEVE | 1 | Not available in store | |||
| 008 | 213670-8 | O RING 58 | 1 | €1.11 | 1-4 weeks to ship | |
| 009 | FLAT WASHER 26 | 1 | Not available in store | |||
| 011 | 213569-7 | O RING 45 | 2 | €0.56 | 1-4 weeks to ship | |
| 012 | RING 24 | 1 | Not available in store | |||
| 013 | X-RING 38 | 1 | Not available in store | |||
| 014 | O-RING 40 | 1 | Not available in store | |||
| 015 | IMPACT BOLT A | 1 | Not available in store | |||
| 017 | 266041-8 | TAPPING SCREW 5X25 | 4 | €0.56 | 1-4 weeks to ship | |
| 018 | BARREL COVER | 1 | Not available in store | |||
| 019 | O-RING106 | 1 | Not available in store | |||
| 020 | H.S HEAD BOLT M10X50 WM | 4 | Not available in store | |||
| 021 | BARREL | 1 | Not available in store | |||
| 022 | 213806-9 | O RING 90 | 1 | €1.11 | 1-4 weeks to ship | |
| 023 | SHOULDER RING 30 B | 1 | Not available in store | |||
| 024 | RUBBER RING 31 | 1 | Not available in store | |||
| 025 | SHOULDER RING 30 A | 1 | Not available in store | |||
| 026 | GUIDE RING | 1 | Not available in store | |||
| 027 | SLIDE SLEEVE | 1 | Not available in store | |||
| 028 | SLEEVE 65 | 1 | Not available in store | |||
| 029 | COMPRESSION SPRING 66 | 1 | Not available in store | |||
| 030 | STRIKER | 1 | Not available in store | |||
| 031 | O-RING 48 | 1 | Not available in store | |||
| 032 | CYLINDER 59 | 1 | Not available in store | |||
| 033 | 213656-2 | O RING 53 | 2 | €0.83 | 1-4 weeks to ship | |
| 034 | O-RING 48 | 2 | Not available in store | |||
| 035 | PIPE 15 | 1 | Not available in store | |||
| 036 | PISTON | 1 | Not available in store | |||
| 037 | CONNECTING ROD | 1 | Not available in store | |||
| 038 | SPACER | 1 | Not available in store | |||
| 039 | TOP COVER | 1 | Not available in store | |||
| 040 | 266923-4 | H.S.HEAD BOLT M6X25 WITH GM | 6 | €0.70 | 1-4 weeks to ship | |
| 041 | GEAR COVER | 1 | Not available in store | |||
| 042 | 267487-1 | FLAT WASHER 17 | 2 | €0.70 | 1-4 weeks to ship | |
| 043 | NEEDLE CAGE 1715 | 2 | Not available in store | |||
| 044 | HELICAL GEAR 53 | 1 | Not available in store | |||
| 045 | GEAR COMPLETE 31-45 | 1 | Not available in store | |||
| 046 | BALL BEARING 2216LLB | 1 | Not available in store | |||
| 047 | CRANK HOUSING A COMPLETE | 1 | Not available in store | |||
| 048 | COMPRESSION SPRING 16 A | 4 | Not available in store | |||
| 049 | CONTROLLER CASE | 1 | Not available in store | |||
| 050 | SEAL RING | 1 | Not available in store | |||
| 051 | TAPPING SCREW 3X14 | 2 | Not available in store | |||
| 052 | TORSION SPRING 13 | 1 | Not available in store | |||
| 053 | LEVER COMPLETE | 1 | Not available in store | |||
| 055 | BASE | 1 | Not available in store | |||
| 056 | HEX.S.HEAD BOLT M5X20 WITH | 2 | Not available in store | |||
| 057 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 058 | TERMINAL BLOCK | 2 | Not available in store | |||
| 059 | 687053-2 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 060 | 685756-2 | RUBBER SHEET | 2 | €0.56 | 1-4 weeks to ship | |
| 061 | CONTROLLER | 1 | Not available in store | |||
| 062 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 063 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 064 | CORD COVER | 1 | Not available in store | |||
| 065 | 265995-6 | TAPPING SCREW 4X18 | 4 | €0.56 | 1-4 weeks to ship | |
| 066 | 695123-3 | POWER SUPPLY CORD 1.5-2-4.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 067 | CONTROLLER COVER COMPLETE | 1 | Not available in store | |||
| 068 | 266041-8 | TAPPING SCREW 5X25 | 2 | €0.56 | 1-4 weeks to ship | |
| 069 | 263027-3 | RUBBER PIN 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 071 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 072 | SWITCH HOLDER | 1 | Not available in store | |||
| 073 | 451112-6 | SLIDE LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 074 | 232209-8 | LEAF SPRING | 1 | €0.83 | 1-4 weeks to ship | |
| 075 | 266041-8 | TAPPING SCREW 5X25 | 8 | €0.56 | 1-4 weeks to ship | |
| 076 | HANDLE COMPLETE | 1 | Not available in store | |||
| 077 | SWITCH SUPPORT | 1 | Not available in store | |||
| 078 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 079 | HANDLE COVER | 1 | Not available in store | |||
| 080 | 266041-8 | TAPPING SCREW 5X25 | 1 | €0.56 | 1-4 weeks to ship | |
| 081 | BALL BEARING 2818LLU | 1 | Not available in store | |||
| 082 | CRANK SHAFT | 1 | Not available in store | |||
| 083 | O-RING 100 | 1 | Not available in store | |||
| 084 | CRANK CAP A | 1 | Not available in store | |||
| 085 | 266923-4 | H.S.HEAD BOLT M6X25 WITH GM | 4 | €0.70 | 1-4 weeks to ship | |
| 086 | 443127-7 | FILTER | 1 | €0.83 | 1-4 weeks to ship | |
| 087 | 424668-2 | FILTER CAP | 1 | €0.97 | 1-4 weeks to ship | |
| 088 | FILTER GUIDE | 1 | Not available in store | |||
| 089 | 265995-6 | TAPPING SCREW 4X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 090 | 332129-7 | SEALING SCREW | 1 | €1.53 | 1-4 weeks to ship | |
| 091 | 211152-4 | BALL BEARING 6303LLU | 1 | €8.63 | 1-4 weeks to ship | |
| 092 | 267487-1 | FLAT WASHER 17 | 1 | €0.70 | 1-4 weeks to ship | |
| 093 | FAN 80 | 1 | Not available in store | |||
| 094 | ARMATURE ASSY 240V | 1 | Not available in store | |||
| 095 | 681630-2 | INSULATION WASHER | 1 | €1.11 | 1-4 weeks to ship | |
| 096 | BALL BEARING 6200DDW | 1 | Not available in store | |||
| 097 | + HEX BOLT M5X95 WITH GM | 2 | Not available in store | |||
| 098 | BUFFLE PLATE | 1 | Not available in store | |||
| 099 | FIELD 240V | 1 | Not available in store | |||
| 100 | BRUSH HOLDER UNIT | 1 | Not available in store | |||
| 101 | 197129-2 | CARBON BRUSH CB-218 | 1 | €4.45 | 1-4 weeks to ship | |
| 102 | MOTOR HOUSING | 1 | Not available in store | |||
| 103 | 266923-4 | H.S.HEAD BOLT M6X25 WITH GM | 4 | €0.70 | 1-4 weeks to ship | |
| 104 | 213058-2 | O RING 10 | 8 | €1.39 | 1-4 weeks to ship | |
| 105 | PIPE HOLDER | 4 | Not available in store | |||
| 106 | SPRING GUIDE | 4 | Not available in store | |||
| 107 | COMPRESSION SPRING 18 | 4 | Not available in store | |||
| 108 | COUNTER WEIGHT | 2 | Not available in store | |||
| 109 | O-RING 25 | 4 | Not available in store | |||
| 110 | PIPE 22 | 2 | Not available in store | |||
| 111 | REAR COVER A | 1 | Not available in store | |||
| 112 | 417002-3 | SIDE HANDLE CAM | 2 | €1.11 | 1-4 weeks to ship | |
| 113 | SIDE HANDLE BASE A | 1 | Not available in store | |||
| 114 | 951166-8 | SPRING PIN 5-24 | 1 | €0.56 | 1-4 weeks to ship | |
| 115 | SIDE HANDLE BASE B | 1 | Not available in store | |||
| 116 | 265439-6 | HEX. BOLT M8X150 | 1 | €2.78 | 1-4 weeks to ship | |
| 117 | SIDE HANDLE | 1 | Not available in store | |||
| 118 | 252640-2 | WING NUT M8 | 1 | €8.35 | 1-4 weeks to ship | |
| 120 | HM1511 NAME PLATE | 1 | Not available in store | |||
