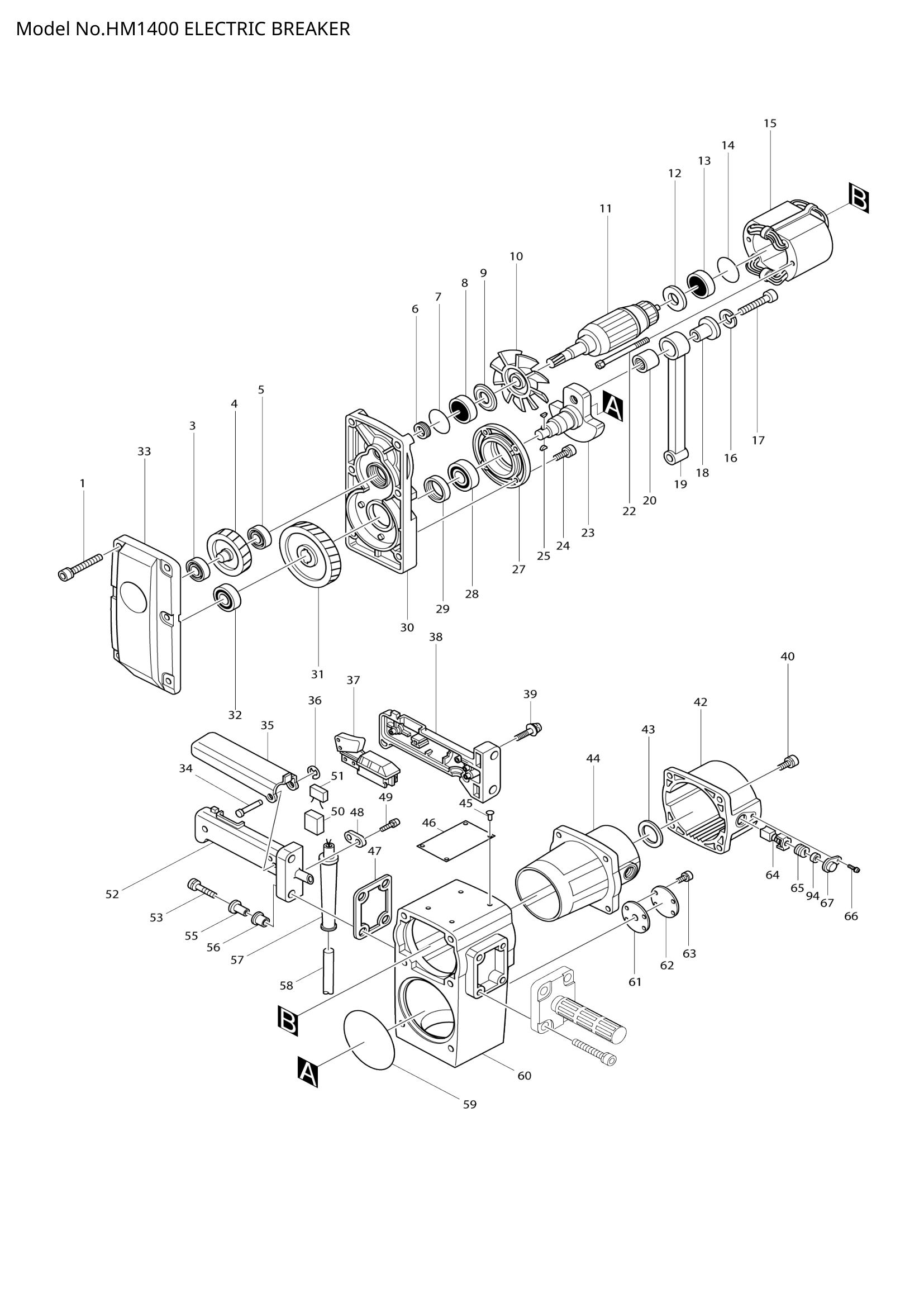

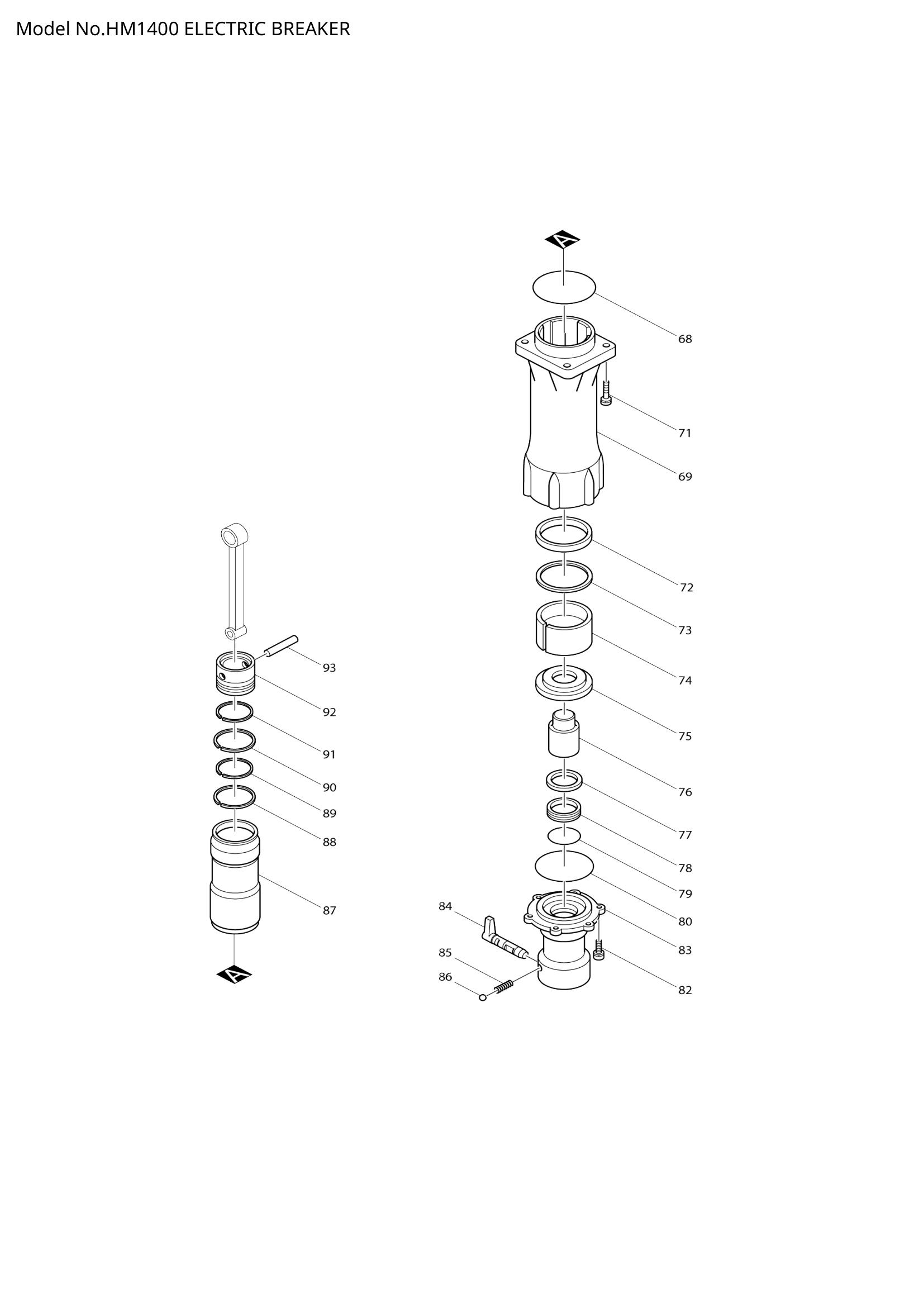

HM1400
HM1400
Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 922471-0 | HEX. SOCKET HEAD BOLT M8X50 | 6 | €1.11 | 1-4 weeks to ship | |
| 922471-0 | HEX. SOCKET HEAD BOLT M8X50 | 6 | €1.11 | 1-4 weeks to ship | ||
| 003 | 211109-5 | BALL BEARING 6201 | 1 | €4.17 | 1-4 weeks to ship | |
| 211109-5 | BALL BEARING 6201 | 1 | €4.17 | 1-4 weeks to ship | ||
| 004 | 221713-2 | HELICAL GEAR 36 | 1 | €52.88 | 1-4 weeks to ship | |
| 221713-2 | HELICAL GEAR 36 | 1 | €52.88 | 1-4 weeks to ship | ||
| 005 | 211109-5 | BALL BEARING 6201 | 1 | €4.17 | 1-4 weeks to ship | |
| 211109-5 | BALL BEARING 6201 | 1 | €4.17 | 1-4 weeks to ship | ||
| 006 | 331212-7 | SEAL | 1 | €4.17 | 1-4 weeks to ship | |
| 331212-7 | SEAL | 1 | €4.17 | 1-4 weeks to ship | ||
| 007 | 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | |
| 213460-9 | O RING 35 | 1 | €0.56 | 1-4 weeks to ship | ||
| 008 | 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | |
| 211206-7 | BALL BEARING 6202LLB | 1 | €8.35 | 1-4 weeks to ship | ||
| 009 | 213202-1 | DUST SEAL 15 | 1 | €0.83 | 1-4 weeks to ship | |
| 213202-1 | DUST SEAL 15 | 1 | €0.83 | 1-4 weeks to ship | ||
| 010 | 241648-1 | FAN 104 | 1 | €19.48 | 1-4 weeks to ship | |
| 241648-1 | FAN 104 | 1 | €19.48 | 1-4 weeks to ship | ||
| 013 | 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | |
| 211066-7 | BALL BEARING 6200LLB | 1 | €6.12 | 1-4 weeks to ship | ||
| 014 | 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | |
| 213406-5 | O RING 30 | 1 | €0.56 | 1-4 weeks to ship | ||
| 016 | 942301-9 | SPRING WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | |
| 942301-9 | SPRING WASHER 12 | 1 | €0.56 | 1-4 weeks to ship | ||
| 017 | 922667-3 | HEX. SOCKET HEAD BOLT M12X4 | 1 | €1.67 | 1-4 weeks to ship | |
| 922667-3 | HEX. SOCKET HEAD BOLT M12X4 | 1 | €1.67 | 1-4 weeks to ship | ||
| 018 | 321560-2 | CRANK SLEEVE | 1 | €16.70 | 1-4 weeks to ship | |
| 321560-2 | CRANK SLEEVE | 1 | €16.70 | 1-4 weeks to ship | ||
| 019 | CONNECTING ROD | 1 | Not available in store | |||
| CONNECTING ROD | 1 | Not available in store | ||||
| 020 | 212307-4 | NEEDLE BEARING 1820 | 1 | €16.70 | 1-4 weeks to ship | |
| 212307-4 | NEEDLE BEARING 1820 | 1 | €16.70 | 1-4 weeks to ship | ||
| 023 | 321556-3 | CRANK SHAFT | 1 | €44.53 | 1-4 weeks to ship | |
| 321556-3 | CRANK SHAFT | 1 | €44.53 | 1-4 weeks to ship | ||
| 025 | 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 254001-2 | WOODRUFF KEY 4 | 2 | €0.56 | 1-4 weeks to ship | ||
| 027 | 315525-4 | BEARING BOX | 1 | €48.42 | 1-4 weeks to ship | |
| 315525-4 | BEARING BOX | 1 | €48.42 | 1-4 weeks to ship | ||
| 028 | 211359-2 | BALL BEARING 6205 | 1 | €11.13 | 1-4 weeks to ship | |
| 211359-2 | BALL BEARING 6205 | 1 | €11.13 | 1-4 weeks to ship | ||
| 029 | 213354-8 | OIL SEAL 25 | 1 | €5.57 | 1-4 weeks to ship | |
| 213354-8 | OIL SEAL 25 | 1 | €5.57 | 1-4 weeks to ship | ||
| 031 | 221714-0 | HELICAL GEAR 53 | 1 | €52.88 | 1-4 weeks to ship | |
| 221714-0 | HELICAL GEAR 53 | 1 | €52.88 | 1-4 weeks to ship | ||
| 032 | 211214-8 | BALL BEARING 6302 | 1 | €11.13 | 1-4 weeks to ship | |
| 211214-8 | BALL BEARING 6302 | 1 | €11.13 | 1-4 weeks to ship | ||
| 034 | 323147-6 | SWITCH LEVER PIN | 1 | €4.17 | 1-4 weeks to ship | |
| 323147-6 | SWITCH LEVER PIN | 1 | €4.17 | 1-4 weeks to ship | ||
| 036 | 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | |
| 961011-9 | STOP RING E-4 | 1 | €0.56 | 1-4 weeks to ship | ||
| 038 | 181906-2 | HANDLE SET | 1 | €25.05 | 1-4 weeks to ship | |
| 181906-2 | HANDLE SET | 1 | €25.05 | 1-4 weeks to ship | ||
| 039 | 911253-5 | PAN HEAD SCREW M5X30 | 3 | €0.56 | 1-4 weeks to ship | |
| 911253-5 | PAN HEAD SCREW M5X30 | 3 | €0.56 | 1-4 weeks to ship | ||
| 040 | 922356-0 | HEX. SOCKET HEAD BOLT M6X35 | 4 | €0.56 | 1-4 weeks to ship | |
| 922356-0 | HEX. SOCKET HEAD BOLT M6X35 | 4 | €0.56 | 1-4 weeks to ship | ||
| 043 | 253751-6 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | |
| 253751-6 | FLAT WASHER 24 | 1 | €0.56 | 1-4 weeks to ship | ||
| 045 | 953106-2 | RIVET 0-5 | 4 | €0.56 | 1-4 weeks to ship | |
| 953106-2 | RIVET 0-5 | 4 | €0.56 | 1-4 weeks to ship | ||
| 047 | 423137-0 | PACKING | 1 | €4.17 | 1-4 weeks to ship | |
| 423137-0 | PACKING | 1 | €4.17 | 1-4 weeks to ship | ||
| 052 | 181906-2 | HANDLE SET | 1 | €25.05 | 1-4 weeks to ship | |
| 181906-2 | HANDLE SET | 1 | €25.05 | 1-4 weeks to ship | ||
| 053 | 922461-3 | HEX. SOCKET HEAD BOLT M8X40 | 4 | €1.11 | 1-4 weeks to ship | |
| 922461-3 | HEX. SOCKET HEAD BOLT M8X40 | 4 | €1.11 | 1-4 weeks to ship | ||
| 055 | 321956-7 | HANDLE SLEEVE | 4 | €11.13 | 1-4 weeks to ship | |
| 321956-7 | HANDLE SLEEVE | 4 | €11.13 | 1-4 weeks to ship | ||
| 056 | 421308-3 | SLEEVE | 4 | €0.83 | 1-4 weeks to ship | |
| 421308-3 | SLEEVE | 4 | €0.83 | 1-4 weeks to ship | ||
| 059 | 213855-6 | O RING 95 | 1 | €1.67 | 1-4 weeks to ship | |
| 213855-6 | O RING 95 | 1 | €1.67 | 1-4 weeks to ship | ||
| 061 | 442009-0 | PACKING 50 | 1 | €0.70 | 1-4 weeks to ship | |
| 442009-0 | PACKING 50 | 1 | €0.70 | 1-4 weeks to ship | ||
| 062 | 341397-1 | PLATE 50 | 1 | €1.39 | 1-4 weeks to ship | |
| 341397-1 | PLATE 50 | 1 | €1.39 | 1-4 weeks to ship | ||
| 063 | 911211-1 | PAN HEAD SCREW M5X12 | 4 | €0.56 | 1-4 weeks to ship | |
| 911211-1 | PAN HEAD SCREW M5X12 | 4 | €0.56 | 1-4 weeks to ship | ||
| 066 | 911216-1 | PAN HEAD SCREW M5X14 | 2 | €0.56 | 1-4 weeks to ship | |
| 911216-1 | PAN HEAD SCREW M5X14 | 2 | €0.56 | 1-4 weeks to ship | ||
| 068 | 213755-0 | O RING 75 | 1 | €1.11 | 1-4 weeks to ship | |
| 213755-0 | O RING 75 | 1 | €1.11 | 1-4 weeks to ship | ||
| 071 | 922461-3 | HEX. SOCKET HEAD BOLT M8X40 | 4 | €1.11 | 1-4 weeks to ship | |
| 922461-3 | HEX. SOCKET HEAD BOLT M8X40 | 4 | €1.11 | 1-4 weeks to ship | ||
| 072 | 262034-3 | NYLON RING 63 | 1 | €4.17 | 1-4 weeks to ship | |
| 262034-3 | NYLON RING 63 | 1 | €4.17 | 1-4 weeks to ship | ||
| 073 | 253861-9 | FLAT WASHER 63 | 1 | €4.17 | 1-4 weeks to ship | |
| 253861-9 | FLAT WASHER 63 | 1 | €4.17 | 1-4 weeks to ship | ||
| 076 | 321563-6 | IMPACT BOLT | 1 | €52.88 | 1-4 weeks to ship | |
| 321563-6 | IMPACT BOLT | 1 | €52.88 | 1-4 weeks to ship | ||
| 077 | 262039-3 | NYLON RING 42 | 1 | €5.57 | 1-4 weeks to ship | |
| 262039-3 | NYLON RING 42 | 1 | €5.57 | 1-4 weeks to ship | ||
| 079 | 213504-5 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | |
| 213504-5 | O RING 40 | 1 | €0.56 | 1-4 weeks to ship | ||
| 080 | 213754-2 | O RING 71 | 1 | €1.11 | 1-4 weeks to ship | |
| 213754-2 | O RING 71 | 1 | €1.11 | 1-4 weeks to ship | ||
| 083 | 321961-4 | TOOL HOLDER | 1 | €340.36 | 1-4 weeks to ship | |
| 321961-4 | TOOL HOLDER | 1 | €340.36 | 1-4 weeks to ship | ||
| 084 | 321788-2 | TOOL RETAINER | 1 | €47.31 | 1-4 weeks to ship | |
| 321788-2 | TOOL RETAINER | 1 | €47.31 | 1-4 weeks to ship | ||
| 085 | 231032-8 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 231032-8 | COMPRESSION SPRING 5 | 1 | €0.56 | 1-4 weeks to ship | ||
| 086 | 216004-4 | STEEL BALL 7.9 | 1 | €0.56 | 1-4 weeks to ship | |
| 216004-4 | STEEL BALL 7.9 | 1 | €0.56 | 1-4 weeks to ship | ||
| 088 | 412055-7 | PISTON RING 50 | 1 | €19.48 | 1-4 weeks to ship | |
| 412055-7 | PISTON RING 50 | 1 | €19.48 | 1-4 weeks to ship | ||
| 089 | 341993-5 | INNER RING | 1 | €4.17 | 1-4 weeks to ship | |
| 341993-5 | INNER RING | 1 | €4.17 | 1-4 weeks to ship | ||
| 090 | 412055-7 | PISTON RING 50 | 1 | €19.48 | 1-4 weeks to ship | |
| 412055-7 | PISTON RING 50 | 1 | €19.48 | 1-4 weeks to ship | ||
| 091 | 341993-5 | INNER RING | 1 | €4.17 | 1-4 weeks to ship | |
| 341993-5 | INNER RING | 1 | €4.17 | 1-4 weeks to ship | ||
| 092 | 321562-8 | PISTON | 1 | €41.75 | 1-4 weeks to ship | |
| 321562-8 | PISTON | 1 | €41.75 | 1-4 weeks to ship | ||
| 093 | 256128-4 | PIN 10 | 1 | €4.17 | 1-4 weeks to ship | |
| 256128-4 | PIN 10 | 1 | €4.17 | 1-4 weeks to ship | ||
| 094 | 262003-4 | RUBBER RING 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 262003-4 | RUBBER RING 6 | 2 | €0.56 | 1-4 weeks to ship | ||
| 402 | 922451-6 | HEX. SOCKET HEAD BOLT M8X30 | 4 | €0.83 | 1-4 weeks to ship | |
| 922451-6 | HEX. SOCKET HEAD BOLT M8X30 | 4 | €0.83 | 1-4 weeks to ship | ||
| 404 | HEX. WRENCH 6 | 1 | Not available in store | |||
| HEX. WRENCH 6 | 1 | Not available in store | ||||
