HM1304B
HM1304B

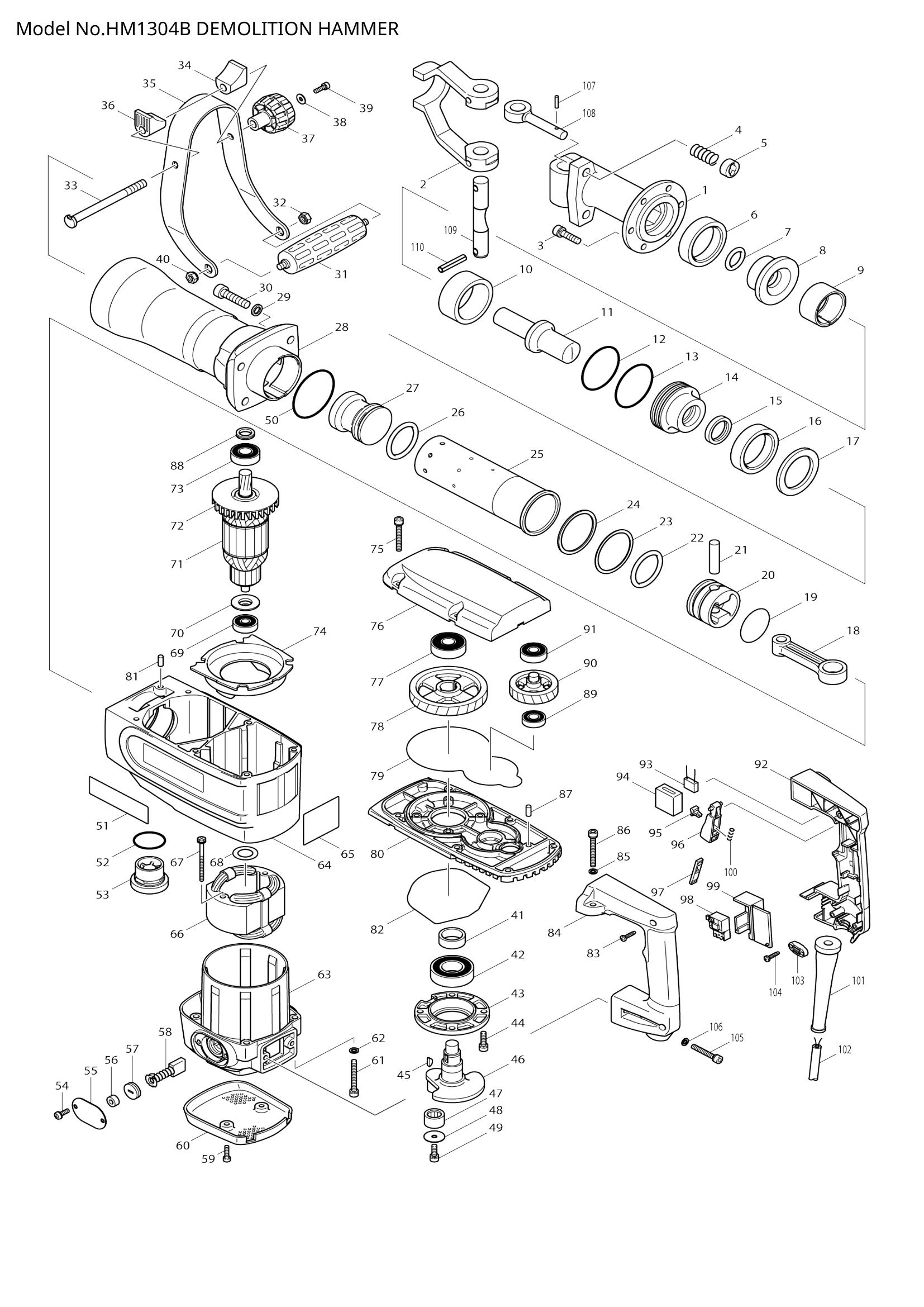

Parts list
| Pos. | Part No. | Description | Qty | Price | Stock | Buy |
|---|---|---|---|---|---|---|
| 001 | 324345-5 | TOOL HOLDER | 1 | €264.39 | 1-4 weeks to ship | |
| 002 | 322478-0 | TOOL RETAINER | 1 | €429.42 | 1-4 weeks to ship | |
| 003 | 266010-9 | HEX. SOCKET HEAD BOLT M8X30 | 6 | €1.11 | 1-4 weeks to ship | |
| 004 | 233083-7 | COMPRESSION SPRING 12 | 2 | €1.39 | 1-4 weeks to ship | |
| 005 | 322560-5 | RETAINER RING | 2 | €11.13 | 1-4 weeks to ship | |
| 006 | 262098-7 | URETHAN RING 48 | 1 | €16.70 | 1-4 weeks to ship | |
| 007 | 213388-1 | O RING 24 | 1 | €2.78 | 1-4 weeks to ship | |
| 008 | 324346-3 | TOOL GUIDE | 1 | €30.61 | 1-4 weeks to ship | |
| 009 | 324166-5 | IDLER | 1 | €22.26 | 1-4 weeks to ship | |
| 010 | 262099-5 | RUBBER RING 52 | 1 | €5.57 | 1-4 weeks to ship | |
| 011 | 324347-1 | IMPACT BOLT | 1 | €52.88 | 1-4 weeks to ship | |
| 015 | 213443-9 | X-RING 30 | 1 | €13.92 | 1-4 weeks to ship | |
| 016 | 262098-7 | URETHAN RING 48 | 1 | €16.70 | 1-4 weeks to ship | |
| 017 | 267232-4 | FLAT WASHER 48 | 1 | €13.92 | 1-4 weeks to ship | |
| 018 | 317448-2 | CONNECTING ROD | 1 | €41.75 | 1-4 weeks to ship | |
| 019 | 213617-2 | O RING 47 | 1 | €1.11 | 1-4 weeks to ship | |
| 020 | 317447-4 | PISTON | 1 | €36.18 | 1-4 weeks to ship | |
| 021 | 268066-8 | PIN 12 | 1 | €4.17 | 1-4 weeks to ship | |
| 022 | 213572-8 | O-RING 44 | 1 | €4.17 | 1-4 weeks to ship | |
| 023 | 267233-2 | FLAT WASHER 55 | 1 | €2.78 | 1-4 weeks to ship | |
| 024 | 261121-5 | NYLON WASHER 55 | 1 | €1.67 | 1-4 weeks to ship | |
| 025 | 331600-8 | CYLINDER LINER 54 | 1 | €119.67 | 1-4 weeks to ship | |
| 026 | 213572-8 | O-RING 44 | 1 | €4.17 | 1-4 weeks to ship | |
| 027 | 324102-1 | STRIKER | 1 | €33.40 | 1-4 weeks to ship | |
| 028 | 317444-0 | BARREL | 1 | €186.46 | 1-4 weeks to ship | |
| 029 | 941252-3 | FLAT WASHER 10 | 4 | €0.56 | 1-4 weeks to ship | |
| 030 | 266276-1 | HEX.SOCKET HEAD BOLT M10X4 | 4 | €1.11 | 1-4 weeks to ship | |
| 031 | 273518-6 | GRIP 37 | 1 | €13.92 | 1-4 weeks to ship | |
| 032 | 252005-8 | HEX. NUT M8-13 | 1 | €1.11 | 1-4 weeks to ship | |
| 033 | 266298-1 | SET BOLT M10X122 | 1 | €5.57 | 1-4 weeks to ship | |
| 034 | 416228-4 | HANDLE BASE | 1 | €2.78 | 1-4 weeks to ship | |
| 035 | SIDE HANDLE | 1 | Not available in store | |||
| 036 | 416228-4 | HANDLE BASE | 1 | €2.78 | 1-4 weeks to ship | |
| 037 | 252633-9 | WING NUT M10 | 1 | €8.35 | 1-4 weeks to ship | |
| 038 | 253194-2 | FLAT WASHER 5 | 1 | €0.56 | 1-4 weeks to ship | |
| 039 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 1 | €0.56 | 1-4 weeks to ship | |
| 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 1 | €0.56 | 1-4 weeks to ship | ||
| 040 | 252005-8 | HEX. NUT M8-13 | 1 | €1.11 | 1-4 weeks to ship | |
| 041 | 257196-0 | RING 25 | 1 | €2.78 | 1-4 weeks to ship | |
| 042 | 211373-8 | BALL BEARING 6205LLU | 1 | €13.92 | 1-4 weeks to ship | |
| 043 | 316730-6 | BEARING BOX | 1 | €11.13 | 1-4 weeks to ship | |
| 044 | 265366-7 | HEX. SOCKET HEAD BOLT M6X22 | 4 | €0.97 | 1-4 weeks to ship | |
| 045 | 254001-2 | WOODRUFF KEY 4 | 1 | €0.56 | 1-4 weeks to ship | |
| 046 | 324100-5 | CRANK SHAFT | 1 | €33.40 | 1-4 weeks to ship | |
| 047 | 212261-2 | NEEDLE BEARING 1715 | 1 | €8.35 | 1-4 weeks to ship | |
| 048 | 253196-8 | FLAT WASHER 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 049 | 922326-9 | HEX. SOCKET HEAD BOLT M6X18 | 1 | €0.56 | 1-4 weeks to ship | |
| 050 | 213720-9 | O RING 67 | 1 | €0.83 | 1-4 weeks to ship | |
| 052 | 213510-0 | O RING 36 | 1 | €0.56 | 1-4 weeks to ship | |
| 053 | 416561-4 | CRANK CAP | 1 | €8.35 | 1-4 weeks to ship | |
| 054 | 911221-8 | PAN HEAD SCREW M5X16 | 4 | €0.56 | 1-4 weeks to ship | |
| 055 | 345278-1 | HOLDER CAP PLATE | 2 | €1.11 | 1-4 weeks to ship | |
| 056 | 262003-4 | RUBBER RING 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 057 | 643700-5 | BRUSH HOLDER CAP 7-18 | 2 | €1.11 | 1-4 weeks to ship | |
| 059 | 922227-1 | HEX. SOCKET HEAD BOLT M5X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 060 | 345319-3 | REAR COVER | 1 | €19.48 | 1-4 weeks to ship | |
| 063 | 153438-9 | MOTOR HOUSING COMPLETE | 1 | €64.01 | 1-4 weeks to ship | |
| 065 | NAME PLATE HM1304B | 1 | Not available in store | |||
| 066 | 626124-0 | FIELD 220-240V | 1 | €69.58 | 1-4 weeks to ship | |
| 067 | + HEX. BOLT M5X65 | 2 | Not available in store | |||
| 068 | 253794-8 | FLAT WASHER 18 | 1 | €0.56 | 1-4 weeks to ship | |
| 069 | 211087-9 | BALL BEARING 6200DDW | 1 | €4.17 | 1-4 weeks to ship | |
| 070 | 681635-2 | INSULATION WASHER | 1 | €0.83 | 1-4 weeks to ship | |
| 071 | 516864-7 | ARMATURE ASS'Y 220-240V | 1 | €222.64 | 1-4 weeks to ship | |
| 072 | 241870-0 | FAN 80 | 1 | €11.13 | 1-4 weeks to ship | |
| 073 | 211228-7 | BALL BEARING 6202DDW | 1 | €8.35 | 1-4 weeks to ship | |
| 074 | 418000-0 | BAFFLE PLATE | 1 | €4.17 | 1-4 weeks to ship | |
| 075 | 266310-7 | HEX.SOCKET HEAD BOLT M6X45 | 4 | €0.83 | 1-4 weeks to ship | |
| 076 | 317446-6 | GEAR HOUSING COVER | 1 | €47.31 | 1-4 weeks to ship | |
| 077 | 211214-8 | BALL BEARING 6302 | 1 | €11.13 | 1-4 weeks to ship | |
| 078 | 226450-3 | HELICAL GEAR 57 | 1 | €52.88 | 1-4 weeks to ship | |
| 079 | 421780-9 | SEAL RING B | 1 | €4.17 | 1-4 weeks to ship | |
| 080 | 317445-8 | GEAR HOUSING | 1 | €61.23 | 1-4 weeks to ship | |
| 081 | 256111-1 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 082 | 421779-4 | SEAL RING A | 1 | €2.78 | 1-4 weeks to ship | |
| 083 | 265995-6 | TAPPING SCREW 4X18 | 3 | €0.56 | 1-4 weeks to ship | |
| 084 | 183546-2 | HANDLE SET | 1 | €33.40 | 1-4 weeks to ship | |
| 085 | 941152-7 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 086 | 922371-4 | HEX. SOCKET HEAD BOLT M6X50 | 2 | €0.83 | 1-4 weeks to ship | |
| 087 | 256111-1 | PIN 6 | 1 | €0.83 | 1-4 weeks to ship | |
| 088 | 331212-7 | SEAL | 1 | €4.17 | 1-4 weeks to ship | |
| 089 | 211104-5 | BALL BEARING 6001 | 1 | €8.35 | 1-4 weeks to ship | |
| 090 | 226449-8 | HELICAL GEAR 34 | 1 | €41.75 | 1-4 weeks to ship | |
| 091 | 211109-5 | BALL BEARING 6201 | 1 | €4.17 | 1-4 weeks to ship | |
| 092 | 183546-2 | HANDLE SET | 1 | €33.40 | 1-4 weeks to ship | |
| 093 | 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | |
| 645105-5 | NOISE SUPPRESSOR | 1 | €0.83 | 1-4 weeks to ship | ||
| 094 | 685725-3 | SPONGE SHEET | 1 | €0.56 | 1-4 weeks to ship | |
| 095 | 415805-9 | LOCK BUTTON | 1 | €0.83 | 1-4 weeks to ship | |
| 096 | 417544-7 | SWITCH LEVER | 1 | €4.17 | 1-4 weeks to ship | |
| 097 | 415806-7 | LOCK PLATE | 1 | €0.83 | 1-4 weeks to ship | |
| 099 | 421778-6 | SWITCH BOX | 1 | €4.17 | 1-4 weeks to ship | |
| 100 | 231457-6 | COMPRESSION SPRING 3 | 1 | €0.56 | 1-4 weeks to ship | |
| 101 | 682560-0 | CORD GUARD 10 | 1 | €1.67 | 1-4 weeks to ship | |
| 102 | 665883-1 | POWER SUPPLY CORD 1.0-2-5.0 | 1 | €30.61 | 1-4 weeks to ship | |
| 103 | 687052-4 | STRAIN RELIEF | 1 | €0.56 | 1-4 weeks to ship | |
| 104 | 265995-6 | TAPPING SCREW 4X18 | 2 | €0.56 | 1-4 weeks to ship | |
| 105 | 922361-7 | HEX. SOCKET HEAD BOLT M6X40 | 2 | €0.56 | 1-4 weeks to ship | |
| 106 | 941152-7 | FLAT WASHER 6 | 2 | €0.56 | 1-4 weeks to ship | |
| 107 | 256219-1 | PIN 4 | 2 | €0.56 | 1-4 weeks to ship | |
| 108 | 322477-2 | TOOL RETAINER POLE | 2 | €33.40 | 1-4 weeks to ship | |
| 109 | 322550-8 | TOOL RETAINER SHAFT | 1 | €37.29 | 1-4 weeks to ship | |
| 110 | 951272-9 | SPRING PIN 8-40 | 2 | €0.83 | 1-4 weeks to ship | |
